Интеллектуальная солнечная панель контроллер регулятор 24 В 12 В DC Выходная лампа 10А 30А 50А 60А 20А ручные PWM/MPPT Солнечное зарядное устройство контроллеры
304,83 ₽ - 383,77 ₽
Контроллер зарядного устройства на солнечной батарее 12 В 24
- Категория: >>>
- Поставщик: Shenzhen Yonghui Fashion Co. Ltd.
Сохранить в закладки 1600900210641:
Описание и отзывы
Характеристики
Products Description
Introduction:

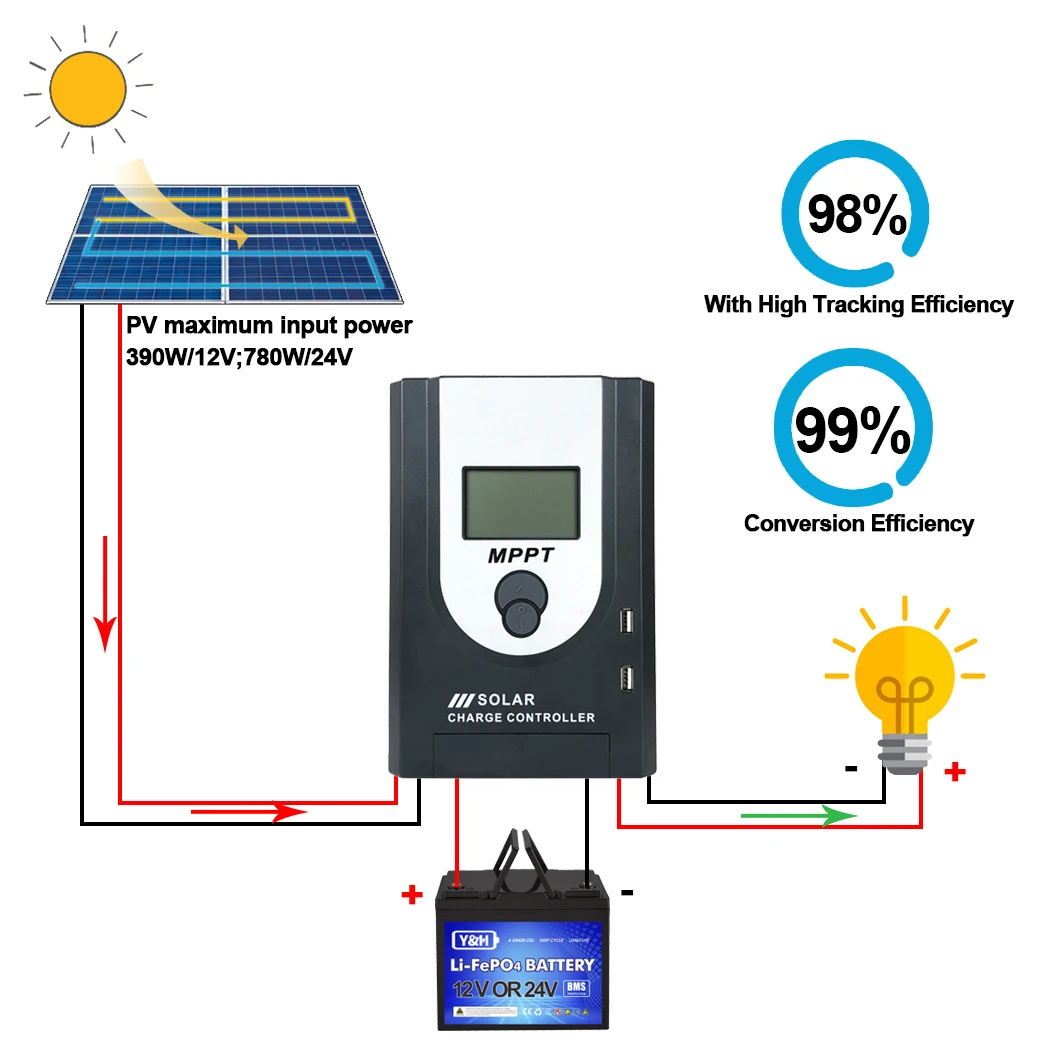

Thank you for selecting MPPT series solar charge controller with the most advanced MPPT control algorithm and the maximum power
point of the pv array can be quickly tracked in any environment so that it can get the maximum energy from the solar panel and
significantly improve the utilization of energy in solar system. The machine has the dual display function of LCD and Remote
header (optional) and standard communication interface, convenient for user extension application and satisfy different monitoring
needs to the maximum extent. It can be used in communication base station, home power supply system, traffic light, solar street
lamp, courtyard lamp systems, etc.
Features:
1. Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.
2. High quality components are used to improve the system performance, and the maximum conversion efficiency can reach97%.
3. Super fast maximum power tracking speed while ensuring tracking efficiency.
4. Accurate identification and tracking of the maximum power point of multi-wave peak.
5. Reliable maximum input power of pv array to ensure the safety of equipment.
6. Wide pv array maximum power point operating voltage range. 12/24v automatic voltage identification
7. The LCD is designed to dynamically display the operation data and working status of the equipment.

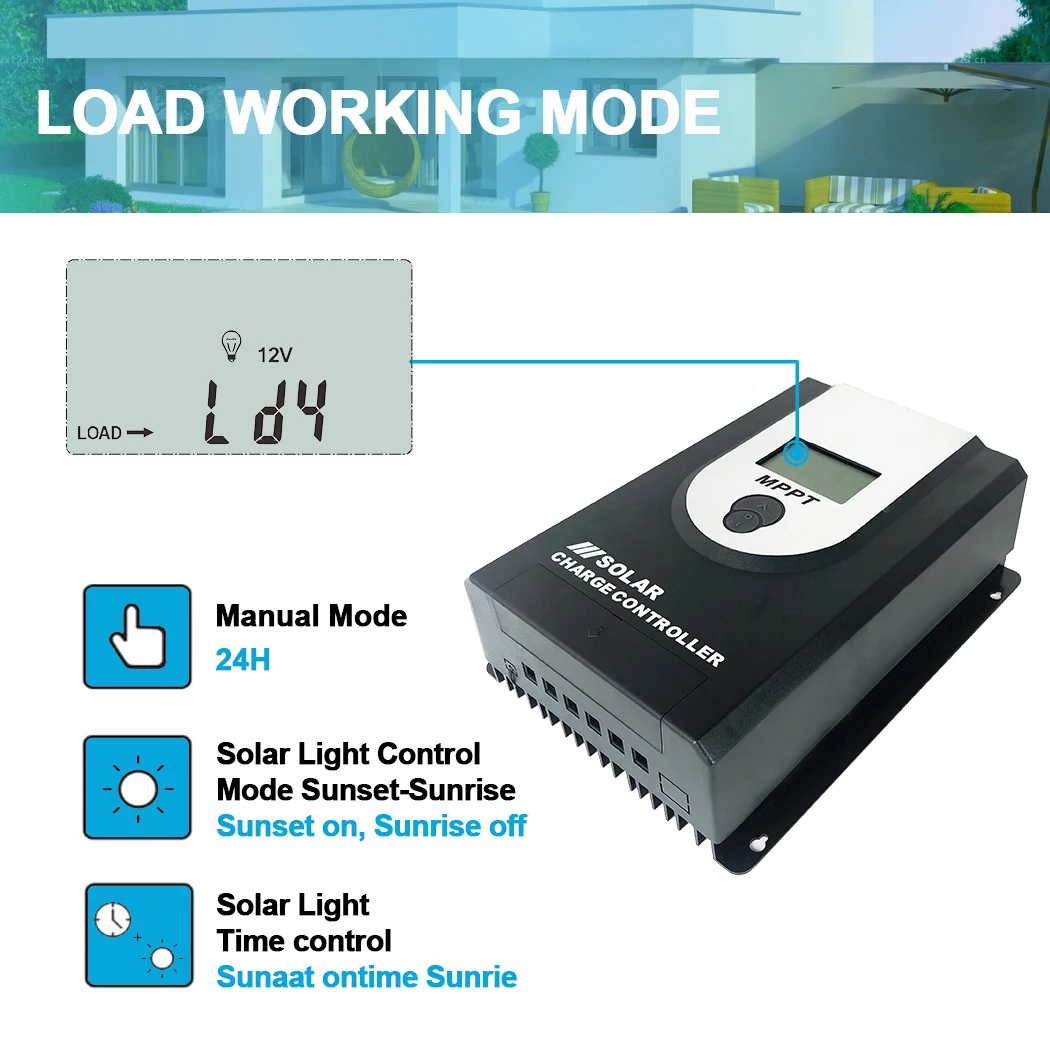

8. Various load control modes: general mode, light control mode, dual time mode, pure charger mode and timing mode.

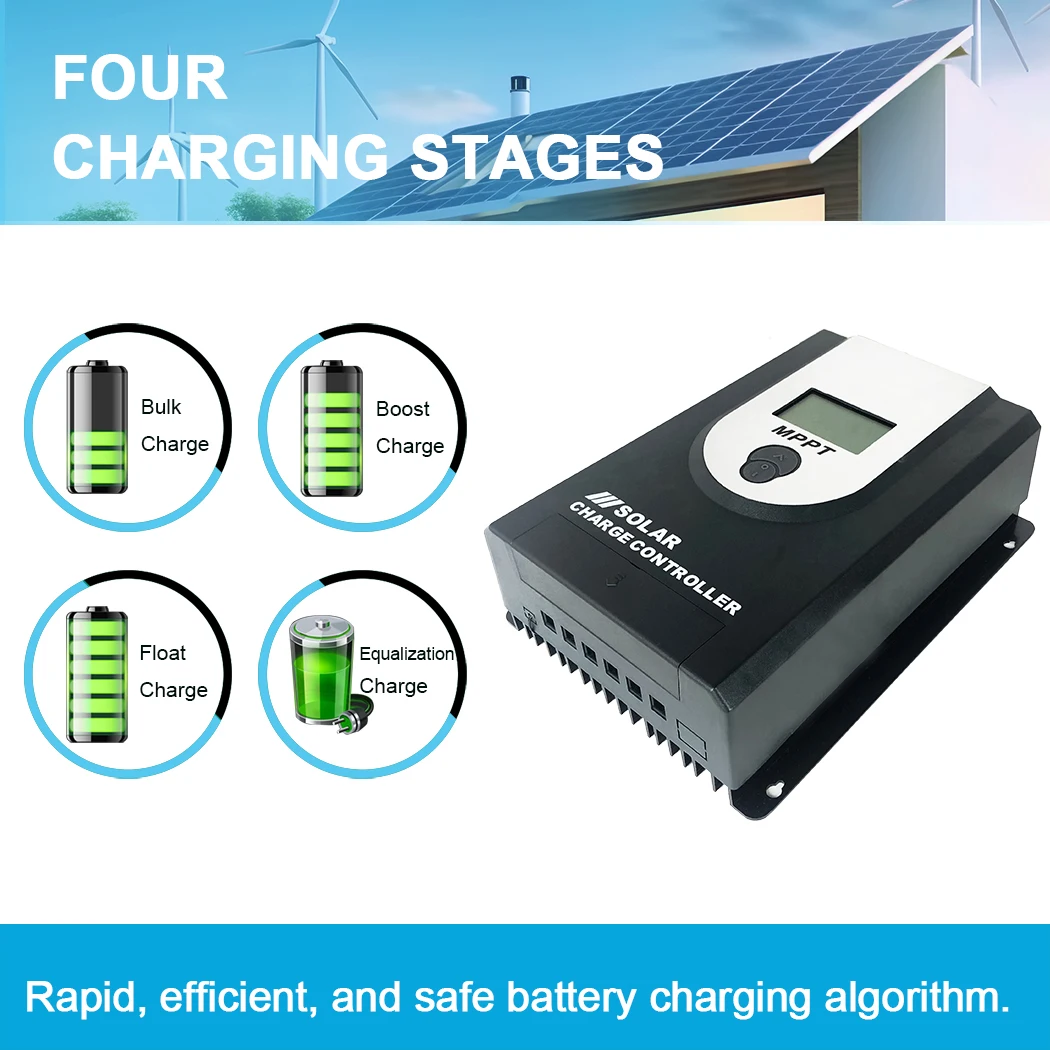

9. Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process can be selected.
10. The function of battery temperature compensation.
11. Power statistics recording function.
NOTE: The 30amp controller will start PWM function at high voltage disconnection (HVD) voltage point, which limited voltage rising
to protect battery.
point of the pv array can be quickly tracked in any environment so that it can get the maximum energy from the solar panel and
significantly improve the utilization of energy in solar system. The machine has the dual display function of LCD and Remote
header (optional) and standard communication interface, convenient for user extension application and satisfy different monitoring
needs to the maximum extent. It can be used in communication base station, home power supply system, traffic light, solar street
lamp, courtyard lamp systems, etc.
Features:
1. Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.
2. High quality components are used to improve the system performance, and the maximum conversion efficiency can reach97%.
3. Super fast maximum power tracking speed while ensuring tracking efficiency.
4. Accurate identification and tracking of the maximum power point of multi-wave peak.
5. Reliable maximum input power of pv array to ensure the safety of equipment.
6. Wide pv array maximum power point operating voltage range. 12/24v automatic voltage identification
7. The LCD is designed to dynamically display the operation data and working status of the equipment.
8. Various load control modes: general mode, light control mode, dual time mode, pure charger mode and timing mode.
9. Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process can be selected.
10. The function of battery temperature compensation.
11. Power statistics recording function.
NOTE: The 30amp controller will start PWM function at high voltage disconnection (HVD) voltage point, which limited voltage rising
to protect battery.

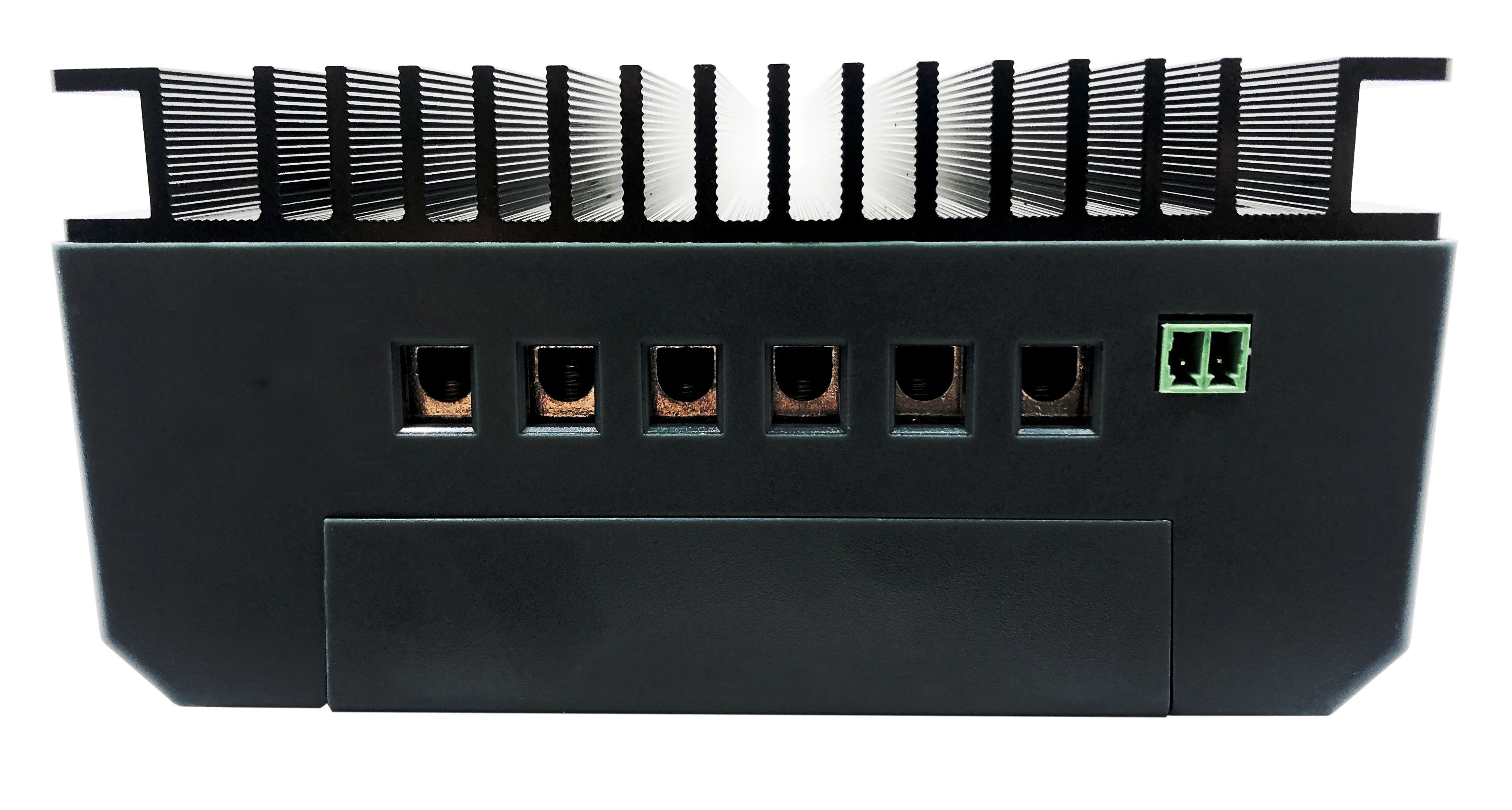

Details Images
Model | MPJ20A | MPJ30A | MPJ40A | ||
Rated charge current | 20A | 30A | 40A | ||
System rated voltage | 12V/24V Auto work | ||||
Voltage range of battery | 8-32V | ||||
Max open voltage of PV module | 55V | 75V | 100V | ||
Battery type | User default, Sealed, Flooded, GEL, LiFePO4,Li(NiCoMn)O2 | ||||
Equalized charging voltage | Maintenance-fee lead acid battery 14.6V, GEL: No: Lead acid flooded battery: 14.8V | ||||
Absorption charging voltage | Maintenance-fee lead acid battery 14.4V,GEL: 14.2; Lead acid flooded battery: 14.6V | ||||
Floating charging voltage | Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 13.8V | ||||
Low voltage re-connection (LVR) | Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 12.6V | ||||
Low voltage disconnection (LVD) | Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 10.8V | ||||
Static loss | <9.2mA 12V; <11.7mA 24V | ||||
High voltage disconnection (HVD) | 16V (24V x 2) | ||||
Duration of absorption charging | 2 Hours | ||||
Light control voltage | 5V | ||||
Charge loop voltage drop | <0.29V | ||||
LCD Temperature | -20°C~+70°C | ||||
Operating Temperature | -20°C-+55°C (To run at full rated current continuously) | ||||
Operating Temperature | -20°C-+55°C (To run at full rated current continuously) | ||||
Working humidity | <95% No condensation | ||||
Protection class | IP30 | ||||
Dimension (LxWxH) mm | 123x178x48 | 135x202x55 | 150x220x67 | ||
Product Show
Company Profile
"Y&H"was established in 2016. Provide customers with one -stop solar system service.Y&H is a field of solar products,
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
Product packaging
Certifications
FAQ
FAQ
1. How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
Похожие товары
Высокоэффективный контроллер солнечной энергии SCC040GHigh 10A Mppt
4 528,48 ₽ - 4 754,36 ₽
Контроллер заряда солнечной батареи DC MPPT для двойной батареи для каравана RV кемперов яхт вне сети M2430ND 12V 24V 30A 900W
12 061,33 ₽ - 12 609,57 ₽

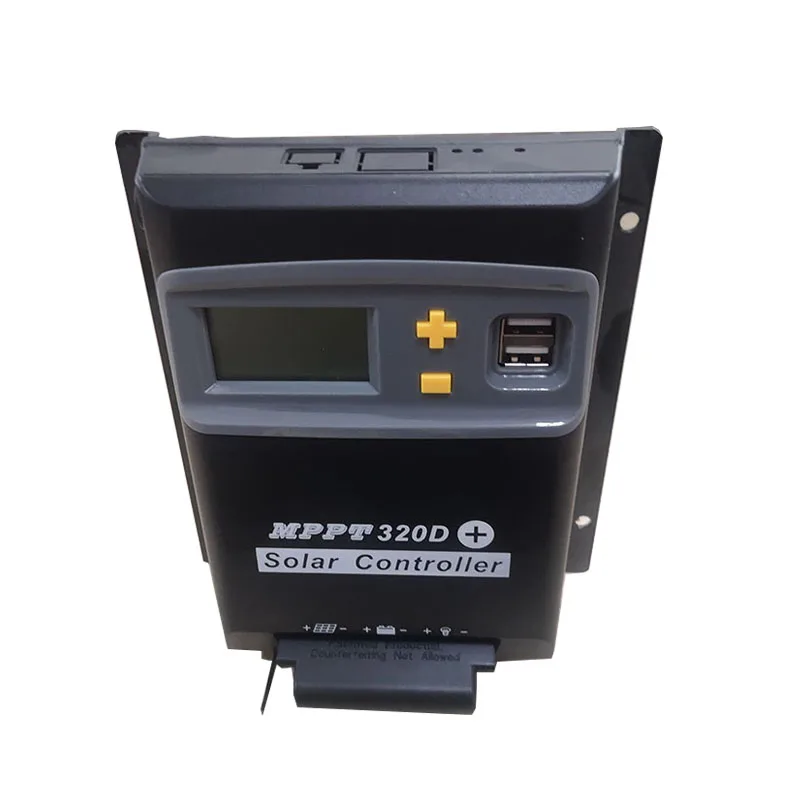

MPPT контроллер солнечного заряда для e-Bike и NiMH батареи
27 412,10 ₽ - 35 087,49 ₽

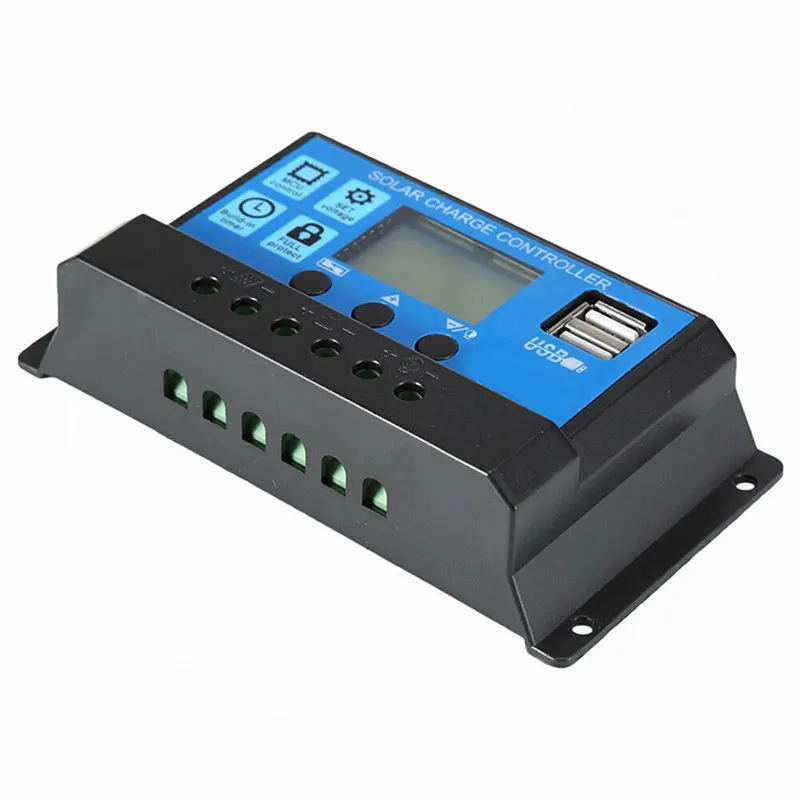

Слежением за максимальной точкой мощности, 20A USB с поддержкой Wi-Fi 12/24V зарядное устройство на солнечных батареях контроллер RS485 BT со слежением за максимальной точкой мощности, блок управления установкой на солнечной батарее
2 434,20 ₽ - 2 510,95 ₽

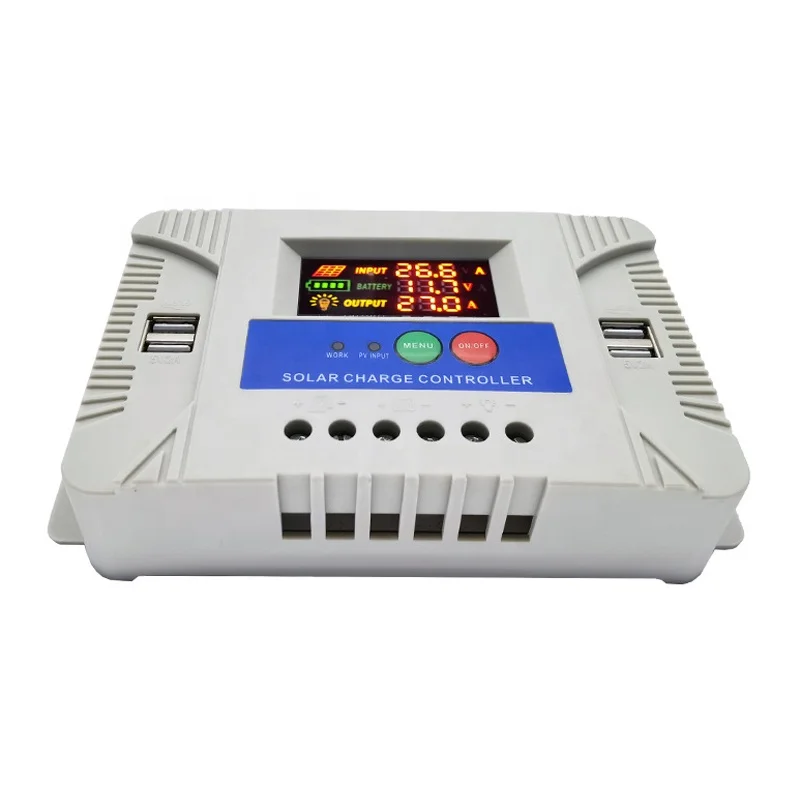

Автоматический 12 В 24 В 48 В контроллер солнечного заряда PWM 20A 60A цифровой генератор зарядного устройства для зарядной станции EV

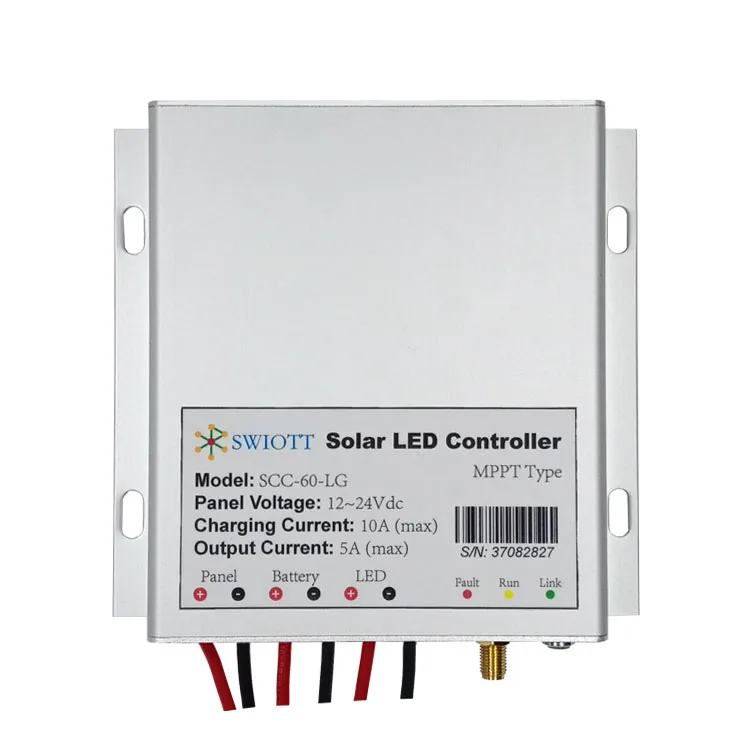

SCC060LG несколько сетевых методов NBIoT LoRaWan LoRamesh интеллектуальная функция управления солнечным уличным фонарем контроллер mppt
4 775,19 ₽ - 5 014,23 ₽

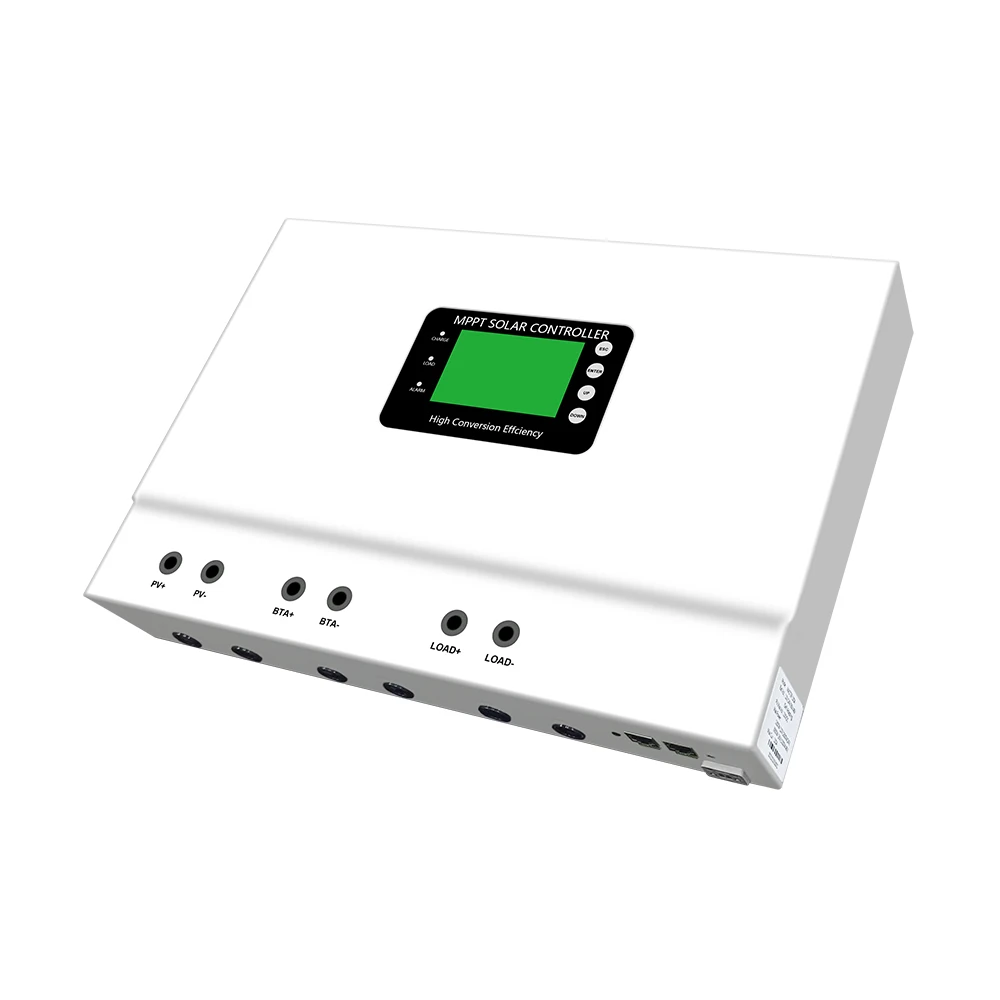

Контроллеры солнечного зарядного устройства 60A MPPT 12V 24V 36V 48V AUTO Max PV вход 175V солнечный регулятор для домашней солнечной системы
