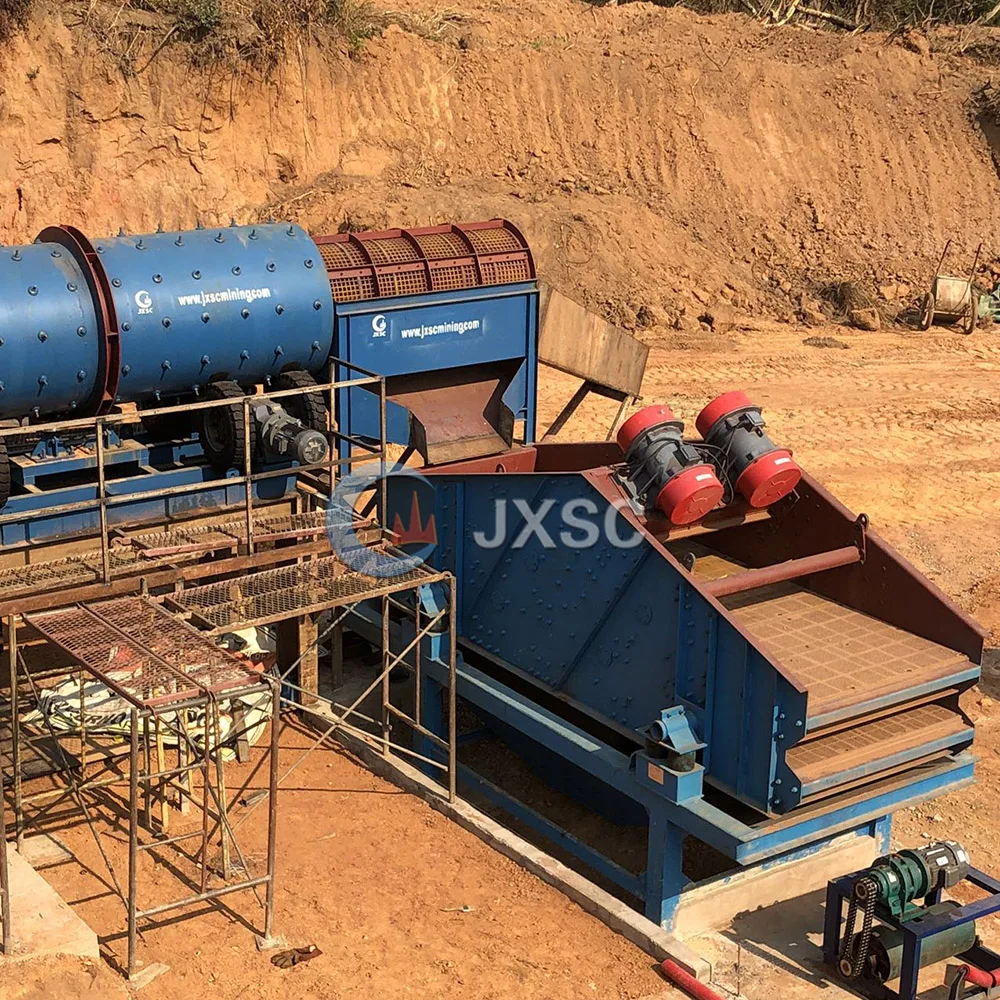

Ангола 200tph шахтная обработка драгоценных камней стиральная машина алмазный завод для продажи
25 000,00-28 000,00 $
Заводская поставка шахтного циклонного оборудования угледобывающий сепаратор Диэлектрический Гидроциклон цена
- Категория: >>>
- Поставщик: Shanxi Huazhan Wear-Resistant Material Technology Co. Ltd.Shanxi Ltd.
Сохранить в закладки 1601058992989:
Описание и отзывы
Характеристики

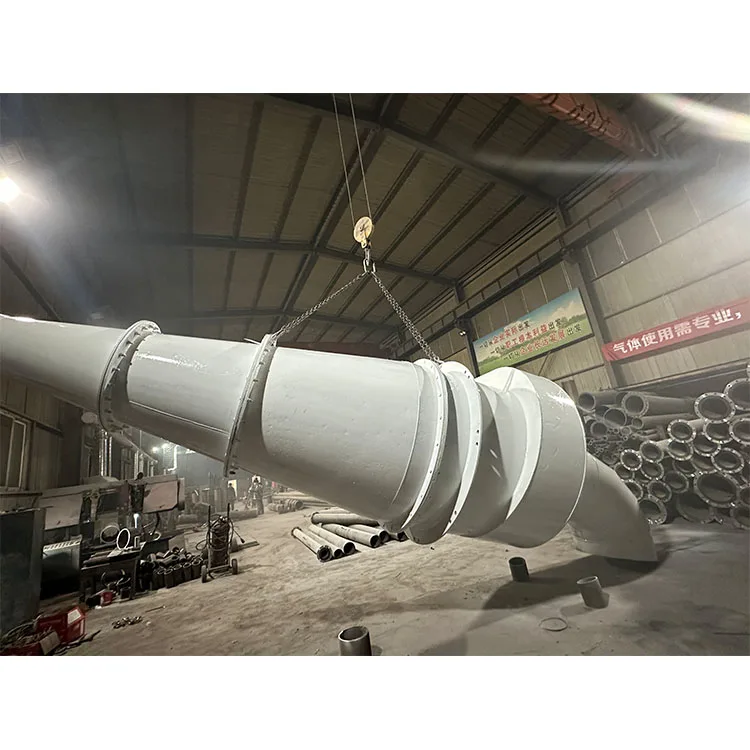

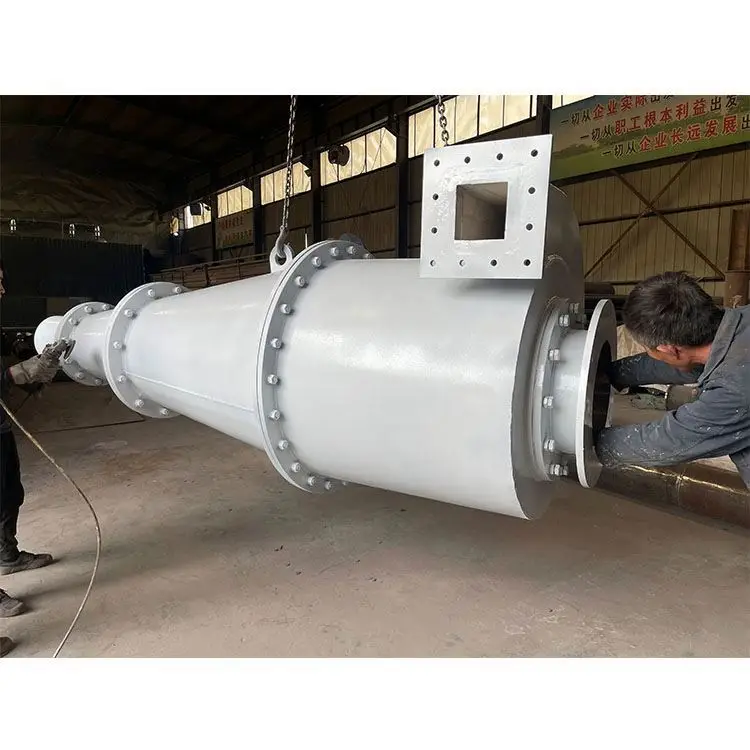

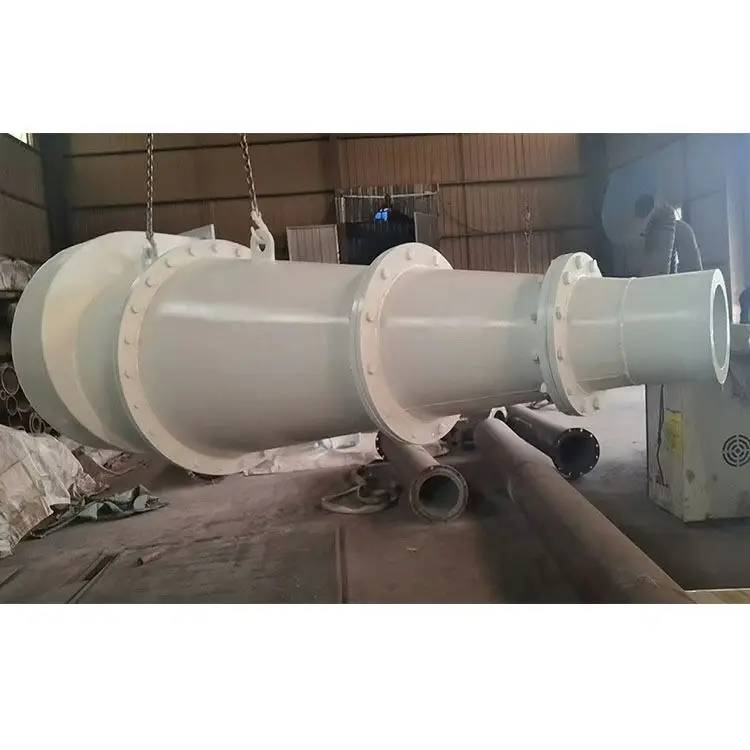

3-product heavy dielectric hydrocyclone
Products Description
Equipment description:
Dense medium cyclones are divided into two categories: pressure-feeding and non-pressing-feeding,but their separation principles are basically the same.
The dense medium suspension and minerals are subjected to centrifugal force in the cyclone, so that the suspension is stratified according to density, and the minerals in the suspension achieve the separation effect according to different densities.
The high density heavy products are concentrated on the outer wall, and are discharged through the heavy product discharge port along the outer spiral movement; the low-density light products are discharged through the overflow port in the negative pressure area at the center of the cyclone along the inner spiral, thus achieving high efficiency and accuracy sorting.
Operational principle:
◆The selected raw coal is fed from the top central pipe of the first-stage cylindrical cyclone.
◆Qualified resuspension liquid is fed tangentially from the lower part of the cyclone after being pressurized by the medium pump.
◆ The selected material is under the action of centrifugal force field and density field
-The light product is discharged from the central tube at the lower end of the cyclone through the internal swirl flow along with a part of the heavy suspension with a lower density, and becomes clean coal;
-The heavy product and part of the heavy-suspension liquid with higher density pass through the external cyclone upward along the inner wall of the cyclone, and enter the second section of cylindrical conical cyclone;
-The materials entering the second section of the cylinder are sorted, and the medium coal and gangue are discharged.
Unpressure three product heavy dielectric cyclone | ||||||||
Dimensions | File particle size/mm | Feed pressure/MPa | processing power/(t/h) | Medium cycle volume/(m3/h) | ||||
WTMC500/350 | ≤20 | 0.05～0.08 | 35～50 | 140～180 | ||||
WTMC600/400 | ≤30 | 0.06～0.10 | 50～80 | 180～300 | ||||
WTMC710/500 | ≤35 | 0.08～0.12 | 80～120 | 300～420 | ||||
WTMC780/550 | ≤40 | 0.09～0.13 | 100～150 | 420～540 | ||||
WTMC850/600 | ≤45 | 0.10～0.14 | 120～180 | 480～620 | ||||
WTMC900/650 | ≤50 | 0.12～0.16 | 140～200 | 560～700 | ||||
WTMC1000/710 | ≤55 | 0.15～0.18 | 180～230 | 700～800 | ||||
WTMC1100/780 | ≤60 | 0.18～0.22 | 220～280 | 800～1100 | ||||
WTMC1200/850 | ≤70 | 0.20～0.28 | 260～350 | 1100～1400 | ||||
WTMC1300/920 | ≤80 | 0.22～0.30 | 320～400 | 1400～1600 | ||||
WTMC1400/1000 | ≤90 | 0.28～0.38 | 400～500 | 1600～2000 | ||||
WTMC1500/1100 | ≤100 | 0.30～0.40 | 500～600 | 2000～2400 | ||||
Pressure has three product heavy medium hydrocyclone | ||||||||
Dimensions | File particle size/mm | Feed pressure/MPa | processing power/(t/h) | Medium cycle volume/(m3/h) | ||||
YTMC500/350 | ≤20 | 0.06～0.10 | 35～60 | 180～250 | ||||
YTMC600/400 | ≤30 | 0.08～0.12 | 50～90 | 250～370 | ||||
YTMC710/500 | ≤35 | 0.09～0.14 | 90～130 | 370～540 | ||||
YTMC780/550 | ≤40 | 0.10～0.15 | 110～160 | 540～660 | ||||
YTMC850/600 | ≤45 | 0.13～0.16 | 120～180 | 650～750 | ||||
YTMC900/650 | ≤50 | 0.15～0.18 | 160～200 | 740～840 | ||||
YTMC1000/710 | ≤55 | 0.18～0.22 | 200～250 | 840～1050 | ||||
YTMC1100/780 | ≤60 | 0.20～0.24 | 240～280 | 1050～1250 | ||||
YTMC1200/850 | ≤70 | 0.22～0.28 | 300～380 | 1250～1600 | ||||
YTMC1300/920 | ≤80 | 0.26～0.32 | 350～450 | 1600～1900 | ||||
YTMC1400/1000 | ≤90 | 0.30～0.40 | 450～550 | 1900～2300 | ||||
Related Products
Introduction of microcrystalline wear-resistant ceramic linings
1. The microcrystalline alumina wear-resistant lining and lining are special wear-resistant ceramics formed by dry pressing and calcined at 1500-1700 ºC. Its Rockwell hardness is HRA80-90, which is only as hard as diamond;
2 The product has the characteristics of special wear resistance, impact resistance and convenient construction. Its theoretical wear resistance is equivalent to 260 times that of manganese steel and 170 times that of chrome steel. According to the actual application calculation, it can effectively extend the service life of the easily worn parts of the equipment by more than 10 times;
3 Application areas: It is mainly used on the inner and outer surfaces of material conveying pipelines and related wear-resistant equipment in coal washing, iron and steel plants, thermal power, chemical environmental protection, cement and other industries.
Microcrystalline wear-resistant ceramic lining, lining technical parameters
1. The microcrystalline alumina wear-resistant lining and lining are special wear-resistant ceramics formed by dry pressing and calcined at 1500-1700 ºC. Its Rockwell hardness is HRA80-90, which is only as hard as diamond;
2 The product has the characteristics of special wear resistance, impact resistance and convenient construction. Its theoretical wear resistance is equivalent to 260 times that of manganese steel and 170 times that of chrome steel. According to the actual application calculation, it can effectively extend the service life of the easily worn parts of the equipment by more than 10 times;
3 Application areas: It is mainly used on the inner and outer surfaces of material conveying pipelines and related wear-resistant equipment in coal washing, iron and steel plants, thermal power, chemical environmental protection, cement and other industries.
Microcrystalline wear-resistant ceramic lining, lining technical parameters
Model | Specifications (liner/porcelain) |
Alumina content | ≥95% |
Density | ≥3.6 g/cm3 |
Rockwell hardness | ≥85 HRA |
Compressive strength | ≥850 MPa |
Fracture toughness KIC | ≥4.8MPa m1/2 |
Bending strength | ≥290MPa |
Wear resistance | ≤0.0002g (p=76N n=800 rpm t=30 minutes) |
Ceramic sheet thickness | 1.5-25mm |
Product Packaging
Company Profile
Shanxi Huazhan Wear-resistant Material Technology Co., Ltd. is located in Gudan Industrial Park, Taiyuan City, Shanxi Province. Covering an area of 25,000 square meters, there are more than 80 engineering and technical personnel.
In the past 20 years, we have been committed to the customization, production and service of wear-resistant steel products, professionally providing solutions for wear-resistant products in industries such as electric power, metallurgy, mining, steel mills, petrochemicals, and new energy. A major breakthrough has been made; advanced production technology has been introduced, the monthly output of wear-resistant pipes is 1,300 tons, and advanced testing equipment is equipped. Our products involve more than 110 varieties in 12 categories, and we are currently the largest manufacturer of wear-resistant pipe fittings in China.
In the past 20 years, we have been committed to the customization, production and service of wear-resistant steel products, professionally providing solutions for wear-resistant products in industries such as electric power, metallurgy, mining, steel mills, petrochemicals, and new energy. A major breakthrough has been made; advanced production technology has been introduced, the monthly output of wear-resistant pipes is 1,300 tons, and advanced testing equipment is equipped. Our products involve more than 110 varieties in 12 categories, and we are currently the largest manufacturer of wear-resistant pipe fittings in China.
The company has an independent research and development design team, 70% of the front-line employees have 10 years of casting experience, the products have passed the ISO9001 quality system certification, and have a number of invention patents.
Huazhan has always pursued the enterprise management policy of "quality first, reputation first", strictly controlled quality, and formed a strict quality control mechanism and a reliable quality assurance operation system. Because of reliable product quality, honest business philosophy, and scientific technical effects, it has won the trust of users, and the scale of the enterprise is developing rapidly. The products are sold to engineering projects in 31 regions across the country, and are widely used in mines, power generation, chemicals, etc. project.
Huazhan has always pursued the enterprise management policy of "quality first, reputation first", strictly controlled quality, and formed a strict quality control mechanism and a reliable quality assurance operation system. Because of reliable product quality, honest business philosophy, and scientific technical effects, it has won the trust of users, and the scale of the enterprise is developing rapidly. The products are sold to engineering projects in 31 regions across the country, and are widely used in mines, power generation, chemicals, etc. project.
Certification:
Why Choose Us:
1.One-Stop EPR Contracting Service
From design to delivery, worry-free throughout the entire process.
2.Efficient Sorting System Design
With just an idea or a drawing, we can complete the system diagram and flowchart.
3.Free Technical Consultation
Providing cutting-edge industry technology, allowing customers to enjoy top-notch services for free.
4.Dedicated Technical Team
Each project is equipped with a dedicated team to ensure professional support.
5.Strict Quality Control and After-Sales Service
High-standard quality control with a 3-month product warranty for peace of mind.
1.One-Stop EPR Contracting Service
From design to delivery, worry-free throughout the entire process.
2.Efficient Sorting System Design
With just an idea or a drawing, we can complete the system diagram and flowchart.
3.Free Technical Consultation
Providing cutting-edge industry technology, allowing customers to enjoy top-notch services for free.
4.Dedicated Technical Team
Each project is equipped with a dedicated team to ensure professional support.
5.Strict Quality Control and After-Sales Service
High-standard quality control with a 3-month product warranty for peace of mind.
Trust Huazhan For Excellence!
Похожие товары

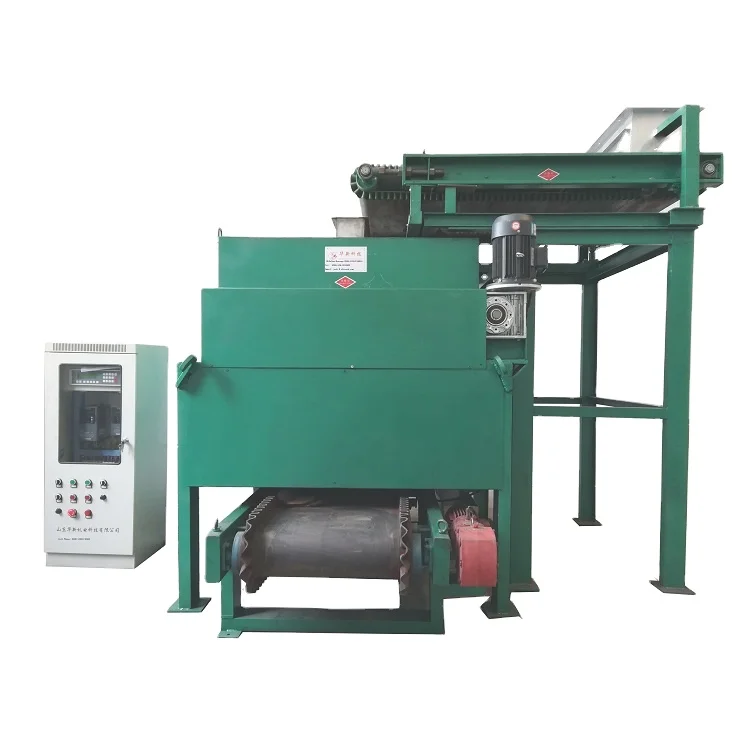

Магнитный сепаратор для ильменитовой оловянной колтановой вольфрамовой танталовой моназитовой руды
8 520,00-25 000,00 $
Оптовая продажа Водоочиститель-Гидроциклон Cheaps
67,00-83,00 $
Lab гидро Циклон FX-25 FX-50 FX-75 Песок Классификации системы минеральной пескоотделитель цинка свинцовый Шахта навозной жижи Гидроциклон для продажи
177,48 $
Оборудование для добычи золота спиральный желоб серебристая медная железная руда вольфрамовый алюминиевый гравитационный сепаратор продажи
Магнитный магнитный сепаратор для удаления магнетита
1 500,00-3 500,00 $

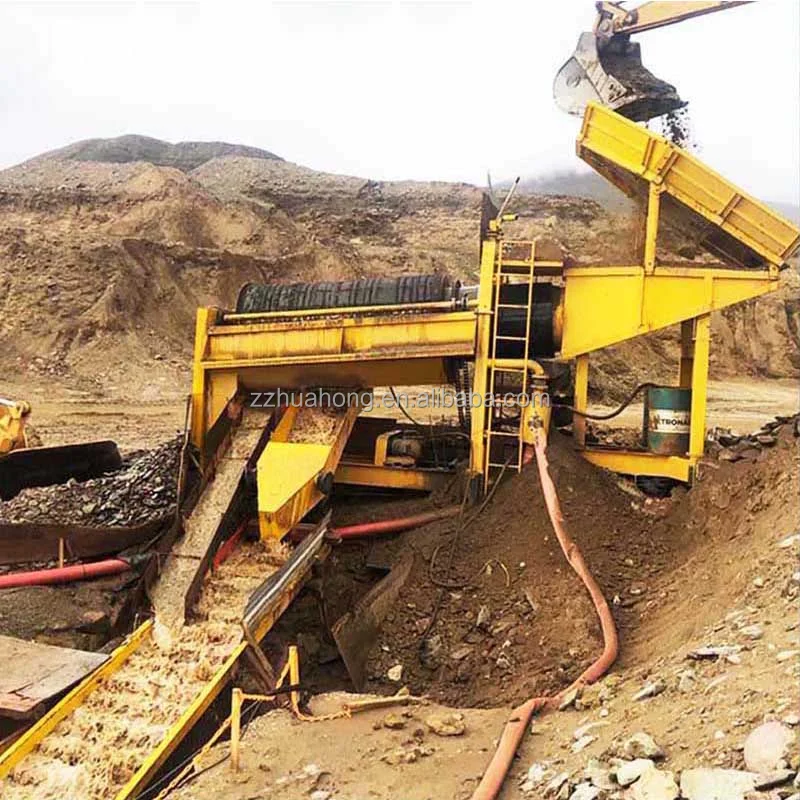

50Tph горно-восстановление мобильный речная Песочная транспортная золото benifition грохот экран стиральная завод по переработке Машина
