Горячая Распродажа/автоматическая машина для формовки потолочных Т-образных сетей
3 085 916,40 ₽
Автоматическая регулируемая по ширине легкая стальная машина для Формовки Профилей из гипсокартона C U продажи
- Категория: >>>
- Поставщик: Sussman Modular House (wuxi) Co. Ltd.
Сохранить в закладки 1601072779311:
Описание и отзывы
Характеристики

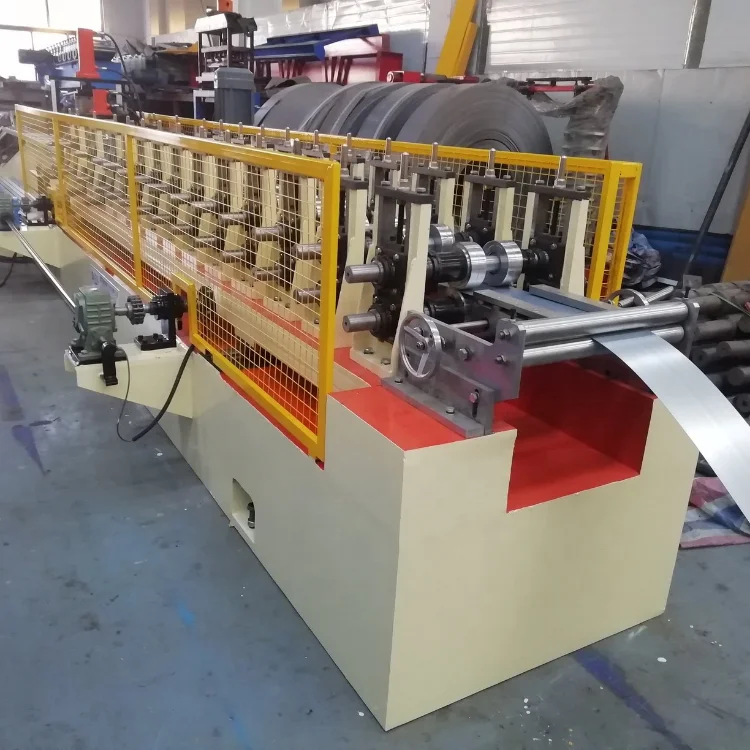

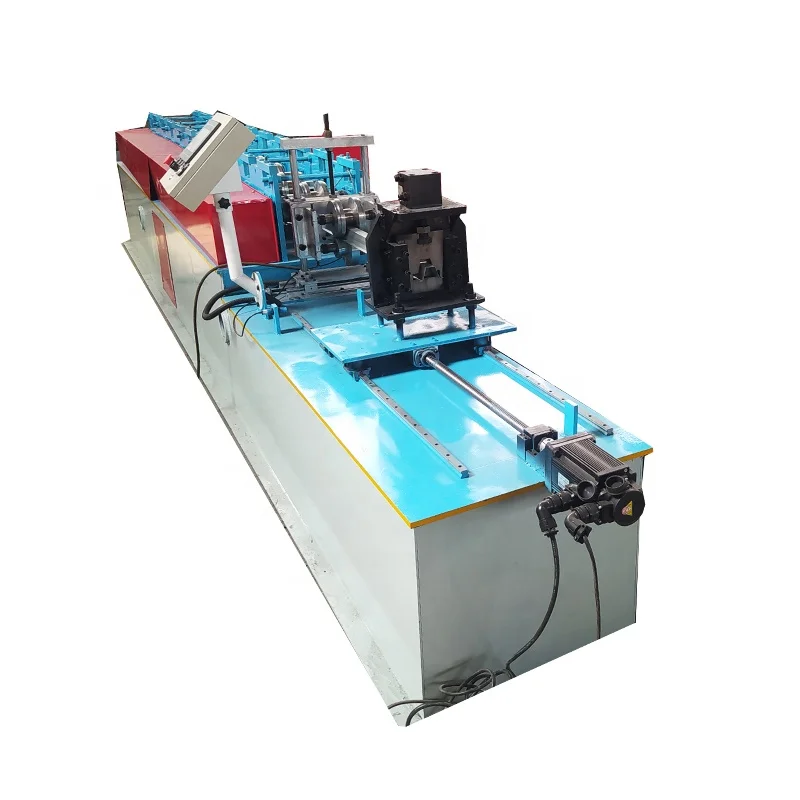

Product Description
This stud track machine is to galvanized steel profile CW UW CD UD for suspended ceiling/drywall system
2. Size available: 40mm to 152mm or 62mm to 200mm adjustable
3. Material thickness available:0.40mm,0.45mm,0.50mm,0.55mm, 0.60mm galvanized steel, PPGI, high-tensil steel.
2. Size available: 40mm to 152mm or 62mm to 200mm adjustable
3. Material thickness available:0.40mm,0.45mm,0.50mm,0.55mm, 0.60mm galvanized steel, PPGI, high-tensil steel.
Also make make the service holes, like round holes, oval holes, H holes for your optional.
C U stud track profile is popular in South America, especially Peru, Chile, Australia, Europe.
In Drywall system and drywall partition system, we could provide roll forming machine as following:
1. Metal stud roll forming machine
2. Metal track roll forming machine
3. Main Channel roll forming machine
4. Omega hat furring channel roll forming machine
5. Conner bead (Angle bead) roll forming machine
5. Conner bead (Angle bead) roll forming machine
6. T grid bar roll forming machine
Items | Specifications | |
Material of coil | Material Thickness | 0.5-1.2mm galvanized coils |
De-coiler | Weight | 3 ton hydraulic de-coiler |

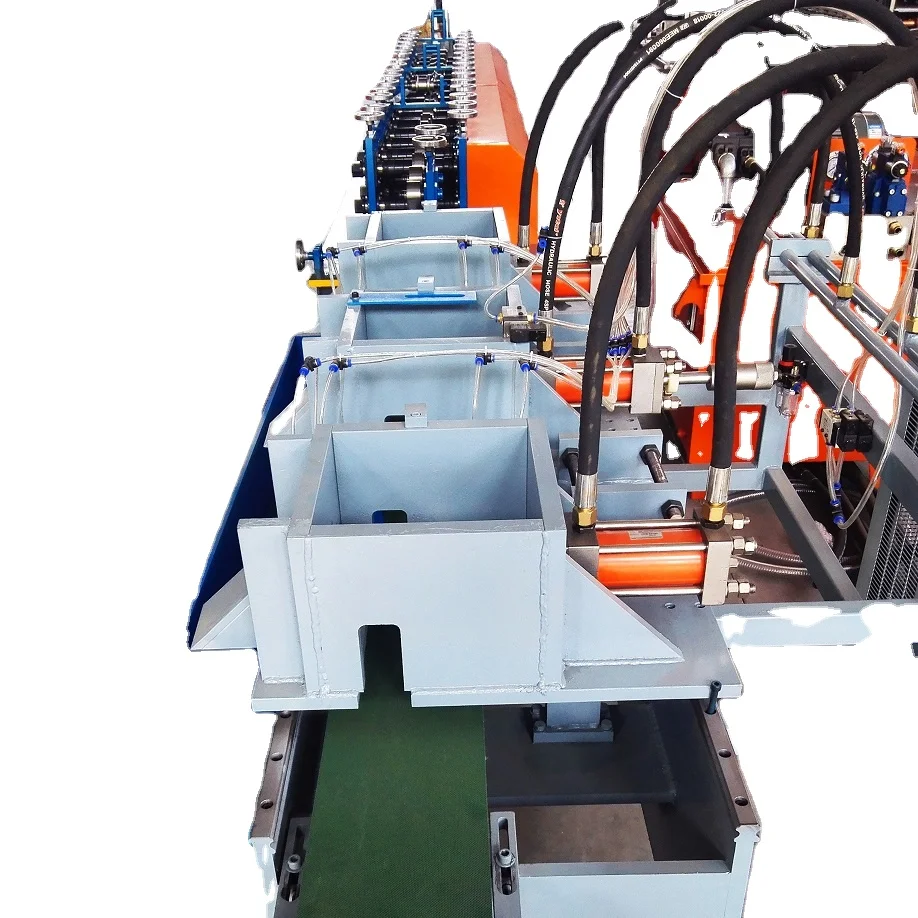

Punching | Number | 1 set or customized |
Forming system | Rolling Speed | 8-15 m/min |

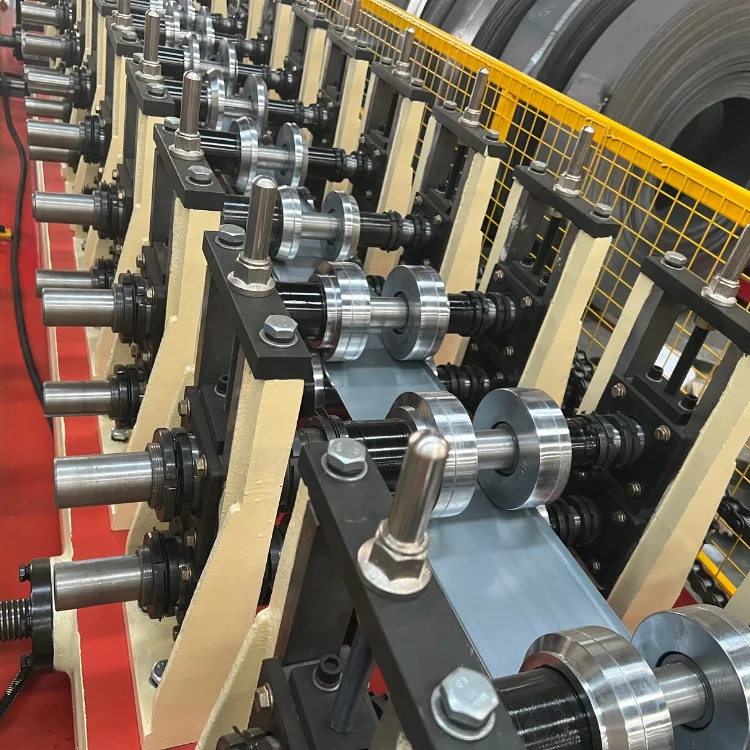

Roller Stations | About 15 stations forming | |
Roller Material | Gcr15 Steel with quenching | |
Shaft Material | 45# Steel Diameter 75mm shaft | |
Main Motor Power | 5.5KW | |
Hydraulic cutting Power | 5.5 kw | |
Cutting system | Material Of Cutting | CR12 with quench treatment |
Hardness | HRC58-62 | |
Tolerance | +-1.5mm | |
Electrical control system | Electric Source | 415V, 50HZ,3 phase |
Control System | PLC with touch screen Japanese Delta and Delta Brand | |
Weight | About 5 tons | |
Way Of Drive | 1 inch single chain |
Product Display
3 tons hydraulic decoiler
Max out diameter of the coil: 1200mm
Expansion: with 4 palms, with brake
Max Coil Width: 800mm

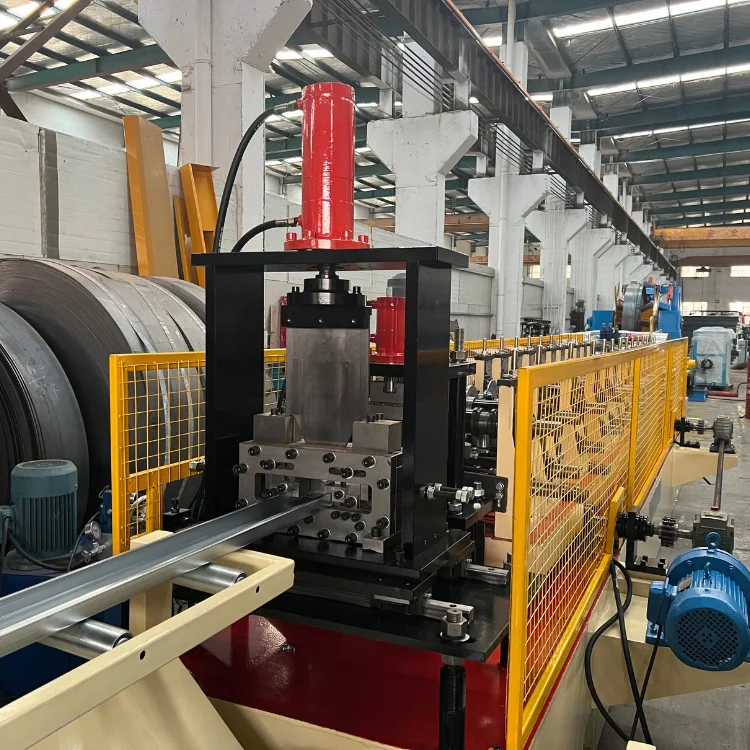

Hydraulic Cutting
One set universal cutting blade
(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.
(2) Material of blade: CR12 with heat treatment
(3) Length measuring: Automatically
(4) The cutting thickness: 0.4- 0.8mm
(5) Hydraulic Station Power: 5.5 KW
(2) Material of blade: CR12 with heat treatment
(3) Length measuring: Automatically
(4) The cutting thickness: 0.4- 0.8mm
(5) Hydraulic Station Power: 5.5 KW

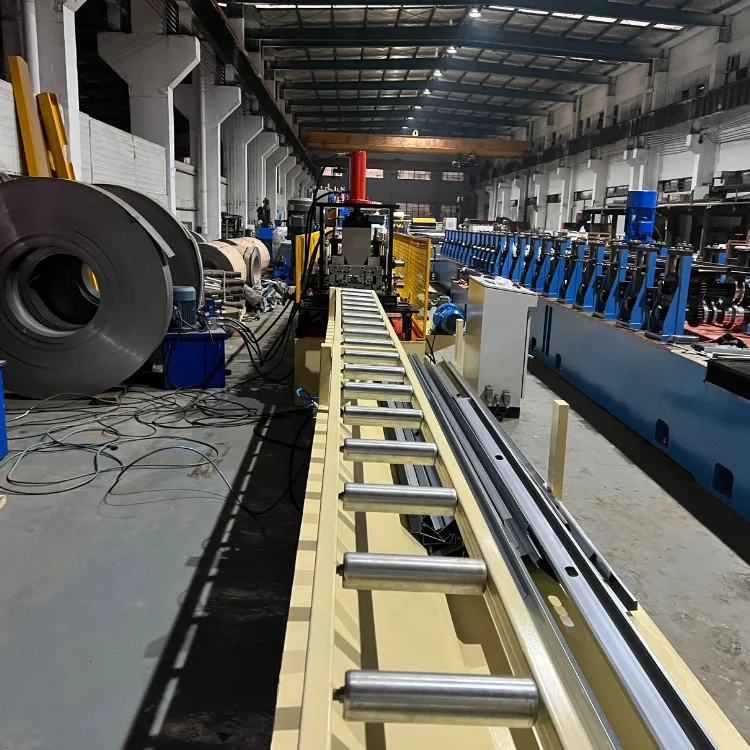

Output table
Length: 6 meters
Quantity； 1 unit

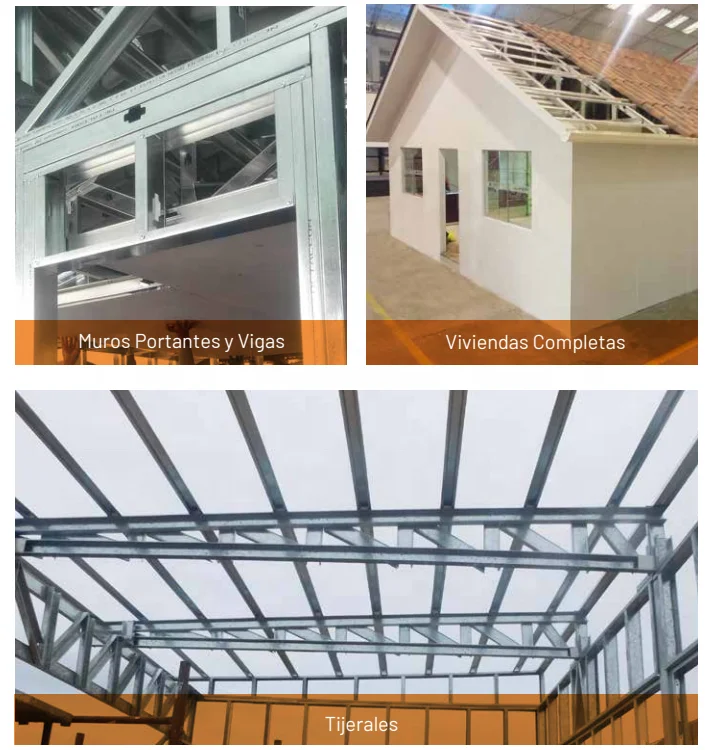

Application
Feedback
Packing & Delivery
About Us
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it' s always design and produce various type profile of roll forming machine.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming
machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming
machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
