Products Description

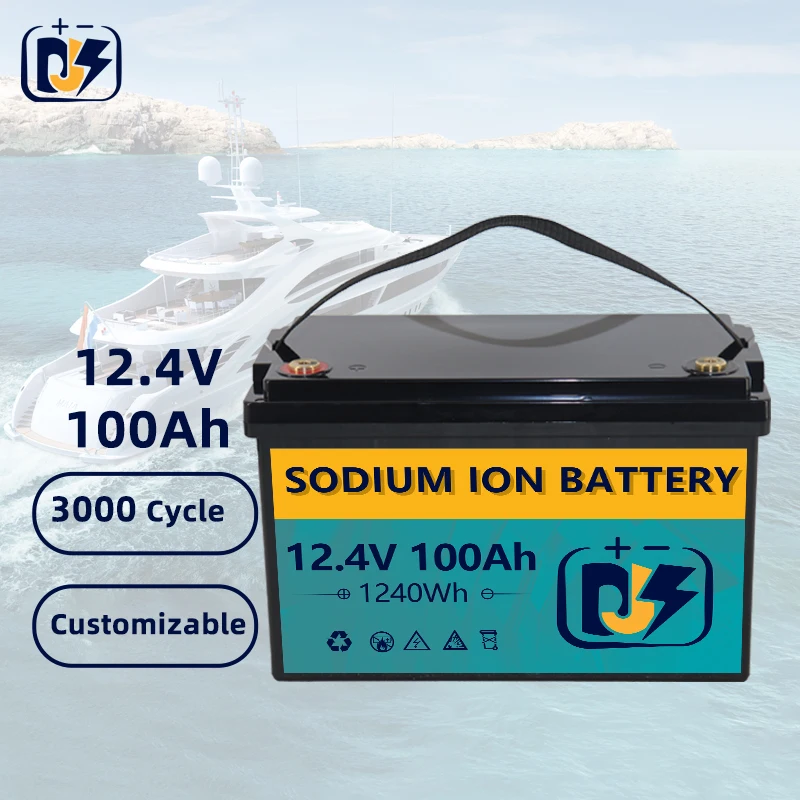

Sodium Ion 12V100Ah Energy Storage Systems Rechargeable Batteries 12V 100ah NA SIB For RV Solar Trolling Motor Marine
Sodium-ion batteries are a promising alternative to lithium-ion batteries — currently the most widely used type of rechargeable battery.
* Sodium is more environmentally friendly and can be transported at zero volt, making it safer;
* A sodium-ion battery uses aluminum which is cheaper than copper;
* Sodium-ion battery has a higher operating temperature range. This means these can be used in more extreme temperatures without the risk of thermal runway;
* A sodium-ion battery uses aluminum which is cheaper than copper;
* Sodium-ion battery has a higher operating temperature range. This means these can be used in more extreme temperatures without the risk of thermal runway;
* Sodium ion batteries have better safety performance. The internal resistance of sodium ion batteries is slightly higher than that of lithium batteries, resulting in less instantaneous heat generation and lower temperature rise in safety tests such as short circuits. In the tests of all safety items such as overcharge, overdischarge, short circuit, acupuncture, extrusion, etc., no fire or explosion was found in the sodium ion battery.
Datasheet
Technical Specifications | Model | DJS-SIB-12V100Ah-DC |
Cell Chemistry | 3.1V Sodium Ion Battery Cells | |
Cell Configuration | 4S | |
Rated Capacity(Ah) | 100Ah @0.2C discharge rate | |
Nominal Voltage(V) | 12.4V | |
Rated Energy(Wh) | 1240Wh | |
Voltage Range(V) | 8-15.8V | |
Cycle life | 3000 cycles DOD60% | |

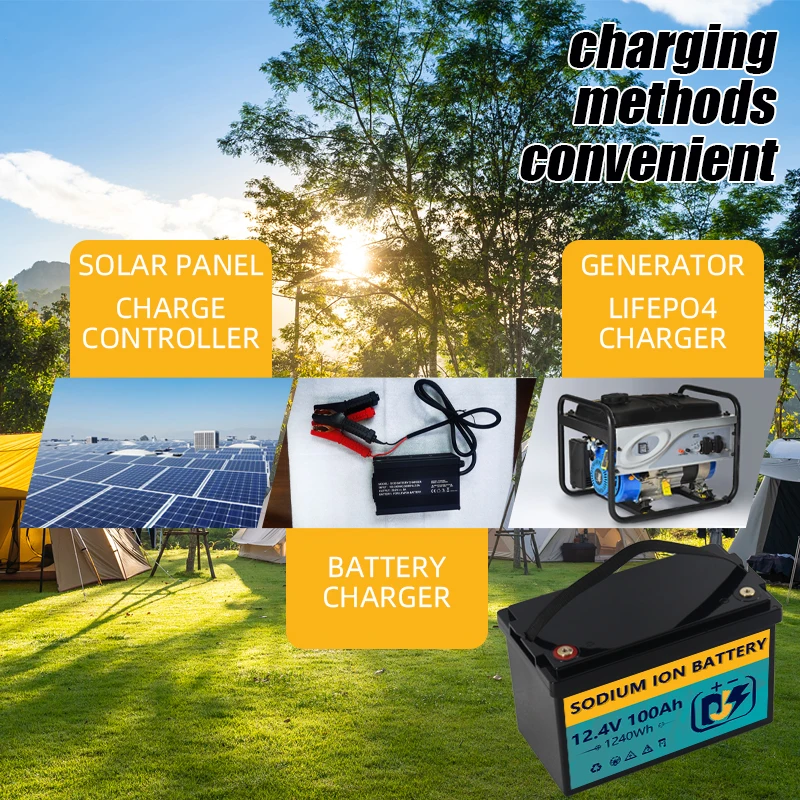

Charging | Standard Charge Current(A) | 0.2C(Constant current charging) |
Max. Charge Current(A) | 10A | |
Charge Condition | @-10℃~45℃ | |
Discharging | Standard Discharge Current(A) | 0.2C(Constant current discharging) |
Max. Discharge Current(A) | 100A | |

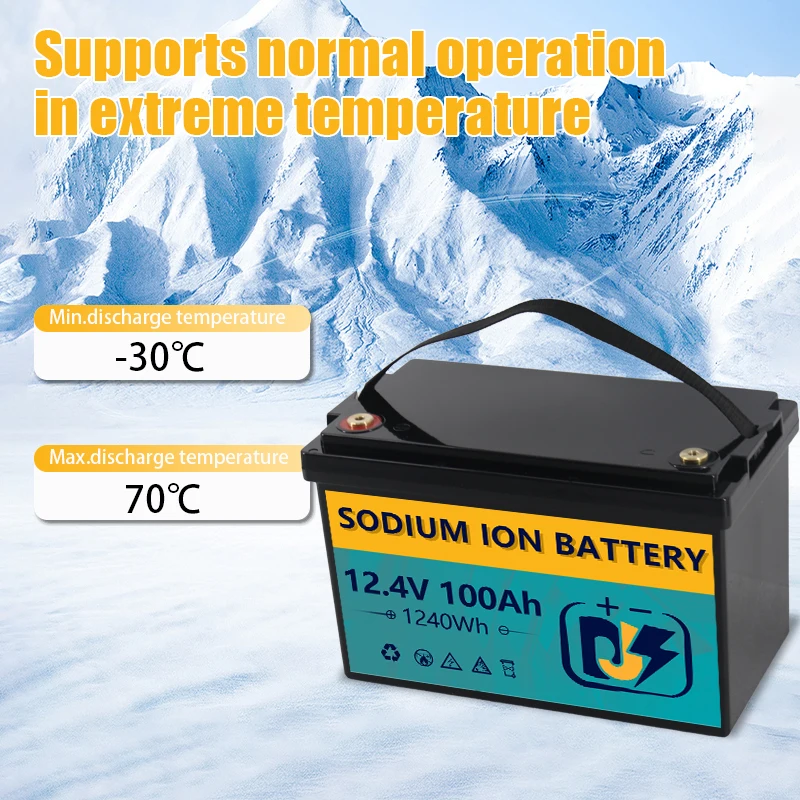

Discharge Condition | @-30~70℃ | |
Protection & Function | Heat Dissipation | Nature cooling |
Cell Balancing | Automatic passive cell balancing | |
Safety Function | Overcharge,over-discharge,over-current and temperature protection | |
Heating System(optional) | Available upon requirements | |
Enclosure & Terminals | Dimensions | L330*W172*H215mm |

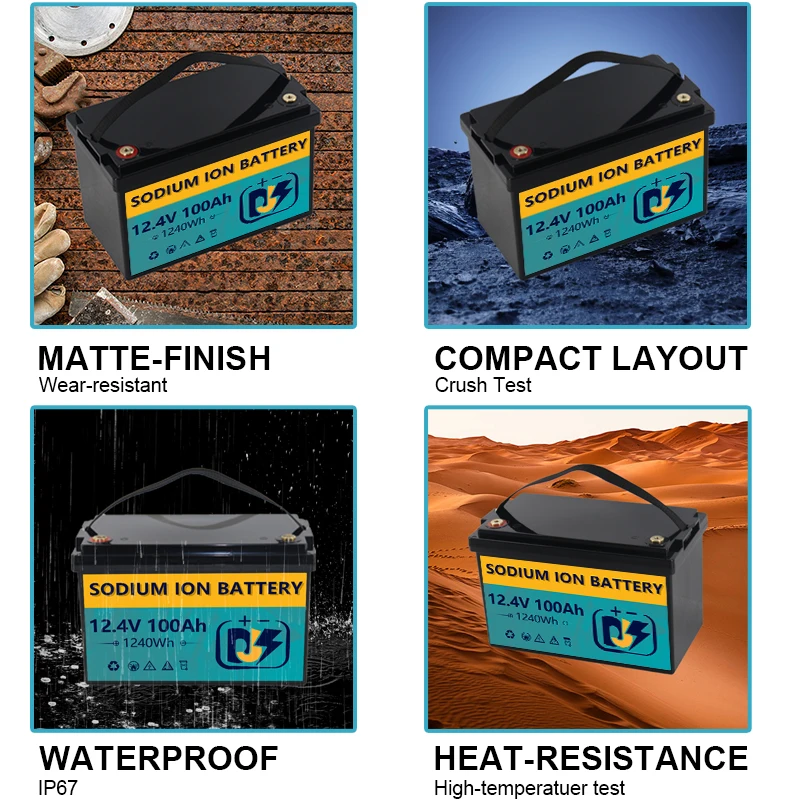

Enclosure | ABS,IP67 | |
Terminal | M8 | |
Maintenance & Storage | Maintenance | The battery pack should be charged and discharged fully once every 3 months. |
Storage Condition @-20~25℃ | Can be kept for 3 months at 50% capacity | |
Storage Condition @-20~45℃ | Can be kept for 1 month at 50% capacity |
Applications
Applications of Sodium Ion Battery
Since this Deep Cycle battery series is specially designed to replace traditional Lead-acid/AGM/GEL, they can be used in any
application the same with Lead acid batteries.
* UPS, backup, Telecom use
* Solar series (home ESS, street light, solar CCTV...)
* Marine, boat, trolling, fishing, boat solar
* Vehicle series (Golf cart, RV, light-speed vehicle...)
* Wheelchairs, Medical equipment and other almost 12V series.
application the same with Lead acid batteries.
* UPS, backup, Telecom use
* Solar series (home ESS, street light, solar CCTV...)
* Marine, boat, trolling, fishing, boat solar
* Vehicle series (Golf cart, RV, light-speed vehicle...)
* Wheelchairs, Medical equipment and other almost 12V series.
More Options
Model | Specs | Dimensions(mm) | N.W(kg) |
12V 30Ah | L181*W77*H170 | 3.2 | |
DJS-1250E | 12V 50Ah | L195*W130*H154 | 6 |
DJS-1260E | 12V 60Ah | L229*W138*H208 | 6.5 |
DJS-1270E | 12V 70Ah | L260*W168*H209 | 7.5 |
DJS-1286E | 12V 86Ah | L307*W169*H208 | 9 |
DJS-12100E | 12V 100Ah | L330*W172*H215 | 10.5 |
DJS-12120E | 12V 120Ah | L330*W172*H215 | 13 |
DJS-12150E | 12V 150Ah | L330*W172*H215 | 15 |
DJS-12200E | 12V 200Ah | L406*W173*H236 | 21.5 |
DJS-12250E | 12V 250Ah | L532*W207*H215 | 27 |
DJS-12300E | 12V 300Ah | L345*W190*H245 | 33 |
DJS-12400E | 12V 400Ah | L640*W245*H220 | 42 |
DJS-12500E | 12V 500Ah | L640*W245*H220 | 53 |
DJS-2450E | 24V 50Ah | L330*W172*H215 | 10.5 |
DJS-24100E | 24V 100Ah | L406*W173*H236 | 21.5 |
DJS-24200E | 24V 200Ah | L520*W269*H220 | 42 |
DJS-3650E | 36V 50Ah | L483*W170*H240 | 15 |
DJS-36100E | 36V 100Ah | L522*W240*H218 | 33 |
DJS-4850E | 48V 50Ah | L345*W190*H245 | 21.5 |
DJS-48100E | 48V 100Ah | L640*W245*H220 | 42 |
Above are our most usual using deep cycle batteries, can replace the majority of traditional Lead-acid/ AGM/GEL batteries. But we also support customization, if you have special needs, welcome to contact for customization discussion.
Company Profile
Shenzhen DJS Tech Co., Ltd is a professional Lithium Battery Manufacturer, specialized in the design and producing LiFePO4 battery pack and system, having 12 years of R&D experience, and various kinds of energy storage/EV power battery system producing experience.Our annual output is 50MWh, have been exported to more than 50 different countries.
Our main products including Lithium Deep Cycle batteries for solar system/RV/marine/off-grid uses, high burst cranking/ starting batteries for car/boat, Lithium ESS for industrial & residential use, Power Battery system for forklift/golf cart/high voltage vehicle and so on.
For technology, We focus on reliable long cycle life LiFePO4 batteries,having a professional engineer team and a strict QC team, to ensure valuable and high quality products.Currently,we can support CANBUS/ RS485/ RS232 communication solution, complete EV class BMS system to meet smart home solar system & high voltage Electric vehicle system, we also developed battery self-heating and low temperature protection function to solve battery environment problem and extend battery’s lifespan.
For Certificate, As factory, we can support complete battery certificate for shipment,sale and so on. Such as: CE,UN38.3, MSDS,Transport Report,DG packaging cert.,IEC,BIS,etc. We can also support new certificate testing for clients' customized products.
Our main products including Lithium Deep Cycle batteries for solar system/RV/marine/off-grid uses, high burst cranking/ starting batteries for car/boat, Lithium ESS for industrial & residential use, Power Battery system for forklift/golf cart/high voltage vehicle and so on.
For technology, We focus on reliable long cycle life LiFePO4 batteries,having a professional engineer team and a strict QC team, to ensure valuable and high quality products.Currently,we can support CANBUS/ RS485/ RS232 communication solution, complete EV class BMS system to meet smart home solar system & high voltage Electric vehicle system, we also developed battery self-heating and low temperature protection function to solve battery environment problem and extend battery’s lifespan.
For Certificate, As factory, we can support complete battery certificate for shipment,sale and so on. Such as: CE,UN38.3, MSDS,Transport Report,DG packaging cert.,IEC,BIS,etc. We can also support new certificate testing for clients' customized products.
Customization

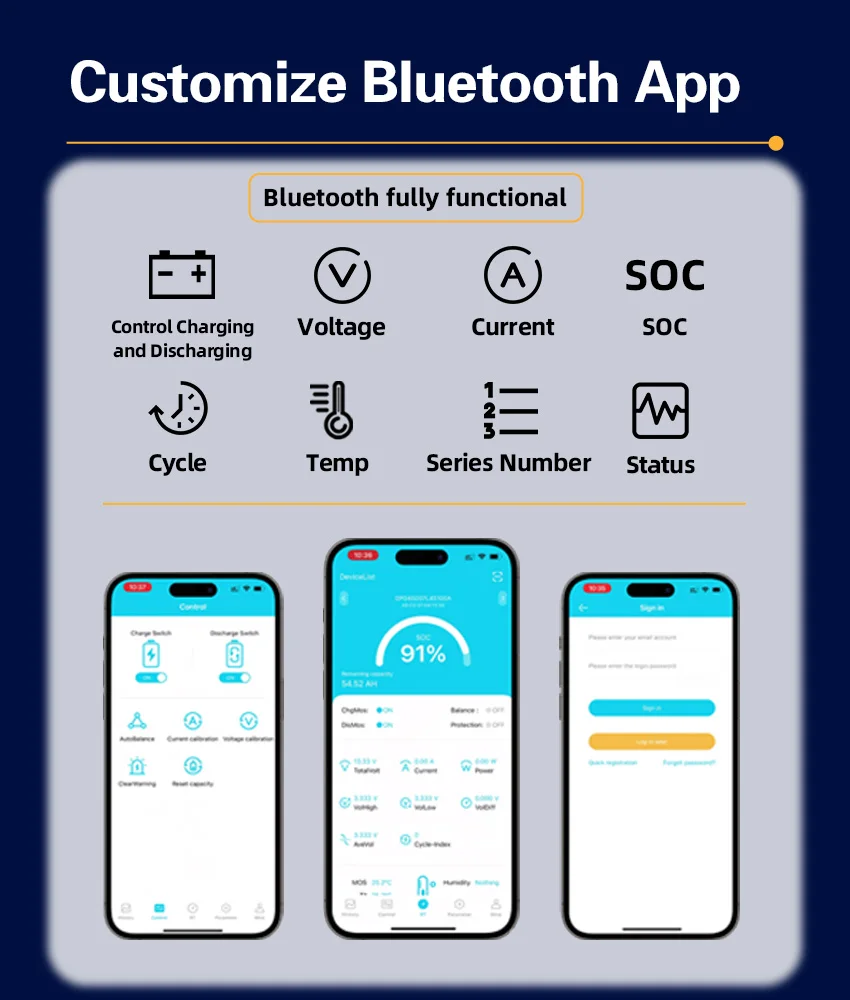

As specialized battery factory, our company support OEM/ODM customization.Besides appearance changing, we can also support technical customization, like CANBUS/RS485/RS232 communication, smart Blue tooth function, high voltage battery system solution,and low temperature protection function.
We can do batteries:
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Solar system, RV, Marine, off-grid, Golf cart, Forklift, ESS.
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Solar system, RV, Marine, off-grid, Golf cart, Forklift, ESS.
PROJECT CASES
2019. 2MWh Container ESS for Factory
2020. 400KWh Lake Around Power Station
2017. Thailand Airport. Aircraft Tractor Battery Project
2016. Logistics Tractor Battery Case
Package & Delivery
All shipment are 100% inspected and packed according to DG packing requirement.
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
Похожие товары

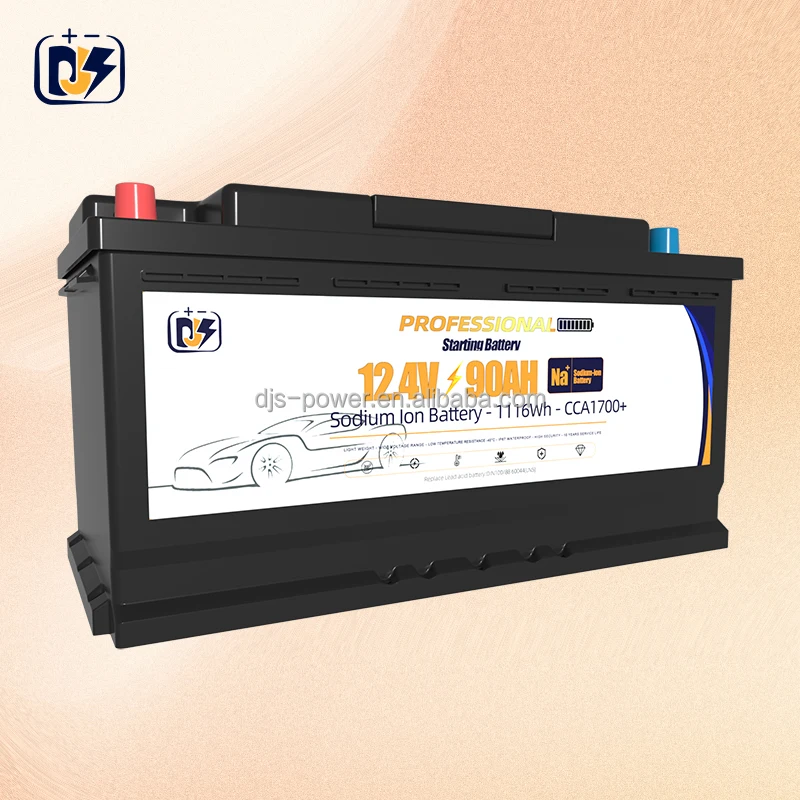

SIB 12 В, 90Ah Din, сверхвысокая CCA, 1700 натриево-ионный аккумулятор для морского применения, натриево-ионный аккумулятор
15 533,87 ₽ - 19 472,03 ₽
SIB 12 В 70ah, стартовая натриево-ионная батарея для автомобиля, замена 80D26L 2MF, батарея для запуска автомобиля
12 799,03 ₽ - 16 627,80 ₽

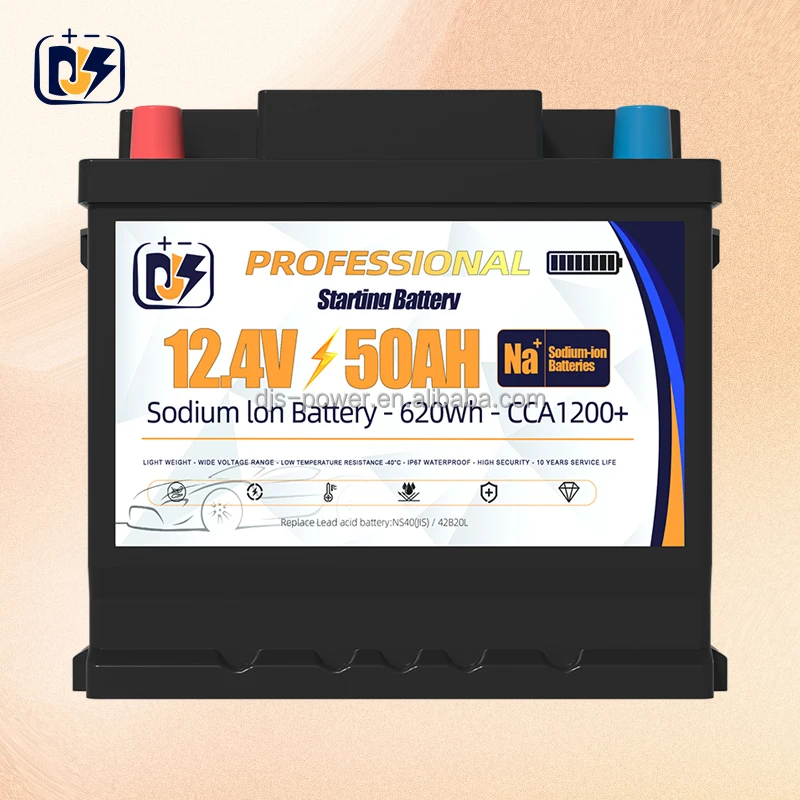

Натриево-ионный автомобильный стартовый Аккумулятор заменяет 54313 LBN1 12V 50Ah автомобильный аккумулятор на 1400 + CCA высокопроизводительный автомобильный SIB аккумулятор
