Products Description
heavy duty chain Apron Conveyor For Coal Mining Plate type feeder apron conveyor for industry
Apron feeder is a large machine that carries materials through the parts of a manufacturing or industrial process. These machines resemble short conveyor belts, and may also be known as plate feeders or apron conveyors. Apron feeder machines allow engineers and process managers to automatically control the volume of materials that are added to a process, and regulate the rate at which these materials are added. To withstand the heavy weight of these types of materials, the belt portion of the apron feeder is made from thick steel trays, pans or caterpillar chain plate. Chains along either end of the feeder help move the trays along the conveyor area, and are powered by an industrial motor or engine. In mining, the apron feeder carries rocks and minerals for crushing, or further processing.
Product Details

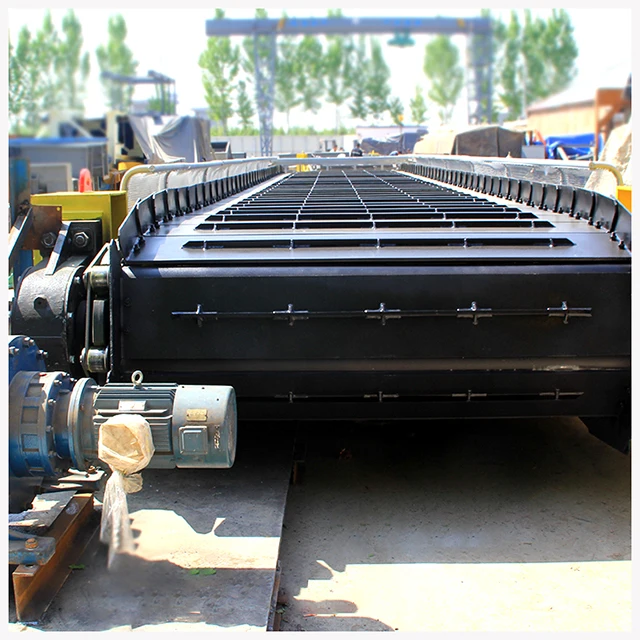

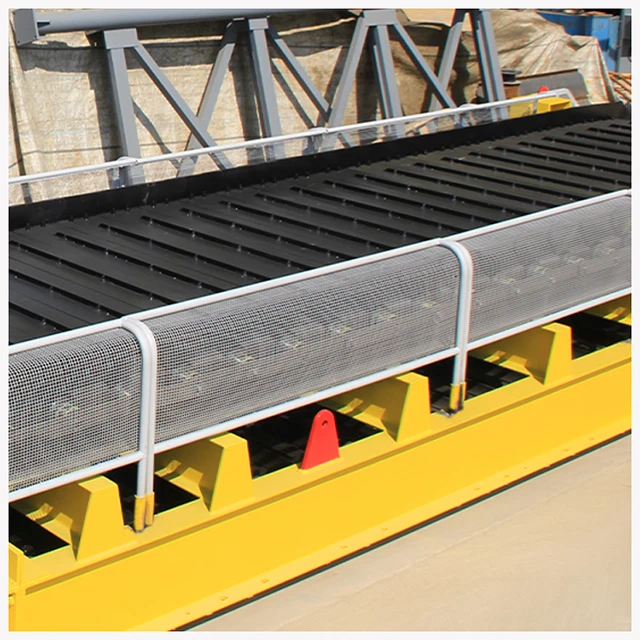

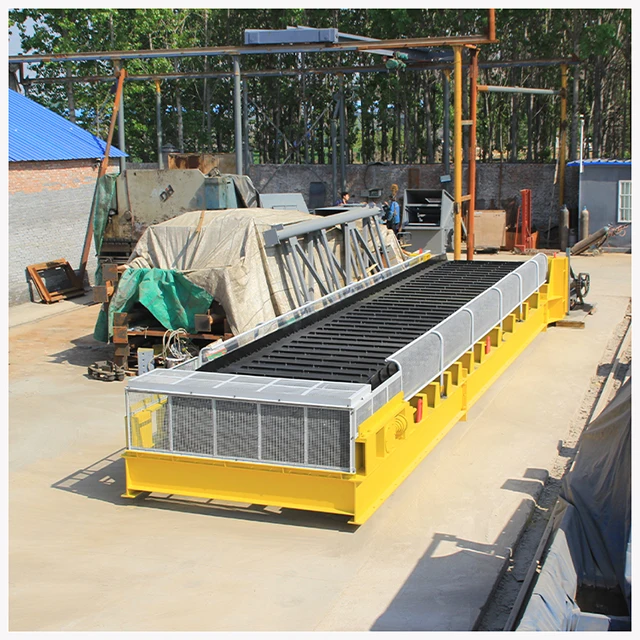

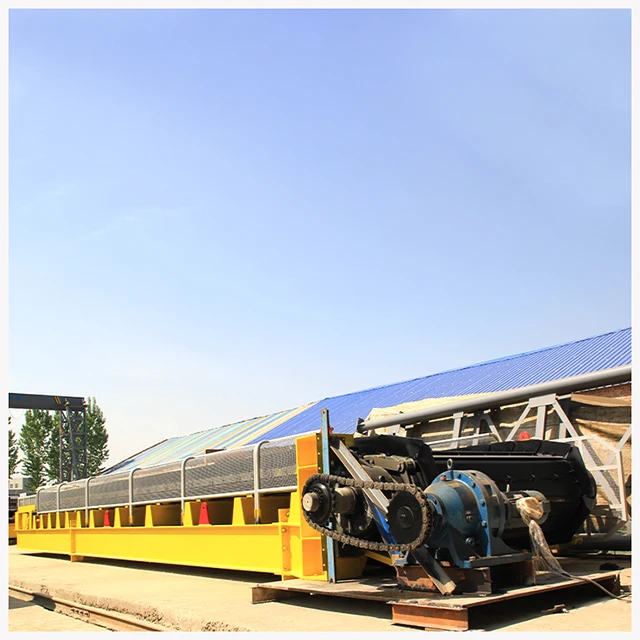

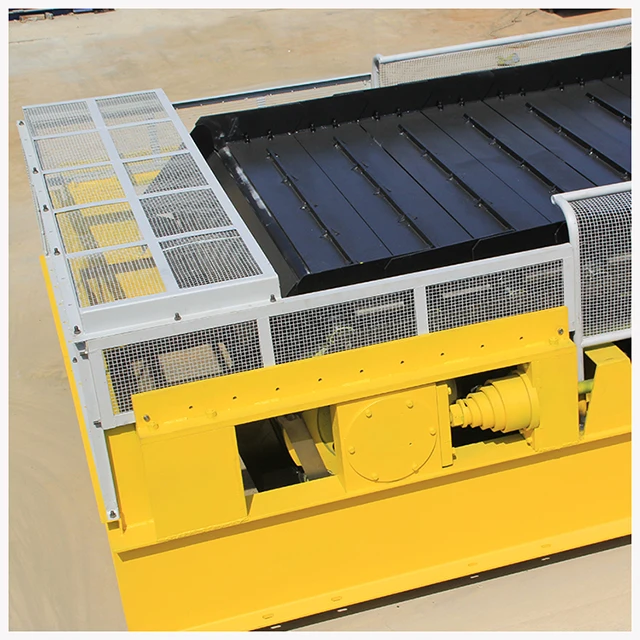

Apron feeder structure
The apron feeder consists of heavy-duty tractor type chains, on which the apron pans are mounted.
The chains run on support rollers that are mounted to the apron feeder frame. They are driven by chain sprockets and tensioned either mechanically or hydraulically.
The chains run on support rollers that are mounted to the apron feeder frame. They are driven by chain sprockets and tensioned either mechanically or hydraulically.
Customer case
YINGDA apron feeders are used for feed hopper discharging in primary crushing plants as a loading or discharging conveyor e. g. in the cement and raw material industry. Conveying capacities of up to 4000 t/h with piece sizes of 3 m3 are possible.
Company Profile
About Yingda:
Henan Yingda Heavy Industry Co., Ltd is professional manufacturer for bucket elevator and conveyors in China. We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and
Dehydrated bucket elevator.
2. Screw conveyors Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Chain conveyors: FU chain conveyor, drag conveyor, scraper chain conveyor and Cast stone scraper conveyor etc.
5. Apron feeders: Light duty apron feeder, middle duty apron feeder and heavy duty apron feeder.
6. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
7. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
Henan Yingda Heavy Industry Co., Ltd is professional manufacturer for bucket elevator and conveyors in China. We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and
Dehydrated bucket elevator.
2. Screw conveyors Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Chain conveyors: FU chain conveyor, drag conveyor, scraper chain conveyor and Cast stone scraper conveyor etc.
5. Apron feeders: Light duty apron feeder, middle duty apron feeder and heavy duty apron feeder.
6. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
7. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
