Dnuo стекловолокно frp плоский лист каретки для производственной линии машины с кузовом рефрижератора
16 531 260,00 ₽ - 27 552 100,00 ₽
Конкурентоспособное оборудование для изготовления стеновых ограждений из предварительно напряженного бетона
- Категория: >>>
- Поставщик: Henan Victory Industrial Co. Ltd.
Сохранить в закладки 1601209127025:
Описание и отзывы
Характеристики
Detailed Images

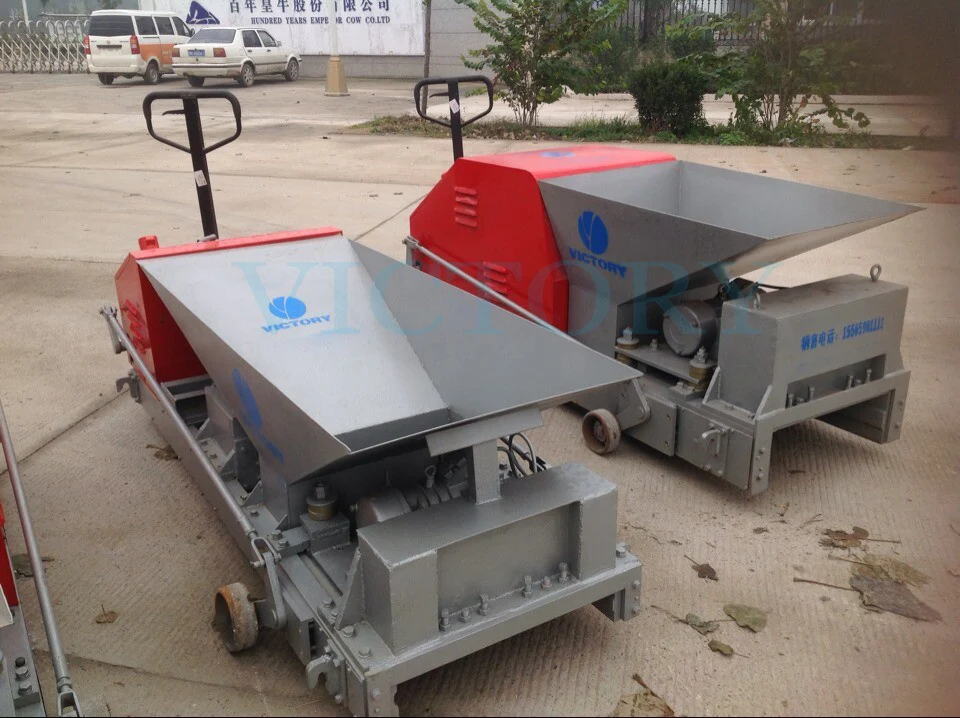

prestressed hollow core slab making machinery precast concrete wall panel machine brick
JQT series lightweight concrete wall panel making machine is a new-type product developed by our company and China Building Materials Academy.This machine adopts the technology of pretensioning steel bar upper and down protective layer.it uses ordinary cement or port-land cement as gelling agent,the low carbon steel wire as reinforce material,expand perlite, ceramsite,slag,flyash,grain slag,sand as aggregate.The advanced technology has greatly reduced the product cost, improved the product quality and production efficiency,and is the core equipment for the production of lightweight partition wall panel.
Product Features
FEATURES
1. Packing size: length 2360mm*width 900mm*height 724mm (excluding hydraulic head)
2. Simple operation
3. Greater daily output
4. Stable performance
5 High degree of mechanization, perspective view of wall panels
2. Simple operation
3. Greater daily output
4. Stable performance
5 High degree of mechanization, perspective view of wall panels
Right elevation Front elevation left elevation
Concrete wall panel machine features:
>High strength
>Good integrity
>Good moisture and water resistance
>Sound-and-fire proof
>Increase usable area
>Can nail hang paste
>Sound-and-fire proof
>Increase usable area
>Can nail hang paste
>Heat insulation
>Light economy, low comprehensive cost
>simple and convenient construction
>simple and convenient construction
>Saving energy
Materials of concrete wall panel machine
Silica cement, sand, volcanic ash, fly ash, coal gangue, ceramsite, slag, construction waste, domestic waste sintered body, etc.
Silica cement, sand, volcanic ash, fly ash, coal gangue, ceramsite, slag, construction waste, domestic waste sintered body, etc.
Product performance
Item | Thickness of plate (mm) | ||
90 | 120 | ||
Shock resistance (times) | ≥5 | ≥5 | |
Single point hanging force ( N ) | ≥1000 | ≥1000 | |
Bending failure load ( Plate weight multiple) | ≥1.5 | ≥1.5 | |
Drying shrinkage value ( mm/m) | ≤0.6 | ≤0.6 | |
Fire endurance ( h) | ≥1 | ≥1 | |
Compression strength ( Mpa) | ≥3.5 | ≥3.5 | |
Heat transfer [ W(m2.K)] | – | ≤2.0 | |
Coefficient of softing | ≥0.8 | ≥0.8 | |
Rate of water content ( %) | ≤12/10/8 | ||
Sample display
Working principle of concrete wall panel making machine:
The machine gathers distributing material, vibrating, forming, and demolding processes of the lightweight partition wall panel into one. The main motor transfers power to the reducer through the belt pulley.The output shaft of the reduction gearbox drives the helical churning knife to rotate in the forming cavity which consists of machine frame (wall board), vibration machine (vibrator) and pedestal.the lightweight mixtures is transported continuously from hoppers to forming cavities.It is subjected to the dual action of the helical churning knife (augers)extrusion and the vibrator continuous vibration in the forming cavity.with producing resonance, the wall panel can achieve the requirements of shape, size and density through be squeezed and compacted continuously.At the same time, compacted wall panel produces the reaction force to the rotating churning knife, and pushes the extrusion machine forward continuously, thus realizing the continuous production of wall panel. The upper surface of wall panel is polished by the forming scraper at the end of the machine.

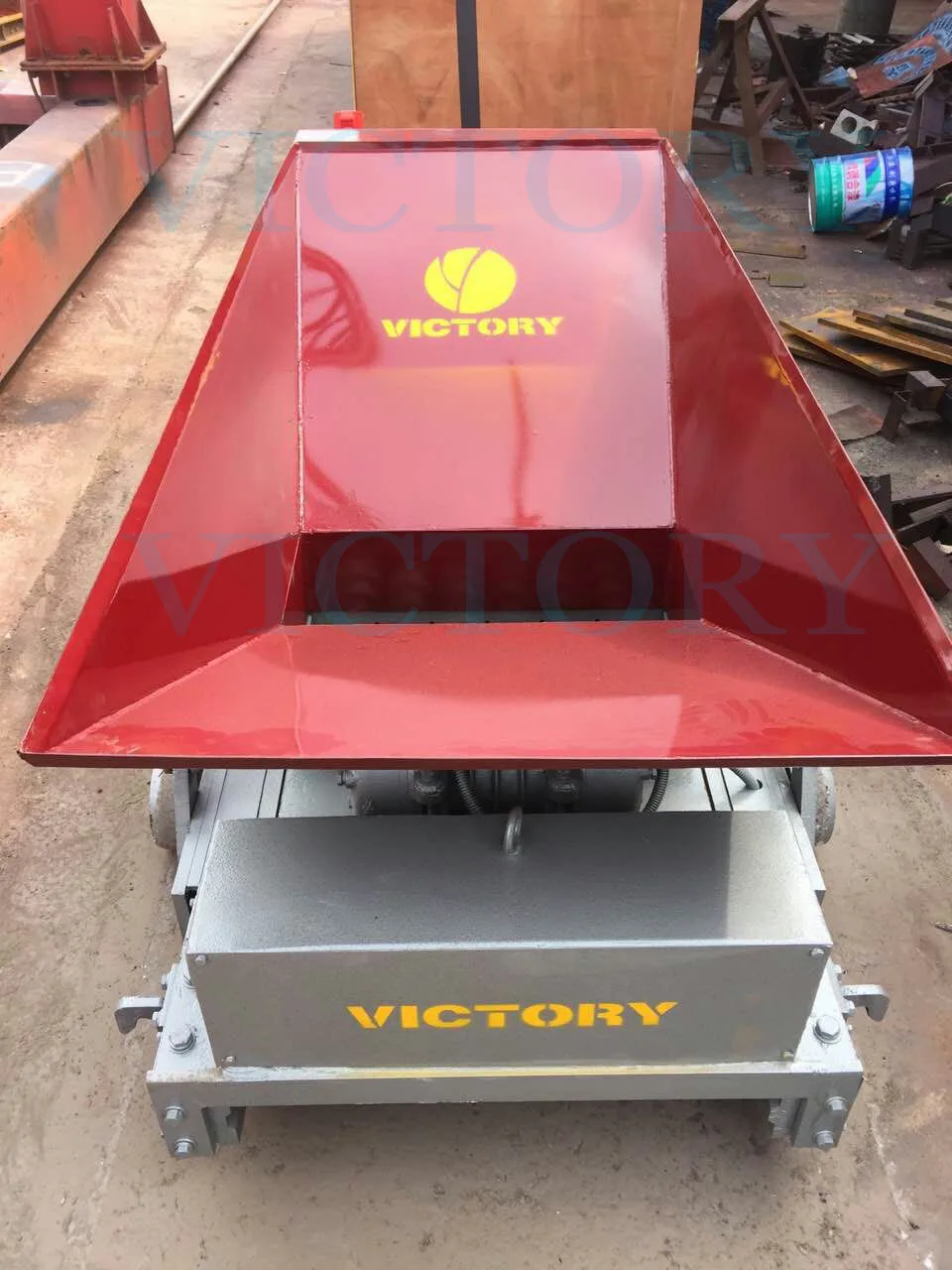

All welded alloy auger
High frequency vibration device
All welded alloy auger
Production Process
1. Traveling lifting assembly 2. Frame assembly 3. Reduction box assembly 4. Spiral mixing knife 5. Vibration forming device 6. Hook 7. Hopper 8. Main motor 9. Front guard 10. Electrical system

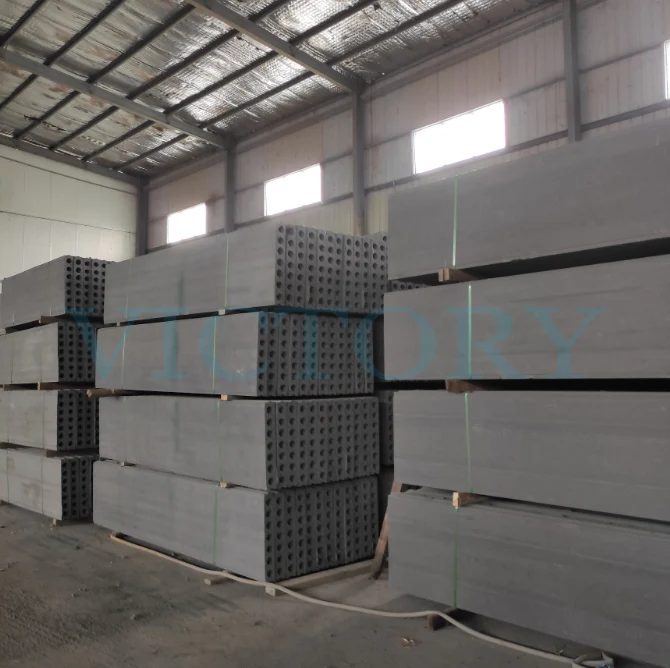

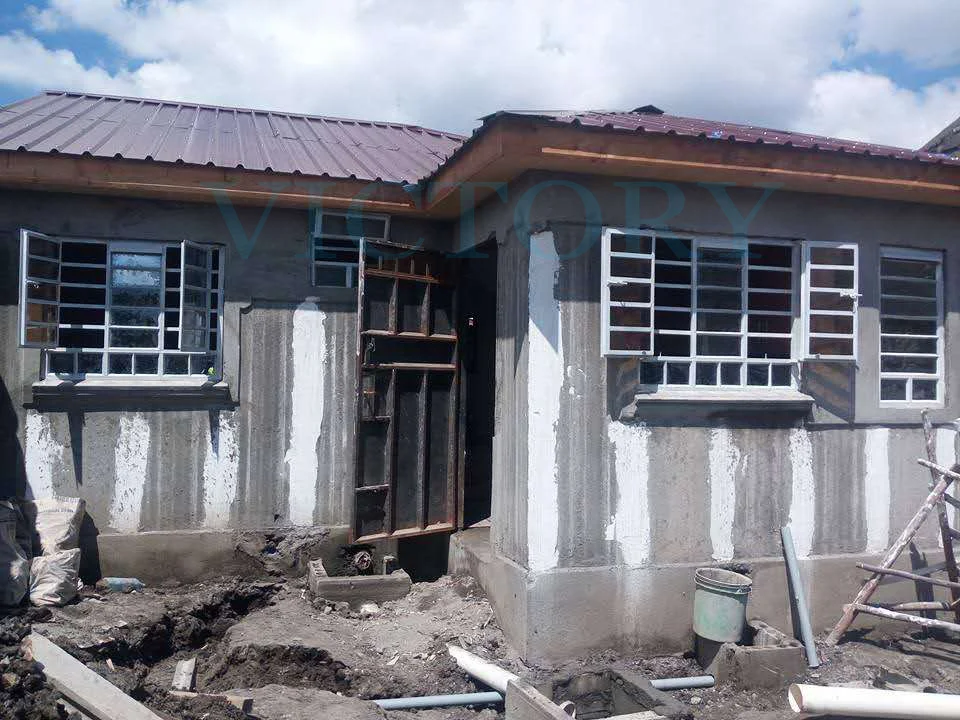

Finished wall panels and their application scenarios:
Concrete wall panel is a new type of lightweight building material that has the advantages of fire protection, moisture resistance, sound insulation, earthquake resistance, fast construction, indoor area saving, and environmental protection. It is used as indoor partition walls to separate rooms, corridors, kitchens, bathrooms, etc. in office, commercial, and residential buildings.
Concrete wall panel is a new type of lightweight building material that has the advantages of fire protection, moisture resistance, sound insulation, earthquake resistance, fast construction, indoor area saving, and environmental protection. It is used as indoor partition walls to separate rooms, corridors, kitchens, bathrooms, etc. in office, commercial, and residential buildings.
Producing & Using
Packing & Delivery
Concrete wall panel board concrete block making machine
Our website: hnvictory.en.alibaba.com
Question 1. What is the Standard Size of Wall panel machine
For Precast Light weight Wall panel machine, JQT7.5*60 and JQT9*60 is more Standard all over the world ( 75mm thickness, 600mm width etc.)
Question 2. How Much Sqm will be installed 1 day?
Very quickly by Our Wall panel Installer (450sqm/day)
Question 3. Can we use wall panel as Exterior and interior Wall?
Yes, Can be used for both. (Exterior can be Double Layer Holes. Interior can use 9*60 or 7.5*60)
Question 4. How To Order From "Henan Victory Industrial co. ltd."?
Confirm PI (Profroma Invoice) with our sales Man
Payment: 50% deposit, the Balance 50% paid against Bill Of Lading Copy. (Old Customer: 30% &70%)
Company Profile
High speed customized building material machinery lightweight precast concrete wall panel making machine
Henan victory is a company integrated by a team of professions with a wide and deep experience in the precast concrete machinery industry. The company was founded in 1995 and since then, it has been a leading manufacturer of single equipment and complete plants for the precast concrete industry. Especially, we are the earliest designer and manufacturer of slipformer precast wall panel extruder in Henan Province, even in all over China.
Похожие товары
Легкий вес огнестойкая гипсовая бумага гипсокартон делая машину сухие стены производственная линия
20 817 044,26 ₽ - 22 041 680,00 ₽
Автоматическая машина для производства листовой плитки
1 983 751,20 ₽ - 2 204 168,00 ₽
Машина для производства гипсокартона сухая стена делая машину
39 673 921,92 ₽ - 41 989 400,40 ₽

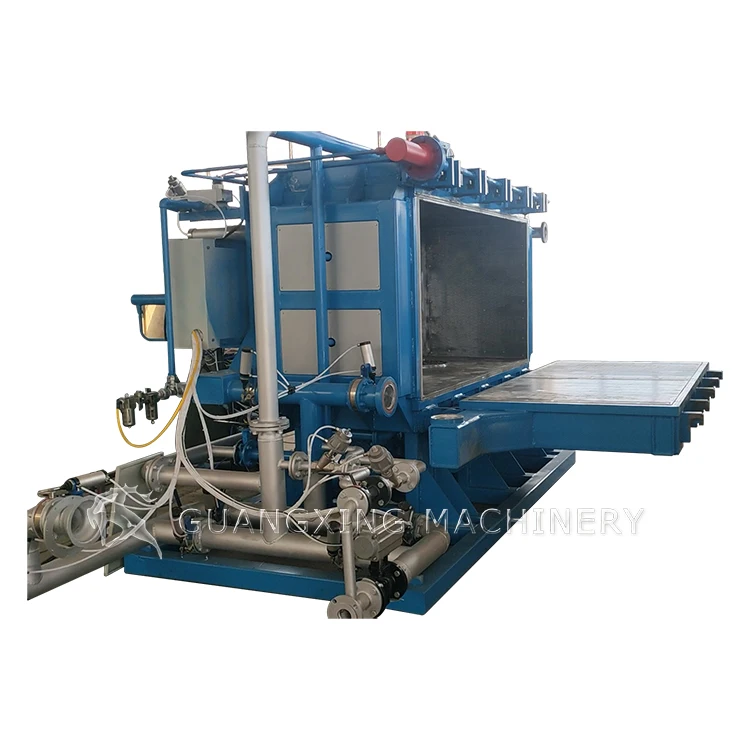

Автоматическая машина для производства пенопласта с ЧПУ EPS формовочная производственная линия
2 204 168,00 ₽
Полностью Автоматическая производственная машина линия вспенивающей машины XPS
2 204 168,00 ₽

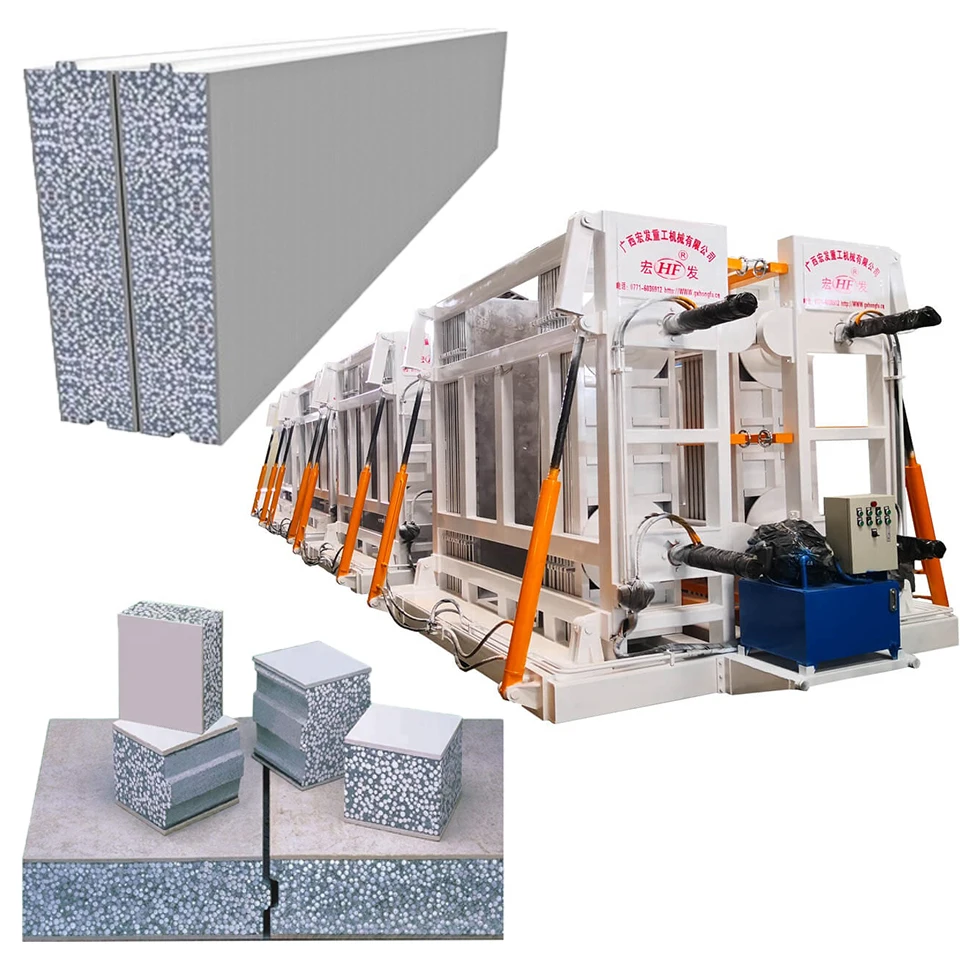

Машина для производства Цементных сайдинговых плит Xps пеноизоляционные плиты Eps цементные сэндвич-панели резки цементных бетонные стеновые панели
