1500 Вт, 3000 Вт, 6000 Вт, обменный стол и волоконно-лазерная машина для резки листового металла по низкой цене
3 837 694,00 ₽
690 машина лазера СО2
- Категория: >>>
- Поставщик: Founder Laser Technology Co. Ltd.
Сохранить в закладки 1601253291686:
Описание и отзывы
Характеристики
Machine Details
FDC-690 standard configuration model
The FDC-6090 machine is equipped with high-quality configurations: X\\Y axis are equipped with Hiwin guide rails; Leadshine motors; Leadshine drivers; Ruida systems; Omron limit switches; high-quality ball screws; honeycomb panels and aluminum knife platforms; front and rear baffles can be removed to increase the size of the material.
Machine parameters： | ||
Machine model: | FDC-6090 | |
Laser power: | 60W/80W/100W/130W/150W/180W/200W/300W | |
Working range: | 600*900mm | |
Positioning accuracy: | ≦ 0.01mm | |
Maximum cutting depth: | 10/15/20/25mm (acrylic) | |
Total power: | < 1200W | |
Maximum lifting speed: | 0-1000mm/s | |
Working temperature: | 0℃ - 45℃ | |
Maximum cutting speed: | 0-600mm/s | |
Working humidity: | 5% - 95% (excluding condensed water) | |
Maximum formed character: letters: | 1.5 x 1.5mm | |
Power supply: | 220V±10% 50HZ or 110V±10% 60HZ | |
Machine instruction diagram：
Same model machine

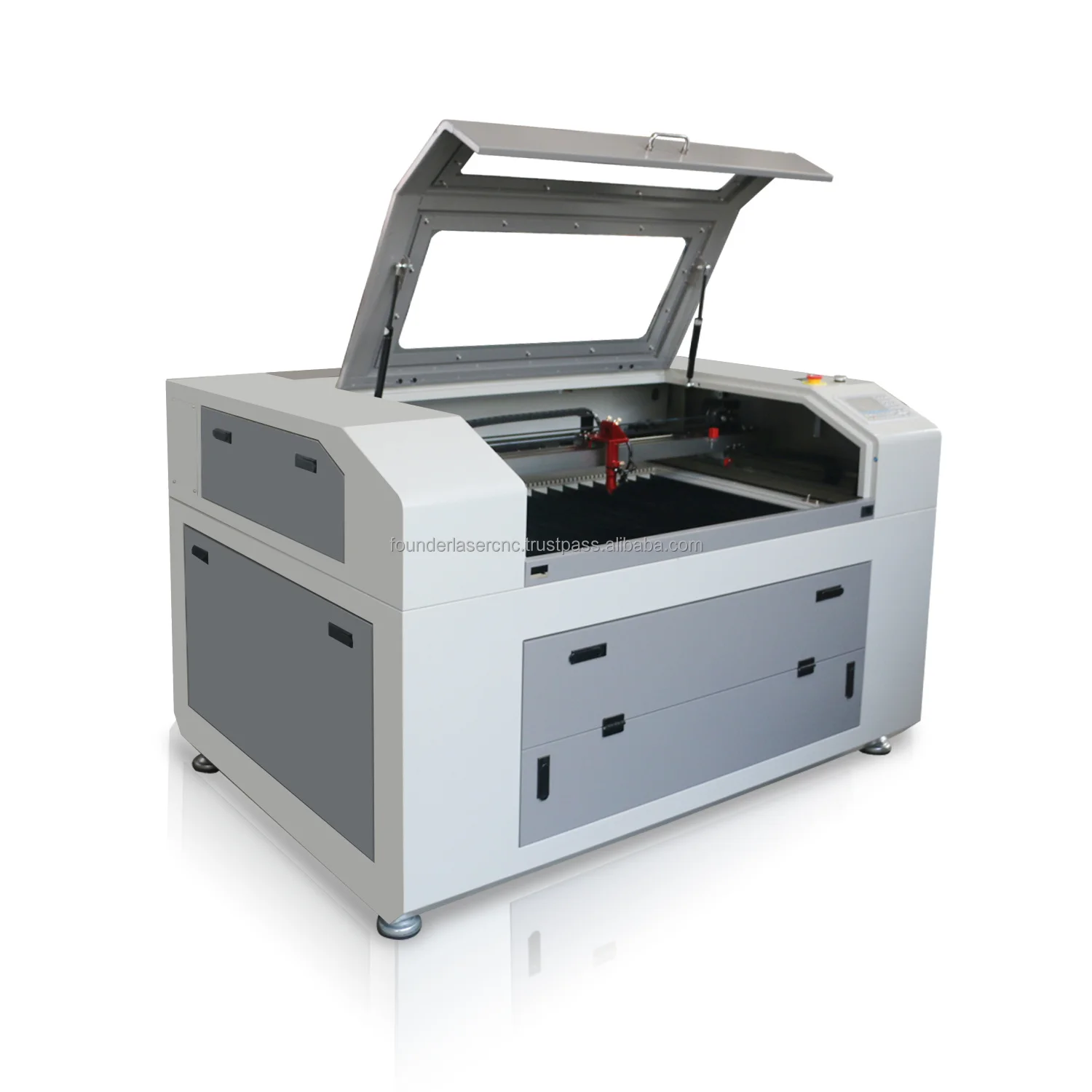

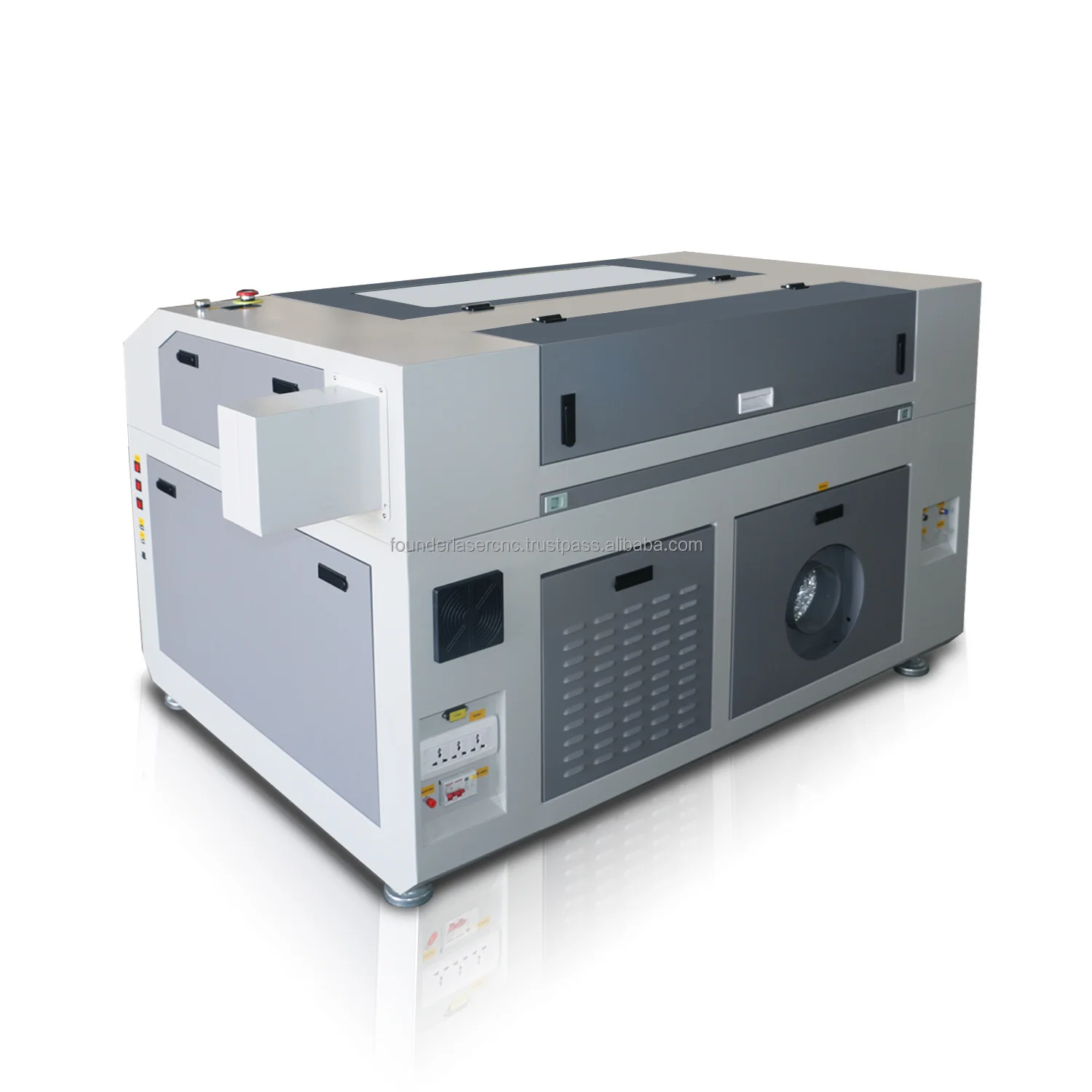

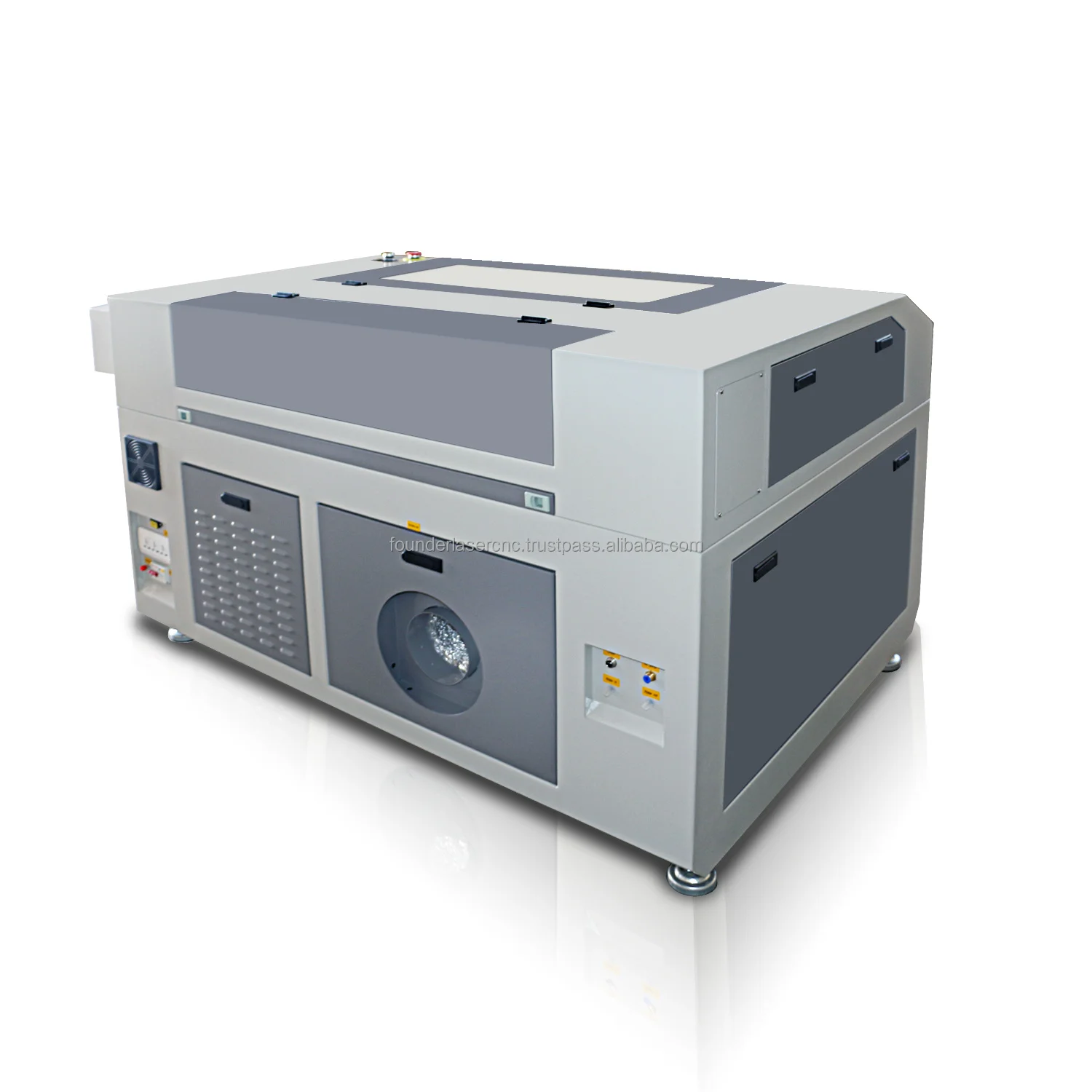

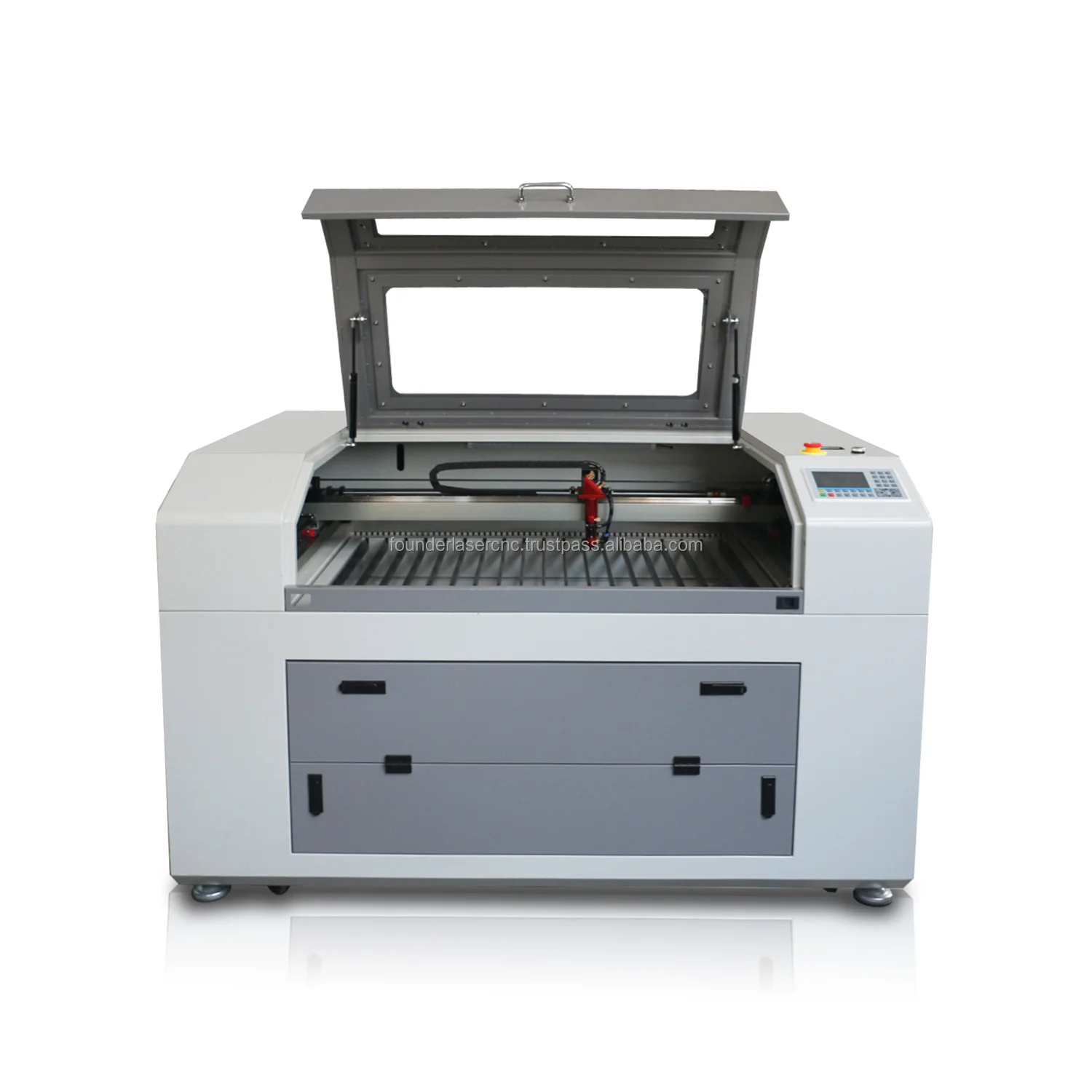

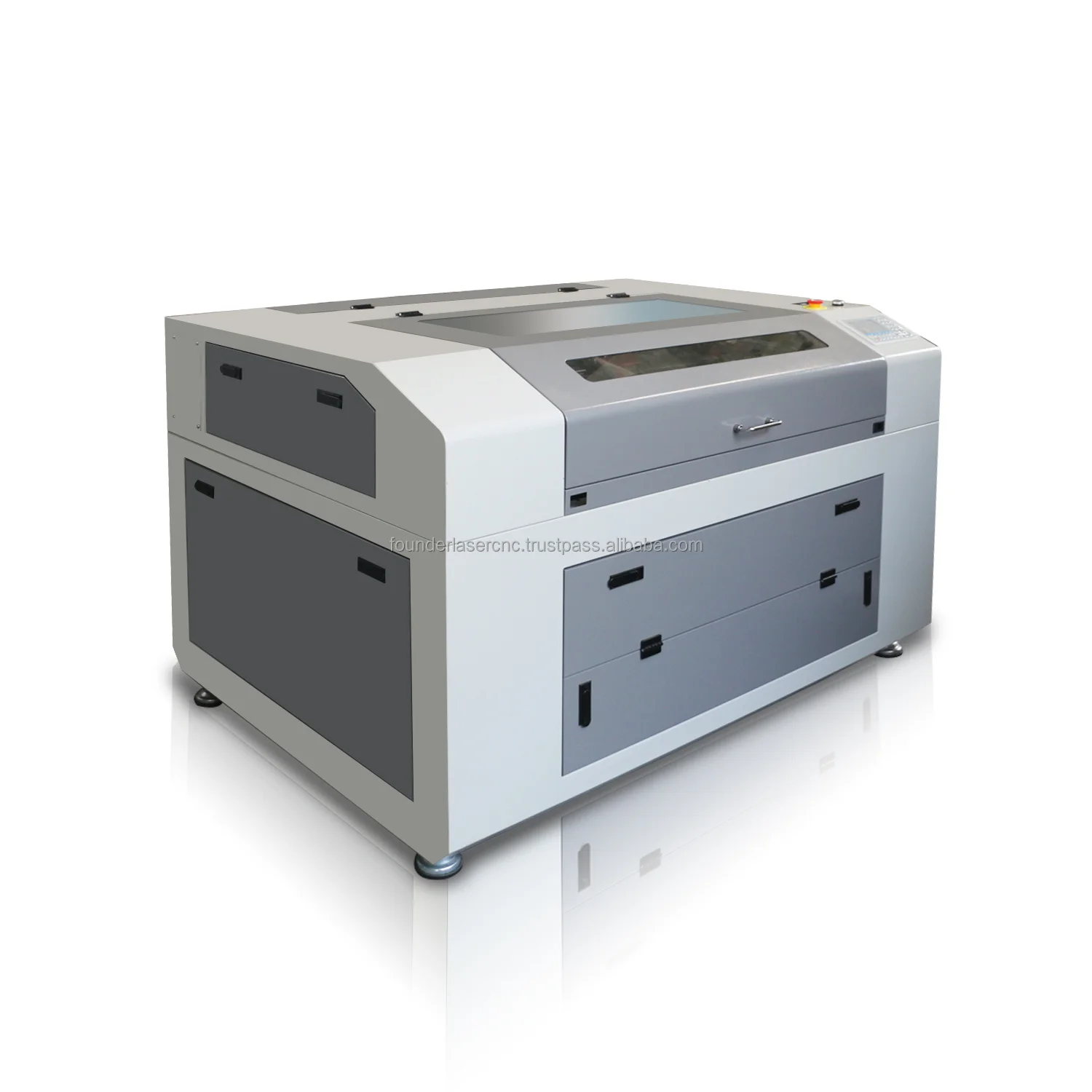

Machine details display:
Linear rail plotter
The plotter's X/Y axes all use high-quality linear guides to ensure that the movement paths of the X/Y axes do not deform after the machine has been working for a long time.
Aluminum industrial laser head, to prevent high temperature deformation, equipped with red light positioning, air cooling function.
The machine can be installed with single head, double head, CCD, automatic focus and other systems.
The machine can be equipped with a variety of laser tube types, such as: RECI, LA.SEA, CDWG, etc.
Reasonable wiring of electromechanical box
The machine uses the Ruida 6445 motherboard and operating system, and a large color screen operation panel, which is simple and easy to learn and understand. The reasonable wiring of the electromechanical box maximizes the performance of the machine system.
The machine uses a ball screw + belt lifting system, which can be raised or lowered up to 25cm.
Product packaging
Tools that come with the machine
Tool box, Air pump (model is subject to the actual product), Plastic smoke pipe, Aluminum foil smoke pipe, Water pipe, Air pipe, Clamp, Wrench, USB flash drive, Certificate, Warranty card, Test tape, Machine power cord, Focal length ruler, Lens removal tool, USB cable, Data cable, Water cooler signal cable, Ground wire, Water cooler (extra option), Fan (extra option).
Machine packaging site
After the machine test is completed, the machine is cleaned, and then the Y/Y axis of the machine is fixed (to prevent the Y\\Y axis from sliding during transportation), and then the tools that come with the machine are placed, and finally the moisture-proof and wear-proof packaging during transportation is carried out, and the outer box is sealed and loaded.
Company Profile
Liaocheng Founder Laser Technology Co., Ltd. was established in 2017 and is located in Liaocheng High-tech Zone. It covers an area of 3,000 square meters, has more than 80 employees, and has an annual output of more than 3,000 units.
Founder Laser's main products include: laser engraving machine series, laser cutting machine series,laser marking machine series, laser welding machine series, and optical fiber cutting machine series.
Founder Laser has its own registered trademark, and has won the titles of "China Famous Brand", "High-tech Enterprise Certificate", "Specialized and New" Small and Medium Enterprises in Shandong Province, and has passed the international FDA and CE certifications. Founder Laser insists on innovation, has 15 product design patents, seeks development through science and technology, and wins the market through service.
Founder Laser has a variety of series of products, and friends are welcome to inquire, visit and order!
FAQ
1. How to operate the machine?
We will provide you with English manuals and videos at any time. We have an after-sales team for exhibition business.
2. When will the machine be shipped?
We ship according to the customer's order, the size of the machine, and whether the machine is customized.
3. Can the company visit online?
Our company is a physical company, and customers are welcome to visit the factory at any time, and video connection is also OK.
4. What should I do if this machine has problems during the warranty period?
If there is a problem with the machine, we will provide free parts during the warranty period of the machine. The freight needs to be borne by the customer. At the same time, we also provide free lifetime after-sales service.
5. Can the machine be customized according to my requirements?
Of course, we have a strong technical team and rich experience. Our goal is to satisfy you.
6. Can you help me arrange the shipment?
We can arrange sea or air transportation for customers. The transaction terms include FOB, CIF, EXW.
