Лидер продаж, 4 в 1, Ручной Волоконно-лазерный сварочный аппарат, пистолет для резки, очистки, из нержавеющей стали, железа с проволочным питателем
229 726,14 ₽ - 382 876,90 ₽
Стоит покупать 1500 Вт 2000 3000 ручная лазерная сварочная система цена Ручной Волоконно лазерный сварочный аппарат
- Категория: >>>
- Поставщик: Jinan Wiland Cnc Equipment Co. Ltd.
Сохранить в закладки 1601266930451:
Описание и отзывы
Характеристики
Factory Direct Sales 1000w 1500w 2000w 3000w Welding Machine Laser Handheld Handheld Fiber Laser Welding Machine
Product Description
Wiland handheld laser welding machine is easy to operate and can be used quickly even with no experience. It supports welding of various metals, such as stainless steel, iron, copper, aluminum, galvanized sheets, etc. It can support butt welding, fillet welding, external fillet welding, internal fillet welding, etc. Overlap welding, spot welding, etc., do not damage the workpiece, the welding is firm and deep, easy to operate and quick to start, solving the problems of companies having difficulty in recruiting welders and high labor costs.
Handheld laser welding machine coupled high energy laser beam into fiber cable,after long distance transmission,it is focusing on the work piece for welding by collimating lens collimate light.It adopts Germany technology,the overall appearance is good looking appe-arance,equipped with high performance bearing working table,handheld type,simple oper-ation and high cost ratio and good performance .With high efficiency and energy,100,000 hours lifetime,stable performance,high power, it is applicable and flexible for all kinds of Llaser industry. Parameters small adjustments,choose different wave type for welding different materials,single and quick operation.
3 In 1 function fiber laser welding machine with high quality
Welding/Cutting/Cleaning
Specification
Laser Power | 1000W/1500W/2000W/3000W (MAX ) |
Fiber Length | Standard 10M Maximum 15M |
Laser Pulse Frequency | 1-20HZ |
Adjusted spot range | 0.1-3mm |
Minimum Welding pool | 0.1mm |
Collimating focal length | 50mm |
Focus length | 150mm |
Focus adjustment range | -10mm～+10mm |
Spot adjustment range | 0～5mm |
Gas source | Argon or Nitrogen，≤1Mpa |
Working mode | Continuous or modulate |
Welding cleaning head | Portable single wobble combined head |
Welding cleaning system | Touch screen control panel（RelFar ) |
Beam quality | M2＜1.2 |
Line width | ＜5nm |
Straight modulate | 0-5KHZ |
Welding speed range | 0~120 mm/s |
Cooling system | Water cooling, industrial water chiller |
Welding thickness recommendations | 0.5-4mm |
Welding gap requirements | ≤0.5mm |
Cleaning width | 0-80mm |
Working environment temperature | 15~35 ℃ |
Humidity range of working environment | < 70%No condensation |
Working Voltage | AC220V±10%, 50/60Hz, single phase |
Stainless Steel | Laser Source（W） | Power（W） | Speed（mm/s） | Rate（kHz） | Focus（mm） |
1mm | 500 | 260 | 800 | 5 | +2 |
1.5mm | 500 | 340 | 750 | 5 | +2 |
2mm | 1000 | 600 | 800 | 5 | +2 |
2.5mm | 1000 | 730 | 700 | 5 | +2 |
3mm | 1000 | 860 | 720 | 5 | +3 |
Aluminum | Laser Source（W） | Power（W） | Speed（mm/s） | Rate（kHz） | Focus（mm） |
1mm | 500 | 480 | 700 | 20 | +1 |
1.5mm | 1000 | 560 | 800 | 20 | +1 |
2mm | 1000 | 780 | 800 | 20 | +2 |
2.5mm | 1000 | 920 | 800 | 20 | +2 |
3mm | 1500 | 1150 | 800 | 20 | +2 |
Brass | Laser Source（W） | Power（W） | Speed（mm/s） | Rate（kHz） | Focus（mm） |
1mm | 1000 | 900 | 600 | 30 | +3 |
1.5mm | 1500 | 1100 | 600 | 30 | +4 |
2mm | 1500 | 1350 | 500 | 30 | +4 |
2.5mm | 2000 | 1600 | 500 | 30 | +5 |
3mm | 2000 | 1850 | 500 | 30 | +6 |
Carbon Steel | Laser source（W） | Power（W） | Speed（mm/s） | Rate（kHz） | Focus（mm） |
1mm | 500 | 300 | 500 | 20 | 0 |
1.5mm | 500 | 370 | 500 | 20 | 0 |
2mm | 500 | 480 | 600 | 20 | +1 |
2.5mm | 1000 | 600 | 600 | 20 | +1 |
3mm | 1000 | 760 | 700 | 20 | +2 |
Core Parts
Application Field
✦Applicable Materials: aluminum,stainless-steel sheet, iron sheet, galvanized sheet and other metal materials
✦Applicable Industry: household appliance manufacturing, hardware tool processing, decorative advertising and other machinery manufacturing and processing industries.

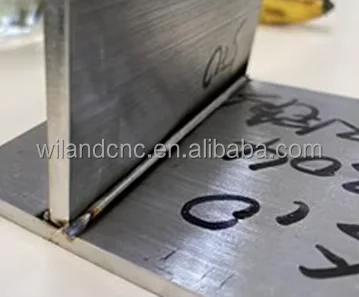

✦Beautiful weld, fast speed, no consumables, no welding mark, no discoloration, no need to polish later. Can be configured with a variety of Angle nozzle to meet the welding needs of different products.
✦Applicable Industry: household appliance manufacturing, hardware tool processing, decorative advertising and other machinery manufacturing and processing industries.
✦Beautiful weld, fast speed, no consumables, no welding mark, no discoloration, no need to polish later. Can be configured with a variety of Angle nozzle to meet the welding needs of different products.
Packing & Delivery
Customer Feedback
Company Profile
Jinan Wiland CNC Equipment Co., Ltd.
Is established in July 2003 ,owns more than 2000 square meters of researching and office space.All machines ,passed the European Union CE authentication,American certificate and are certified to ISO 9001. Products are sold to USA, South east Asia,Europe,Canada,Australia,Africa etc,more than 120 countries and areas, and supply OEM service for more than 30 manufactures.
Our Main products are Fiber Laser Marking Machine , Laser Welding Machine , CO2 Laser Engraving Machines , CNC Router Machine .
The industrialization of laser technology will effectively promote the upgrading of emerging industries such as manufacturing,energy saving, and environmental protection, and meet consumer demand for high-quality products and services. Our company has established a complete quality management and after-sales service system . We can provide customers with various technical support and after-sales services, and provide a complete set of laser processing solutions for domestic and foreign customers.
Our Main products are Fiber Laser Marking Machine , Laser Welding Machine , CO2 Laser Engraving Machines , CNC Router Machine .
The industrialization of laser technology will effectively promote the upgrading of emerging industries such as manufacturing,energy saving, and environmental protection, and meet consumer demand for high-quality products and services. Our company has established a complete quality management and after-sales service system . We can provide customers with various technical support and after-sales services, and provide a complete set of laser processing solutions for domestic and foreign customers.
Absolute genuine guarantee, comprehensive after-sales service, and experienced technical team!!
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
Solve basic problem within 24 hours⭐⭐⭐⭐⭐
Special teaching video for practical needs from customer⭐⭐⭐⭐⭐
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
Solve basic problem within 24 hours⭐⭐⭐⭐⭐
Special teaching video for practical needs from customer⭐⭐⭐⭐⭐
FAQ
✦How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
✦How can I get the sample to check you quality ?
If you want to making sample to check the quality, we can help you do this. first you need to provide the logo or design to us,
free samples can be provided.
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
✦How can I get the sample to check you quality ?
If you want to making sample to check the quality, we can help you do this. first you need to provide the logo or design to us,
free samples can be provided.
✦Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
✦Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
✦Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
