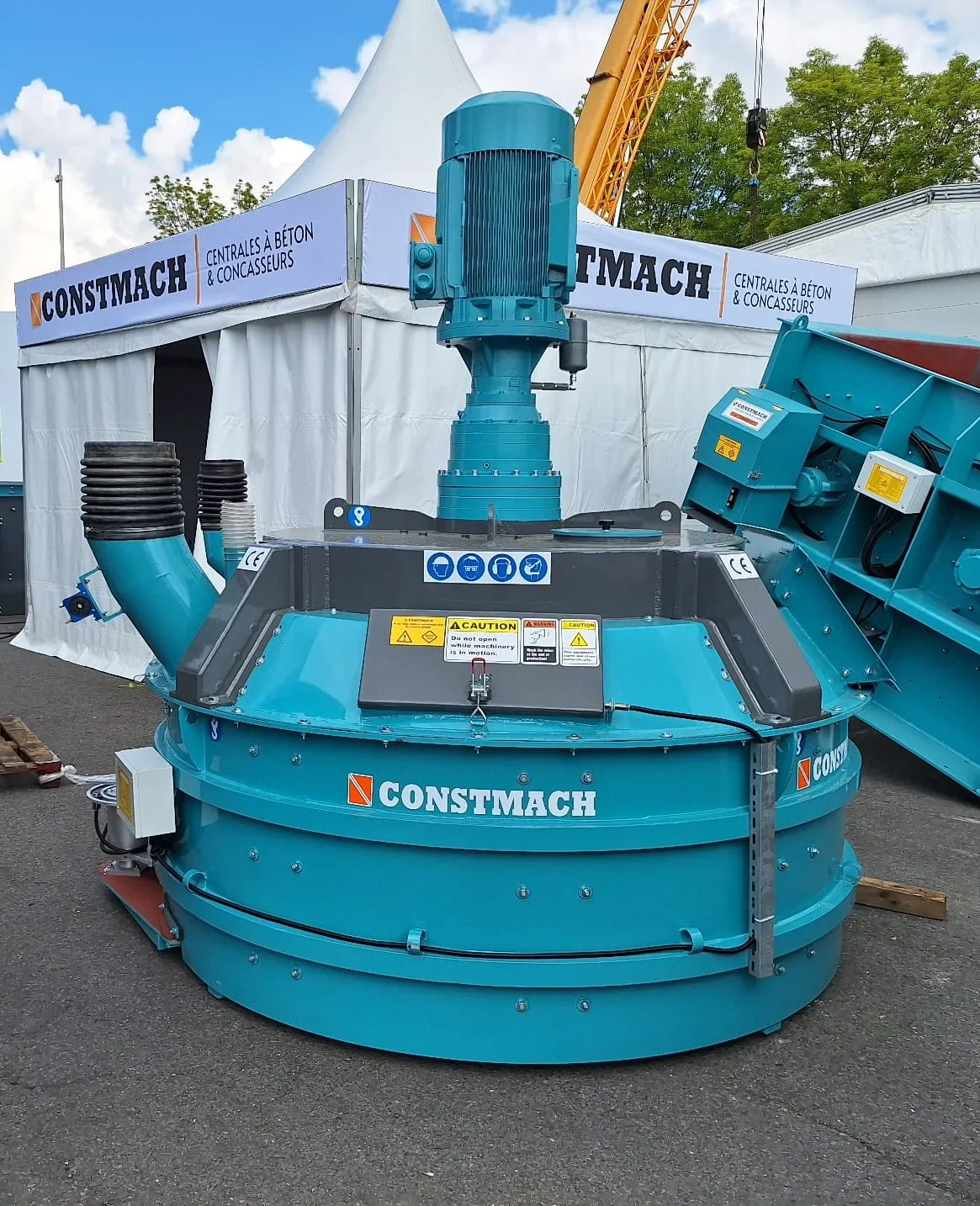

Буровой смеситель планетарный Бетономешалка самозагружается большой
100 000,00 $

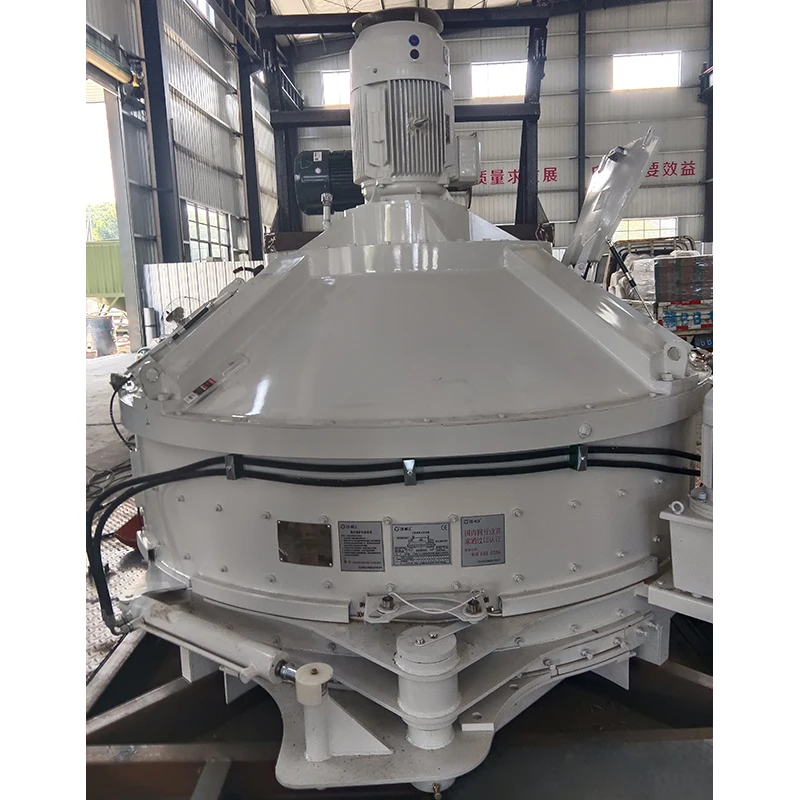

JN1000 вертикальный вал планетарный высокоскоростной бетономешалка высокая эффективность производства Бетономешалка
- Категория: >>>
- Поставщик: Jinan Zeyu Machinery Equipment Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601333523100:
Описание и отзывы
Характеристики
Product Overview
Product Details
Product Advantages
·High Efficiency - combined with German Liebherr, Italy Sigoma technology
·Durable - Q345 material original plate
·Stable Quality - shell all tooling production
·Precision - automatic CNC cutting machine cutting
·Easy Replacement And Maintenance/Stable Operation - separate seal and bearing
·Durable - Q345 material original plate
·Stable Quality - shell all tooling production
·Precision - automatic CNC cutting machine cutting
·Easy Replacement And Maintenance/Stable Operation - separate seal and bearing
Four-layer Shaft End Seal
There are two steel bearing protection circles between the mixing arm and shaft to prevent coarse sand into. In the steel circles there is a airway. When certain pressure of air goes though it, a pressure protection mat will be formed between the interface of the mixing arm and shaft to prevent water and mud from close to shaft head and prolong the service life of the mixer
The 380 V powerful motor can quickly head lube oil to axle oil note The NLGI level 2 or 3 lubricating oil make the shaft seal better and more fuel efficient Equip with special purpose motor lubricating oil pump , and four separate pump core respectively feeds oil to four axial heads directly , without using by-pass valve
Reducer and oil seal system is designed for concrete mixers by foreign standard factory , which can cooperate with mixer more smoothly and have long service life and low noise with no oil leak
The advanced hydraulic driving equipment avoid that the mixing plant can't discharge because of the shortage of the pneumatic when the pneumatic doors is unloading. There are serval arrest point to be general switch on the unloading gate so that it is convenient to pour into the mixer . It is safe and reliable that double unloading way can work with manual discharging control when the power outage

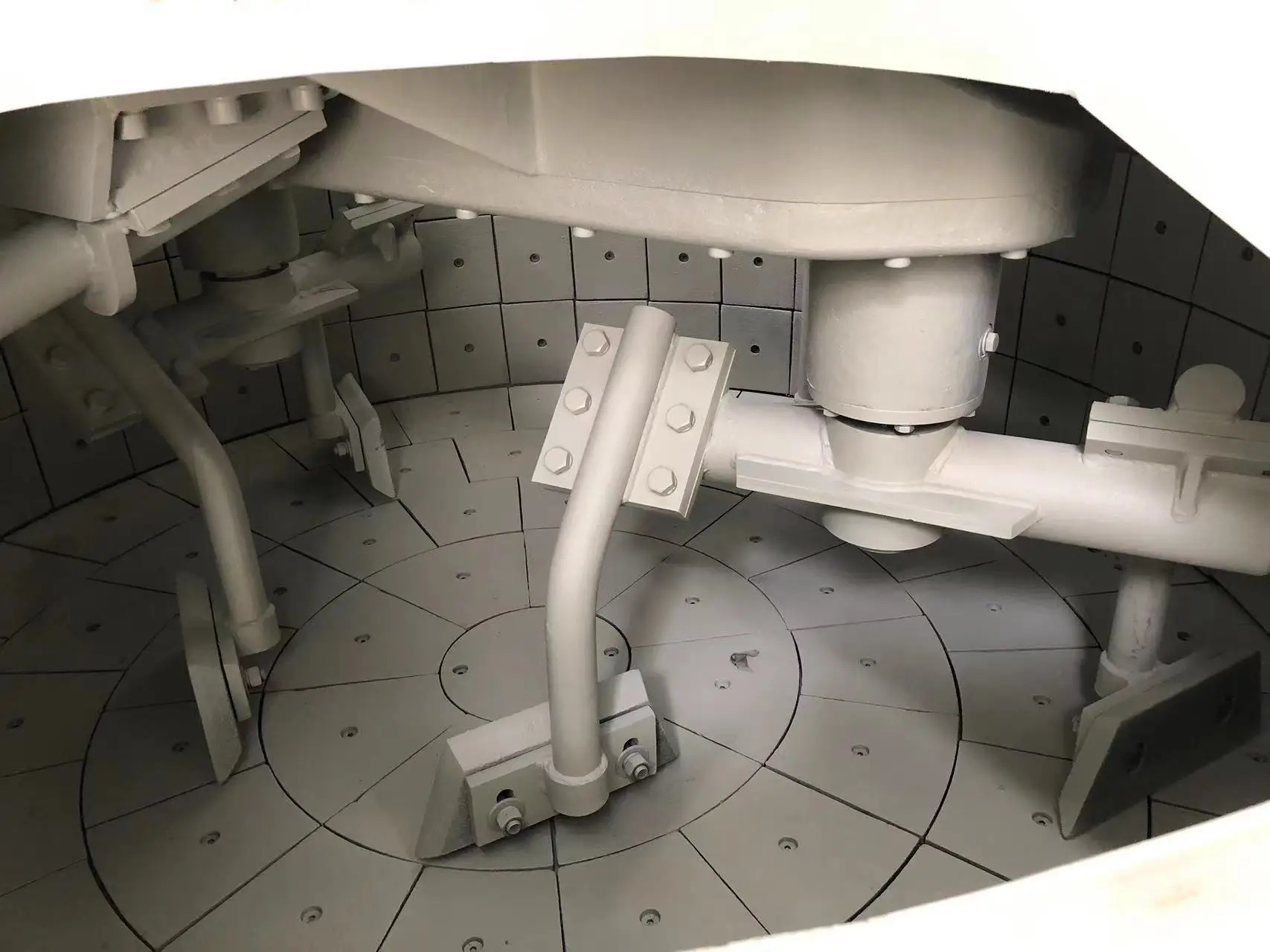

The mixing system adopt advanced technology design of the mixing blades , to make sure mixing no dead corner , better mixing efficiency , shorter mixing cycle . The wear parts adopt high chromium and high manganese material , more wear resistant and longer service life
Product Parameters
JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | |||
Loading Volume | 800 | 1200 | 1600 | 2400 | 3200 | 4800 | ||
Unloading Volume | 500 | 750 | 1000 | 1500 | 2000 | 3000 | ||
Productivity | ≤25 | ≤35 | ≤50 | ≤75 | ≤100 | ≤150 | ||
Maximum Aggregate Size (egg/gravel mm) | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | ||
Mixing Blade | Revolving speed | 35 | 30.5 | 25.5 | 25.5 | 23 | 23 | |
Quantity | 14 | 18 | 20 | 22 | 20 | 22 | ||
Mixing Motor | Model | Y180M-4-18.5 | Y200L-4-30 | Y200L1-6-18.5 | Y225M-6-30 | Y280S-6-37 | Y280M-6-55 | |
Winding Motor | Model | YEZ132S-4-5.5 | YEZ132M-4-7.5 | YEZ180M-4-18.5 | YEZ200L1-6-22 | |||
Hopper lifting speed | 18 | 19.2 | 21.9 | 23 | ||||
Dimensions(L*W*H) | Transportation status | 2786*2480*2151 | 4195*2300*2800 | 4640*2250*2250 | 5080*2250*2440 | 5080*2250*2440 | 4943*2850*2500 | |
Working status | 4278*2786*4605 | 5980*2300*6260 | 8765*3436*9540 | 9645*3436*9700 | 9645*3436*9700 | 9645*3436*9700 | ||
Weight | 3900 | 6800 | 8750 | 11130 | 15000 | 18000 | ||
Unloading Height | 1600/2700/3800 | 1600/2700/3800 | 1600/2700/3800 | 3800 | 3800 | 3800 | ||
Usage Scenario
Kazakhstan HlS180 Mixing Plant
Myanmar Liugong YHZSmobile 120 Concrete Mixinglant
Laos YHZS90 Mobile Concretemixing Plant
Thailand Concrete Mixing Plant
Russian Concrete Mixing Plant
Mongolian Concrete Mixing Plant
Company Profile
Our services
·Immediate response
·Be your businiss partner, technical assistant
·Feasibility analysis, engineering design
·Confirm proposal drawings and specifications
·Visit our factory for reference
·Be your businiss partner, technical assistant
·Feasibility analysis, engineering design
·Confirm proposal drawings and specifications
·Visit our factory for reference
After Sale Service
·Training how to install and use the machine
·Engineers aviable to serve overseas
·Track the use situation of the equipment regularly
·Sufficient spare parts in stock provide for equipment whole life
·The whole machine three guarantees 2 years
·7*24 hours uninterrupted service guidance
·Engineers aviable to serve overseas
·Track the use situation of the equipment regularly
·Sufficient spare parts in stock provide for equipment whole life
·The whole machine three guarantees 2 years
·7*24 hours uninterrupted service guidance
Logistics
FAQ
Jinan Zeyu Machinery Equipment Co., Ltd.
Q: Are you a trading company or a manufacturer?
A: We are munufacture. We can design and manufacturer according to actual requirements.
Welcome to visit our factory!
Q: What kind of products do you have?
1. Stationary concrete batching plant series from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor, bolted cement silo, etc.
Q: What are the terms of payment in your formal trade?
A: We accept T/T term, L/C term and Alibaba Trade Assurance Order Online.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What's your after-sale service?
A: 24 months warranty for main parts since departure. Able to provide On-site installation, debugging, workers training. Make sure that your workers can operate properly and know daily maintenance well.
Q:What's your delivery time?
A: Ready for delivering in 30-45 days after the 30% of the total amout is paid as deposit. (Concrete batching plant)
B: Ready for delivering in 7-10 days if the goods are in stock. Or in 15-20 days if the goods are not in stock. (Concrete mixer)
Q. How long do you warranty your concrete batching plant?
A: The product warranty period is 2 year, excluding the wearing parts, and we offer our customers wearing parts all the time at favorable price.
Q: What to do if the machine encounters a malfunction?
A: Email us or call us showing us photos about what happens, and our service is on line24/7, and then we will get back to you immediately. We provide on-site technical personnel services upon request.
Q.How can we install the plant?
A: We will make installation drawing before shipping, and our engineer will go oversea to provide guidance and training on installation after everything is ready set at customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
Q: Are you a trading company or a manufacturer?
A: We are munufacture. We can design and manufacturer according to actual requirements.
Welcome to visit our factory!
Q: What kind of products do you have?
1. Stationary concrete batching plant series from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor, bolted cement silo, etc.
Q: What are the terms of payment in your formal trade?
A: We accept T/T term, L/C term and Alibaba Trade Assurance Order Online.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What's your after-sale service?
A: 24 months warranty for main parts since departure. Able to provide On-site installation, debugging, workers training. Make sure that your workers can operate properly and know daily maintenance well.
Q:What's your delivery time?
A: Ready for delivering in 30-45 days after the 30% of the total amout is paid as deposit. (Concrete batching plant)
B: Ready for delivering in 7-10 days if the goods are in stock. Or in 15-20 days if the goods are not in stock. (Concrete mixer)
Q. How long do you warranty your concrete batching plant?
A: The product warranty period is 2 year, excluding the wearing parts, and we offer our customers wearing parts all the time at favorable price.
Q: What to do if the machine encounters a malfunction?
A: Email us or call us showing us photos about what happens, and our service is on line24/7, and then we will get back to you immediately. We provide on-site technical personnel services upon request.
Q.How can we install the plant?
A: We will make installation drawing before shipping, and our engineer will go oversea to provide guidance and training on installation after everything is ready set at customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
