Прямая продажа с завода настольный робот для автоматической дозирования клея
- Категория: Оборудование для производства электроники >>>
- Поставщик: Guangzhou Minder-Hightech Co. Ltd.
Сохранить в закладки 1700001755614:
Описание и отзывы
Характеристики

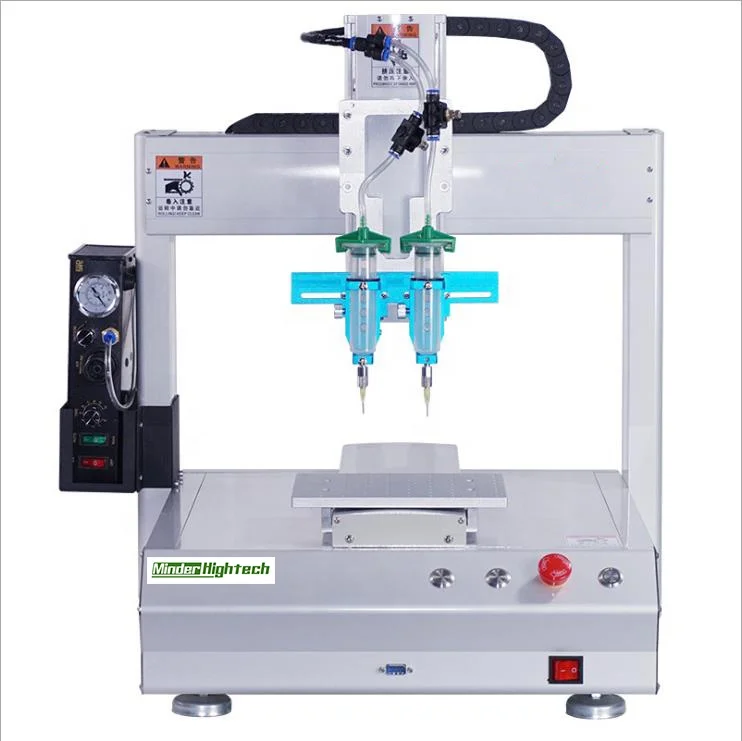

Main features of Automatic dispenser equipment MD-DJ5331
1.Operation with handheld LCD panel teach box,which is easy to program and learn.
2.Functions of drawing points,lines,surfaces,arc,circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library
inserting,group editing and so on.
4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.
6.With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.
7.The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8.Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.）
9.It is applied to fluid dispensing, such as, UV glue, AB glue,COB(black glue), white glue, EMI conductive glue, silicon, epoxy
resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.
3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library
inserting,group editing and so on.
4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.
6.With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.
7.The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8.Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.）
9.It is applied to fluid dispensing, such as, UV glue, AB glue,COB(black glue), white glue, EMI conductive glue, silicon, epoxy
resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.
Distinguishing Feature

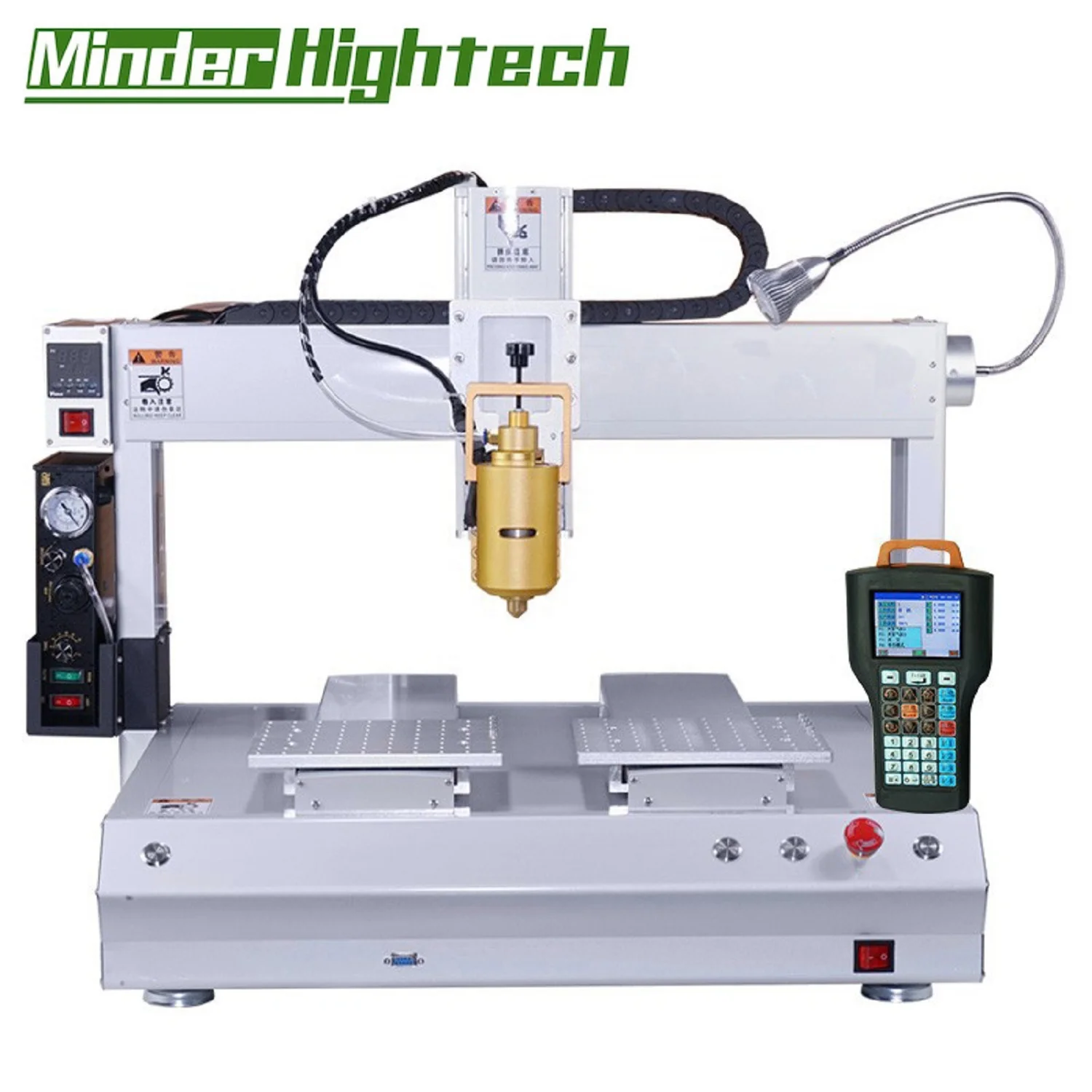

It runs alternately with a double platform, saving the time for the product to be taken and put.
It is independent of the mold. It is an aluminum profile casting structure with beautiful appearance.
It has a hand-held teaching programmer, which is fast and easy to program.
Its glue speed and glue amount can be set separately.
It is controlled by a high precision stepping motor, and the trail is accurate.
It can finish any shape point glue, such as space point, line, arc, etc.
It contains a variety of glue needles, syringes, glue valves and controllers to meet different requirements.
It is independent of the mold. It is an aluminum profile casting structure with beautiful appearance.
It has a hand-held teaching programmer, which is fast and easy to program.
Its glue speed and glue amount can be set separately.
It is controlled by a high precision stepping motor, and the trail is accurate.
It can finish any shape point glue, such as space point, line, arc, etc.
It contains a variety of glue needles, syringes, glue valves and controllers to meet different requirements.
Applicable Industry
Plastic labels, zipper heads, key chains, bookmarks, key cases, U disk shells, MP3 shells, mobile phone lanyards, mobile phone ornaments, mobile phone holders, mobile phone wipes, wrist straps, silicone bracelets, silicone necklaces, PVC car mats, Refrigerator stickers, mouse pads, coasters, glasses silicone covers, etc., suitable for clothing, shoes and hats, services, electronic appliances, toys, gifts, home, etc.
Specification
Model | DJ5331 | DJ5441 | DJ8551 | ||||||
Trip | 500/300/300/100 | 500/400/400/100 | 800/500/500/100 | ||||||
Programmatically | Import teaching programming or graphics | ||||||||
Motion graphics | Point, line, arc, circle, curve, multiple lines, spiral, ellipse | ||||||||
Dispensing head | Plastic needle/TT needle | ||||||||
Dispensing cylinder | 3CC/5CC/10CC/30CC/55CC/100CC/200CC/300CC/500CC | ||||||||
Minimum discharge | 0.01ML | ||||||||
The glue frequency | 5times/SEC. | ||||||||
Load | Y/X axle load | 10kg | |||||||
Z axle load | 5kg | ||||||||
Axial dynamic speed X/Y/Z | 0-600mm/sec | ||||||||
Resolving power | 0.01mm/Axis | ||||||||
Repeatability positioning accuracy | Screw drive | 0.01-0.02 | |||||||
Synchronous belt drive | 0.02-0.04 | ||||||||
Program record mode | least 100,5000points each | ||||||||
Display mode | LCD Teaching box | ||||||||
Motor system | Japan precision micro stepping motor | ||||||||
Drive mode | Guide | Taiwan HIWIN guide rail | |||||||
Wire road | HIWIN screw rod | ||||||||
Belt | Italy Italy Lartey synchronous belt | ||||||||
X/Y/Z axis synchronous belt for standard configuration Z axis screw rod is optional, XYZ axis screw rod for customization. | |||||||||
Motion filing function | 3axis(3 dimensional space, any route can) | ||||||||
Input power | Full voltage AC110v~220V | ||||||||
External control interface | RS232 | ||||||||
Motor control shaft number | 4 axis | ||||||||
Axis range | X | 500 | 500 | 800 | |||||
Y | 300 | 400 | 500 | ||||||
Y | 300 | 400 | 500 | ||||||
Z | 100 | 100 | 100 | ||||||
Outline size | 730/589/630 | 730/689/632 | 1030/789/630 | ||||||
Body weight | 65Kg | 75Kg | 85Kg | ||||||
Product Description
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ;
A: We have some products in stock , you can take away the products after you arrange the payment ;
If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.

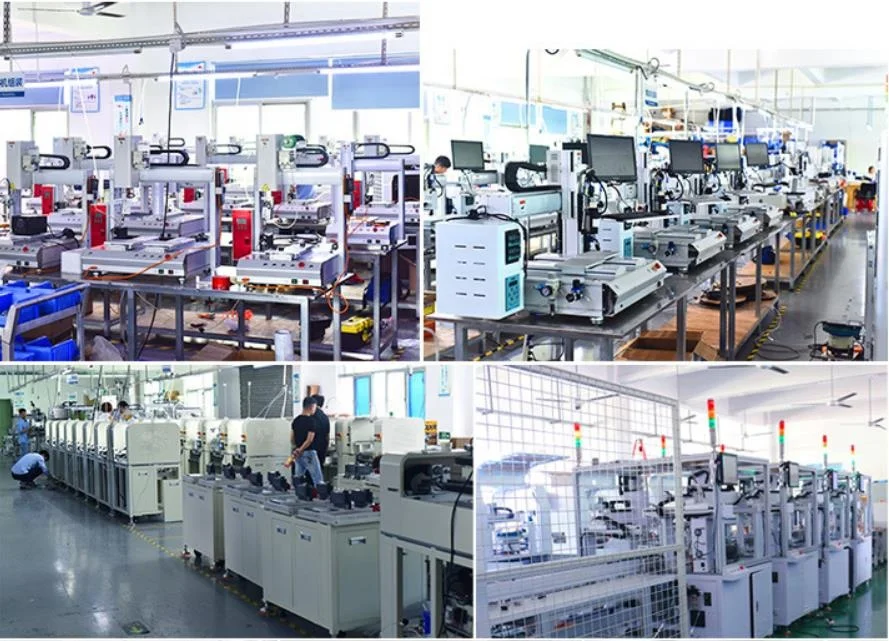

Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
Please contact us for more detail information.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
Please contact us for more detail information.
