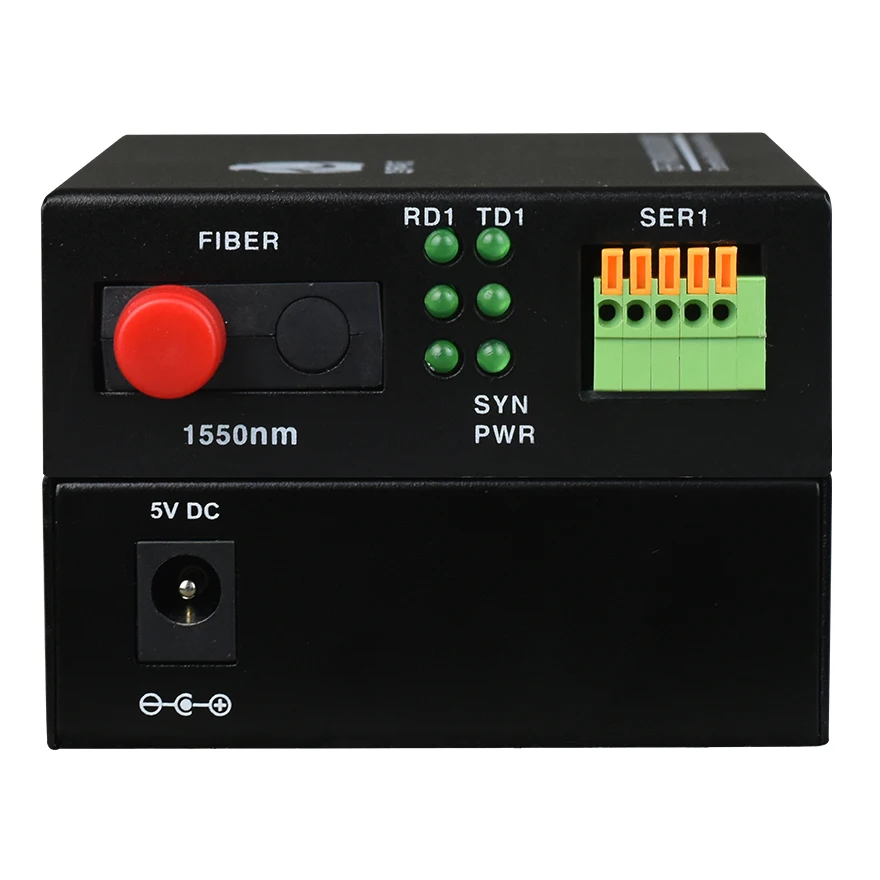

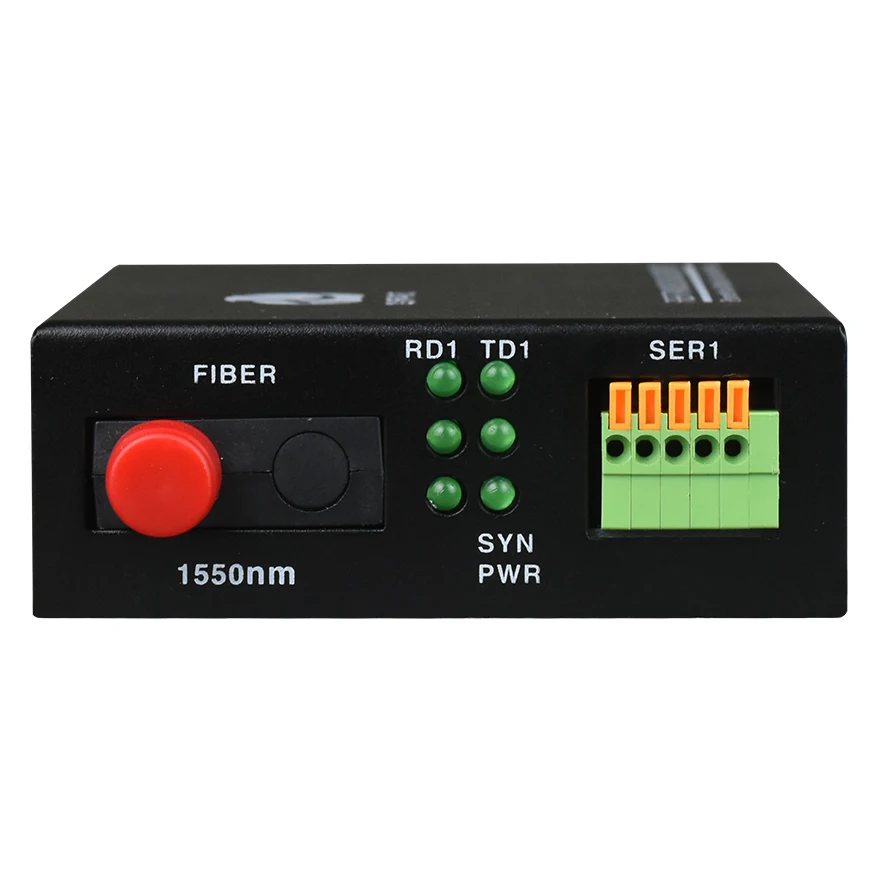

Optic modem RS485 to fiber converter

FCTEL data modem series device is multifunctional Fiber Modem, which supports asynchronous RS-232/422/485 communication interface. The device is the best choice of connecting to the remote terminal unit (RTU) to a host (HOST) or a distributed data acquisition system (SCADA) controllers, with very high performance price ratio. Using ordinary multi-mode fiber, effective communication distance is up to 4KM, while using ordinary single-mode fiber, effective communication distance up to more than 40KM. Serial port communication rate is up to 921.6KBPS.

As a result of the fiber as a transmission medium, you can completely avoid the threat to communication device under the adverse environment, such as lightning, surges and electromagnetic interference, at the same time it saves investments of the original lightning surge protection devices that using copper.

Features

Ø  Have the ability to automatically detect the baud rate of serial port signal

Ø  Can automatically detect and control RS485 data flow without handshake signals to control the flow direction of data

Ø  Automatically detect the reason of the device matt is that the device is power off, or E1 line is broken, and then indicate on the LED

Ø  Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV, Impedance (2Ohm), CM(Common Mode): 6KV, Impedance (2Ohm) standard S

 Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5KM~62.5/125um single mode fiber, attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 120KM ,9/125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

 Serial Interface

Standard

EIA/TIA-232 RS-232 (ITU-T V.28)

EIA/TIA-422 RS-422 (ITU-T V.11)

EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial Interface

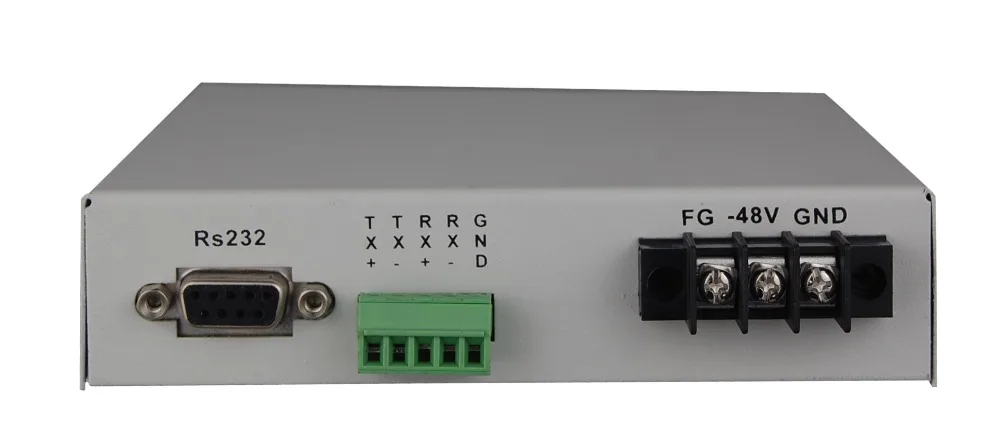

    RS-232(Hole-type DB9);RS-422(4-wires);RS-485(2/4-wires)

    RS-232: TXD(DB9-2), RXD(DB9-3), Signal Ground(DB9-5), internal loop:RTS to CTS,DTR to DSR and DCD

    RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground

    RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground

    RS-485 2 wires: Data+(Correspond TX+), Data-(Correspond TX-), Signal Ground

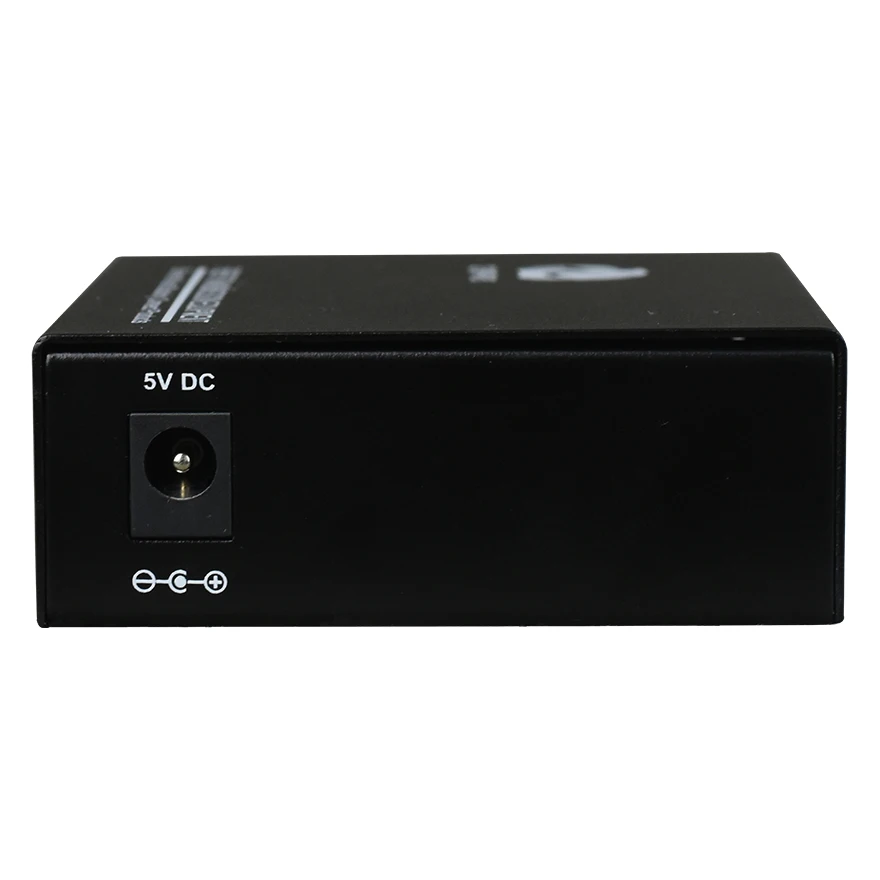

Power

Power supply : AC (85V~265V, 50~60Hz)  DC(100-360V)

Power consumption: 2Watts @ AC 220V

Working Environment

Working temperature:      -40°C ~ 85°C
Working Humidity:             5%~95 % (no condensation)

Storage temperature:            -40°C ~ 80°C
Storage Humidity:              5%~95 % (no condensation)

Network application

 Order information:
