Дешевая машина для пластиковых бутылок/машина

Категория: Выдувная машина >>>
Поставщик: Taizhou Huangyan Zhengge Plastic Machinery Co. Ltd.

Цена:5 000,00 $ - 5 500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Cheap Price PET Plastic Bottle Machine / Maquina Sopladora De Botella

Machine Features:

1).Low consumption & Low Cost.

2).High Intelligence.

3).Low noise.

4).Stable performance.

5).Highly precise blow-mould closing system.

6).Good self-lubrication system avoid contamination.

7).High Quality:Steady infrared heating system blowing.

ZG-1000B Technical Parameter :

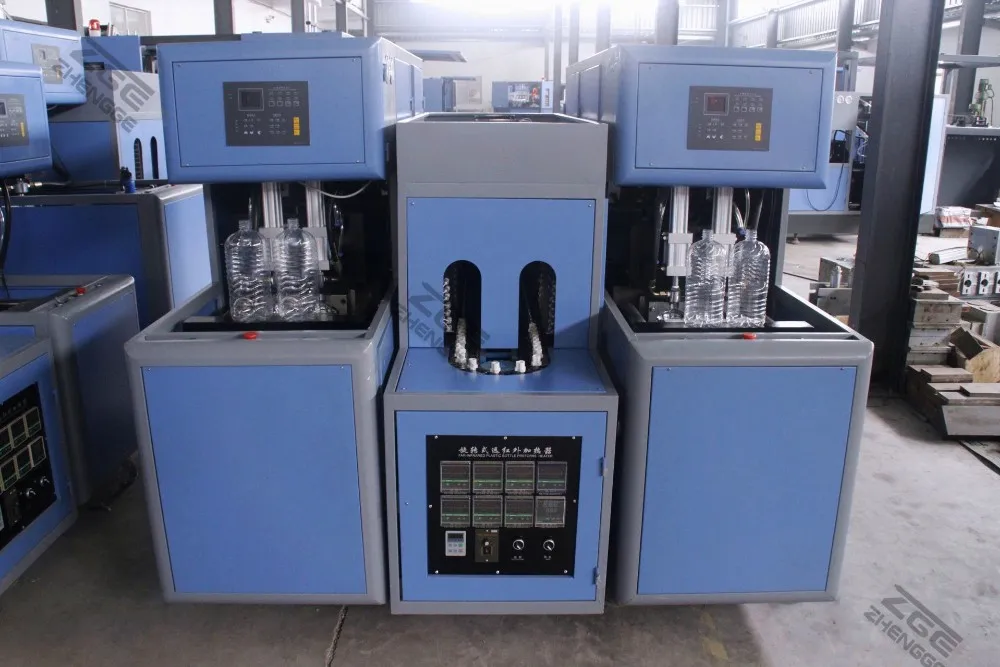

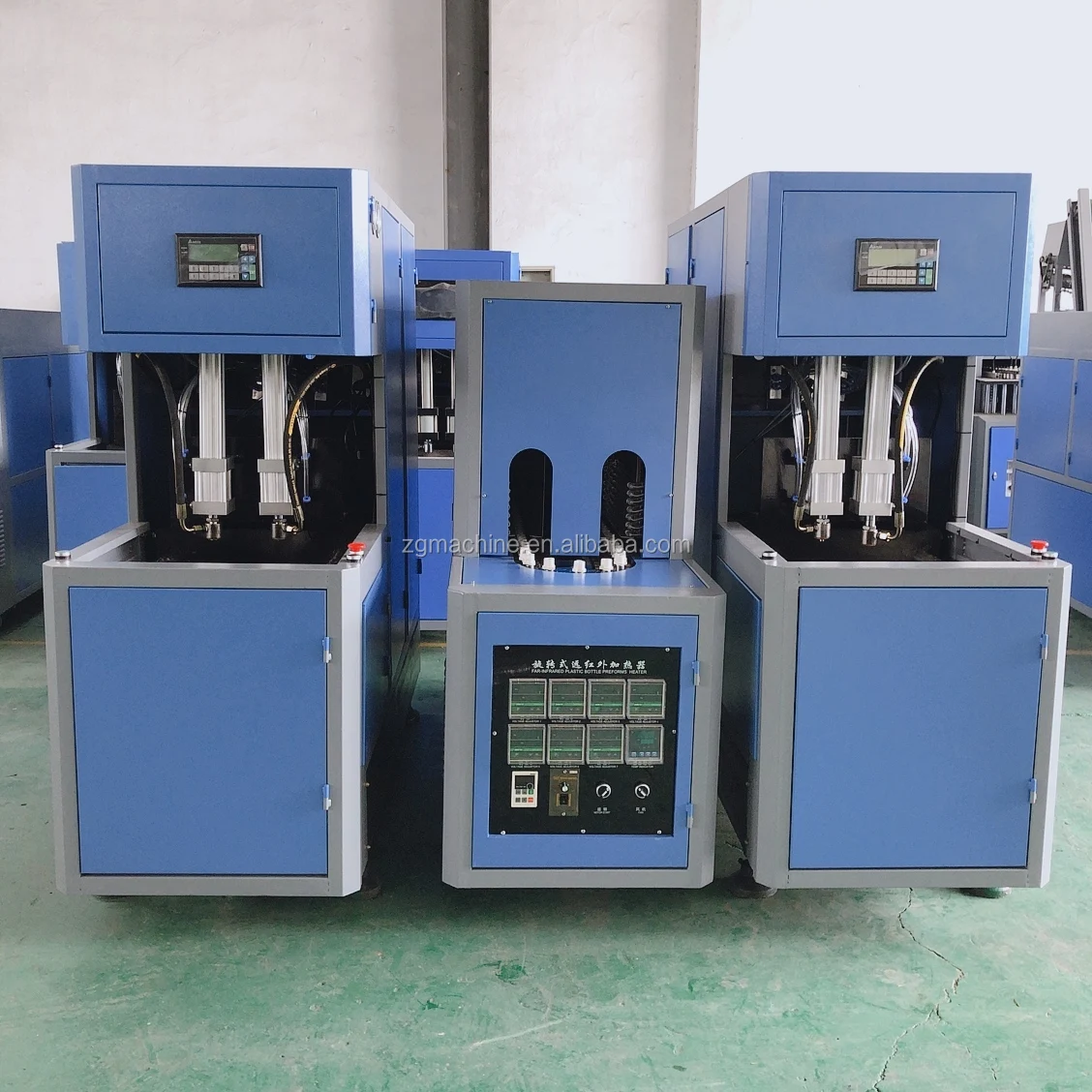

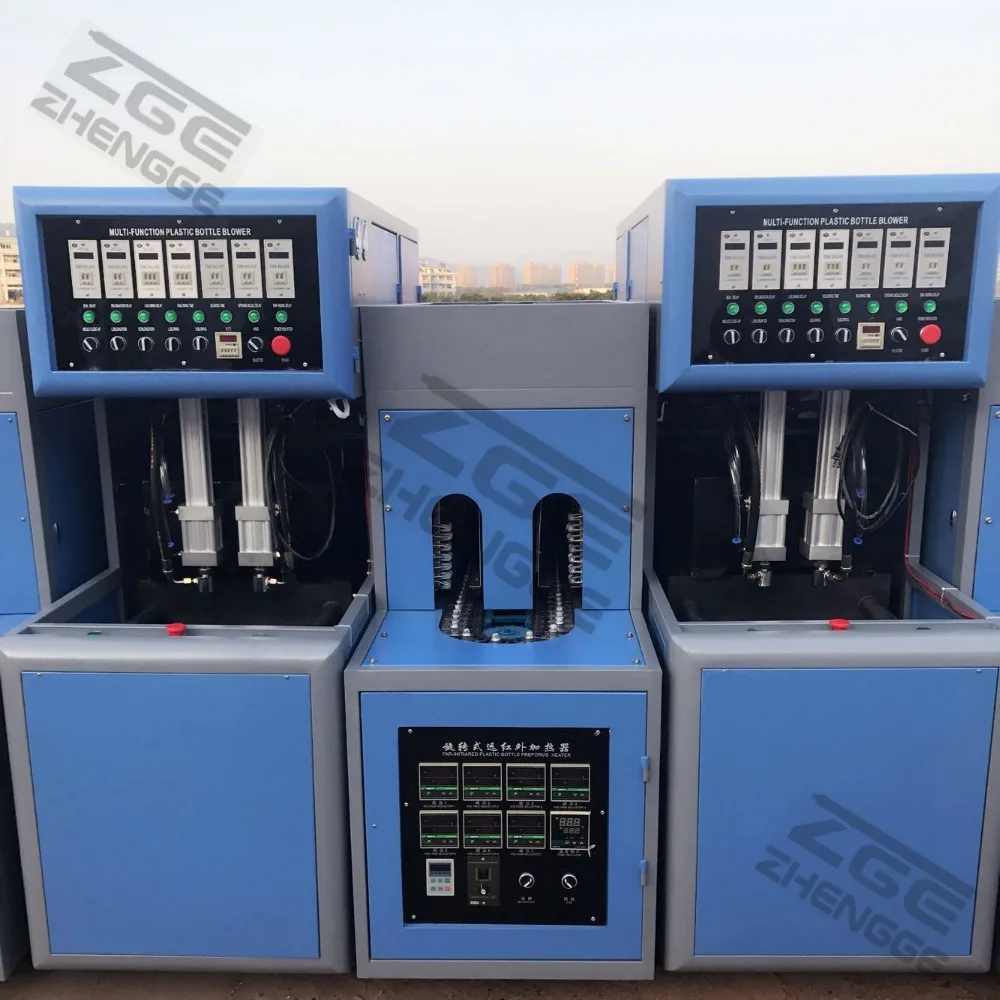

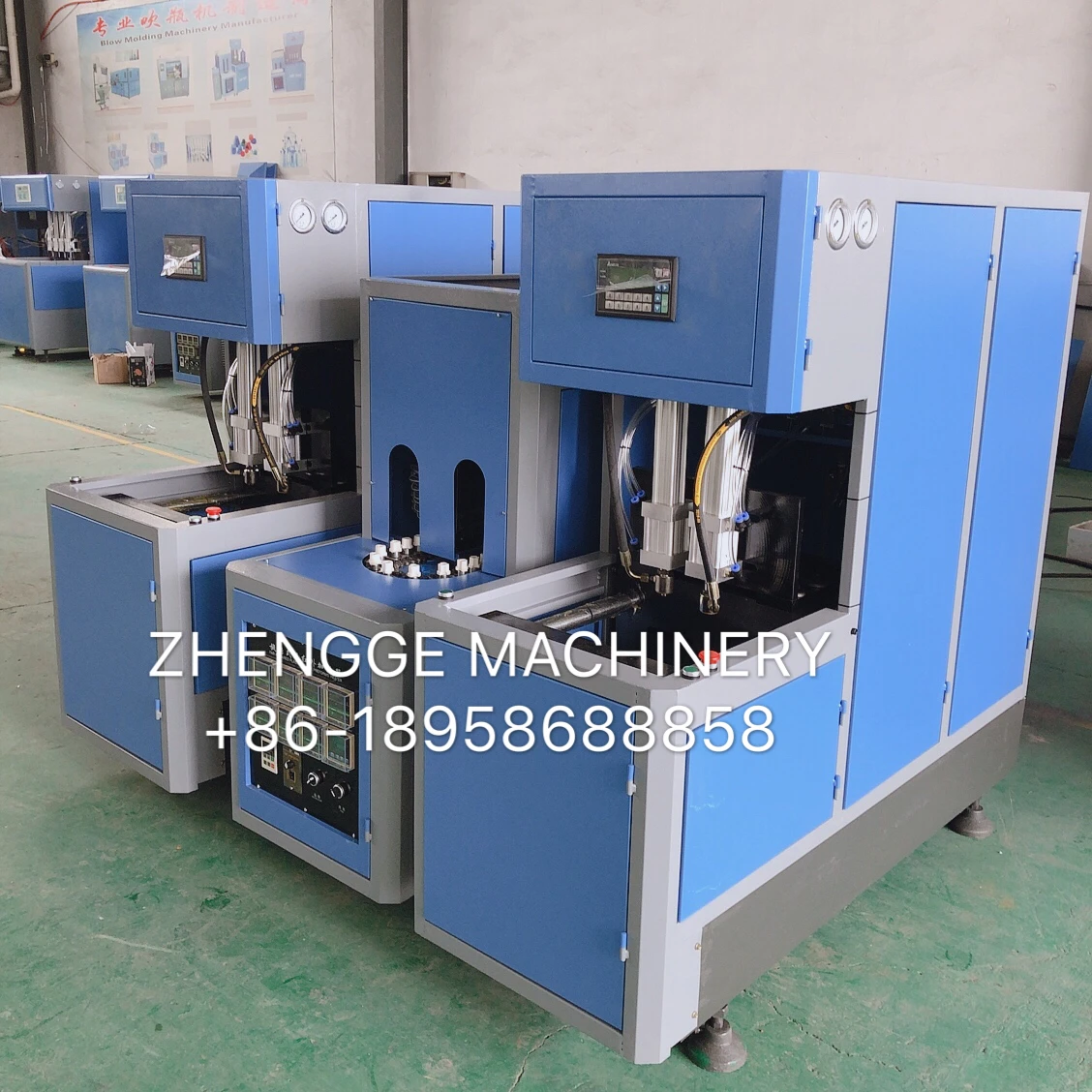

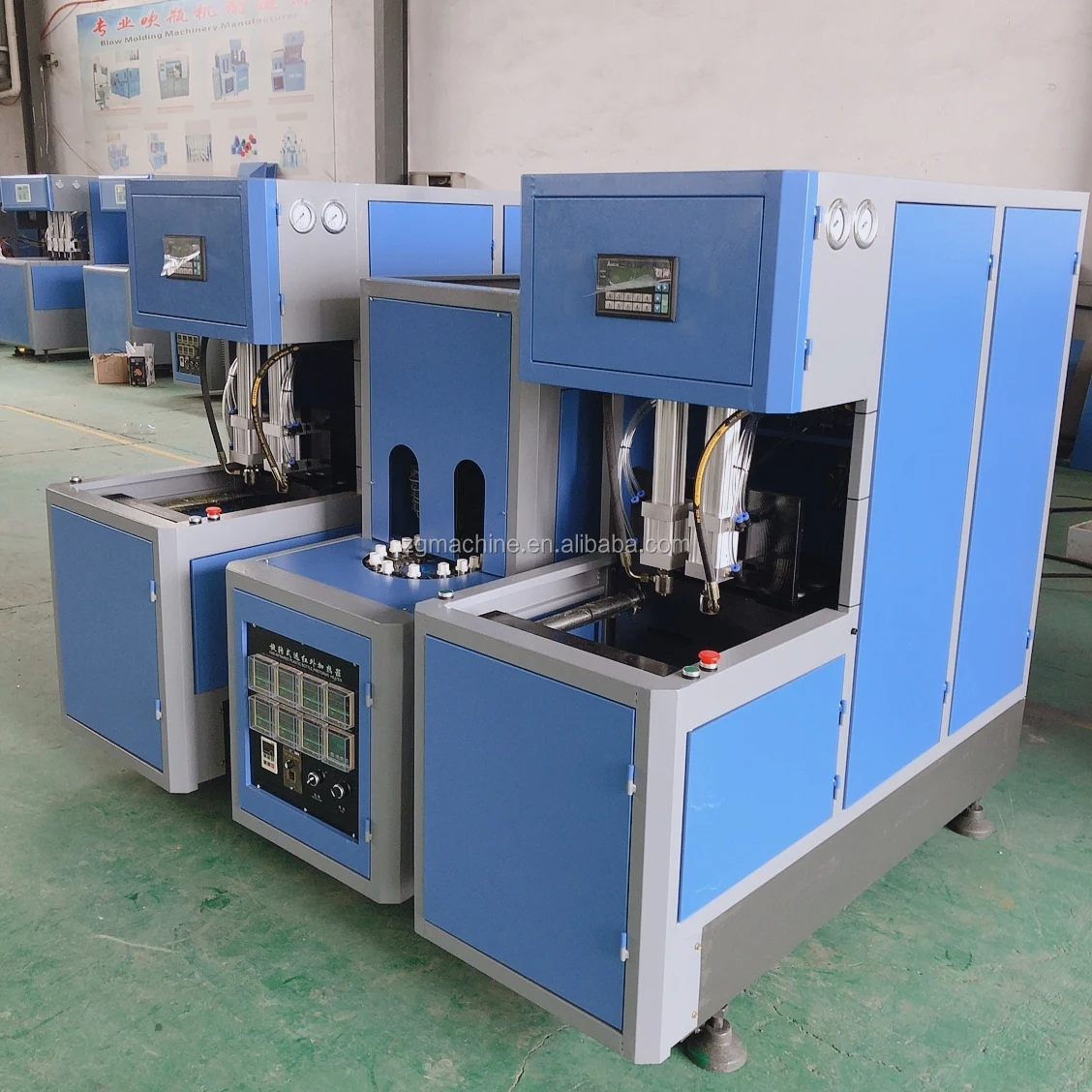

Model	ZG-1000B Semi Automatic Blow Molding Machine
Output	Based on bottle shape	1600-2000PCS/H
Product Specifications	Max. neck diameter	38mm
		Max. bottle diameter	105mm
		Max. bottle height	305mm
Mold Specifications	Cavity	2 cavity*2
		Mold thickness	110mm-230mm
		Open stroke	340mm
Machine Power	Power Voltage	380v/3Phase/50HZ/Customized
Machine Power		Installation power /Actual power	14kw/10kw
Air Source	High pressure air compressor	1.2m³/min 30Kg
Air Source		Air dryer	2.0m³/min 30Kg
Blowing machine size	Lengthwidthheight/weight	15906151570mm/650kg(2 sets)
Heater size	Lengthwidthheight/weight	17005651360mm/350kg

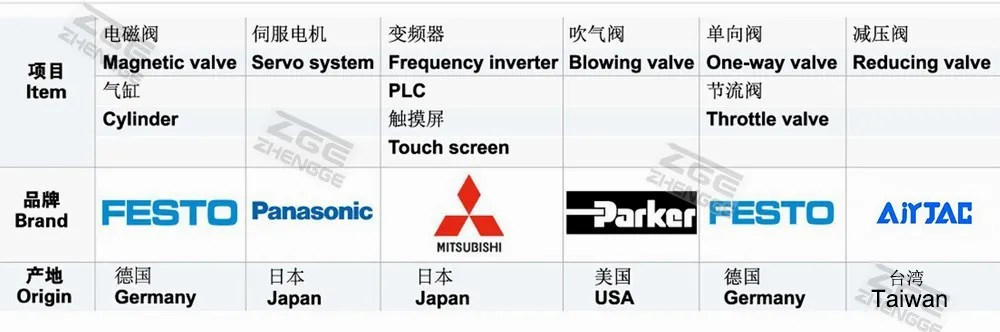

Machine Parts Brand:

Detailed Images

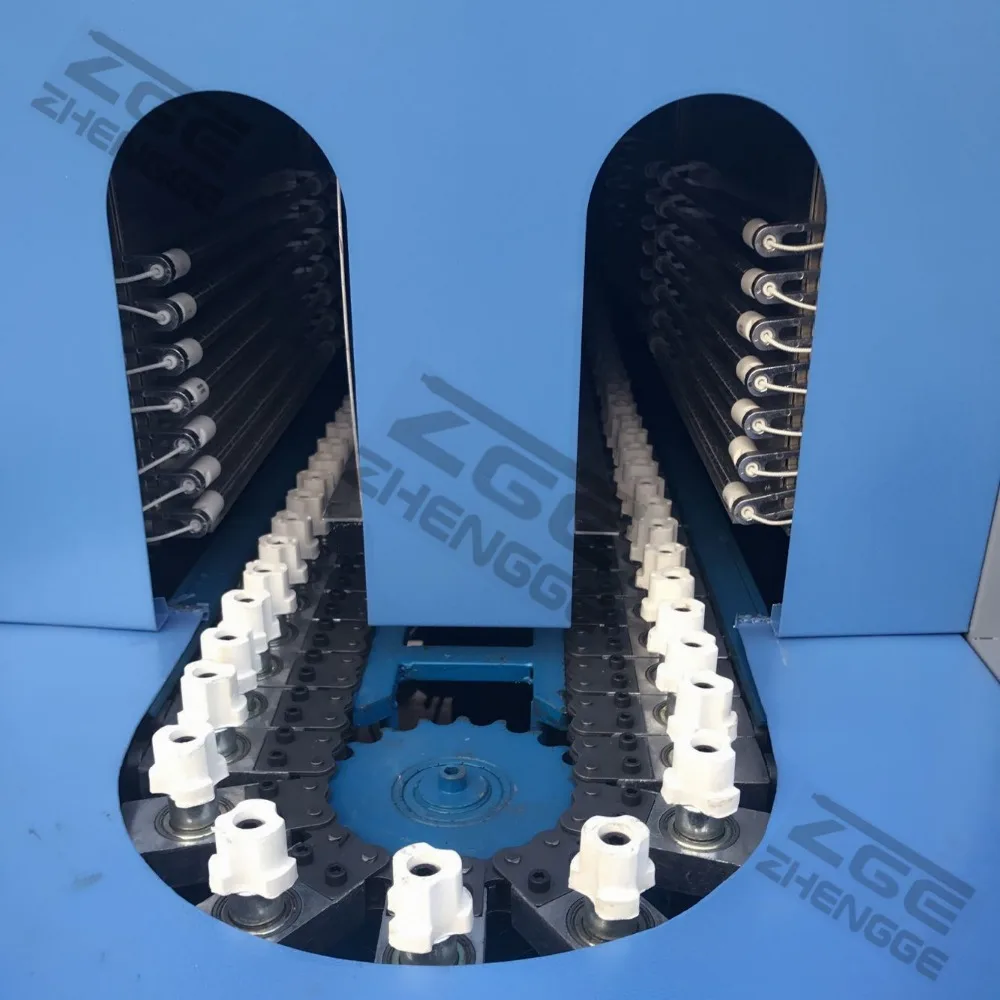

Machine Heater:

1、adopt infrared lamp to heat the preform

2、The heater equiped with a temperature control system,so it can afford long time work.

3、Total 72 pieces Heating Holders

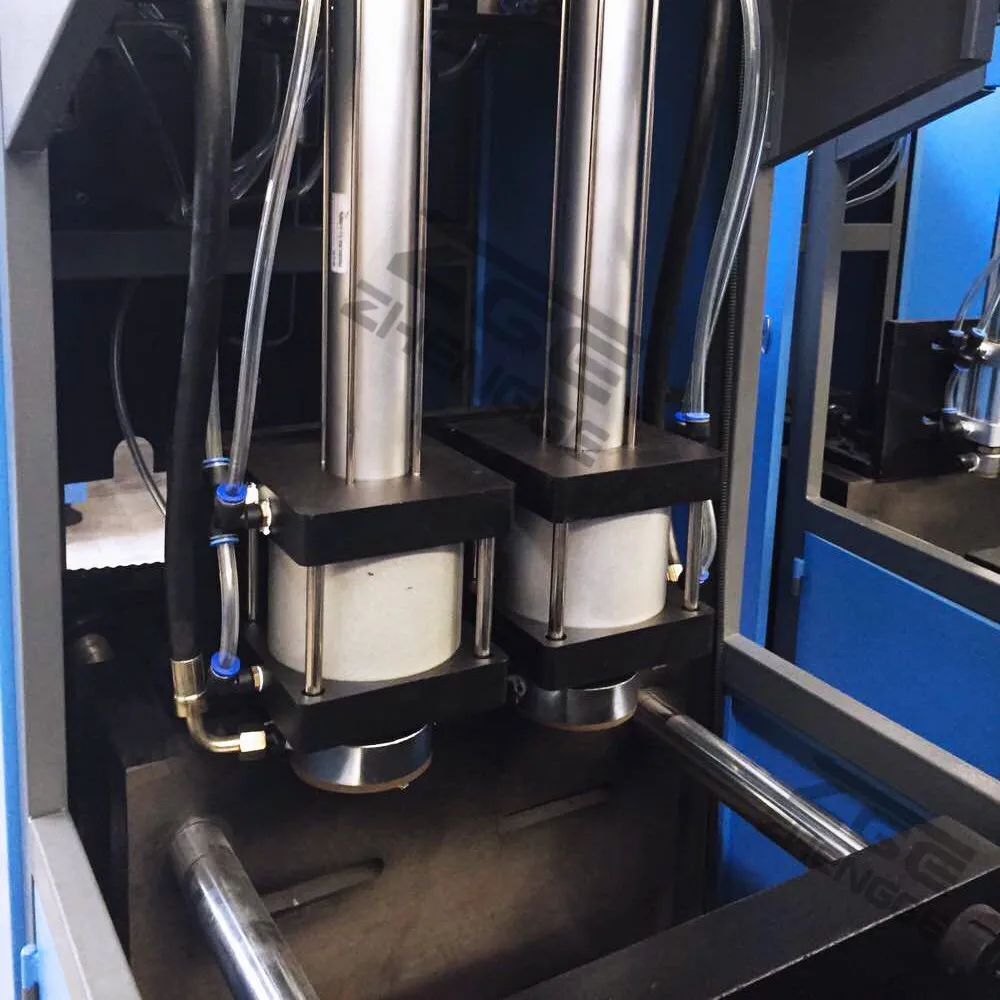

Each strech cylinder controlled independently.

Stable and reduce the failure rate.

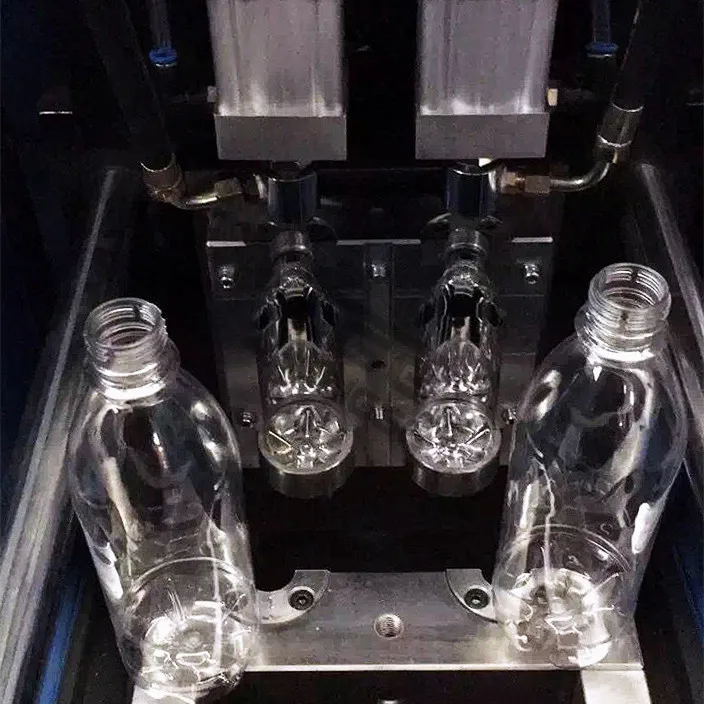

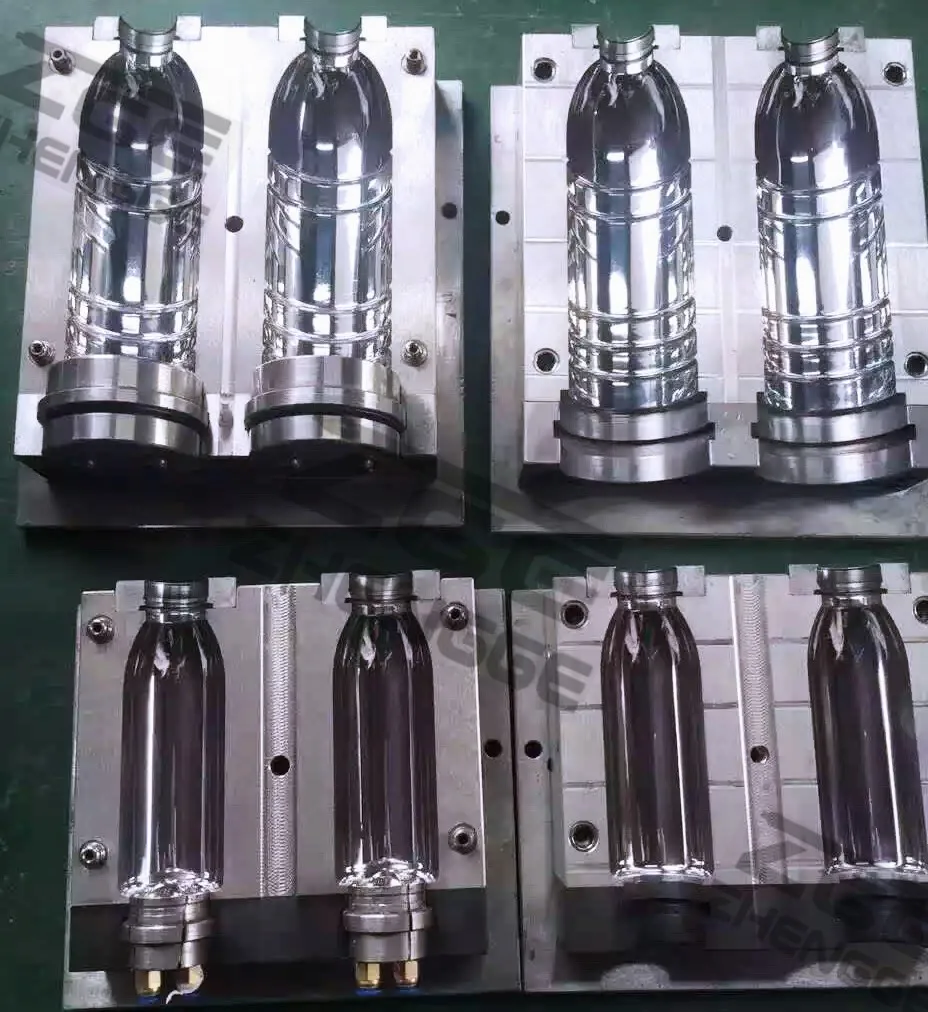

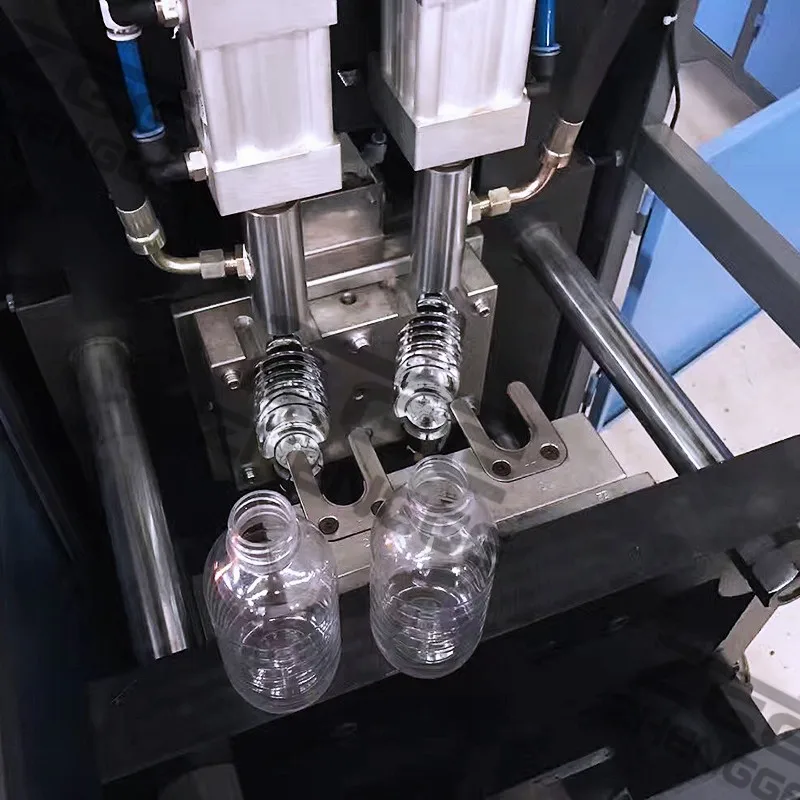

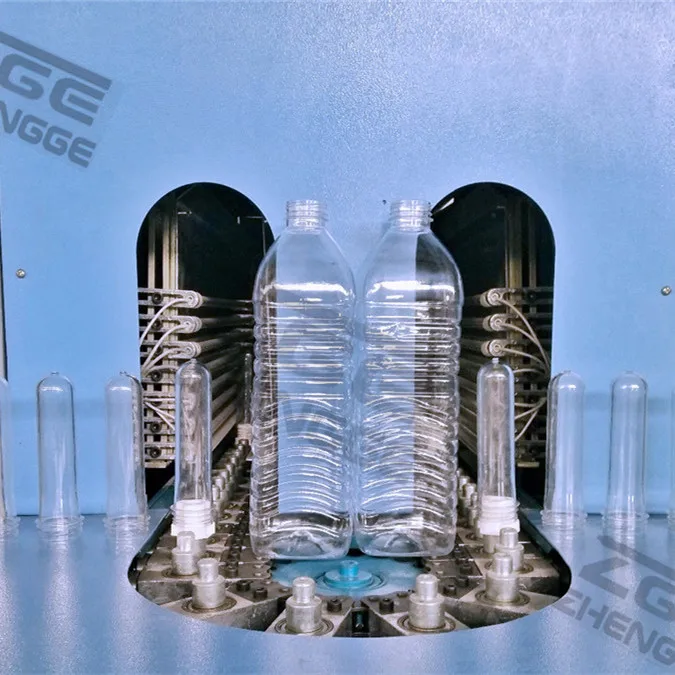

Mineral water bottle mold

and final product.

Bottle mold material #45 steel,chrome plating on the surface,avoid rust.

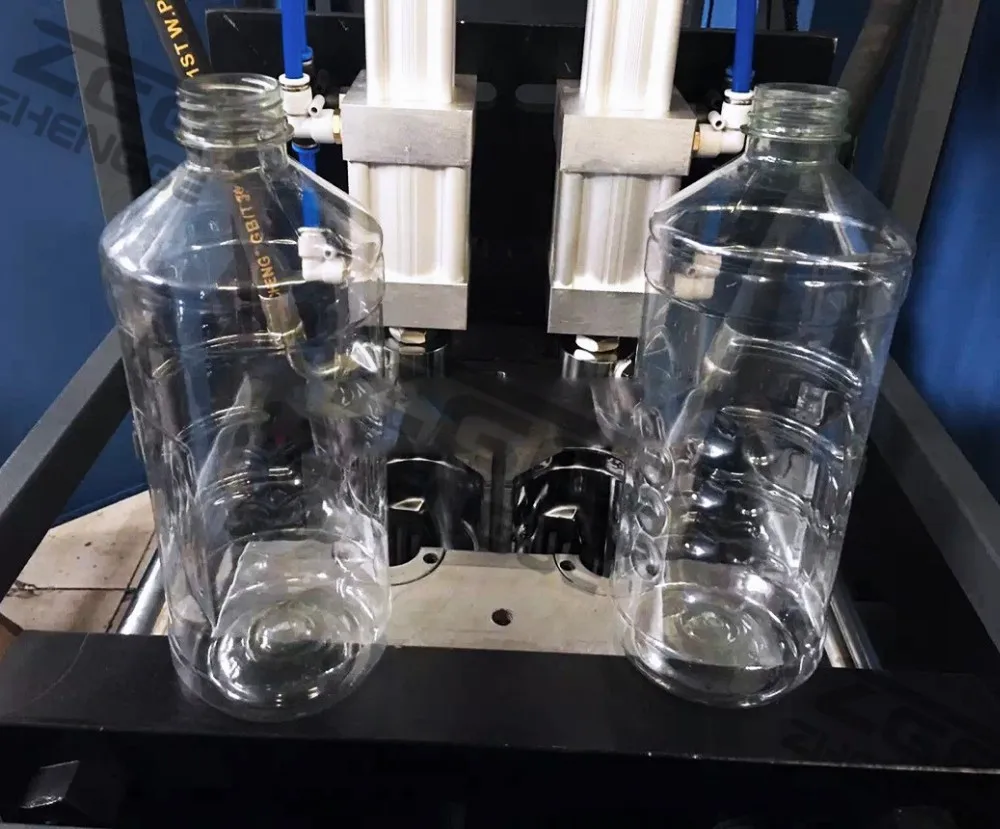

Final Product:All bottle shape can be customized by customer's need.

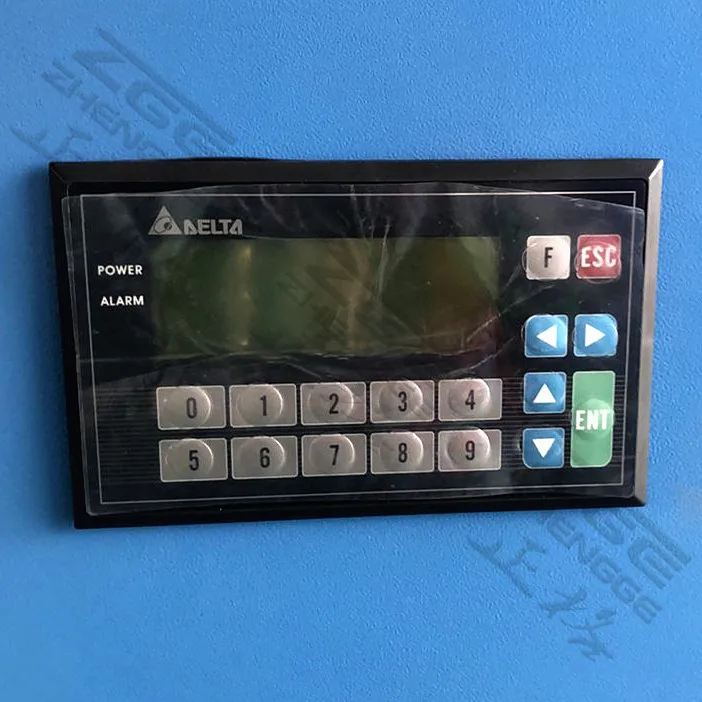

Stable performance with advanced PLC Screen

Voltage Controller:Control lamp temperature

Flow Chart

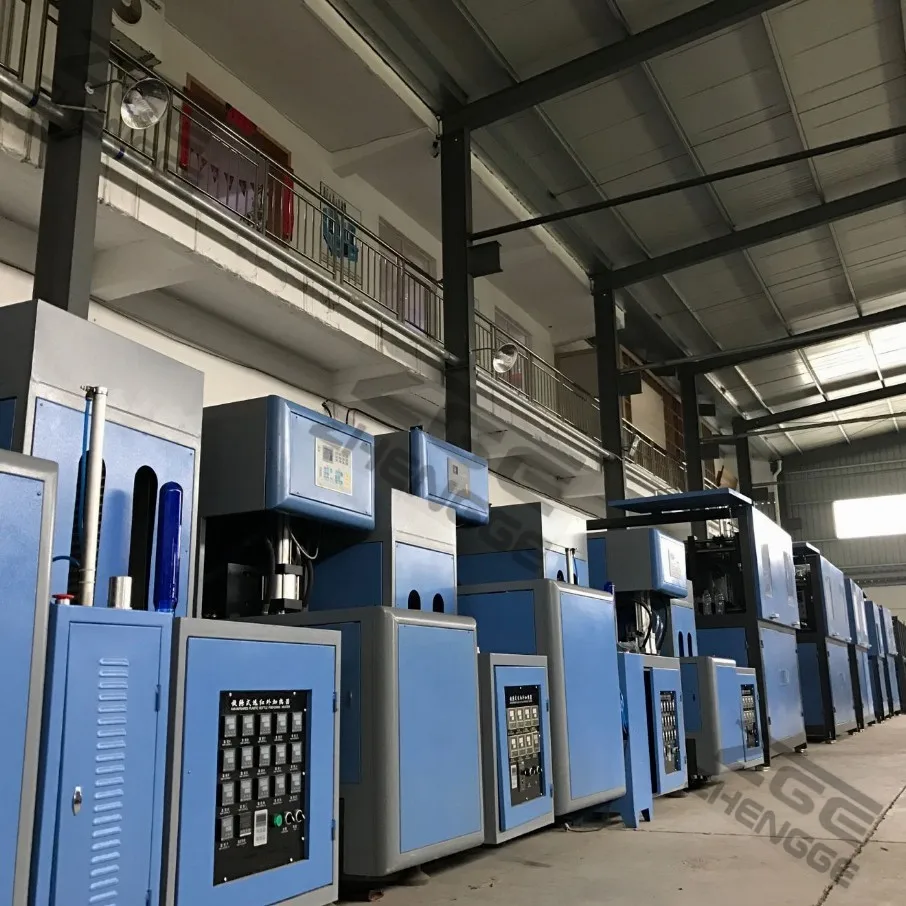

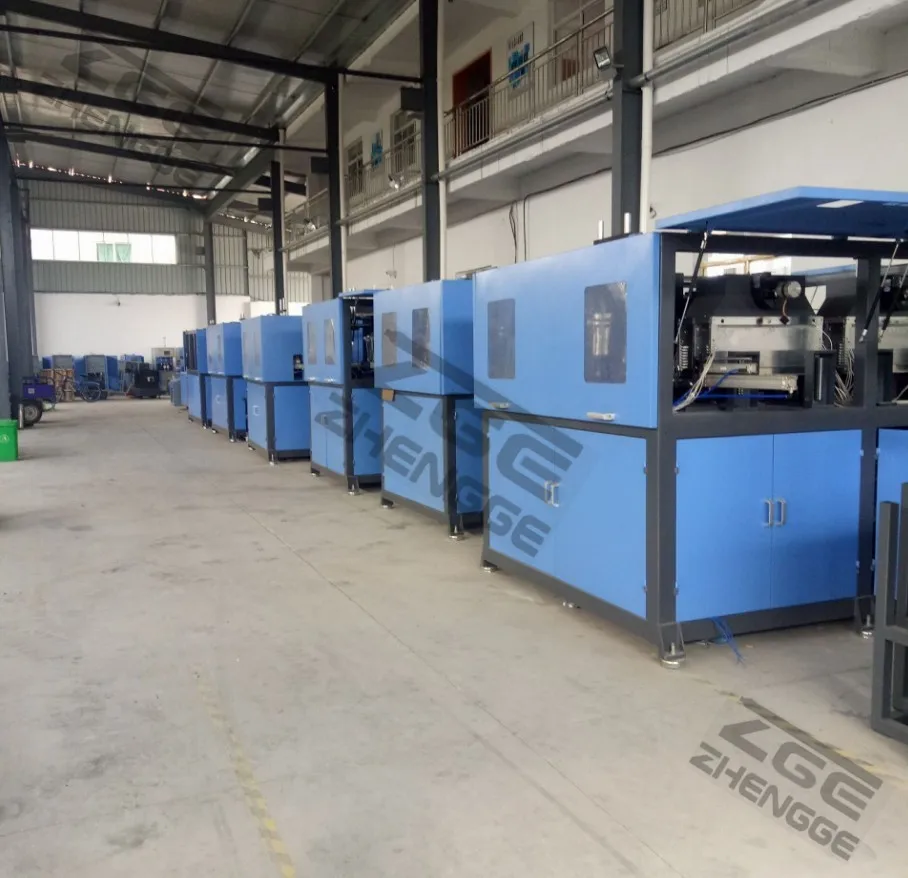

Our Factory

With Customers

Our Services

The Customized Service:

1.We can design the machines according your requirements(material,power,filling type,the kinds of the bottles,and so on).
2.We can send you the video of the running machine.
3.You are welcome to our company to see the machine running in our factory.

The After-sales Service:

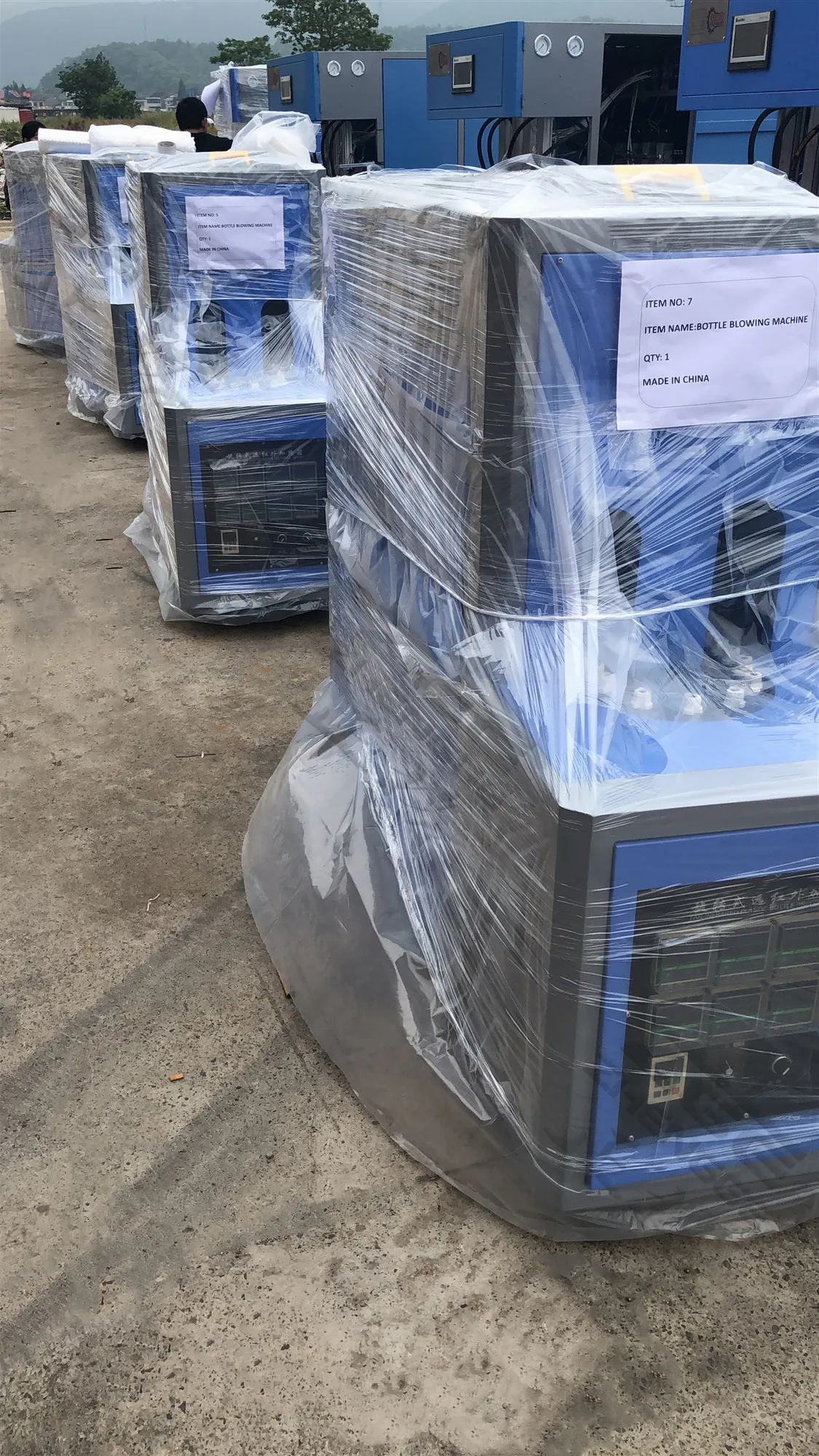

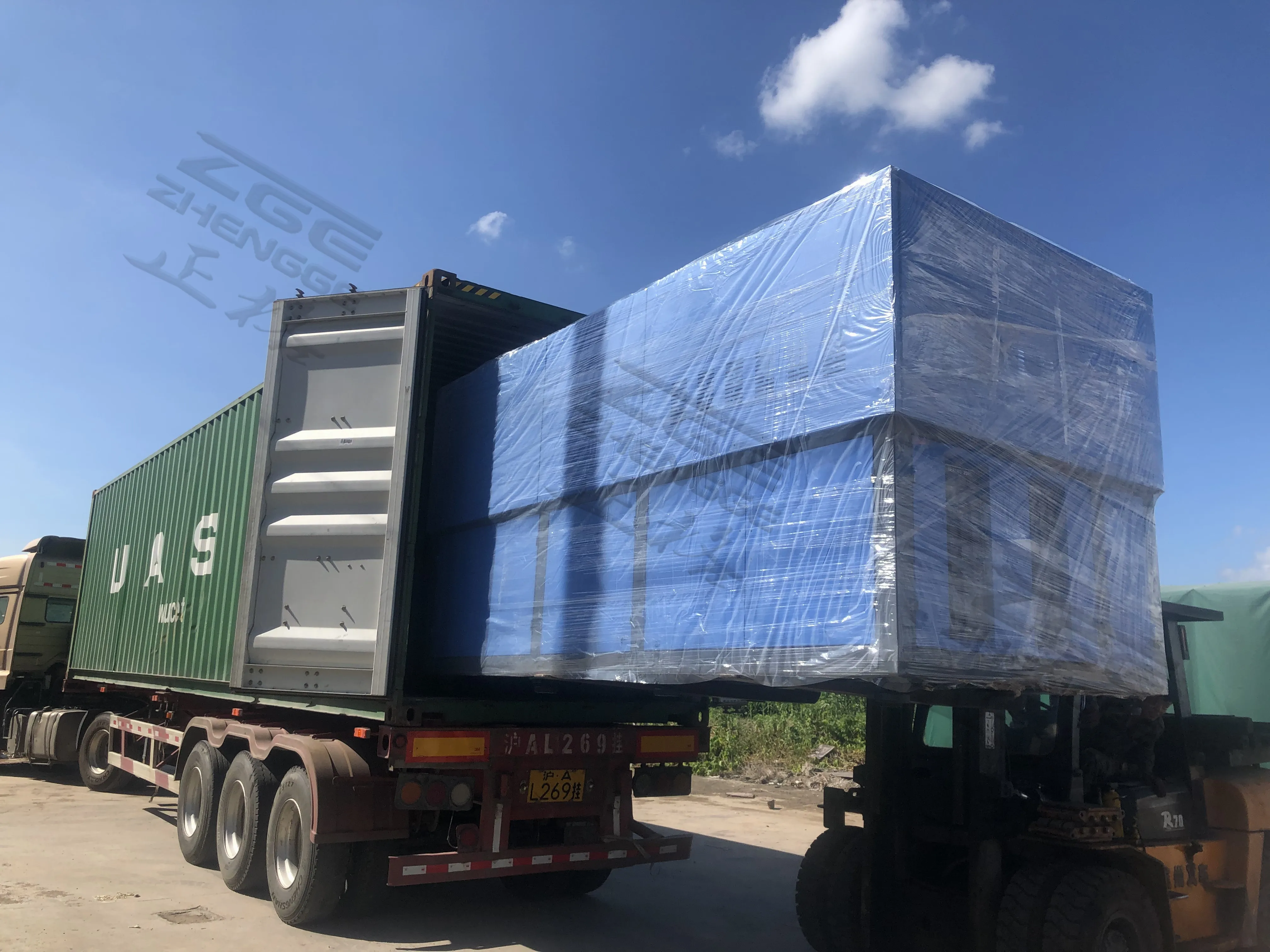

1.We will provide the bill of load on time to make sure you can get the machine quickly.
2.When you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual.
3.We provide one year warranty with spare parts free.
