Роликовая шлифовальная машина с глубоким отверстием

Machine Brief:

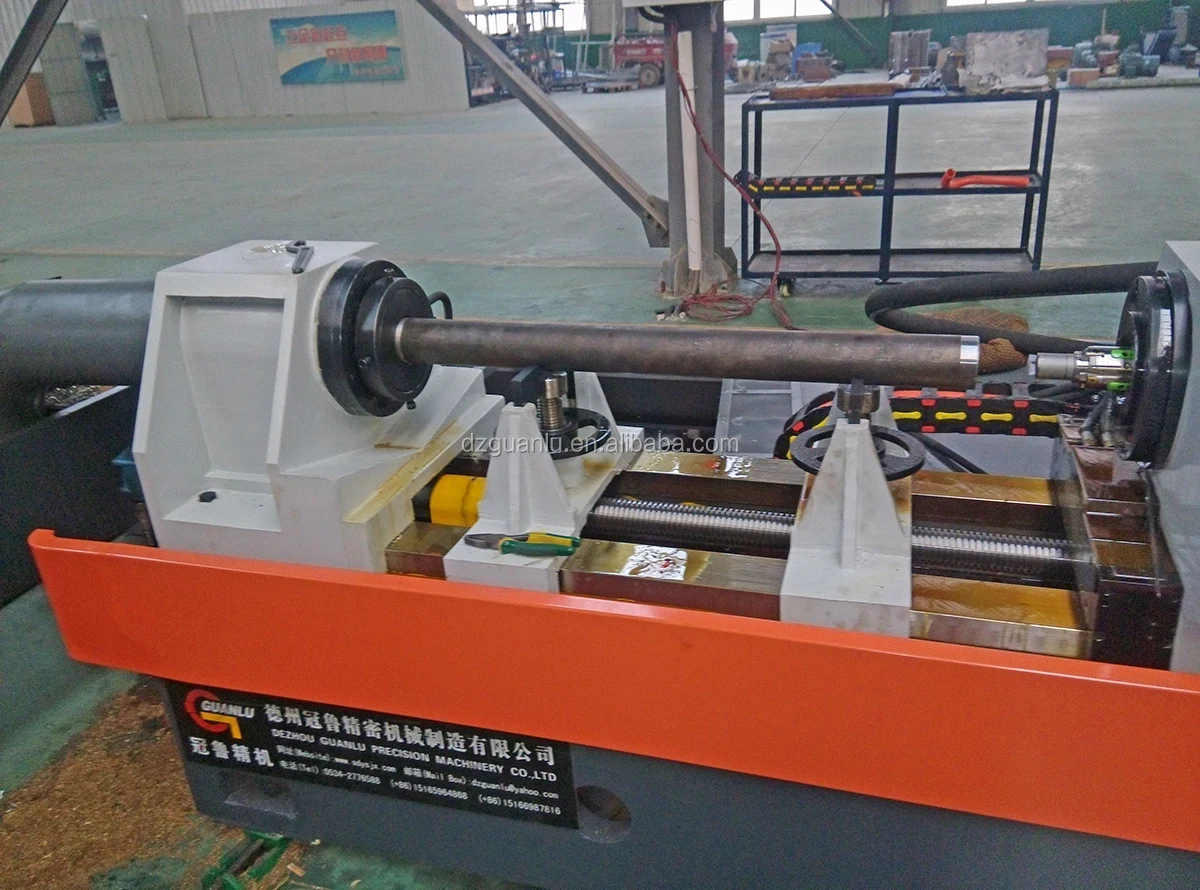

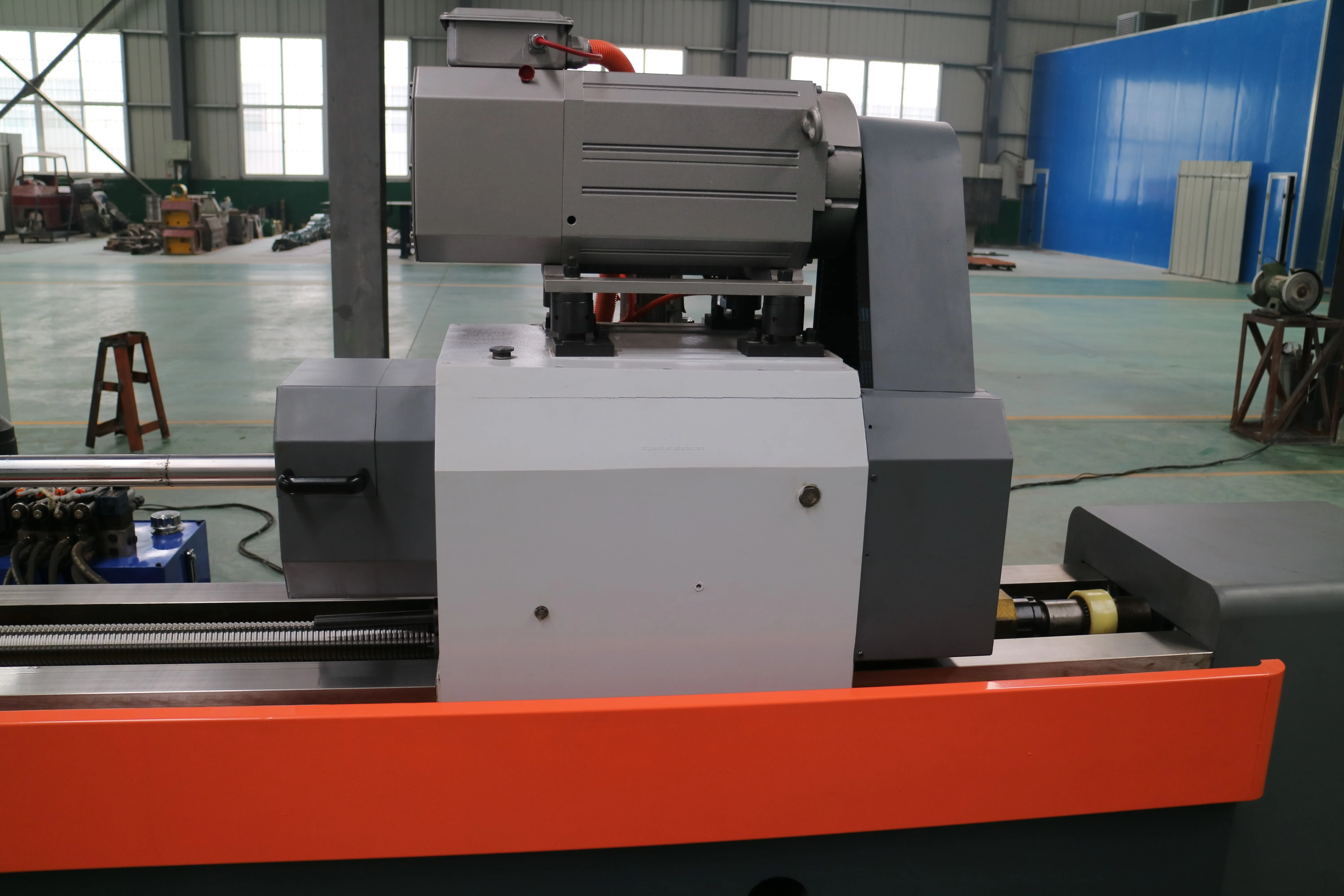

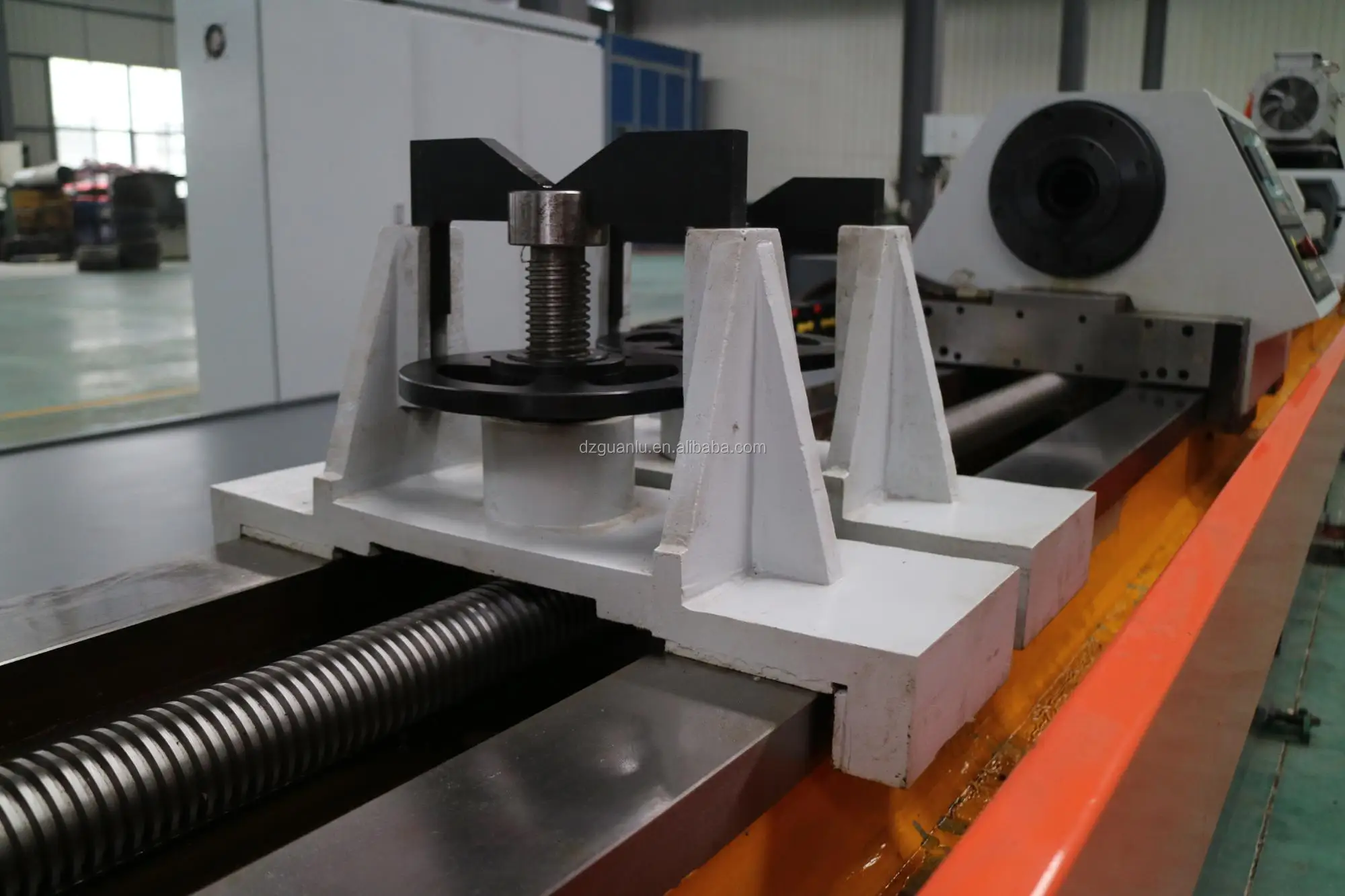

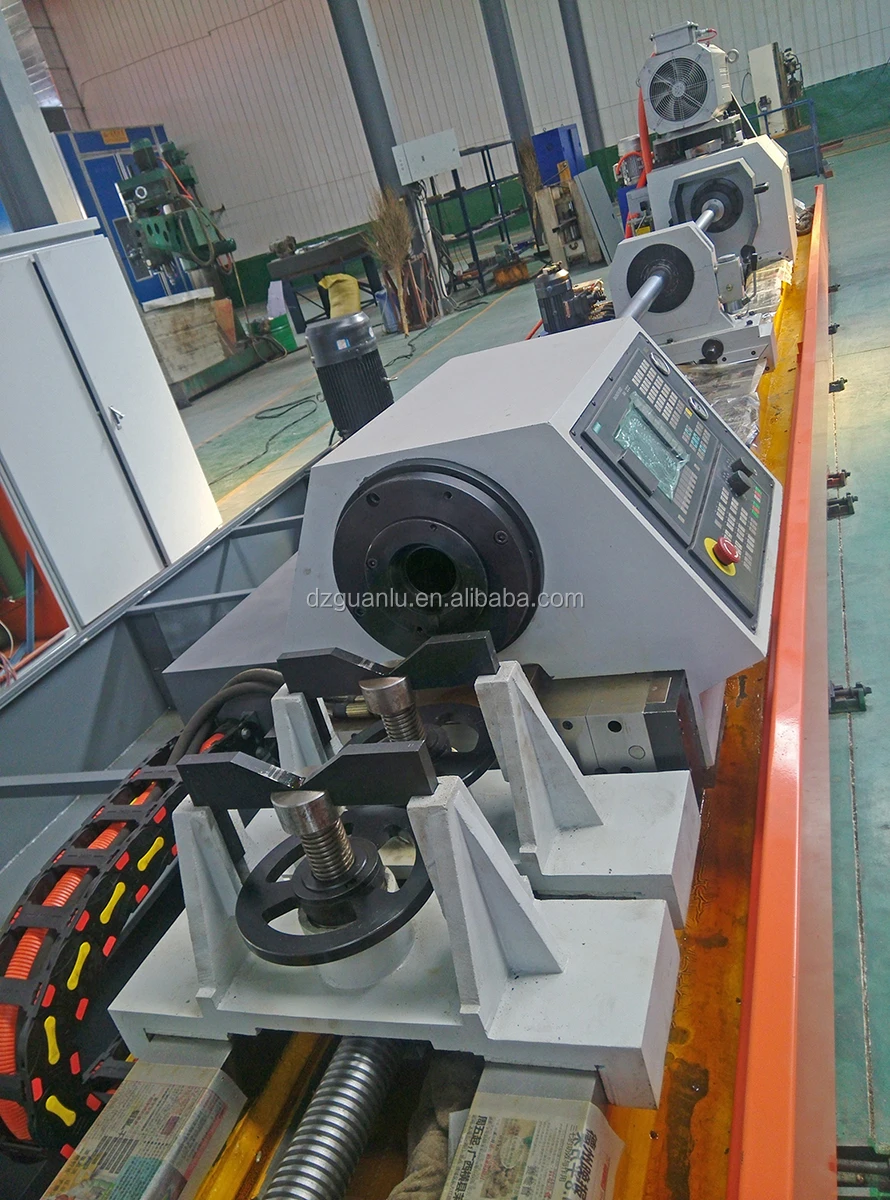

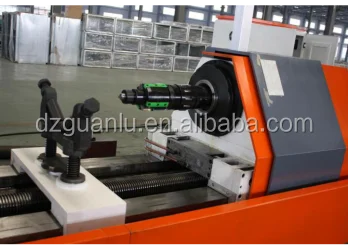

TG2115 is the machine that speciallized for small diameter hot steel pipe. The machine design refers to Sierra of USA,combined rough boring,precision skiving& burnishing into one process. High efficient and high precision.

Main paramters:

Machine accuracy:

     1,Machine processing accuracy

       Job processing size tolerance≤0.036/200mm

       Job proceessing roundness tolerance≤0.036/200mm

       Job boring skiving surface roughness≤Ra3.2μm

       Job burnishing surface roughness≤Ra0.4μm

     2,Machine processing efficient

        machined hot steel pipe (cut volume 6mm in diameter)

        Skving infeeding :  500mm/min

        Burnishing infeeding: 1000mm/Min

1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.

Dezhou Guanlu Precision Machinery Co., Ltd. located in Dezhou, Shandong, is a professional manufacturer of deep hole drilling machine (gun drilling machine), deep hole boring machine, deep hole drilling and boring machine, deep hole honing machine, deep hole skiving roller and burnishing machine as well as their relative accessories, such as gun driller sharpen device, BTA deep hole indexable drill head, deep hole boring head, deep hole pressing head and so on. Our company can also offer the customized deep hole machine solutions according to the customers' requirement.


Welcome to visit our factory. And thanks for choosing our deep hole machinery

Any question about deep hole driilling machine, feel free to ask me!
