Product Description

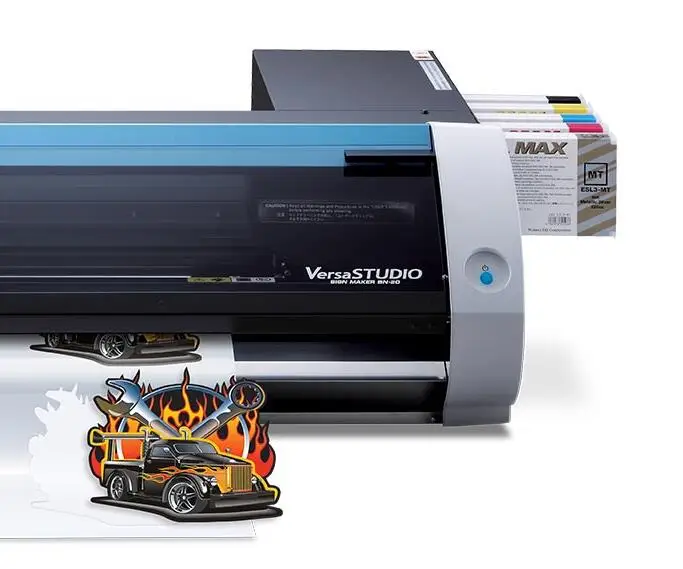

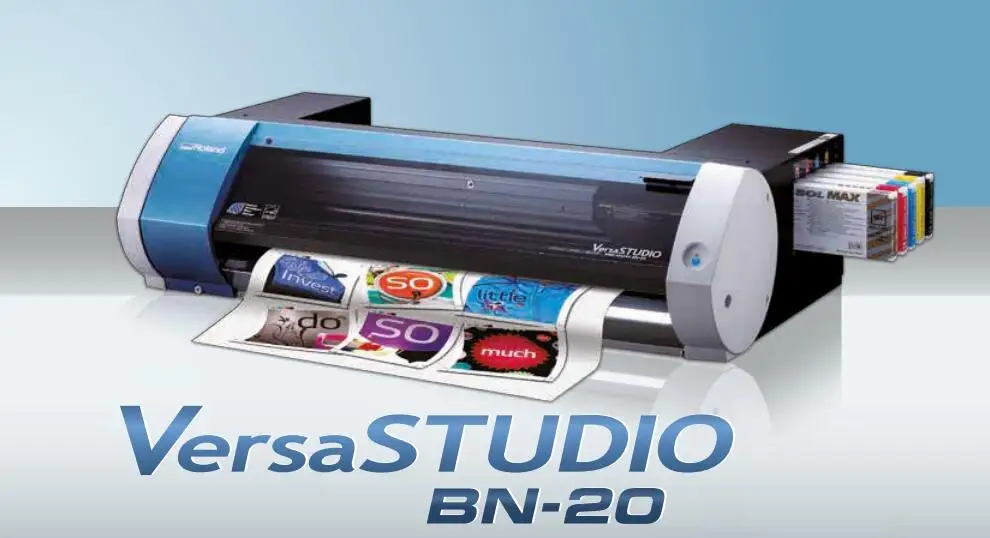

Product name: Roland VersaStudio BN-20 Desktop Printer/Cutter..
Details: High quality guaranteed!
Professional supplier !
Overview:
Desktop production for graphics start-ups, artists and apparel designers
* Print and contour cut apparel heat transfers, decals, labels, posters and more
* Roland's most compact and affordable printer/cutter
* Best printer in its class - prints up to 1440 dpi and delivers unmatched color quality
* Greenguard Gold certified Eco-Sol MAX inks available in CMYK, Metallic and White
The BN-20 packs everything into one, powerful, profit-producing package. With award-winning eco-solvent inks including metallic and white options, a range of material compatibility and integrated contour cutting, the BN-20 is easily the most versatile print device in its class. The BN-20 is perfect for creating t-shirt graphics, poster prints, stickers and decals - all from the comfort of your desktop.
Professional Printer/Cutters
* 508mm/20" eco-solvent printer/cutter
* Roland print/cut technology in a desktop size
* Inks: CMYK plus Metallic option
* Common applications: Apparel transfers, stickers, decals, posters
Features:
posters, and easily handles the following materials in rolls up to 20-inch by 50-foot.
* 508mm/20" eco-solvent printer/cutter
* Roland print/cut technology in a desktop size
* Inks: CMYK plus Metallic option
* Common applications: Apparel transfers, stickers, decals, posters
Features:
Make Everyday Print/Cut Production Easier
The VersaStudio BN-20 inkjet printer/cutter is perfect for applications such as labels, decals, heat transfer appliqués and
posters, and easily handles the following materials in rolls up to 20-inch by 50-foot.
* Professional Ink Options in a Desktop Device
Roland Eco-Sol MAX ink offers fast drying time, high density, a wide color gamut, rugged scratch resistance, a low cost per square
foot and broad media support. The BN-20 can be set up in for printing both standard and luxury items
Roland Eco-Sol MAX ink offers fast drying time, high density, a wide color gamut, rugged scratch resistance, a low cost per square
foot and broad media support. The BN-20 can be set up in for printing both standard and luxury items

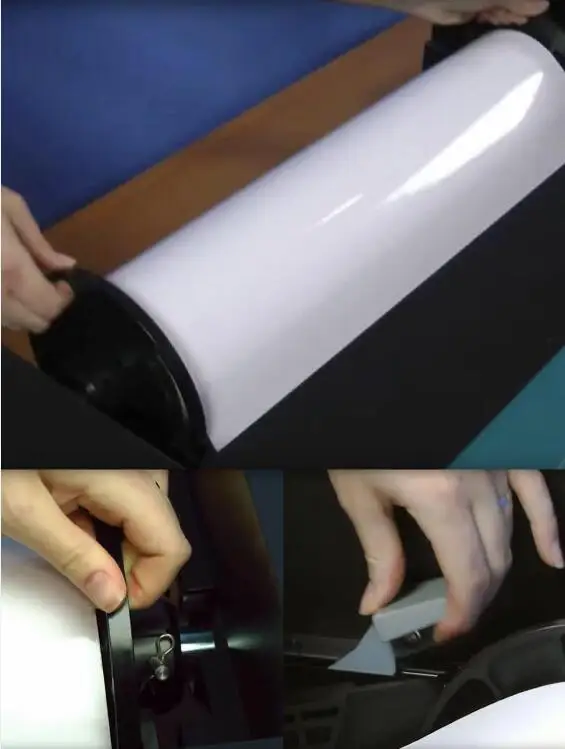

* Easy to Load Media Feed
A simplified media feed system automatically aligns roll media for printing. This intuitive system detects and adjusts the pinch roll wheels to the width of the installed media, ensuring proper placement and tracking. The BN-20 supports roll media from 6 inches up to 20 inches in width and weighing up to 13 pounds.
A simplified media feed system automatically aligns roll media for printing. This intuitive system detects and adjusts the pinch roll wheels to the width of the installed media, ensuring proper placement and tracking. The BN-20 supports roll media from 6 inches up to 20 inches in width and weighing up to 13 pounds.
* One-Year Trouble-Free Warranty and Assurance
The VersaStudio BN-20 is warranted for a period of one year, including parts and labor. Roland's international ISO
certifications are your assurance of quality and reliability backed by first-rate customer service and technical support.
* NO ROLAND HAS EVER BEEN EASIER TO USE
The BN-20 is the easiest to use of any device in the Roland printer lineup. All functionality of the device is handled through the VersaStudio utility software. The utility software package is actively open in the Windows® taskbar and controls basic machine functions, status and calibrations. The utility software also monitors replacement of consumable parts like wipers and contour cutting blades.
* PRINT AND CUT IN ONE INTEGRATED WORKFLOW
The VersaStudio streamlines the production process by automatically contour cutting printed graphics, eliminating the need to reload and reposition graphics. For laminated graphics, our Quadralign® four-point optical registration system allows users to remove prints, laminate and simply reload them for precision cutting. Quadralign automatically realigns the cutting path and compensates for skew and distortion.
The VersaStudio BN-20 is warranted for a period of one year, including parts and labor. Roland's international ISO
certifications are your assurance of quality and reliability backed by first-rate customer service and technical support.
* NO ROLAND HAS EVER BEEN EASIER TO USE
The BN-20 is the easiest to use of any device in the Roland printer lineup. All functionality of the device is handled through the VersaStudio utility software. The utility software package is actively open in the Windows® taskbar and controls basic machine functions, status and calibrations. The utility software also monitors replacement of consumable parts like wipers and contour cutting blades.
* PRINT AND CUT IN ONE INTEGRATED WORKFLOW
The VersaStudio streamlines the production process by automatically contour cutting printed graphics, eliminating the need to reload and reposition graphics. For laminated graphics, our Quadralign® four-point optical registration system allows users to remove prints, laminate and simply reload them for precision cutting. Quadralign automatically realigns the cutting path and compensates for skew and distortion.
Distinguishing Features
* Compact 20-inch inkjet with integrated printing and contour cutting
* A versatile machine for printing t-shirt graphics, decals, stickers, signs, posters and more
* Ink options include CMMYK, CMYK+White and CMYK+Metallic Silver
* Legendary Roland reliability for continuous, economical production
Applications:
Bring Your Vision to Life:
*1 Three-year outdoor durability is based on accelerated weather tests conducted by Roland DG. Results may vary depending on the location and application. Some applications, including vehicle graphics, may require lamination.
*2 Ink type must be selected at the time of purchase.
Colorful Print & Cut Heat Transfers+Custom Labels+Eye-Catching Decals+Printed and Contour Cut Window Signs and Other Graphics
>>Cell Phone and Laptop Wraps
Roland Print&Cut versatility allows you to print and digitally die cut graphics in one seamless workflow for custom labels and decals, including cell phone skins, laptop wraps and more.
Roland Print&Cut versatility allows you to print and digitally die cut graphics in one seamless workflow for custom labels and decals, including cell phone skins, laptop wraps and more.
>>Posters
Using Metallic Silver ink, you can add luxurious accents and premium value to posters and photographic reproductions.
>>Cut Vinyl Signage
Using Metallic Silver ink, you can add luxurious accents and premium value to posters and photographic reproductions.
>>Cut Vinyl Signage
From pinstriping for vehicles and motorcycles to window signs and displays, contour cutting is essential to
your production workflow. The BN-20 allows you to cut vinyl signs using a wide variety of fonts*.
*The BN-20 supports TrueType and OpenType fonts.
>>Label and Decals for Outdoor Displays
The BN-20 comes with award-winning Roland ECO-SOL MAX ink for outdoor signs, labels and decals. Graphics are easy to produce and durable up to three years outdoors without lamination. The BN-20 also supports water-based Roland FPG inks for exceptional
indoor graphics.
*The BN-20 supports TrueType and OpenType fonts.
>>Label and Decals for Outdoor Displays
The BN-20 comes with award-winning Roland ECO-SOL MAX ink for outdoor signs, labels and decals. Graphics are easy to produce and durable up to three years outdoors without lamination. The BN-20 also supports water-based Roland FPG inks for exceptional
indoor graphics.
*1 Three-year outdoor durability is based on accelerated weather tests conducted by Roland DG. Results may vary depending on the location and application. Some applications, including vehicle graphics, may require lamination.
*2 Ink type must be selected at the time of purchase.
Colorful Print & Cut Heat Transfers+Custom Labels+Eye-Catching Decals+Printed and Contour Cut Window Signs and Other Graphics
*Right at your desktop, you can print quality heat transfers and contour cut them into any shape for stylish results. Apply Metallic Silver ink for hundreds of striking metallic color effects.
*Metallic silver ink should only be used on garments as a spot color as mixing it with other colors will negatively impact
washability.
*Metallic silver ink should only be used on garments as a spot color as mixing it with other colors will negatively impact
washability.
>>POS and POP
*With the BN-20, you can produce POP displays in unique shapes and colors that attract attention and drive retail sales. Create a
single POP or an entire campaign, profitably, with all the convenience of our easy-handling 220cc ink cartridges.
single POP or an entire campaign, profitably, with all the convenience of our easy-handling 220cc ink cartridges.
Specifications:
Printer Model | VersaStudio BN-20 | SG-300 | ||||
Printing technology | Piezoelectric inkjet / Grit roller feed | |||||
Media | Width | 5.9 in - 20.3 in. (150 mm-515 mm) | 7.2 to 30 in. (182 to 762 mm) | |||
Thickness | Maximum 39 mil (1.0 mm) with liner for printing; Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner for cutting | |||||
Roll diameter | Maximum 5.9 in. (150 mm) | |||||
Roll weight | Maximum 13.2 lbs (6 kg) | Maximum 55 lbs (25 kg) | ||||
Core diameter | 2 in (50.8 mm) or 3 in (76.2 mm) | |||||
Printing/cutting width | Maximum 18.9 in. (480 mm) | Maximum 53 in (1,346 mm) | Maximum 29 in 736 mm) | |||
Type | Roland ECO-SOL MAX or FPG Aqueous, 220 ml only | |||||
Capacity | 220 ml only | |||||
Colors | 5 Color - CMYK+Mt (Cyan, Magenta, Yellow, Black and Metallic Silver) or CMYK+Wh (Cyan, Magenta, Yellow, Black, and White) 4 Color - CMMYK (Cyan, Magenta, Yellow, Black) | |||||
Printing resolution (dots per inch) | Maximum 1,440 dpi | |||||
Cutting speed | 0.4 (10 mm/s) to 5.9 in/s (150 mm/s) | |||||
Cutting blade type | Resolution | Roland CAMM-1 series cutter blade | Speed | |||
Blade offset | 0 to 1.5 mm (0 to 0.059 in.)360x360 | Fixed at 0.250 mm | 528.1 sqft/hr (49.1 m2/h) | |||
Blade force | 30 to 300gf | |||||
Software resolution (when cutting) | 720x1440 | 0.025 mm/step (0.000984 in./step) | 50 sqft/hr (4.6 m2/h) | |||
Distance accuracy (when printing) *2 *3 | Error of less than ±0.3 % of distance traveled, or ±0.3 mm, whichever is greater | |||||
Distance accuracy (when cutting) *2, 4 | Error of less than ±0.4% of distance traveled, or ±0.3 mm, whichever is greater | |||||
Repetition accuracy (When cutting)2,5 | ±0.004 in (± 0.1mm) or less | ±0.1 mm or less | ||||
Alignment accuracy for printing and cutting2,6 | ±0.020 in (± 0.5mm) or less | |||||
Alignment accuracy for printing and cutting when reloading media *2 *7 | Error of less than ± 0.5% of distance traveled, or ± 0.012 in (3mm), whichever is greater | |||||
Print Heater Temperature8 | Print heater | Fixed at 95o F (35oC) | ||||
Connectivity | USB 2.0 | Ethernet (10BASE-T/100BASE-TX, automatic switching) | ||||
Power-saving function | Automatic sleep feature | |||||
Power requirements | AC 100 to 240 V ±10%, 1.5A, 50/60 Hz | AC 100 to 120 V ±10%, 7.9A, 50/60 Hz; AC 220 to 240 V ±10%, 2.7A, 50/60 Hz | ||||
During operation | Approx. 90 W | Approx. 710 W | ||||
Sleep mode | Approx. 5.5 W | Approx. 20 W | ||||
Acoustic noise level | During operation | 62 dB (A) or less | ||||
During standby | 42 dB (A) or less | |||||
Power on | Temperature: 68o - 90o F (20 to 32o C), humidity: 35 - 80% RH (non condensing) | |||||
Power off | Temperature: 41o - 104o F (5 to 40o C), humidity: 20 - 80% RH (non condensing) | |||||
Dimensions (with stand) | 39.2" W x 23" D x 11.5" H (995 W x 585 D x 291 H mm) | 81.5[W] x 29.3[D] x 51.6[H] in 2070[W] x 745[D] x 1310[H]mm | ||||
Weight (with stand) | 79.4 lbs (35 kg) | 324lb (147kg) | ||||
Included items | Power cord, USB cable, blade, blade holder, Rolandsoftware Package9, Software RIP (VersaWorks), User's Manual, etc | |||||
Related Products
Product Category
Packaging & Shipping
PACKING:
Fumigation-free wooden packing
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Fumigation-free wooden packing
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
If the quantity of order is not very big, we could send them to you by express delivery, such as TNT, DHL, UPS or EMS etc.
If order is big, we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent. Our long-term
cooperated agent also available.
If order is big, we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent. Our long-term
cooperated agent also available.
Company Information
ABOUT US
Colorcenter Ltd professionally supply all kinds of good price printing products like original Roland spare parts & second hand Roland printers & Allwin printers & Canon inks & eco solvent ink & generic spare parts & Epson printheads etc for many years.
Our products include Printhead / board / cable / capping / damper / fuse / pump / motor / tube / wiper / blade / pigment ink / eco solvent ink, use for Roland / Mimaki / Mutoh / Canon / HP / Novajet etc. We supply full range of
Witcolor/Skycolor/AllWIN/Human/Galaxy/Infinity/GONGZHENG/Locor/Xerox/Mimaki Roland Mutoh Canon HP Epson Novajet spare parts, eco max ink and good price Epson/RICOH/ Konica/Seiko/Xaar print heads, as well as large format printer / flatbed UV printer / laser engraving machine and print finishing equipments like cutting plotter/hot welder machine/heat transfer machine etc.
Our business is already involved in advertising graphic production, digital printing, logo signs, leather fabrics, decorative industry and other more than a dozen industry sectors, which have been highly appreciated and strongly supported by the majority of users in the industry. Adhere to winning the trust of customers with high quality, competing with good service, continuous innovation and development, we look forward to working with more new and old customers to join hands in creating a blueprint.
Our Advantages
Our Strength:
Original Roland spare parts / Roland printing machines / Allwin large format printers / 5025 cutting blades /
Generic printer spare parts etc.
Generic printer spare parts etc.
Certifications
OUR CERTIFICATES
Cooperated Brands
3M A-Starjet Agfa Allwin Ampla Digital Anhui Liyu ATP Color Canon Océ CET Color CrystalJet d.gen DGI Colorcenter Dilli Dimatix Dupont Durst DYSS EFI Epson Fletcher-Terry | Flora Fujifilm Galaxy Gandy Digital GCC Gerber Graphics One Graphtec Grapo Handtop Hollanders HP Human Digital Tech Inca Infiniti Inktec Intesa IP&I JHF Vista Keundo Konica Minolta | Kornit Kyocera Leister Matan MeiTu Mimaki Mutoh Myjet Neolt Oki Pall Panasonic Pantone Polytype Ricoh Rodin Roland Saint Gobain Secabo Sign Racer Sky Color | Skyjet Spectra Stahls Summa Sun Innovations SwissQprint TEC Sign Maker Teckwin TecnoFerrari Toshiba Truepress VUTEk Wasatch Weldy Whatman Wit-Color X-rite Xaar Yat Fung Digital Zhongye Zünd |
Похожие товары
Летние модные солнцезащитные нескользящие легкие дышащие гелевые велосипедные перчатки для езды на велосипеде и
2,45 $ - 2,98 $

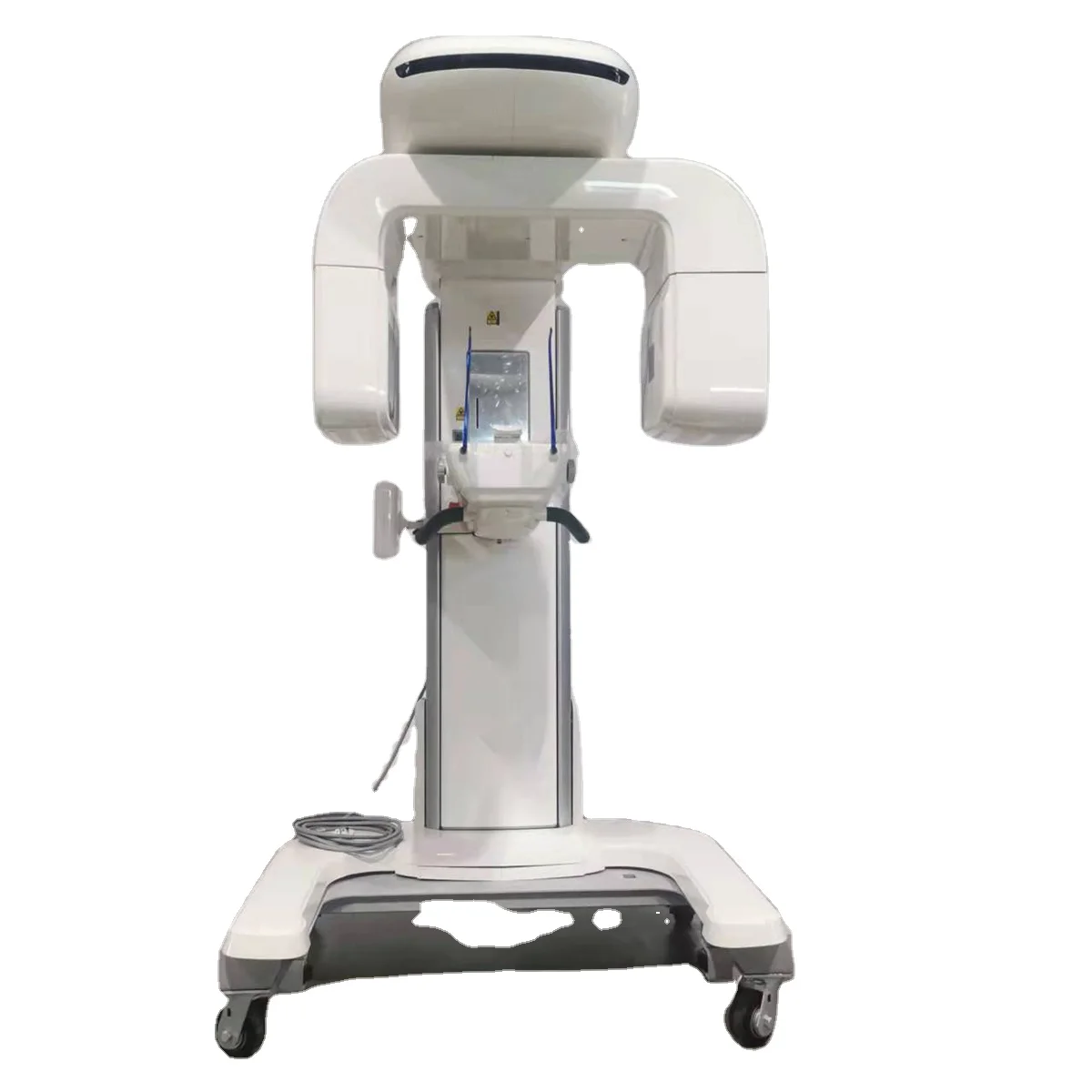

CBCT Come лучевая компьютерная томография 2D 2DE 3D 3DE Стоматологическая панорамная рентгеновская машина

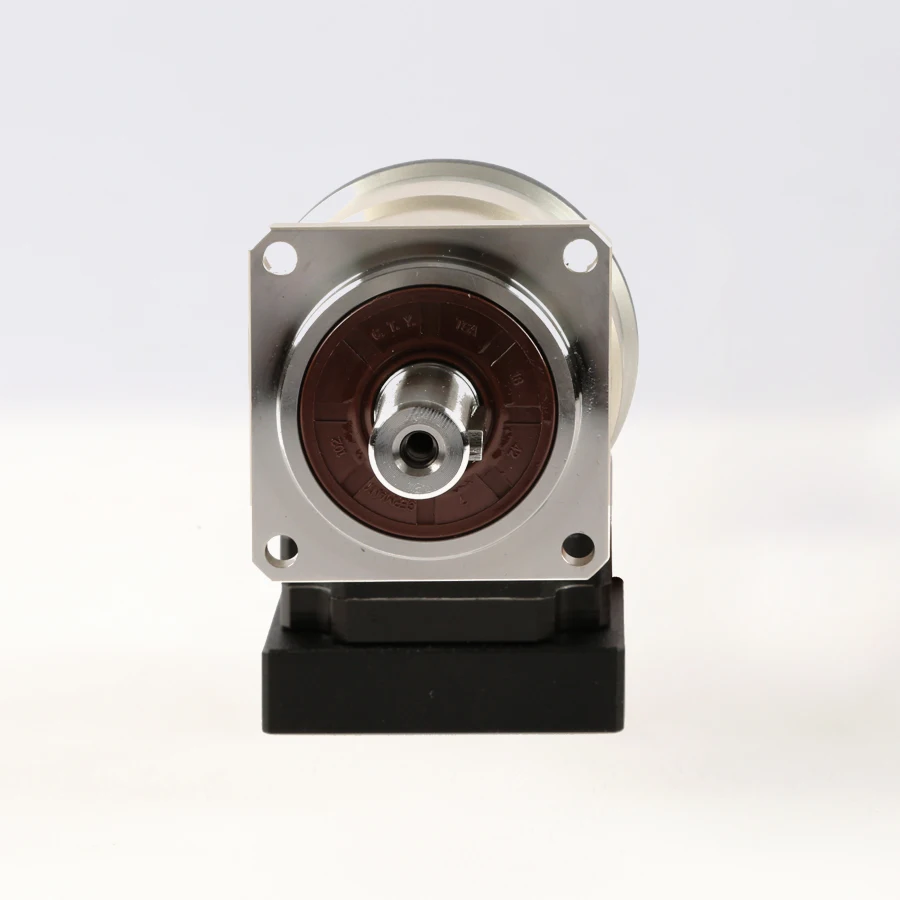

Планетарный редуктор WAB WAD серии WVRB высокоточный низкооборотный
60,00 $ - 80,00 $

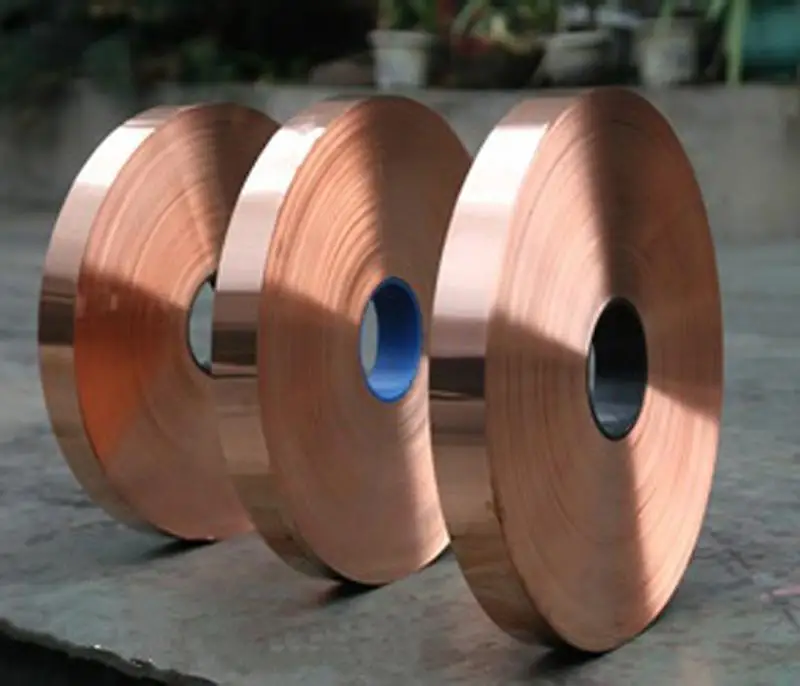

Прямая продажа с завода, Высококачественная лента из красной меди высокой чистоты EN 12163-98, Китай, c1220 T2, медная заземляющая лента
6 500,00 $ - 6 700,00 $

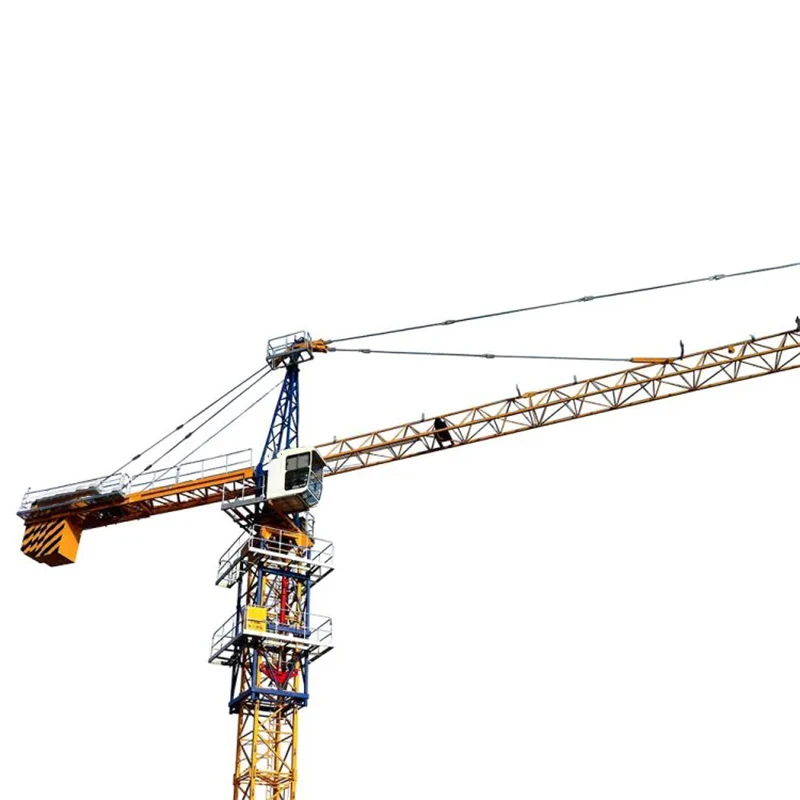

От китайского бренда с плоским верхом 6Ton башенного крана XGT6010C-6S1 для продажи
730 000,00 $ - 750 000,00 $
Большая стеклянная палочка банан пирекс Анальная пробка секс-игрушка Овощной фаллоимитатор премиум качества
2,95 $ - 5,00 $

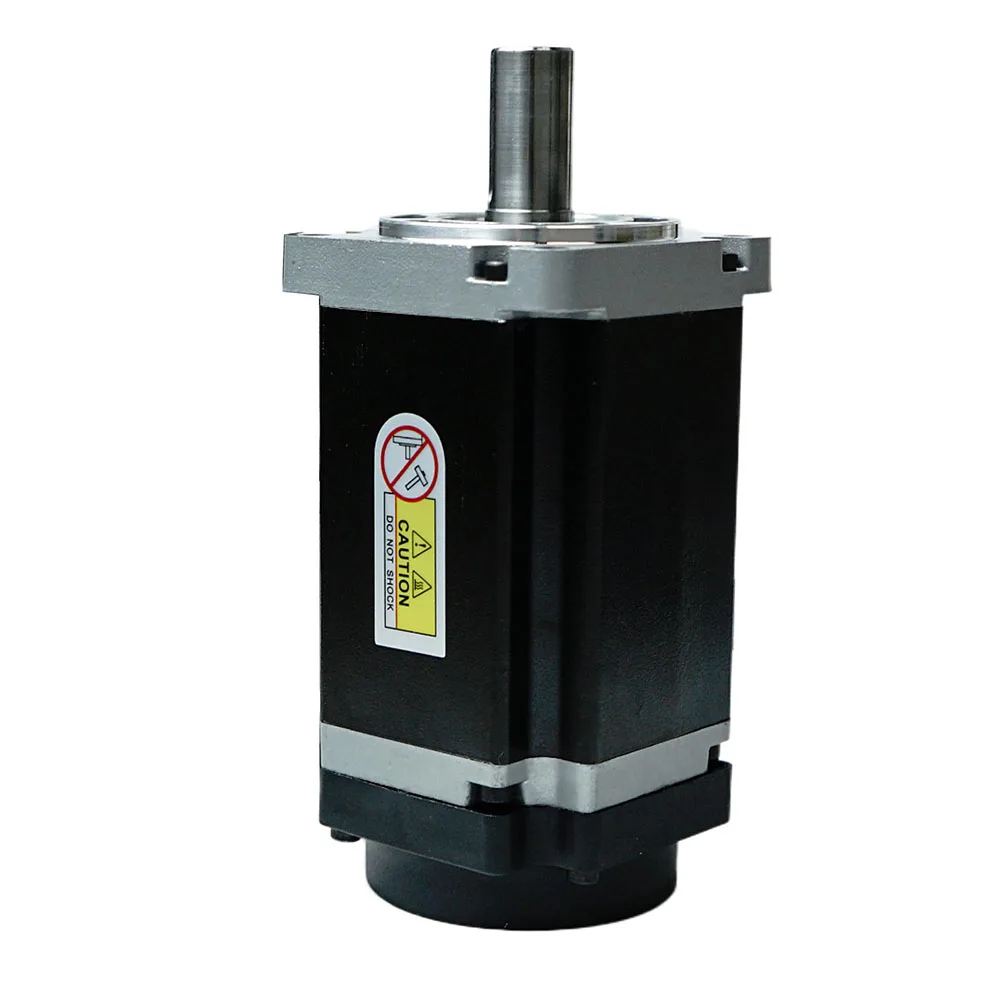

Интеллектуальный Серводвигатель постоянного тока с кодировщиками W V U-двигатель 48V 1300W DC серводвигатель
