Станок для формовки концевых труб котла SG80

SG80 Boiler tube five station tube end forming machine

Specification:

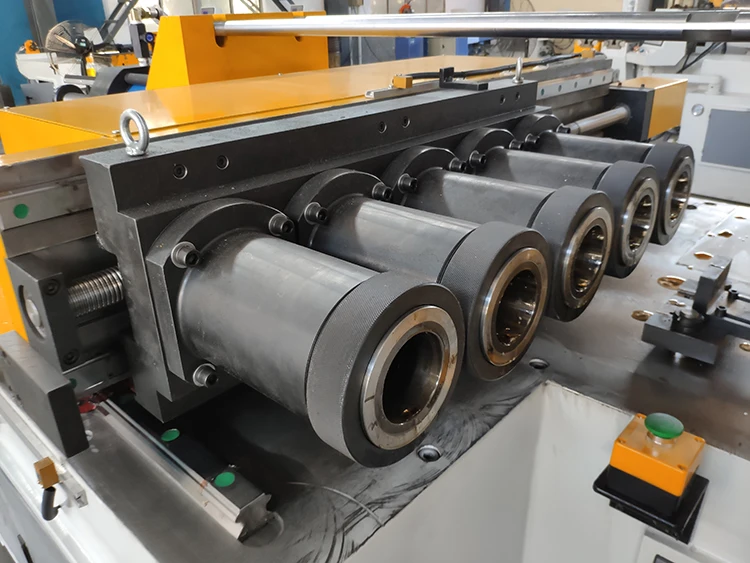

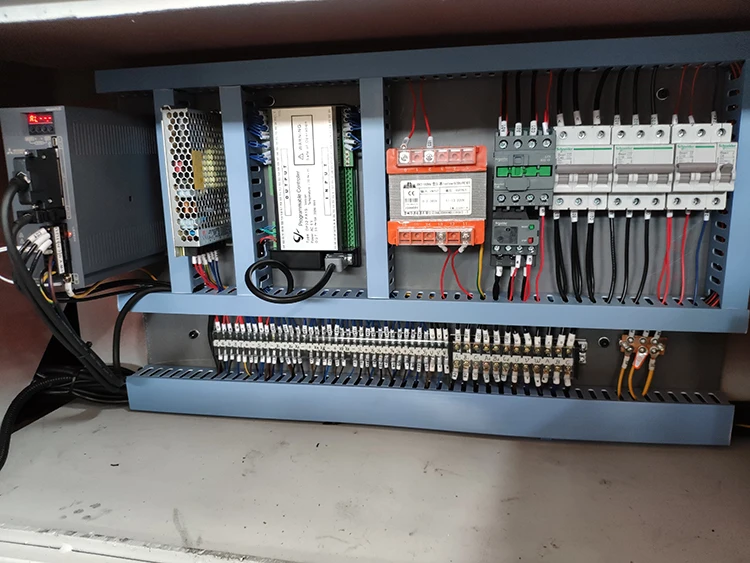

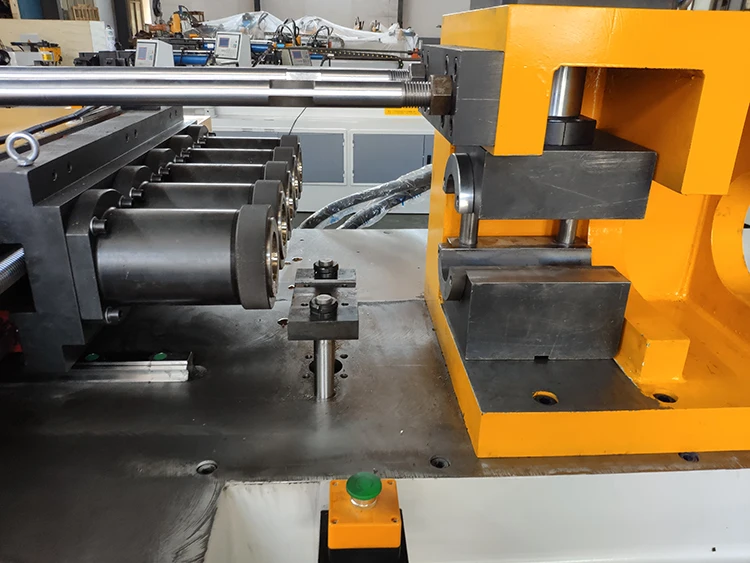

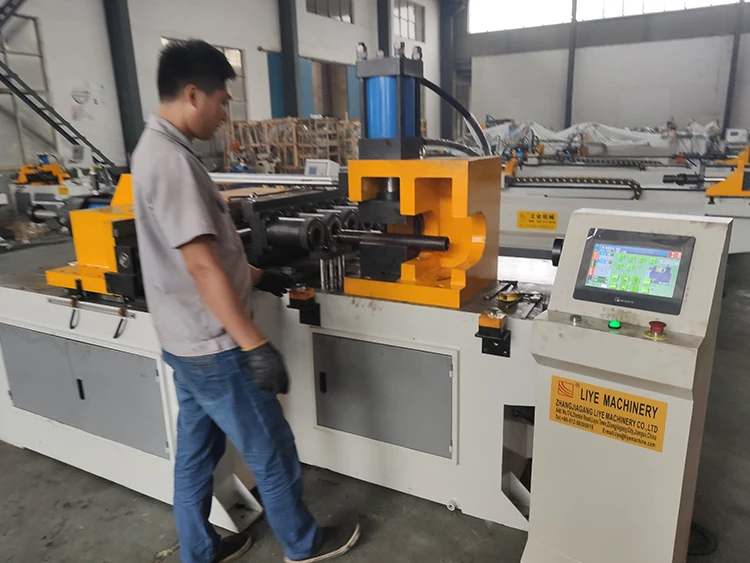

Detail photo:

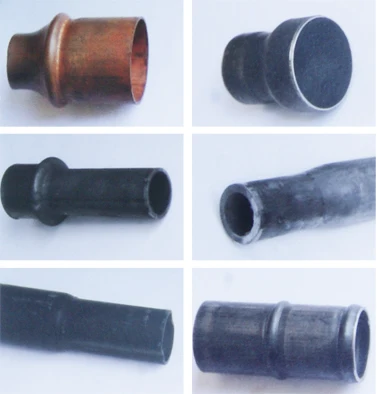

Sample:

Feature:

1. pipe end forming machine/tube shrink machie/tube end forming machine
is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.

2. With five-station arrangement, the tube bender can shrink the tube for two times simultaneously. Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.

Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.

3. The distance between two ends can be adjusted according to the length of tube. (limited to the double-end forming machine only)

4. Single-end clamping or double-end clamping can be carried out according to length of the tube.

5. Pipe end forming machine/tube shrink machie/tube end forming machine
has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.

Standard accessories

1. One pair of mould (shrinkage mould and clamping mould)

2. One set of common tools

Selection Guide:
