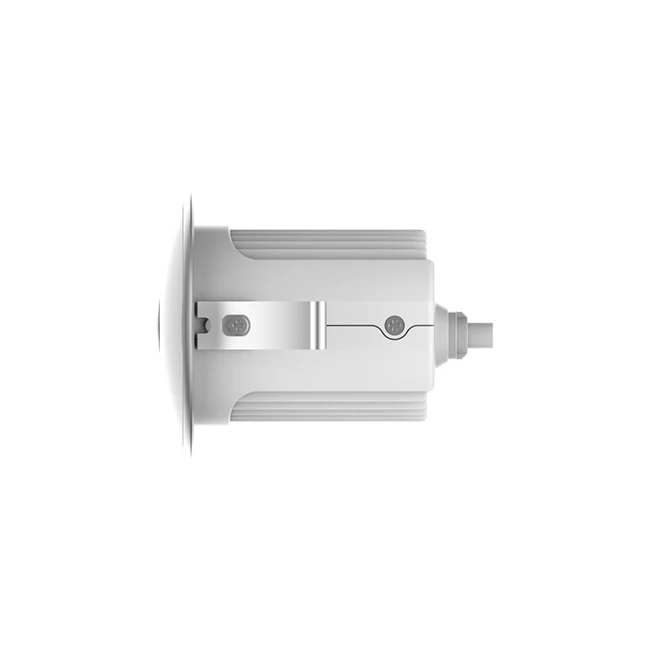

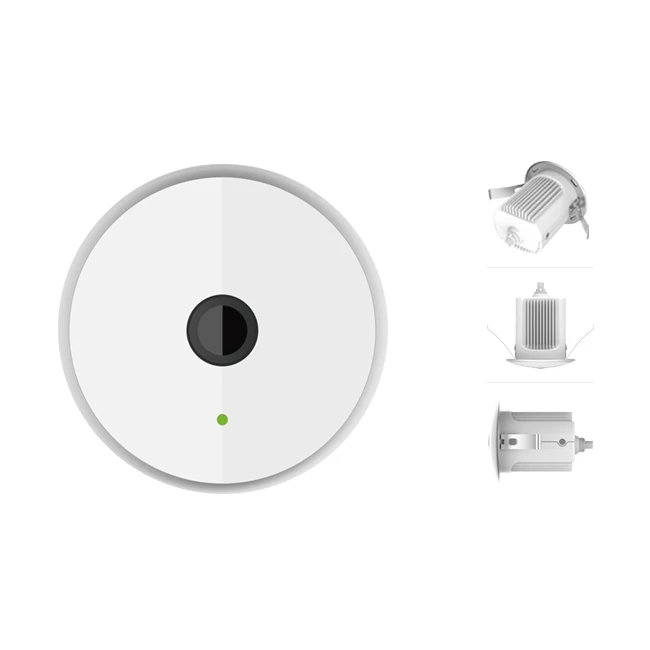

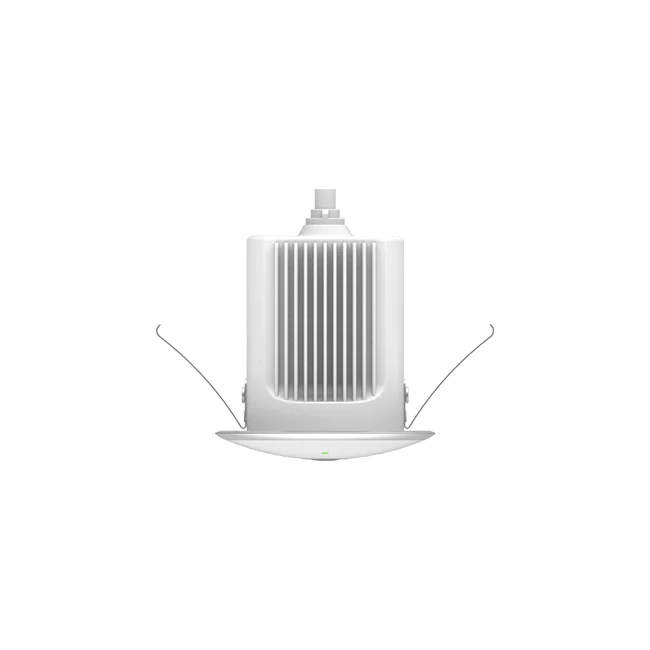

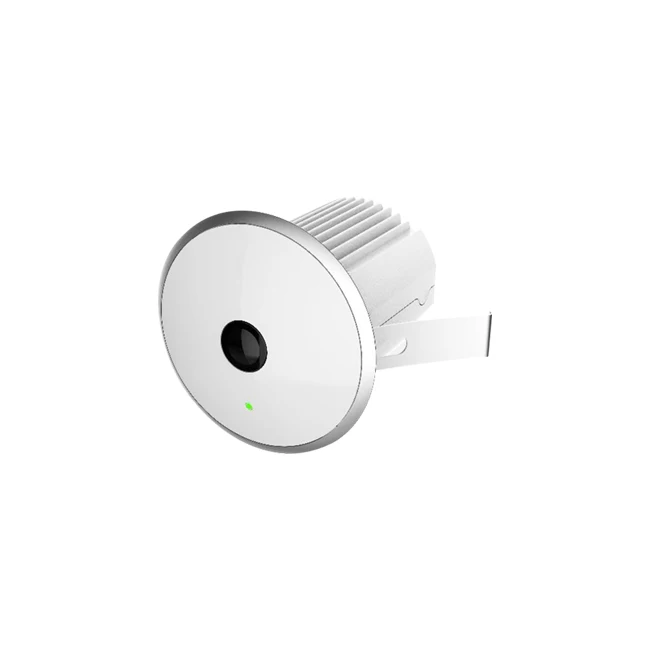

China made ceiling installed supermarket person counting machine in store remotely store inspection people counter camera
- Category: Counters >>>
- Supplier: Deepano (Shanghai) Technology Co. Ltd.
Share on (10000003211022):
Product Overview
Description

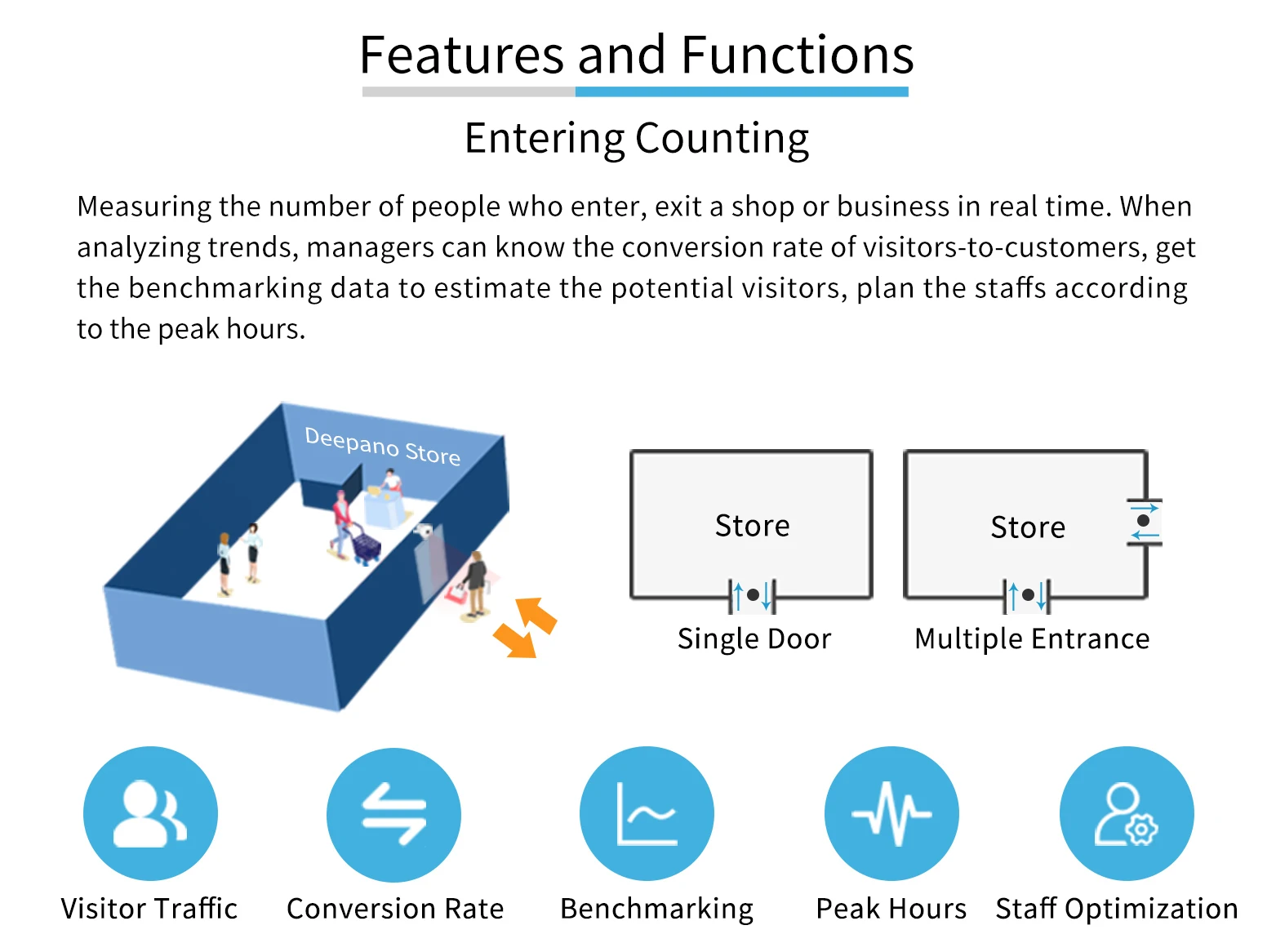

Features & Functions
Our Advantages
Specification
Product Name | Intelligent Traffic Counting Camera |
Product Model | T1-PCA01 |
CPU | High performance and power-saved multi-core SOC chip, built-in AI acceleration engine, DNN acceleration up to 0.5 TOPS |
Memory | 512MB DDR3 |
EMMC | 4GB EMMC5.1 |
Sensor | Sony IMX290,1/2.8" CMOS |
Lens Focal Length | 1.1mm, 2.1mm, 2.8mm, 3.6mm, 6mm |
Video Encoding and Streaming | H.264/H.265 real-time video compression, 720P/1080P@25fps |
Installation Height | Adapt to the height range of 2.2m-6m, special focal length lens above 6m |
Coverage | At a height of 3.5 meters, it can cover ≥4.5 meters |
Network Interface | RJ45 10/100M adaptive |
Expanded interface | RS485，Extensible probe and Beacon module |
Work temperature | -20℃～70℃ |
Work humidity | <93%（Relative humidity） |
Operating Voltage | DC 12V/0. 5A，POE 802.3af |
Dimension | Embedded part: diameter 50mm, height 60mm Exposed part: diameter 68mm, height 8.6mm |

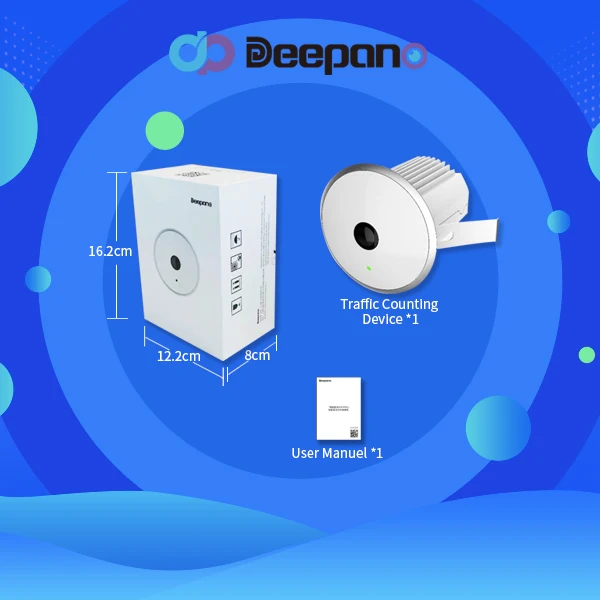

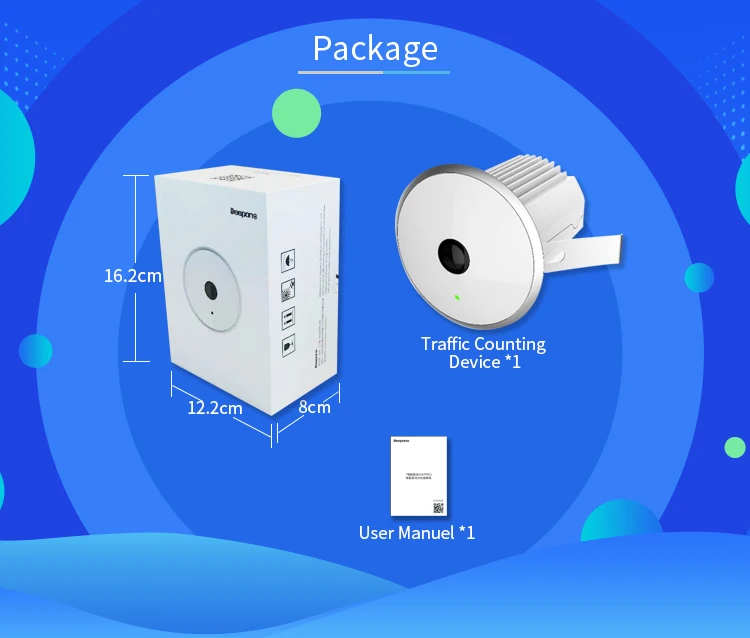

Product packaging

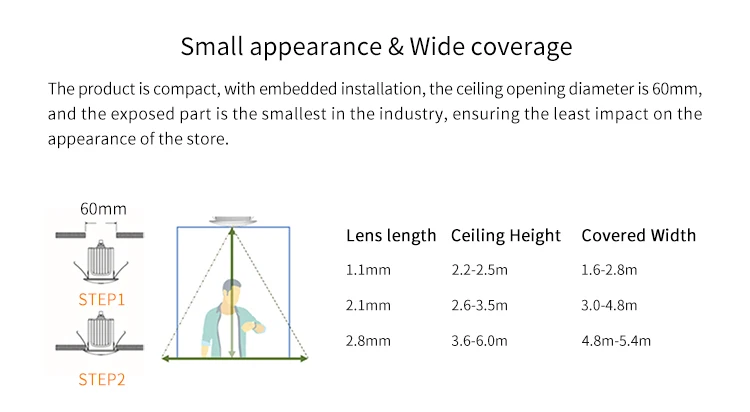

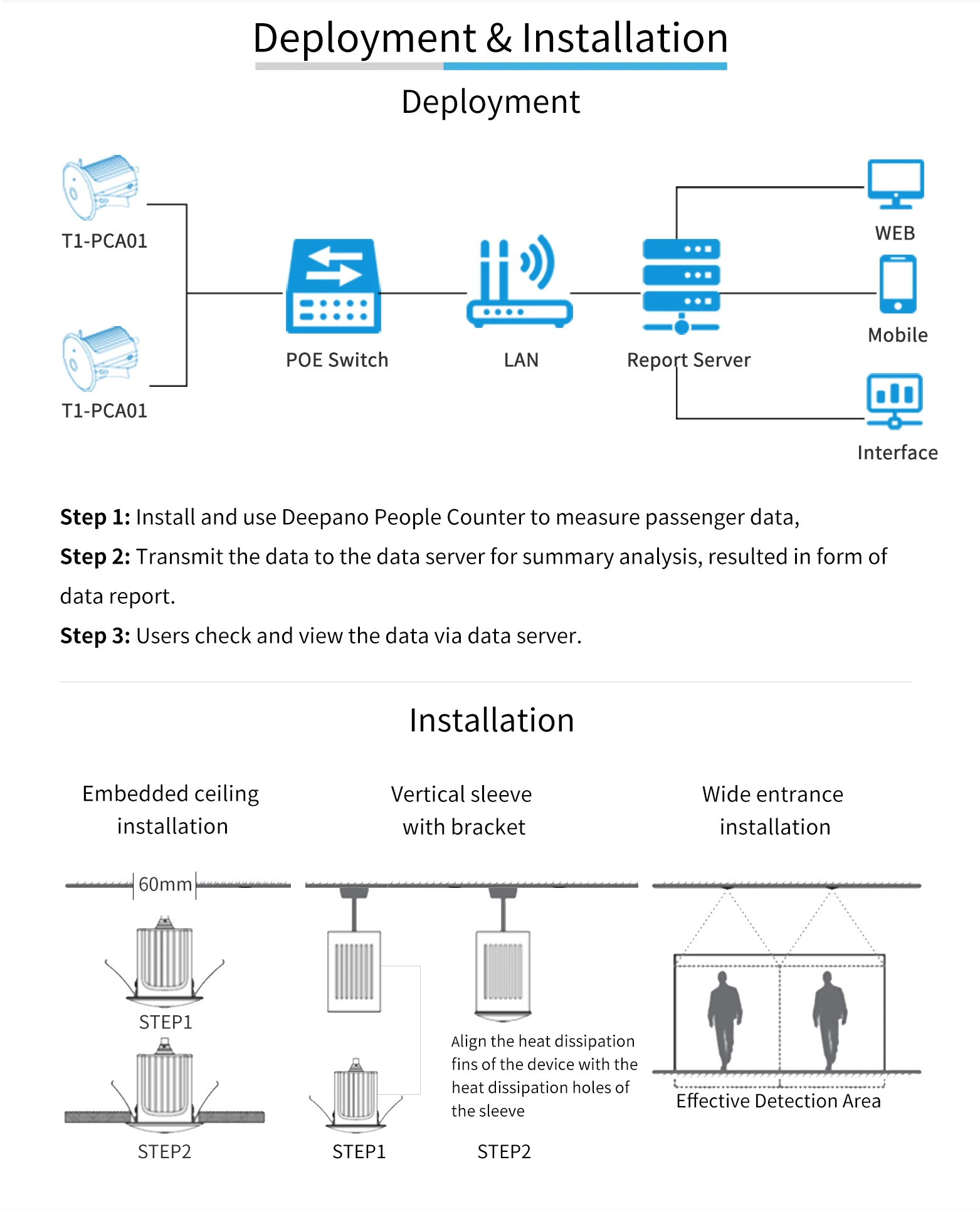

Installation and deployment

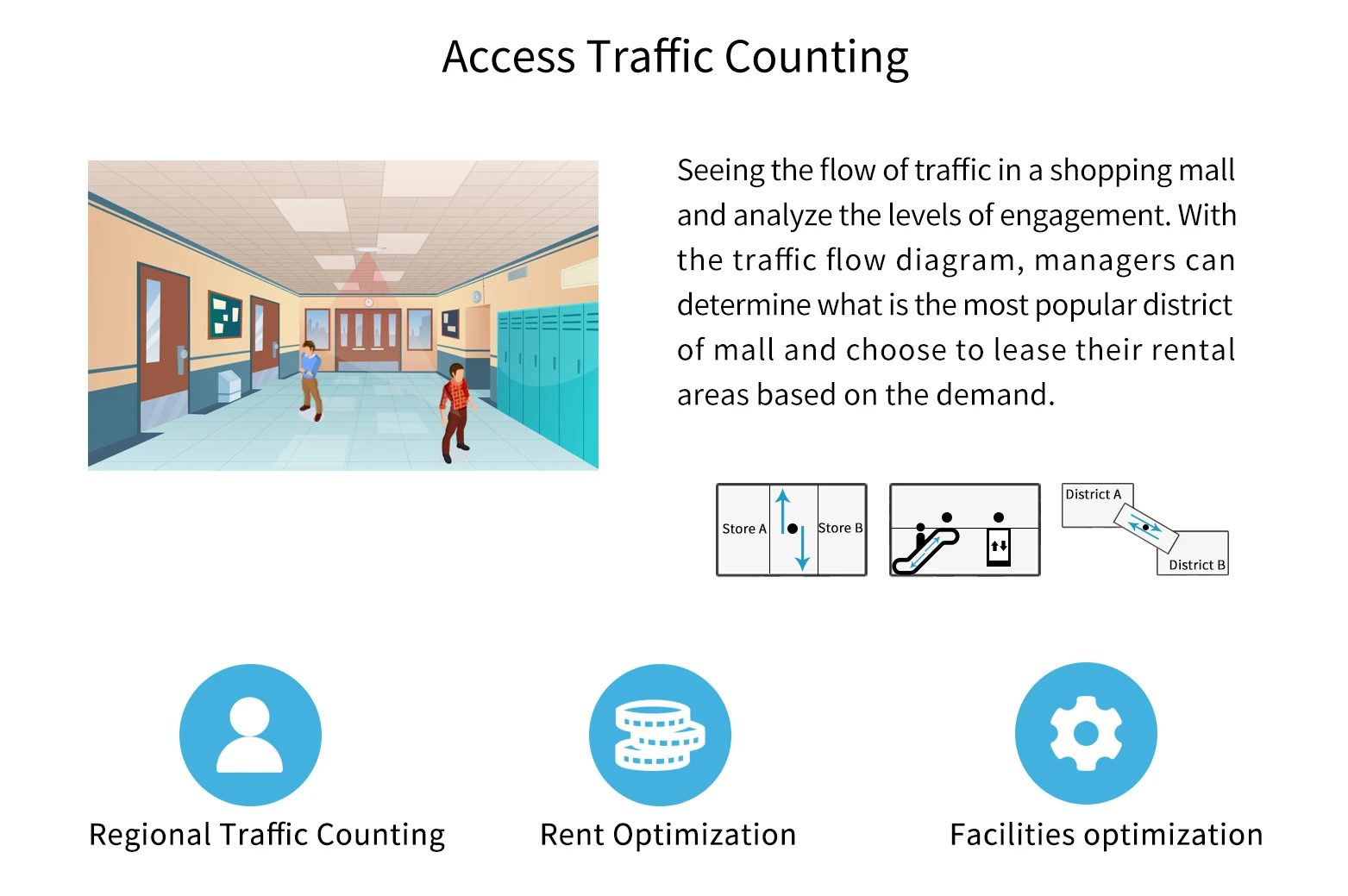

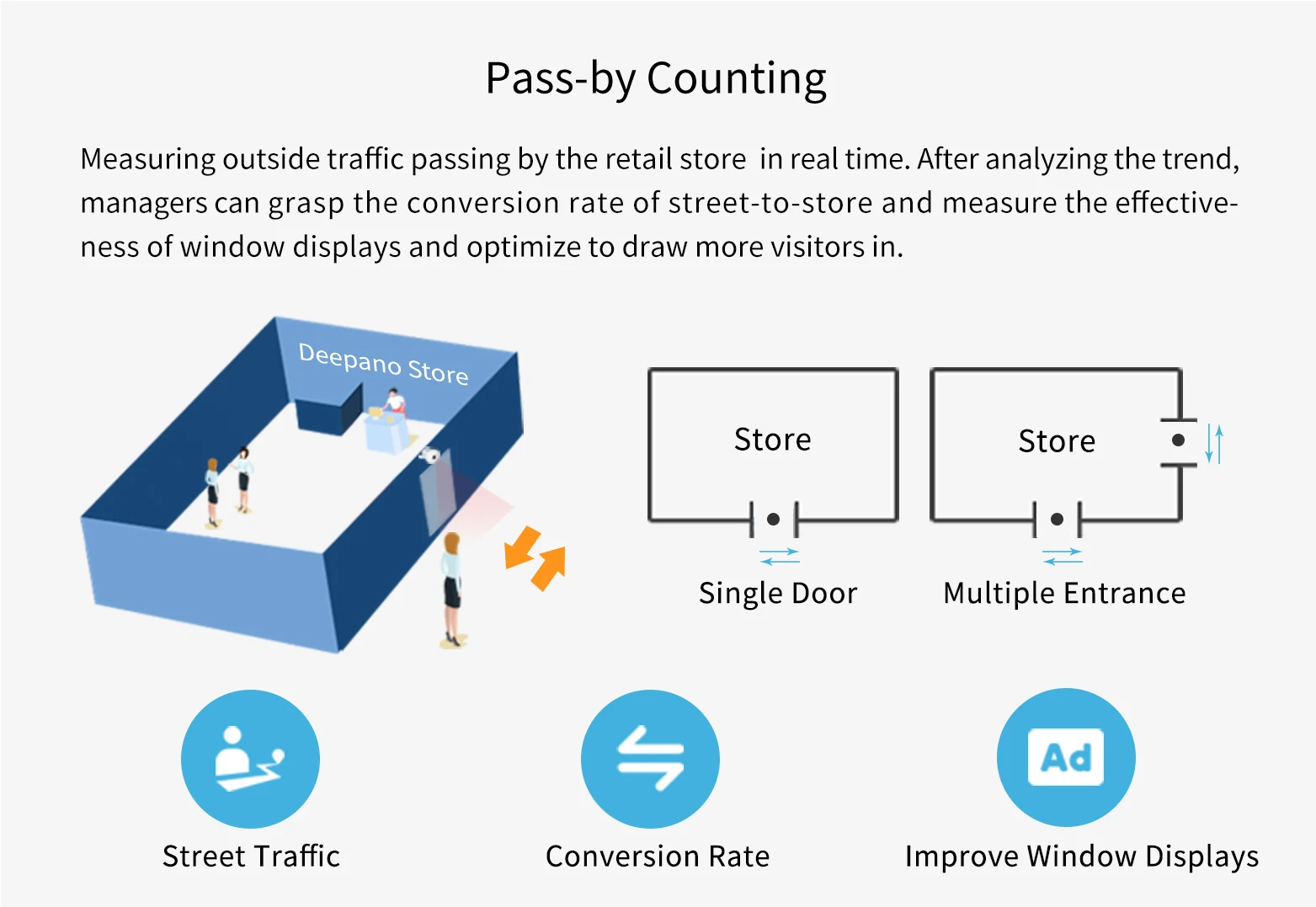

Application scenarios

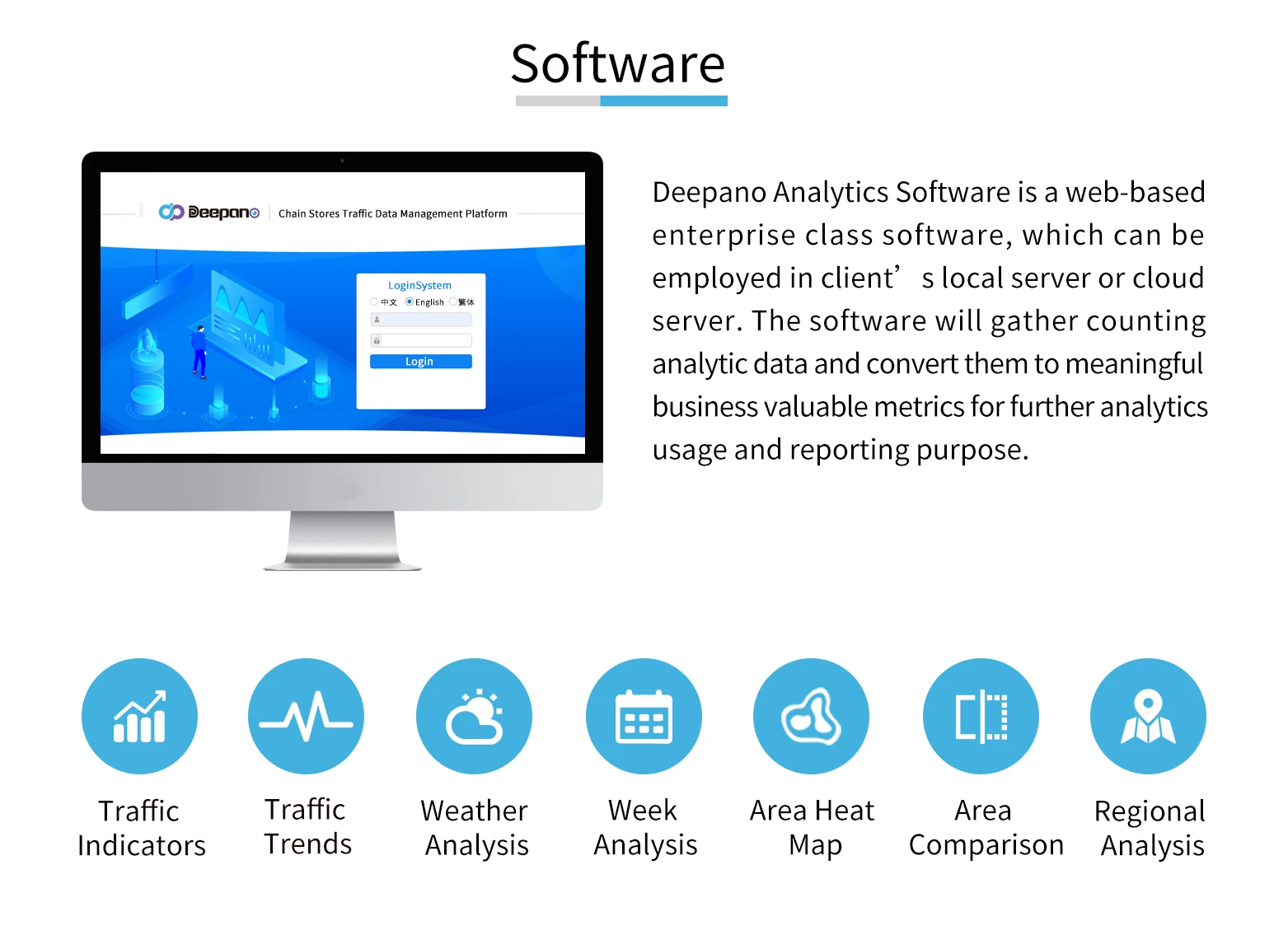

Software
FAQ
1. How long is the product’s warranty?
Answer: 1 year from the date you make orders.
2. Any support to install and deploy?
Answer: we will arrange the professional teams to install and deploy the devices in your places.
3. Where can this device be used in?
Answer: the device is widely used in retail stores, big shopping mall, public library, park and so on.
4. Could I just purchase the hardware?
Answer: Yes, we can provide two options to you
Option One: Deepano hardware device + free SDK + integrate with your software system
Option Two: Deepano hardware device + software system
5. Does the device support DHCP or Static network?
Answer: both supported, alternative one by you.
6. How to check whether the device is online or offline?
Answer: there is one mark in the background.
7. How to distinguish and locate the equipment? Mac address, IP?
Answer: by S/N of device
8. Whether is it possible to communicate with GPS device? Via what communication protocol?
Answer: Yes, by HTTP agreement.
Answer: 1 year from the date you make orders.
2. Any support to install and deploy?
Answer: we will arrange the professional teams to install and deploy the devices in your places.
3. Where can this device be used in?
Answer: the device is widely used in retail stores, big shopping mall, public library, park and so on.
4. Could I just purchase the hardware?
Answer: Yes, we can provide two options to you
Option One: Deepano hardware device + free SDK + integrate with your software system
Option Two: Deepano hardware device + software system
5. Does the device support DHCP or Static network?
Answer: both supported, alternative one by you.
6. How to check whether the device is online or offline?
Answer: there is one mark in the background.
7. How to distinguish and locate the equipment? Mac address, IP?
Answer: by S/N of device
8. Whether is it possible to communicate with GPS device? Via what communication protocol?
Answer: Yes, by HTTP agreement.
