SUJING Air Particle Counter

    Y09-3016 Handheld Particle Counter is used to detect the size and quantity of particles in the air per unit volume of the clean environments. It can quickly check or validate ISO Class 5-9 clean rooms and controlled environments.


    With LCD display, the instrument uses laser diode as the light source. It has many features, such as slim design, light weight, high precision, simple operation, micro computer control, and can store and print sampling results. It is widely used in the electronics, optics, chemistry, food and beverage, pharmacy and sanitation, biology, precision machinery, aerospace, and other fields.



Outside Dim               300*360*126 mm3(Wide*Deep*High)
Display                             LCD
Weight                             0.6kg
Battery             (Lithium Ion Battery),7.2V,2200mAh
Power Source       Li-ion charger ,8.4V DC,1A:9-250V  AC, 50-60Hz
Size Channels                     0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate                           2.83L/min
Sample Time                            1s-99h
Cycles                             0-99
Hold Time                           0-999sec
Delay Time                           0-99sec
Light source                         Laser Diode
Zero Court                           <=10min
Alarm                Low Battery ;100, 1000, 10000 Class /ISO
Coincidence Loss                  5%,2000000ps/cf
Operating Time                         more than  5.5 hours
output               RS-232 to pc or printer via optional cable
Location Labels                                    0-999
Data Storage                         1000 Samples (With PC Software)
Environmental10degrees celsius-40degrees celsius ; Humidity: 20%-90%             RH ;Atmosphere Pressure 86Kpa-106Kpa

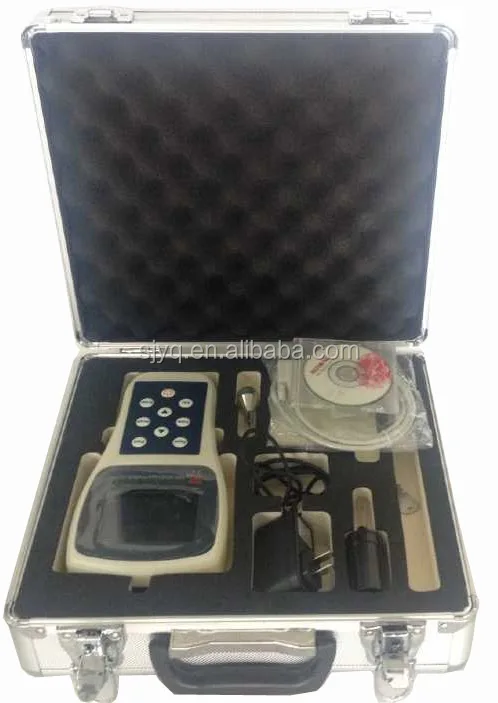

Standard feathure        suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier
Optional component                             External printer



Packaging & Shipping





Company Information



Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.

Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)

Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
  The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.


Sujing instrument is an ISO 9001:2015 Registered Company
