Product Overview

Description







Economic... Efficient... Personalized Design...

All you may come up to mind

Cartoning is one of the most inquired packaging automation solutions in the market. Usually, the client would seek and prefer a cartoner with an affordable cost yet still demanding a satisfying performance. And the most critical thing about offering cartoning solution is the case-by-case review of the projects to present an automation solution that meets the product’s specification of the customer.

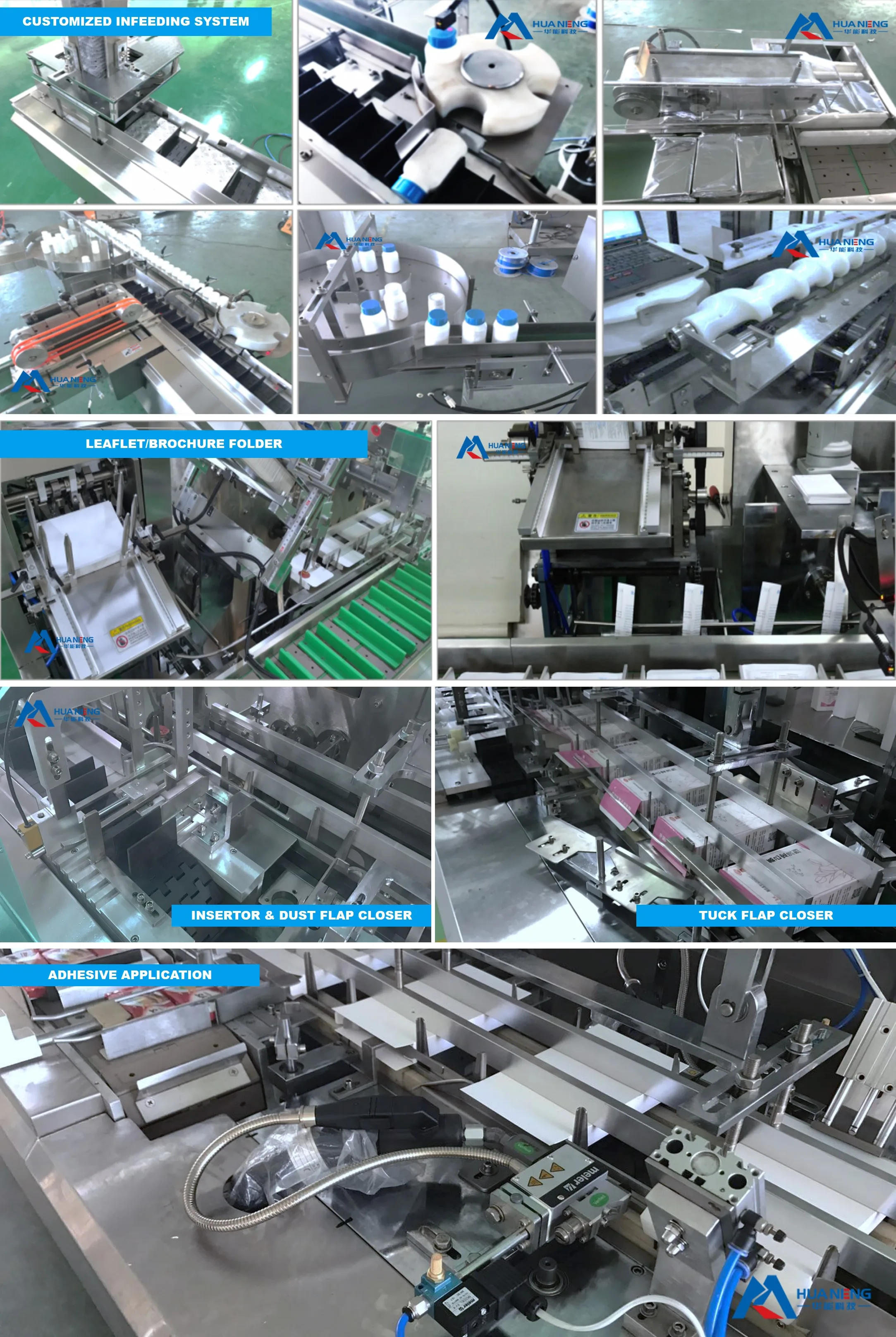

Fast and Easy Format Change

All of them are built with an adjustable structure. To change the format, the operator only has to rotate a screw and replace several components. Customers could specify the formats which they’d like to get covered when assigning the project. Upon the delivery, we’d preconfigured the machine and dispatch it with a full set of replacing components.

PLC Steered Operation System and Self-Control System

Through the Human-Machine Interaction Panel, the user can acquire a friendly and easy-to-understand configuration experience. All of the machine’s functions are reading for setting from this interface.

Self-Control Function to Guarantee Stable Output

The incorporated photoelectronic sensors also help to improve the machine’s function and performance. No carton magazine would be consumed if there is no product introduced to the machine. An eliminator is also optional to keep a control on the output side to get rid from the packaging line any results in which no product, or leaflet if any, or so forth is not inserted.

Personalized Design

Cartons come in a considerable variety of forms and shapes: straight tuck end, reverse tuck end, seal end, auto-bottom, or even a combination of them. We specially build the machine to fulfill the demands of specification of each category of them such as the solution of magazine erection, tuck closing, end panel sealing, etc… Every set of our cartoning machines comes from the endeavor of our engineers.









Model	DZH-120 Seris Cartoner
Output	50-120 PPM
Product Dimension	(75-240)X(40-160)X(15-65)mm / customizable
Power Supply	220V/380V 50-60Hz customizable
Motor Power	0.75Kw
Thermo Power	3.70Kw
External dimensions(mm)	(≥3300)*1200*1800mm
Weight	1300KG

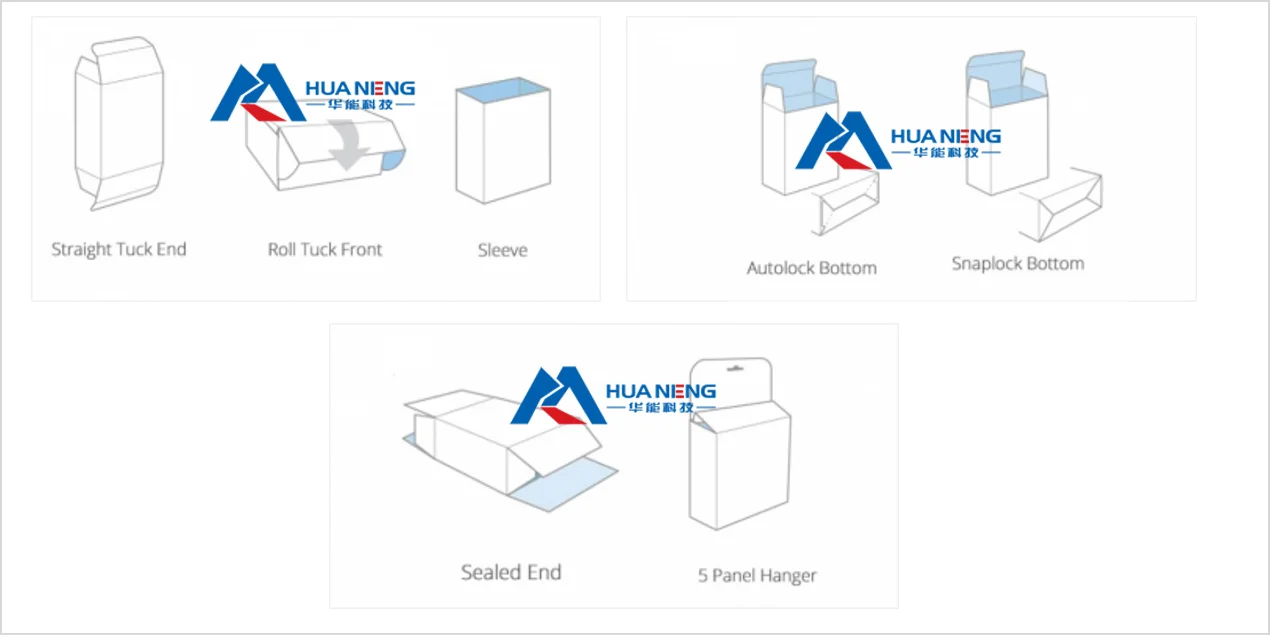

Cartons come in a considerable variety of shapes and forms which subsequently will determine the level of personalization of cartoning solutions. We'd invite you to find on searching engine our post titled: Beginner’s Guide for Cartoning Machine and Cartoning Solution to have a detailed review.



As following we put example of those types of cartons our cartoners can be designed for:

•   Tobacco Packaging & Cartoning


•   Tea & Coffee Cartoning


•   Pharmaceutical


•   Cosmetics


•   Confectionaries


•   FMCG































Huaneng Machinery, with its site located in Wenzhou, is an innovative packaging solution designer with trajectory ever since 2013 offering packaging automation systems as cartoners, overwrappers, and end-of-line turnkey solutions to industries as pharma, cosmetics, FMCG, etc., and clients worldwide.



Huaneng is China's top leading overwrapping machine manufacturer introducing to the market the BT-2000L Overwrapper patented by our cutting-edge technique – Tri.Driver®, that renders an unparalleled output reaching 100 PPM with performance guaranteed.
