High Speed Automatic 3 Ply Corrugated Cardboard Production Line,Corrugated Machine Line Automatic,Cardboard Making Machine (1600315944978)

Share on:

Price:$119,000.00 - $120,000.00
Price in USD:Details


Product Overview


Product Description

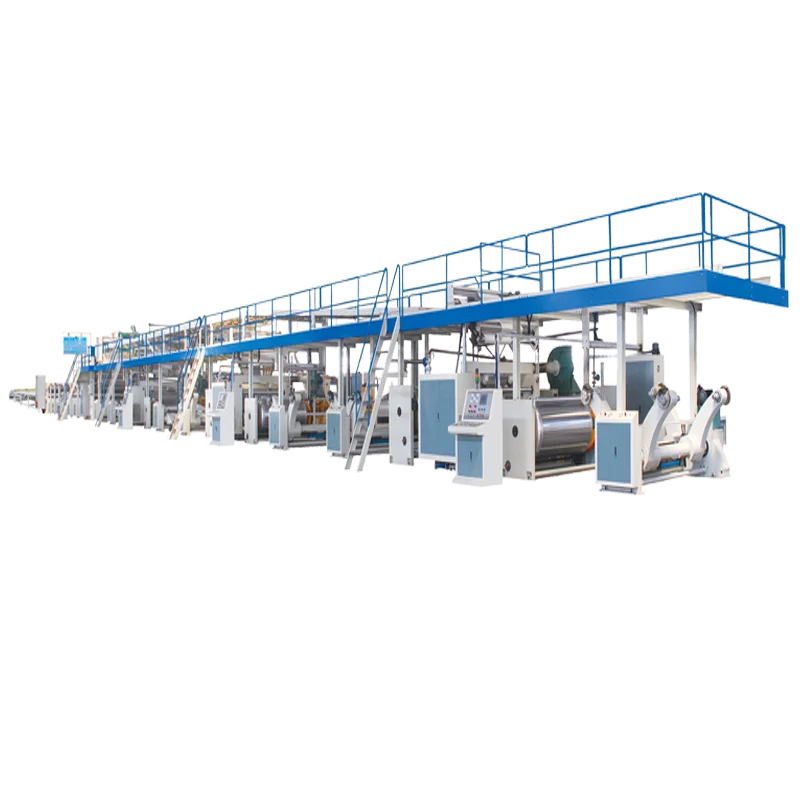

High speed 3/5/7 Ply Automatic Corrugated Cardboard Production Line.
Critical condition:
Layers: there are 3 5 7 layears can be choose.
Speed:100m/min--250m/min can be choose.
Width:1400--2500 model can be choose.
We will recommend the configuration suitable for the customer according to the specific needs of the customer.

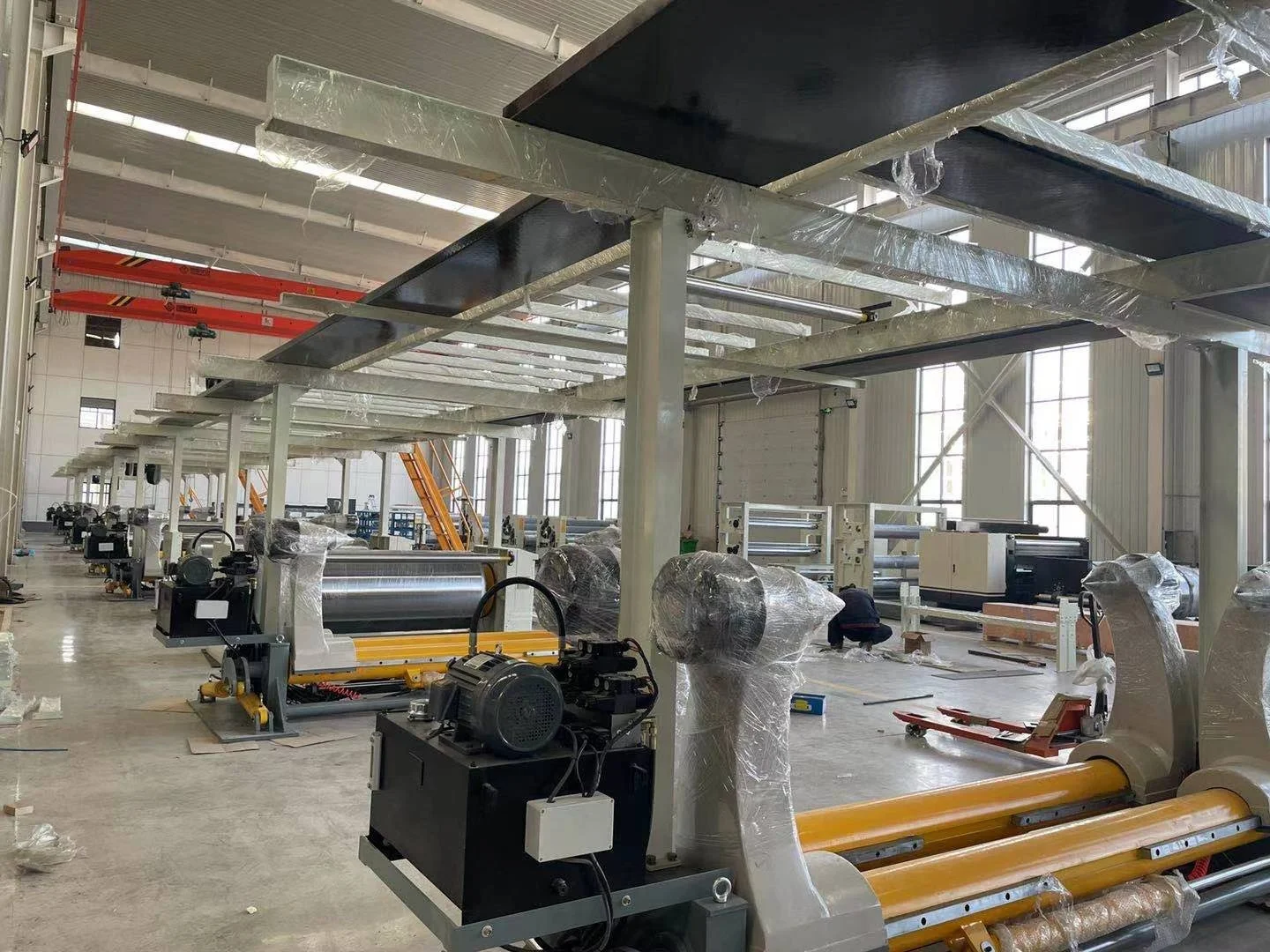

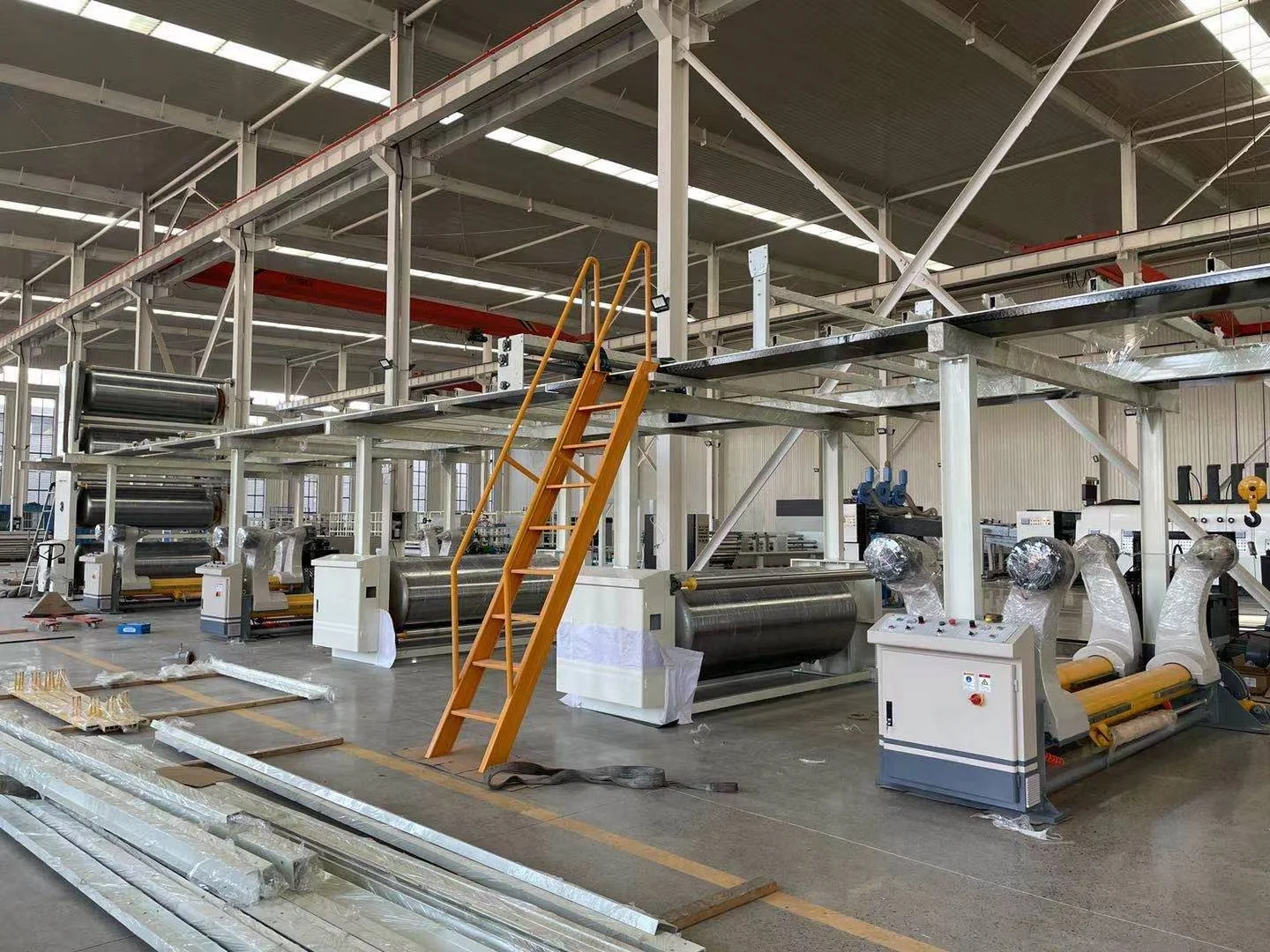

Shaftless Reel roll Stand (Hydraulic Type)
Width: 1200-2200mm
Weight: 3T
Shaftless Mill Roll Stand
Diameter of paper:1400mm

Single-roller Pre-heater
Diameter:600-1100mmElectrically adjusting wrap angles of raw paper with sdjusting range:60°-270°
Triple-roller Pre-heater
Each roller surface is treated with hard chrome plating,grinding and polishing,glabrous and durable.

Fingerless Type Single facer
Design speed:150-180m/min.
Effective width:1400-2200mm
Oil immersed type libricating to reduce noise,keep running stable.
Glue parts auto supply glue circularly.Glur parts can running independeatly or non- independently while stopped

Thin blade slitter scorer elctric adjust scoring distance type
Electric adjust blade distance, pneumatic lock,high quality tungsten steel blade.Electric adjut scoring rolls distance,adopt 5 points scoring,
Max running speed for production line:150 m/minThis product can be used together two to achieve rapid change list.
Low noise,smooth the shipment.

Paper sheet delivery and side conveyor
1.Adopted on the 16th channel welded。Electric adjustment
of cardboard the size of the lateral output pneumatic control board, electrically adjustable conveyor speed.
2.Cardboard sheets to the desired number or height
requirements will be controlled by a foot switch out of cardboard.
3.Vertical bin using wide flat belt conveyor transport。
Automatic small gantry stacking machine
1.Gantry stacking, Changing single time is 5 seconds,automatic counting, automatic cross out automatically for a single.
2.When stacking reaches a set number of automatic
frequency control smooth laterally out of paper.
3.Fully automatic operation control, improve efficiency and save manpower, reduce labor intensity.

Main specification
1. width:1400mm, 1600mm, 1800, 2000, 2200, 2500mm
2. Design speed: 200m/min, 150m/min, 120m/min, 100m/min, 80m/min
3. Heating method: steam

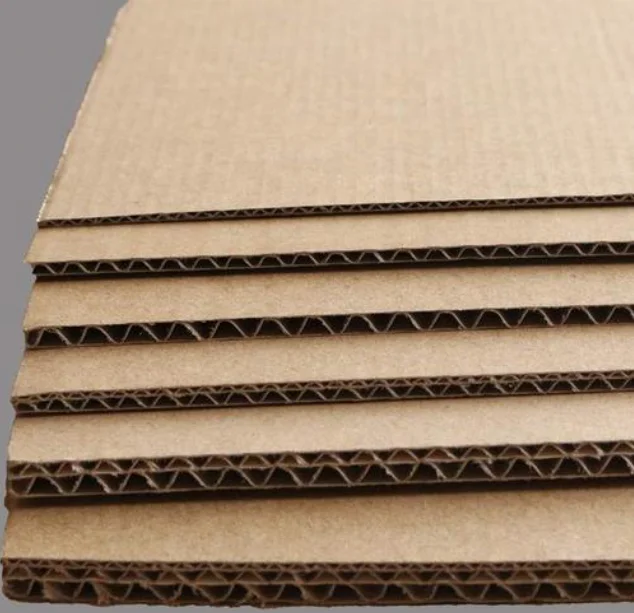

Single wall corrugated cardboard (also called 3layer, 3ply board)
1. Our most popular corrugated material used in boxes
2. Available in a wide range of compression strength 125Iib to 275ib
Double wall corrugated cardboard (also called 5layer, 5ply board)
1. Combined of flute B and C, or A and B
2. Extra padding can be add
3. Excellent for stacking heavy item
Double wall corrugated cardboard (also called 7layer, 7ply board)
1. Composed of two layers of flute B/C and one layer of flute B
2. Good resistance to crush during storage and transit.

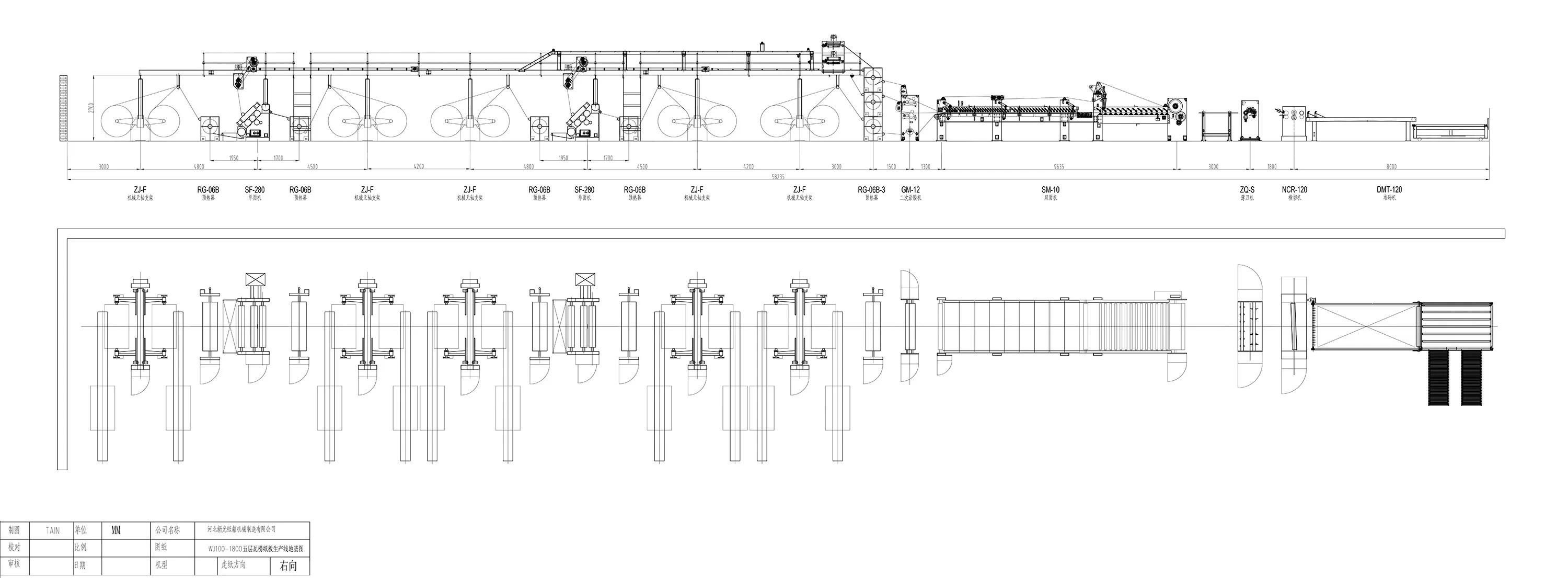

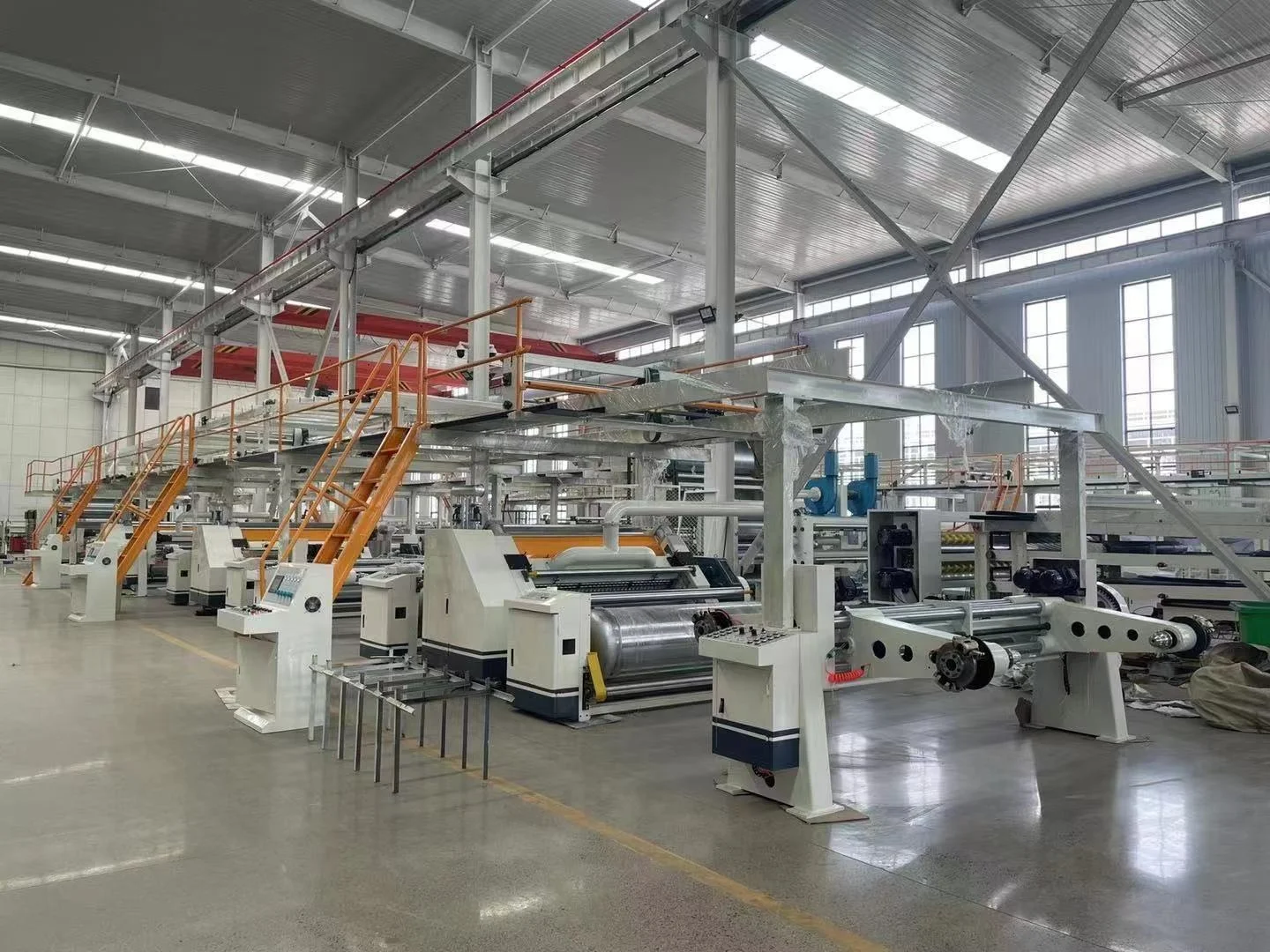

Corrugated cardboard production line is the professional advanced equipment for produce 3ply, 5ply, 7ply corrugated cardboard. The production line consists of mill rolls tand, liner(medium paper) pre-heater, single facer machine, conveyor bridge, gluing machine, double baker, slitter scorer machine, NC cut-off, conveyor and stacker, heating system. Air compression system, glue making system etc.
We produce different grade machines according to customers’ demand of speed, function

Contact information
Mobile/Whatsapp/Wechat: 0086 18513640900
Email: [email protected]
Facebook: Colin Zhang

Professional carton machine manufacturer&exporter
---30 Year experience --- CE&ISO certificate

Packing & Delivery

Sea worthy packages

Company Profile

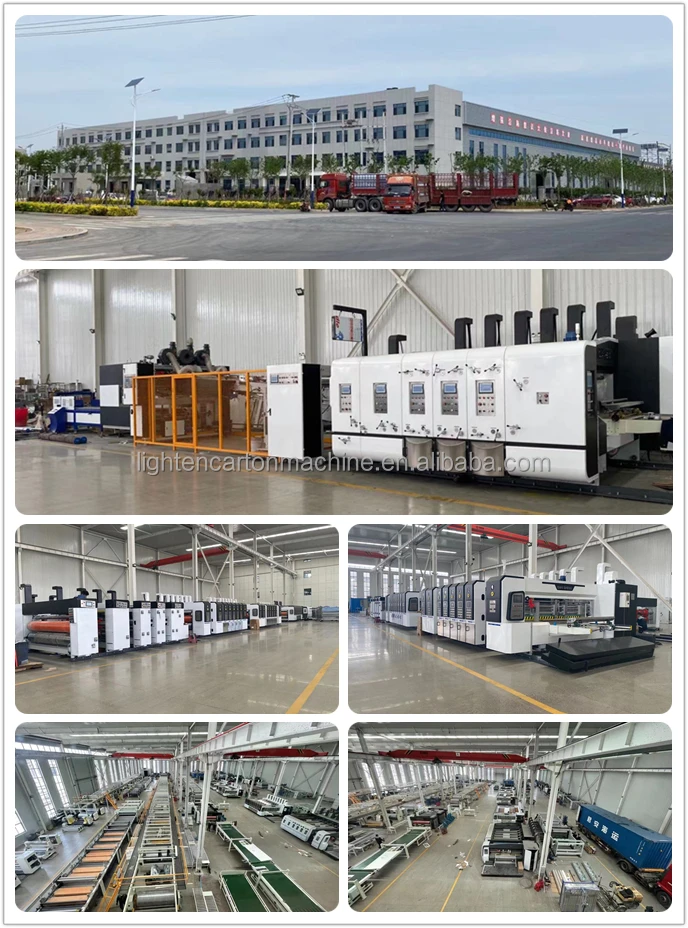

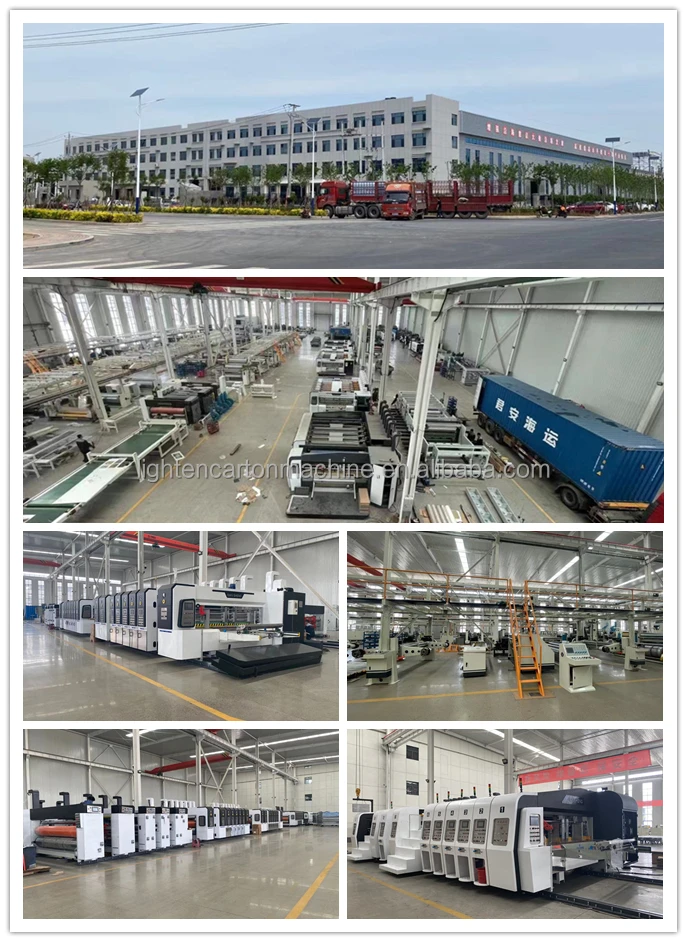

We are a Factory-Owed professional carton machinery export company. Located in China northern Carton machinery manufacturing base --- Dongguang County, Hebei Province.
