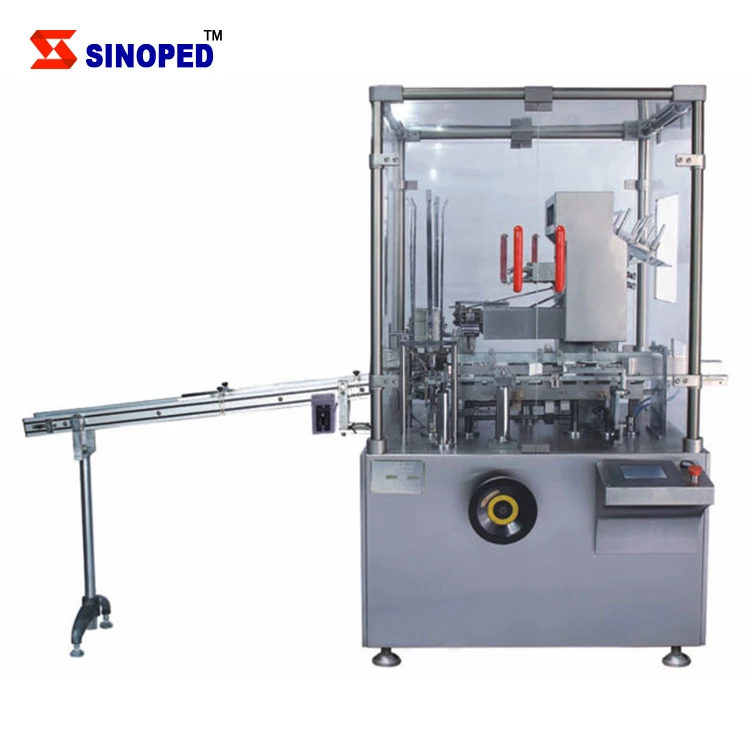

This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running. This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.
Technical Parameters
Model
SINO-120
Encasing Speed
30-120 box/min
Carton Quality Requirement
250+350g/m2 (Base on carton size)
Carton Dimension Range
L: 70-180mm, W: 35-85mm, H: 14-50mm
Leaflet Quality Requirement
60-70g/m2
Unfolded Leaflet Specification
(80-250)*(90-170)mm
Fold Range
1-4 folds
Working Air Pressure
0.6Mpa
Air Consumption
120-160L/min
Voltage
220V 50Hz
Power
0.75KW
Dimension
3100*1100*1550mm
Weight
1400kg
Main Features
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc. 2. Adopt human-machine operation system. 3. Automatically stop when machine is overload. 4. Automatically reject lacking of package product and leaflet. 5. Automatically display trouble, alarm and count finished products. 6. Stable performance,operation is easy.

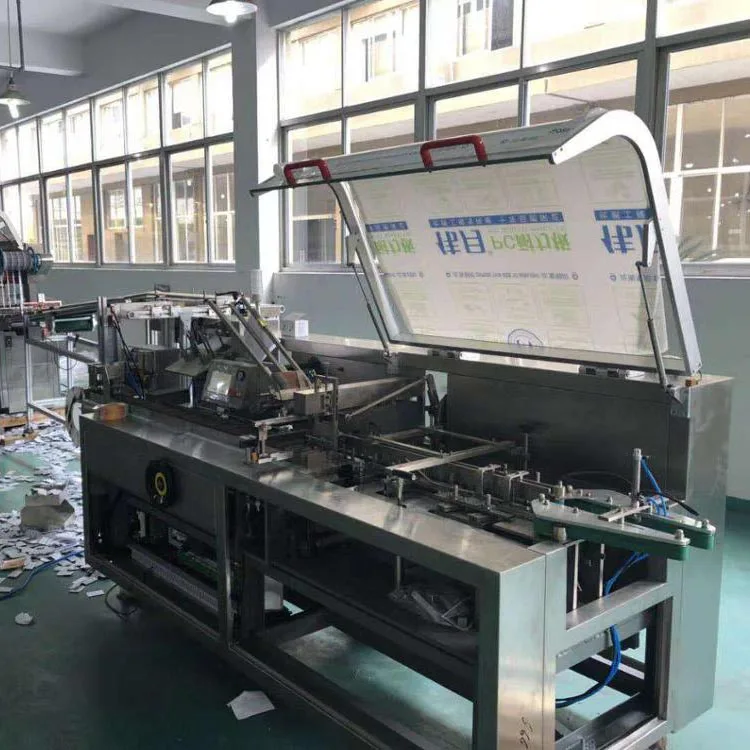

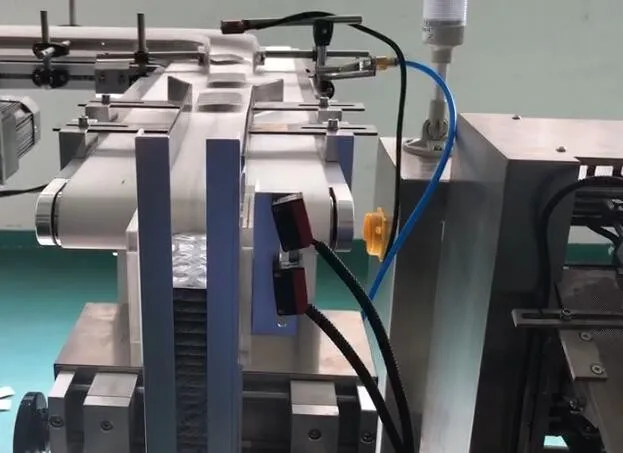

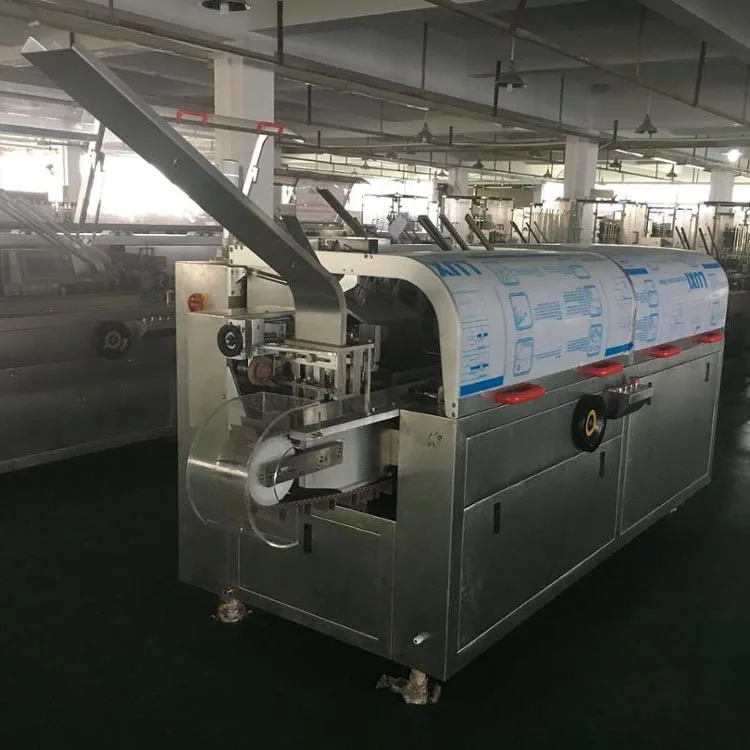

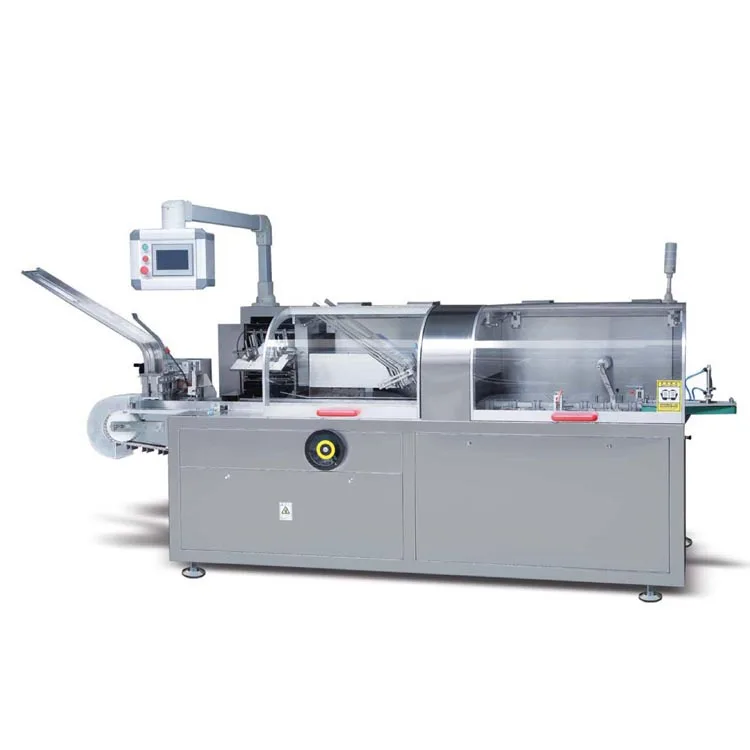

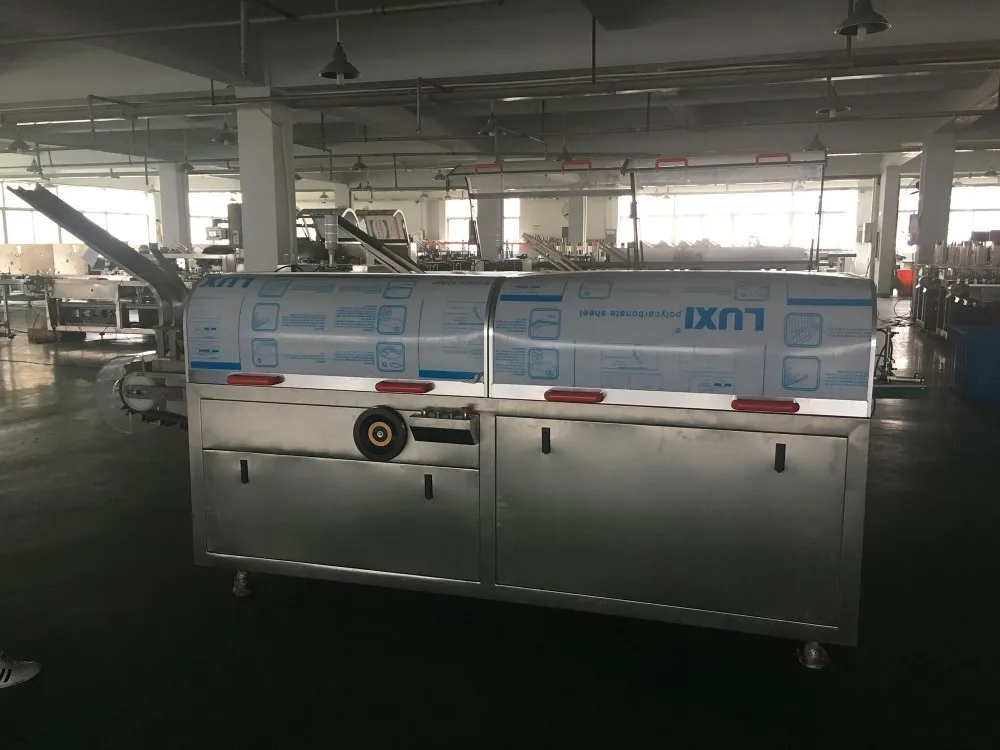

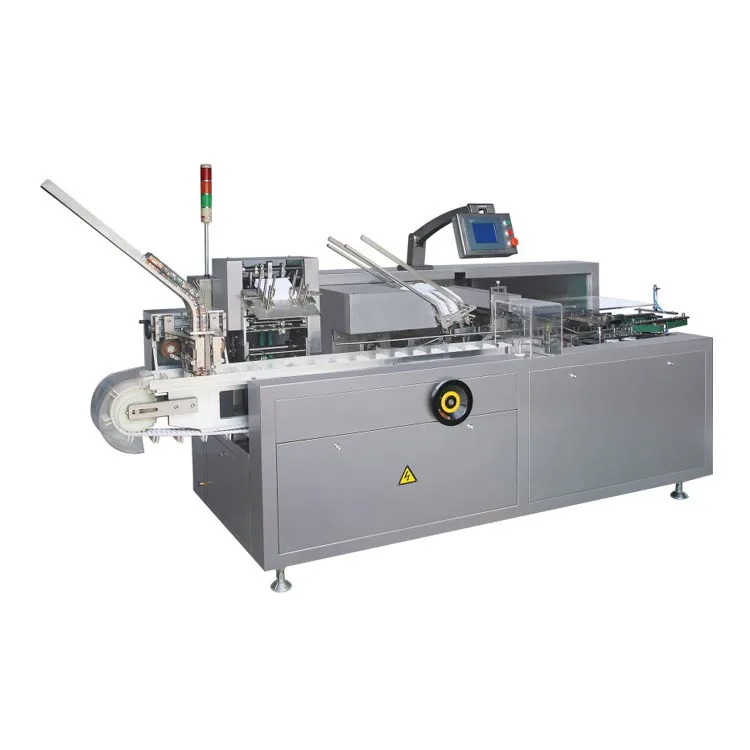

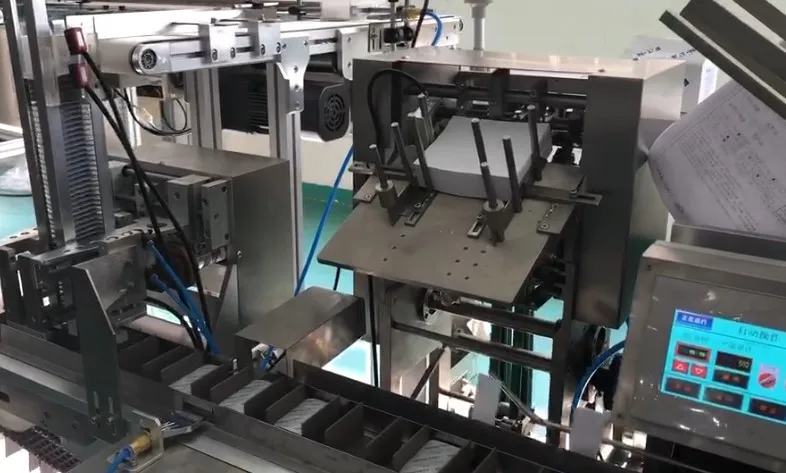

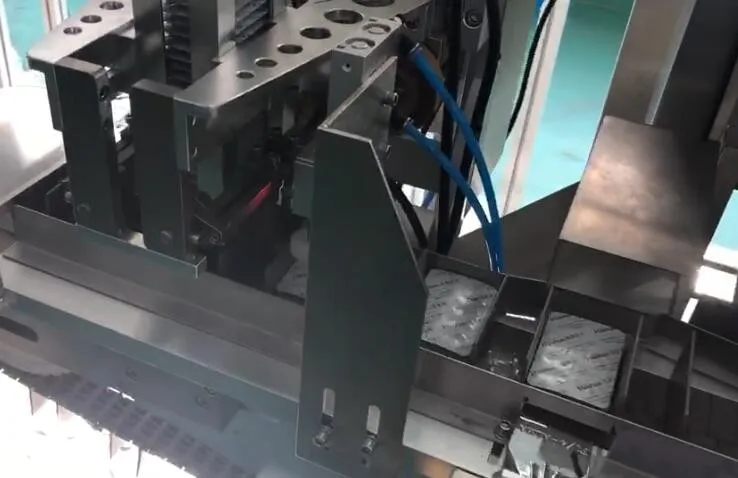

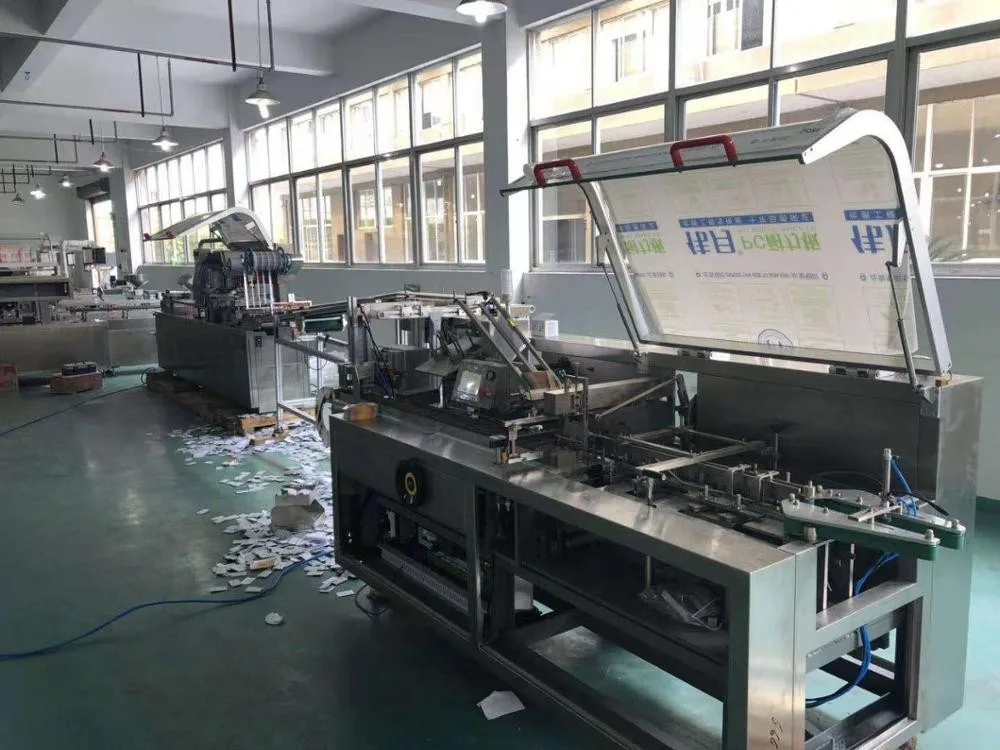

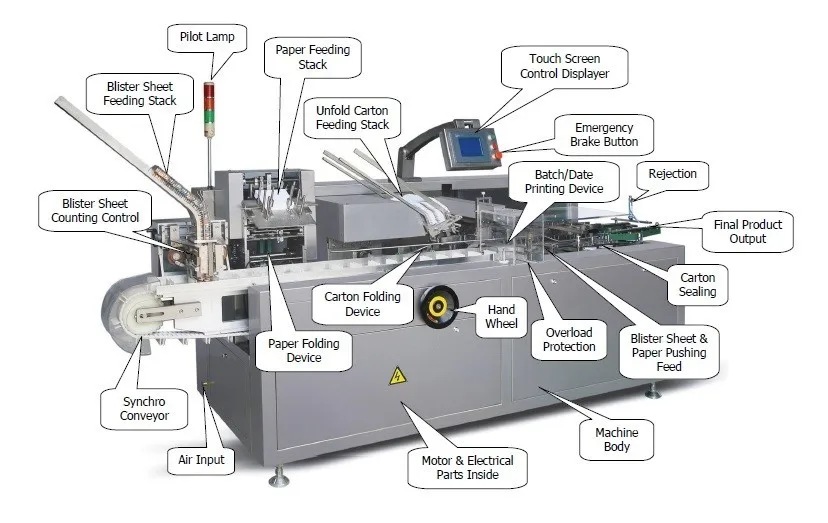

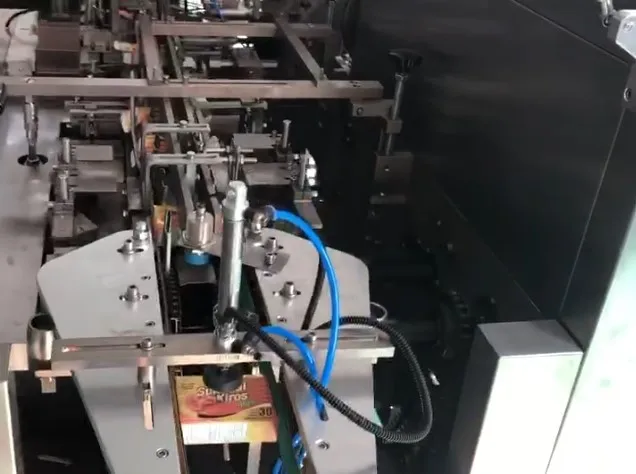

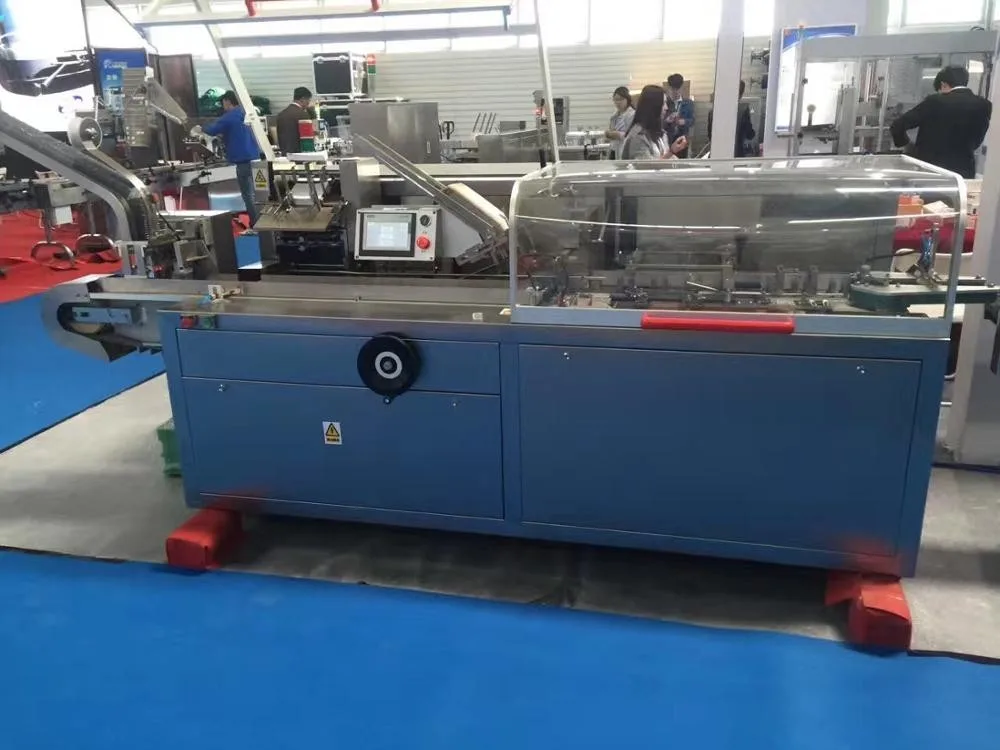

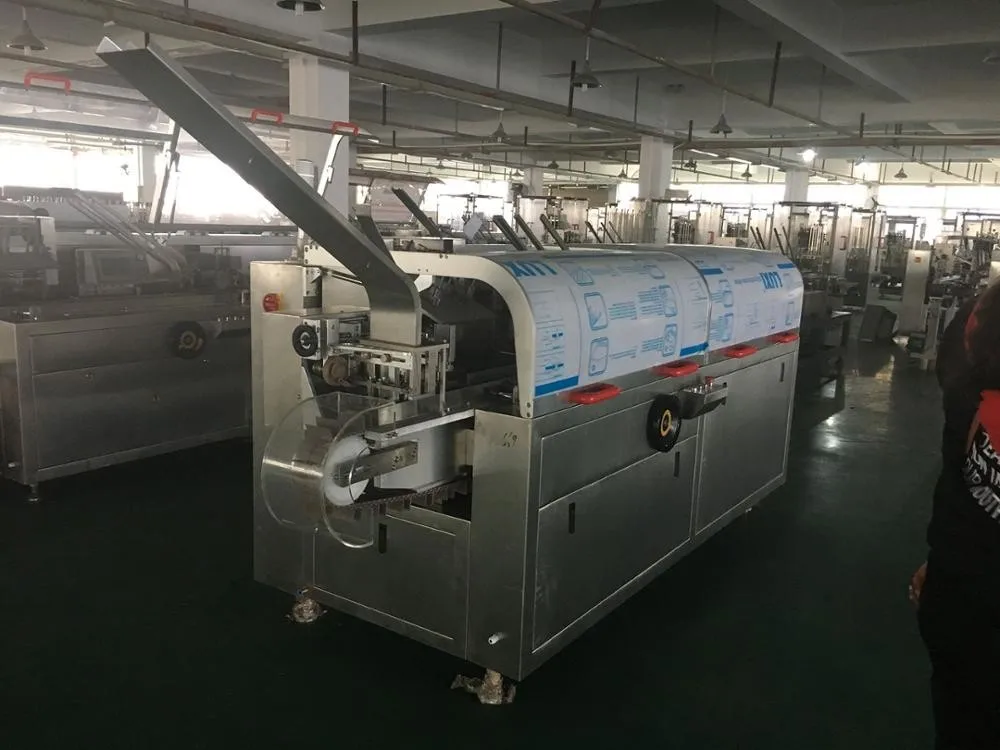

Detailed Images

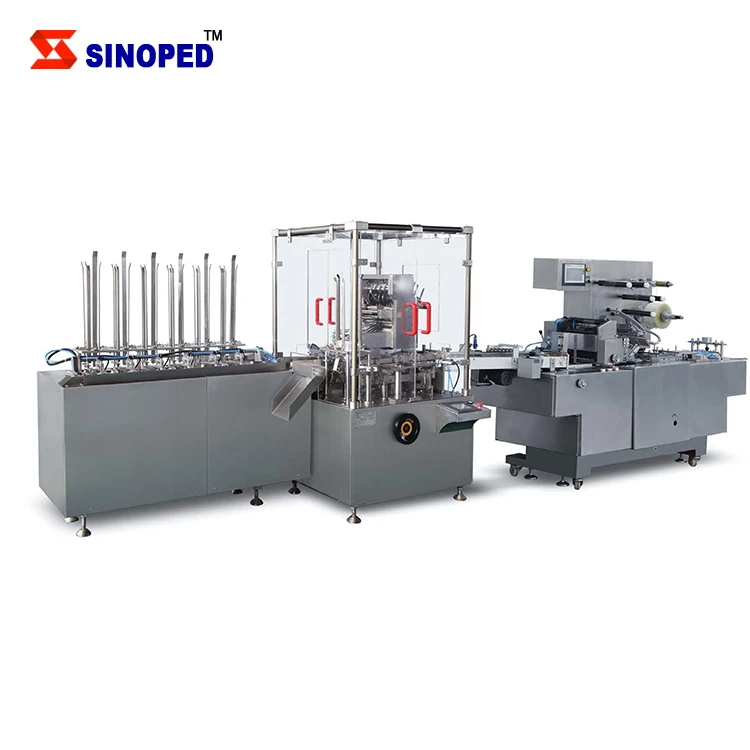

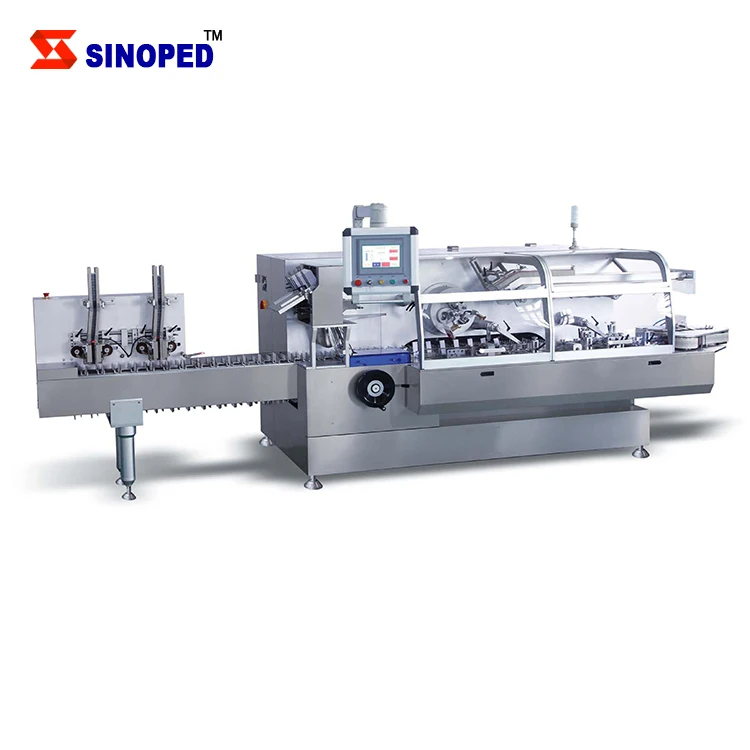

Related Products
Certifications
Our Company
Sino Pharmaceutical Equipment Development (Group) Limited (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, fermentors, centrifuges, granulators, mixers, spray dryer, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers. In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how. In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
Packing & Delivery
Packaging
Size
3200 (L) * 1200 (W) * 1600 (D)
Weight
1.6 T
Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
