200 Liters cosmetic cream emulsifying mixer with bottom homogenizer
- Category: Chemical Machinery & Equipment >>>
- Supplier: Guangzhou,Jutao,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm – 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.
Detailed Images
1. Our vacuum emulsifying equipment equipped with heating & cooling system which simplifies the processing. Within this same equipment, you can do from heating-melting-emulsifying-air bubble reduction(by vacuum)-cooling without changing vessels, it saves lot of labor and time for your production.
2. The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 3,600rpm and the highest shearing fineness can reach 0.2-5um.
3. All contacted parts of equipment are SUS316,the product homogenized in vacuum and close vessel can be sanitary and high quality.
4. The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.
5. The measuring of raw materials, the recording of temperature for heating, melting, emulsifying, cooling, and the change of mixing speed, and the vacuum suction can be controlled automatically (PLC/BUTTON control).
6. The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust.
7. Electric appliance: 80% of the main parts of our products are provided by world’s famous suppliers, such as Siemens, Mitsubishi, Schneider configuration to ensure that the whole machine control is more stable, fully meet international standard.
8. Double jackets of the tank for heating and cooling.
9. The main pot can be flipped down to120° so that even the high viscosity materials can also be easily emptied
10. The water and oil tank are both equipped with independent heating, temperature control and dispersing system. Pretreatment materials can be suck into the main tank by vacuum pump
11. The contact materials part is SUS316L, and others are stainless steel 304
12. The main tank has independent hating and thermal insulation temperature control system. The thermal insulation layer is arranged outside the heating system to avoid high temperature scalding.
13. The stirring paddles scrap off the material which attaching on the inner surface of the tank, then to increase the effect of homogeneous mixing.
2. The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 3,600rpm and the highest shearing fineness can reach 0.2-5um.
3. All contacted parts of equipment are SUS316,the product homogenized in vacuum and close vessel can be sanitary and high quality.
4. The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.
5. The measuring of raw materials, the recording of temperature for heating, melting, emulsifying, cooling, and the change of mixing speed, and the vacuum suction can be controlled automatically (PLC/BUTTON control).
6. The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust.
7. Electric appliance: 80% of the main parts of our products are provided by world’s famous suppliers, such as Siemens, Mitsubishi, Schneider configuration to ensure that the whole machine control is more stable, fully meet international standard.
8. Double jackets of the tank for heating and cooling.
9. The main pot can be flipped down to120° so that even the high viscosity materials can also be easily emptied
10. The water and oil tank are both equipped with independent heating, temperature control and dispersing system. Pretreatment materials can be suck into the main tank by vacuum pump
11. The contact materials part is SUS316L, and others are stainless steel 304
12. The main tank has independent hating and thermal insulation temperature control system. The thermal insulation layer is arranged outside the heating system to avoid high temperature scalding.
13. The stirring paddles scrap off the material which attaching on the inner surface of the tank, then to increase the effect of homogeneous mixing.

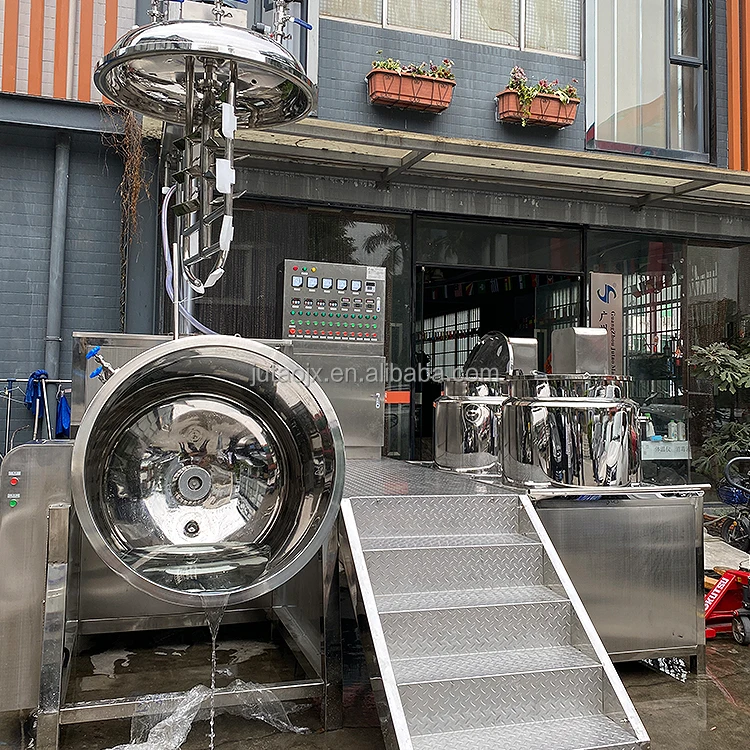

Vacuum emulsifying tank
Three layers double jackets design,adopts electric heating method or steam heating to heat products by circulating hot water in the jacket.
Three layers double jackets design,adopts electric heating method or steam heating to heat products by circulating hot water in the jacket.

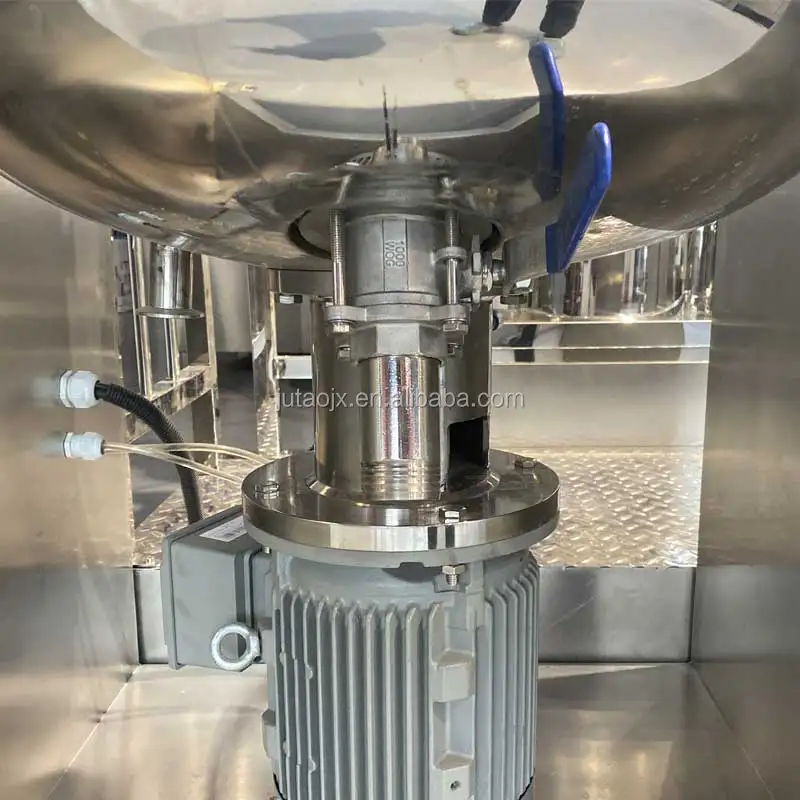

Homogenizer motor
This whole machine use ABB brand motor. The products can discharged from the bottom outlet,or connect the pump to pump the products out fast.
This whole machine use ABB brand motor. The products can discharged from the bottom outlet,or connect the pump to pump the products out fast.

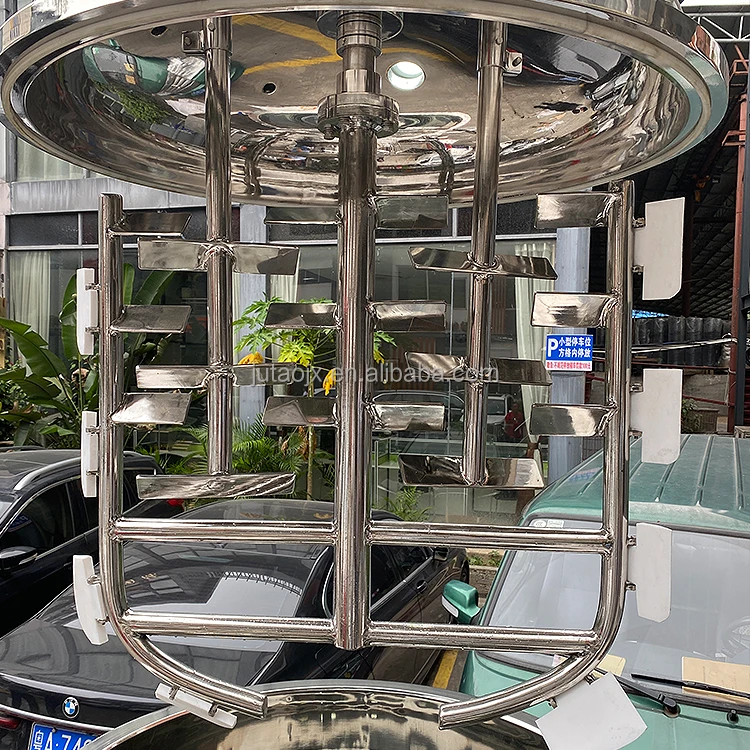

Blender
Type: frame oar scrape blender, single way or double way rotating
Material: SUS316L
Speed: 0-65rpm
Type: frame oar scrape blender, single way or double way rotating
Material: SUS316L
Speed: 0-65rpm
Scraper
The mixer with scraper to scrap the stick materials which stick on the pot body

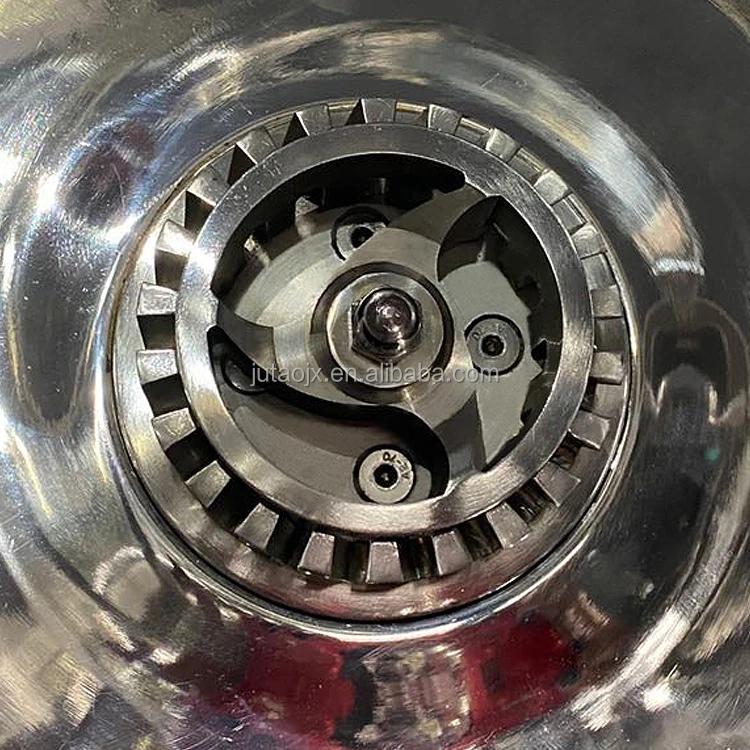

Homogenizer
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm

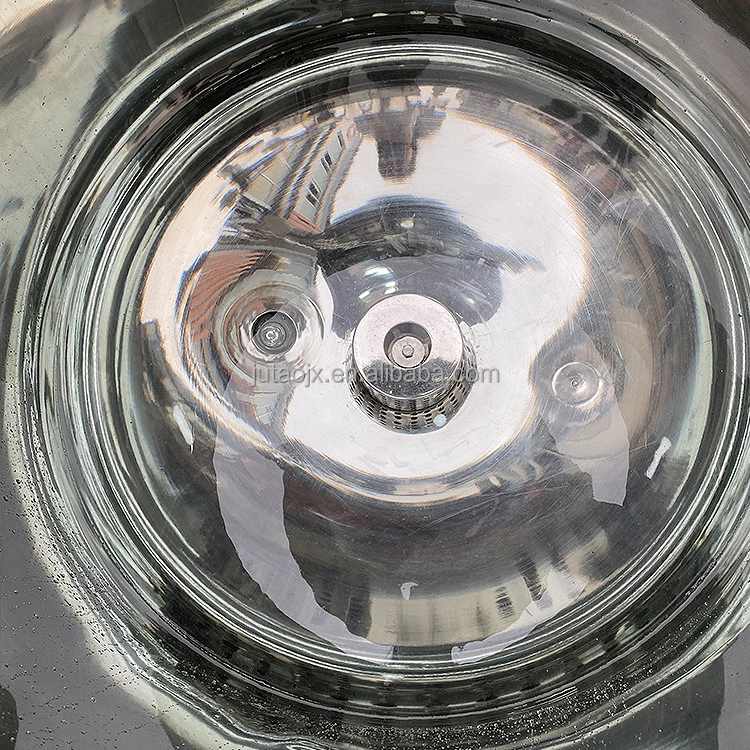

Discharge
Bottom discharge to discharge the finished products.

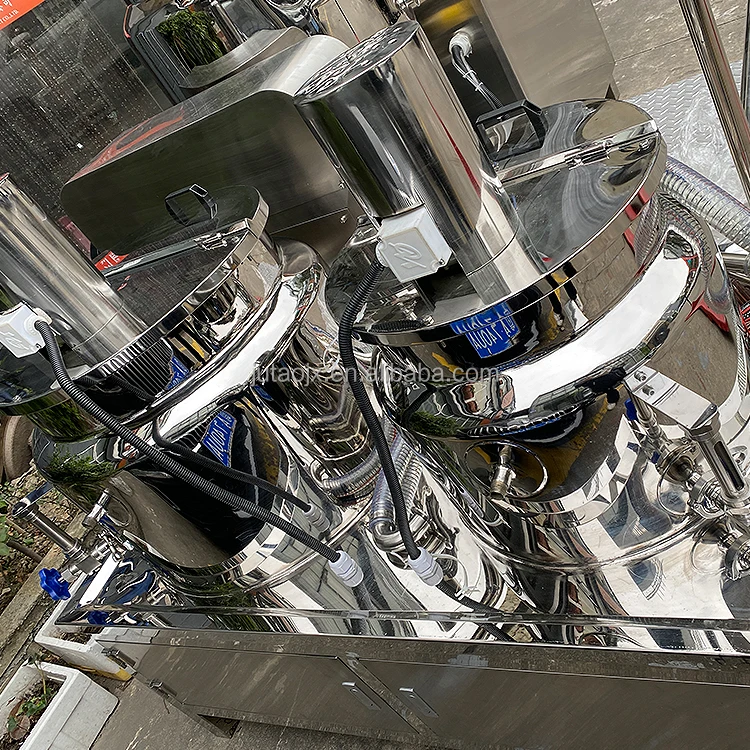

Water and oil pot
Oil and water pot
Name: Hygiene grade mirror polish & SUS304&316L,
Half open lid, easy for operation;
High shearing disperser plate;
Disperser on bottom
Water pot and oil pot drainer pipe connect to one outlet.
Name: Hygiene grade mirror polish & SUS304&316L,
Half open lid, easy for operation;
High shearing disperser plate;
Disperser on bottom
Water pot and oil pot drainer pipe connect to one outlet.
Sightglass
Cover with a lighting observation hole, keep abreast of the product of the emulsification of the pot.
Homogenizer
Max rotation speed could reach 4200r/min,highest shearing fineness could reach 0.2-5μm. The materials will be well homogenized regardless of the quantity of materials put into the tank. The total quality fo the materials must cover up the homogenizer. The homogenizer can be installed through the bottome of the machine.
Main pot configuration
There are hopper, sight glass, air filter, suction hopper, vacuum valve, vacuum meter....
Model | Volume(L) | Main pot power (Kw) | Hydraulic system (kW) | Vacuum pump power(Kw) | ||||||
Main pot | Water pot | Oil pot | Wall scraping | Homogenizer | ||||||
JT-5L | 5L | - | - | 0.18 | 1.1 | 0.75 | 0.55 | |||
JT-10L | 10L | 8 | 5 | 0.18 | 1.1 | 0.75 | 0.75 | |||
JT-20L | 20L | 18 | 10 | 0.37 | 1.5 | 0.75 | 0.75 | |||
JT-50L | 50L | 40 | 25 | 0.75 | 4-7.5 | 1.5 | 1.5 | |||
JT-100L | 100L | 80 | 50 | 1.5 | 4-7.5 | 1.5 | 1.5 | |||
JT-200L | 200L | 170 | 100 | 2.2 | 7.5-11 | 1.5 | 2.2 | |||
JT-300L | 300L | 250 | 150 | 2.2 | 7.5-11 | 1.5 | 2.2 | |||
JT-500L | 500L | 420 | 250 | 4 | 11 | 1.5 | 2.2 | |||
JT-1000L | 1000L | 820 | 500 | 5.5 | 15 | 2.2 | 3 | |||
Product Presentation
1. For Cosmetic industries: face cream, hand cream, sunscreen cream, eyelash to cream, hair gel, lotion, bath shampoo,hair gel, nail polish, hair conditioner etc.
2. For Pharmaceutical industries: ointments, syrup, nutrition, bio-products, paste of pharmaceutical etc.
3. For Daily use industries: toothpaste, detergents, shoes polish, soap, fragrance etc
4. For Food industries: sauces, jam, chocolate, butter, vegetable proteins, animal proteins etc.
