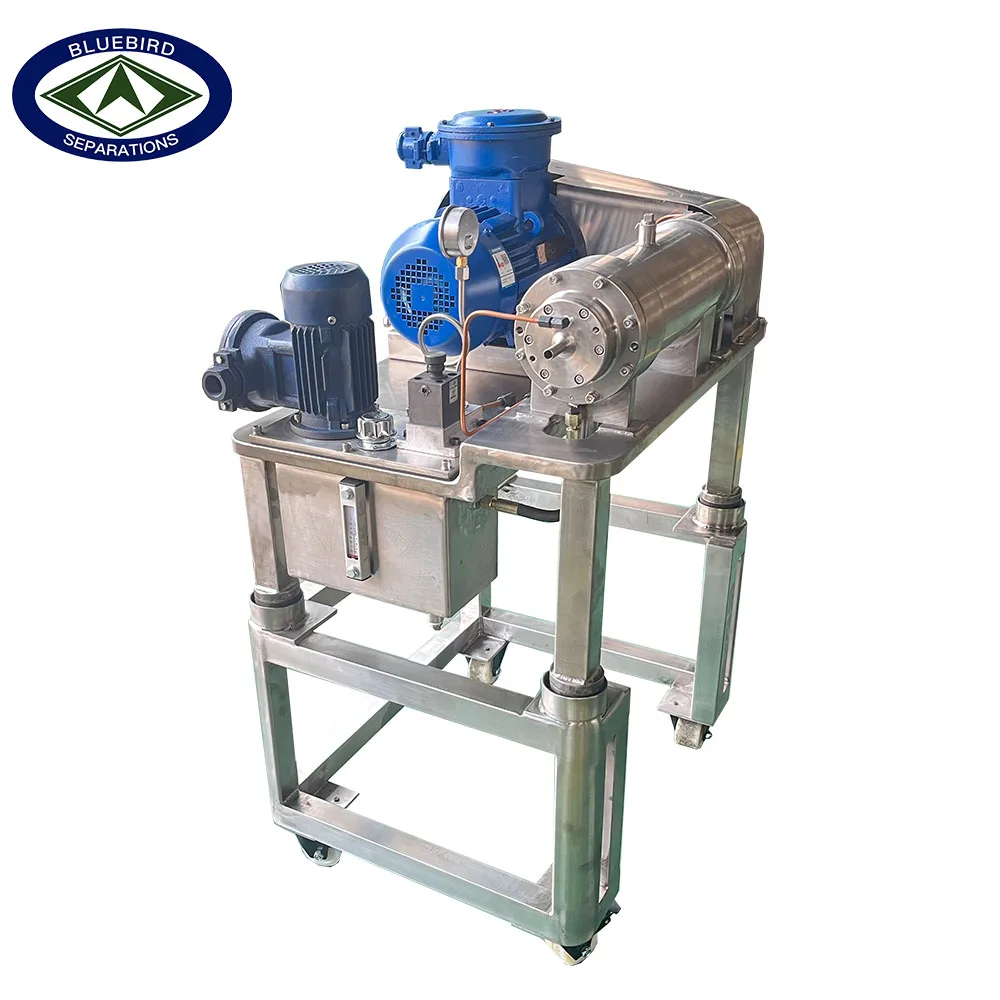

Популярный товар, миниатюрная лабораторная Центрифуга с декантером для быстрой сборки 30 минут
- Category: Chemical Machinery & Equipment >>>
- Supplier: Jiangsu,Blovebird,Centrifuge,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Operation steps
The working principle of horizontal screw centrifuge is very simple. It has been known by the public for a century. The drum and screw are supported by separate suspension.The material enters through the inlet pipe and accelerates into the core drum body through the drum.
Separation process：
The core consists of a cylindrical and conical rotating drum, and the centrifuge forces the solid material to deposit on the drum wall.
Solid discharge：
The helix has the same shape and Angle as the drum, rotating at a slightly faster speed than the drum, so that the separated solids are pushed towards the end of the narrow cone and expelled from the drum.The degree of dehydration of solids depends on many factors, in addition to the reason of the material itself, but also depends on the length of the separation of solids in the centrifuge, as well as the Angle of the tight rotation of solids, in addition to the screw and drum speed difference is also an important factor.
Drainage：
A chuck is installed at the bottom of the drum to adjust the depth of liquid level. The clarified liquid flows to the bottom along the spiral cylinder, and then is collected in the drain bucket to discharge the machine. The depth of the clarified liquid in the drum can be adjusted by changing different baffles.
Separation process：
The core consists of a cylindrical and conical rotating drum, and the centrifuge forces the solid material to deposit on the drum wall.
Solid discharge：
The helix has the same shape and Angle as the drum, rotating at a slightly faster speed than the drum, so that the separated solids are pushed towards the end of the narrow cone and expelled from the drum.The degree of dehydration of solids depends on many factors, in addition to the reason of the material itself, but also depends on the length of the separation of solids in the centrifuge, as well as the Angle of the tight rotation of solids, in addition to the screw and drum speed difference is also an important factor.
Drainage：
A chuck is installed at the bottom of the drum to adjust the depth of liquid level. The clarified liquid flows to the bottom along the spiral cylinder, and then is collected in the drain bucket to discharge the machine. The depth of the clarified liquid in the drum can be adjusted by changing different baffles.
Structure：
All the HY series of centrifuge on the basis of the compact design and simple operation to ensure the machine function and fully meet user requirements, the number of components including assembling the required equipment is kept to a minimum, so as to ensure the product assembly so need time is greatly reduced, further remove the assembly also need only 30 minutes, due to HY series
centrifuge operation is simple, for the use of a centrifuge also greatly reduce the training time, just daily centrifuge the maintenance.
All the HY series of centrifuge on the basis of the compact design and simple operation to ensure the machine function and fully meet user requirements, the number of components including assembling the required equipment is kept to a minimum, so as to ensure the product assembly so need time is greatly reduced, further remove the assembly also need only 30 minutes, due to HY series
centrifuge operation is simple, for the use of a centrifuge also greatly reduce the training time, just daily centrifuge the maintenance.
Product Parameter
Model | HY80 | HY120 |
Drum diameter (mm) | 80 | 120 |
Half cone Angle | 5° | 6° |
Feed tube diameter (mm) | 12 | 18 |
Speed (rpm) | 10000 | 8000 |
Capacity (L/H) | 5-100 | 50-500 |
Length to diameter ratio | 3.75 | 3.85 |
Motor power (kw) | 4 | 7.5 |
Maximum separation factor | 4400 | 4400 |
Weight (kg) | 160 | 360 |
Overall dimensions (mm) | 950*650*550 | 1150*750*650 |

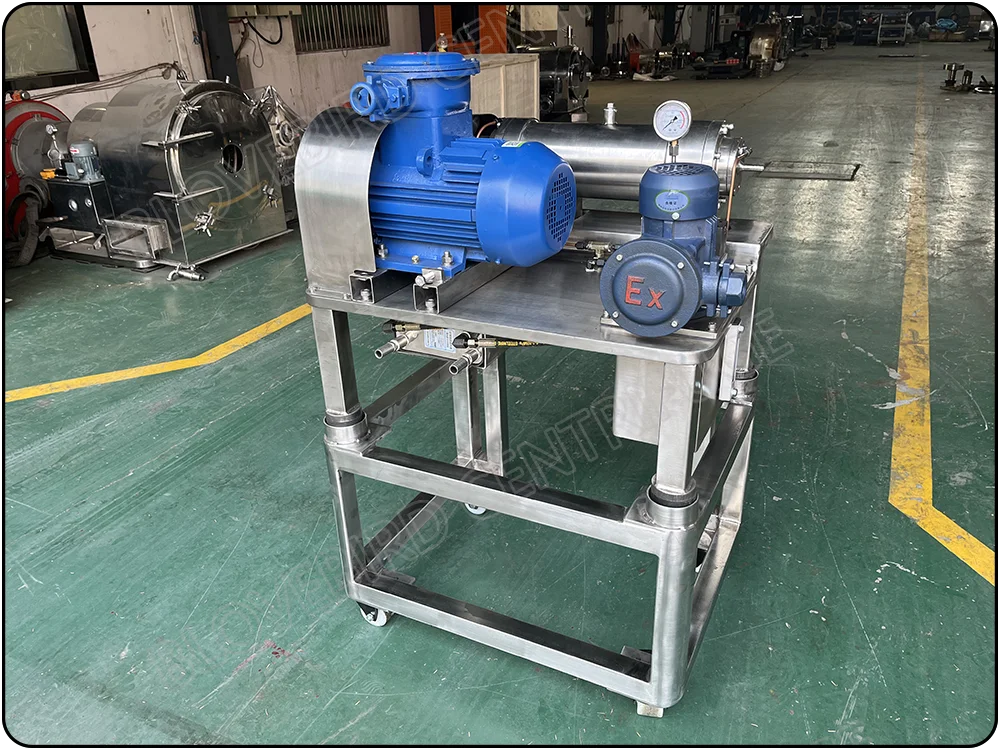

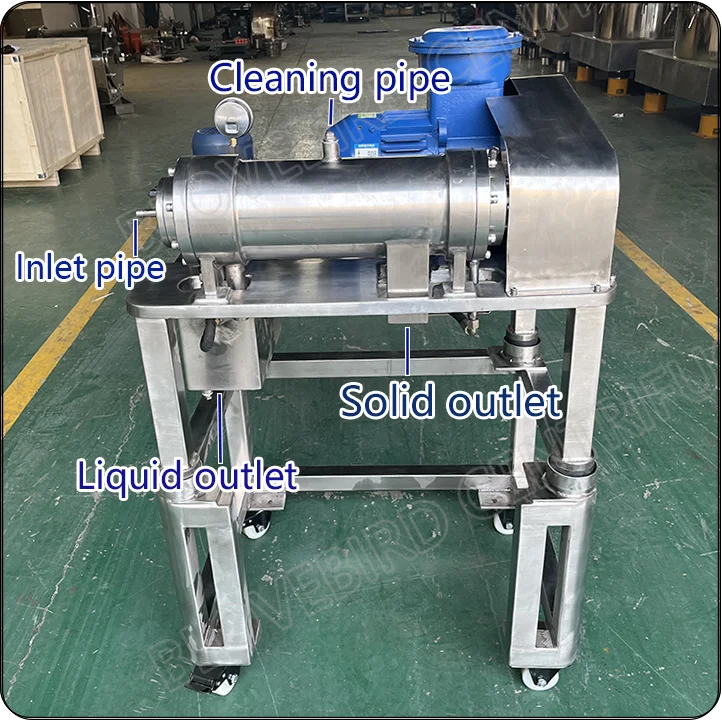

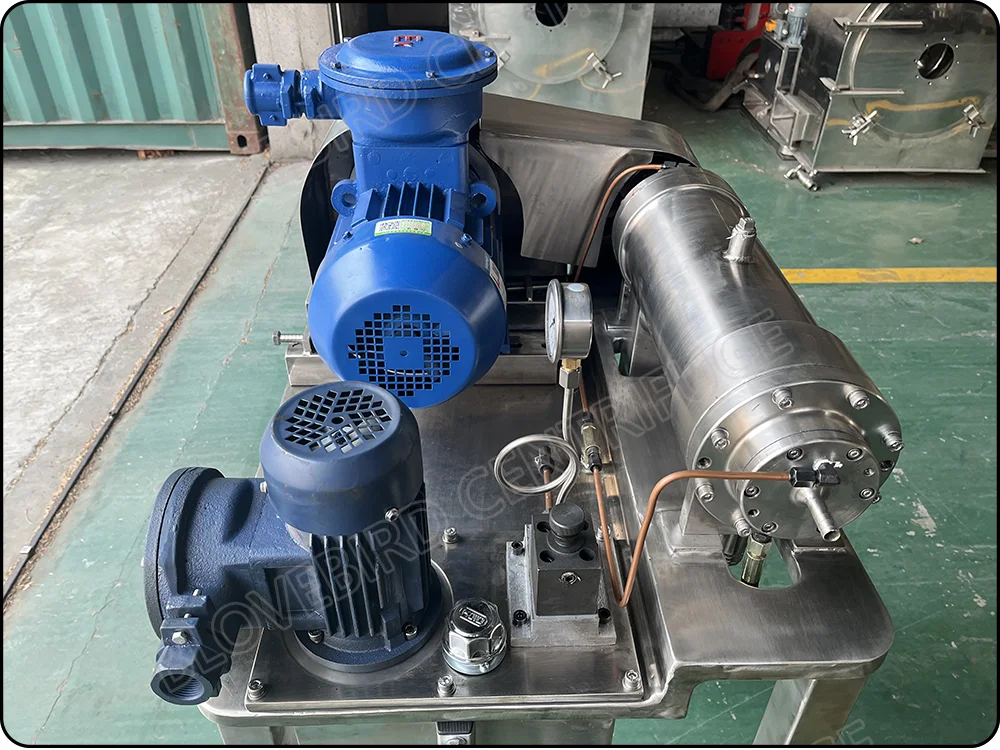

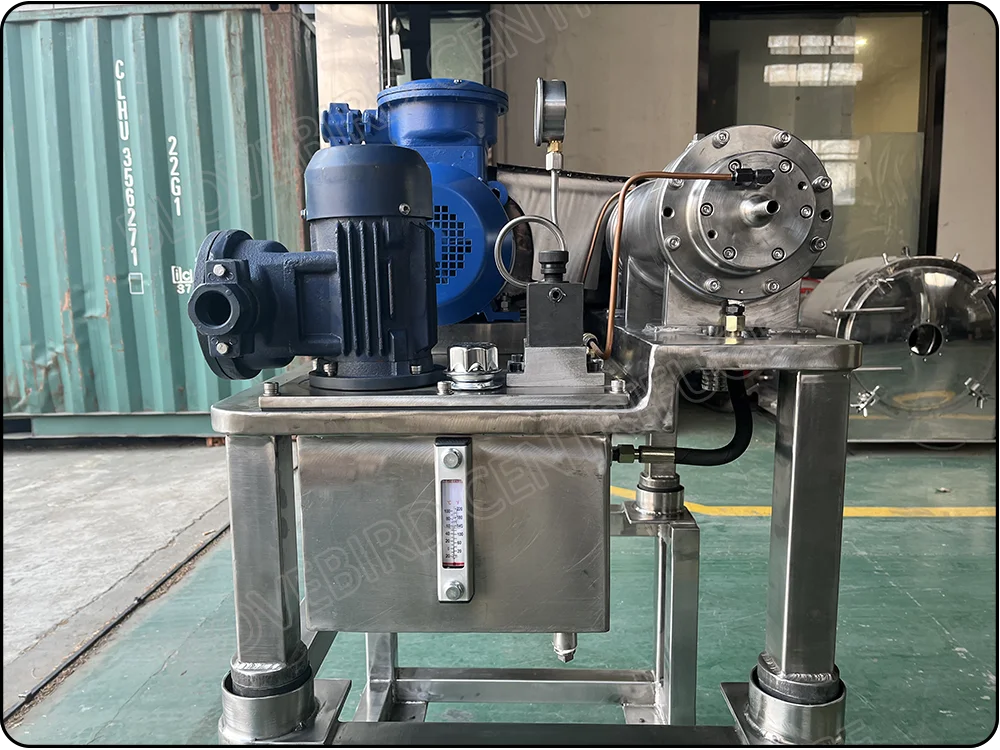

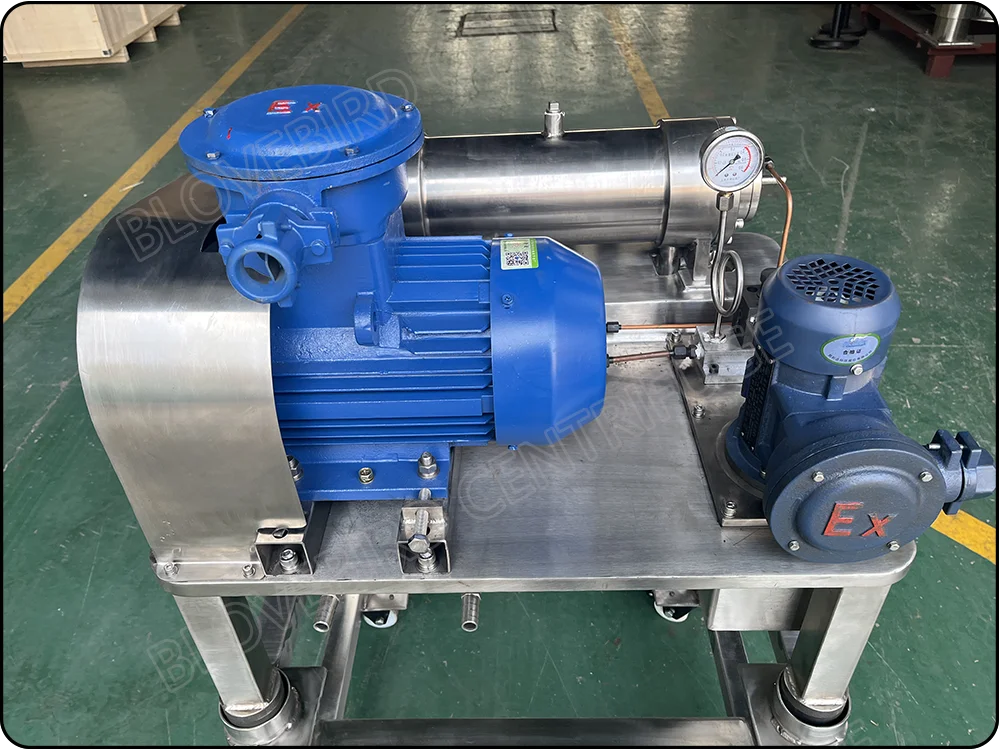

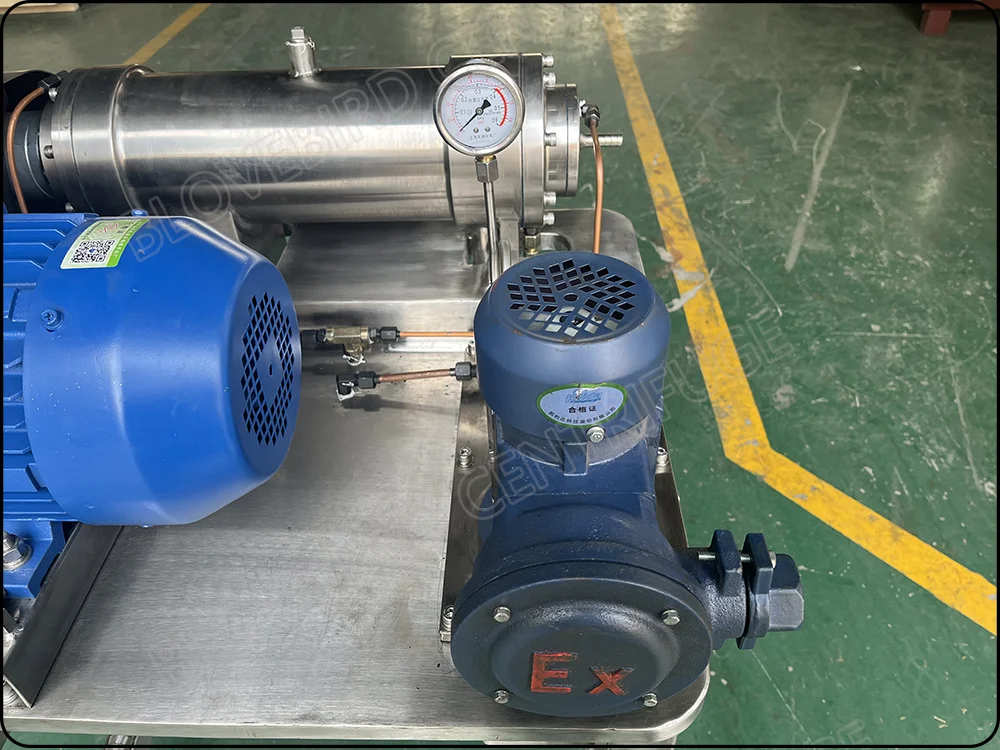

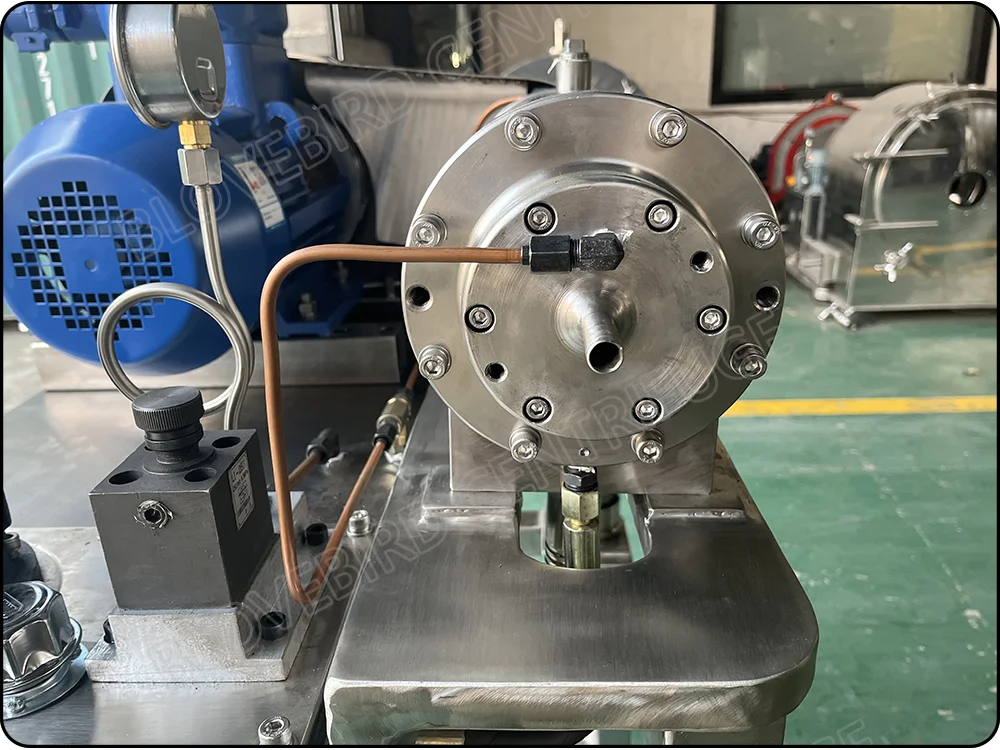

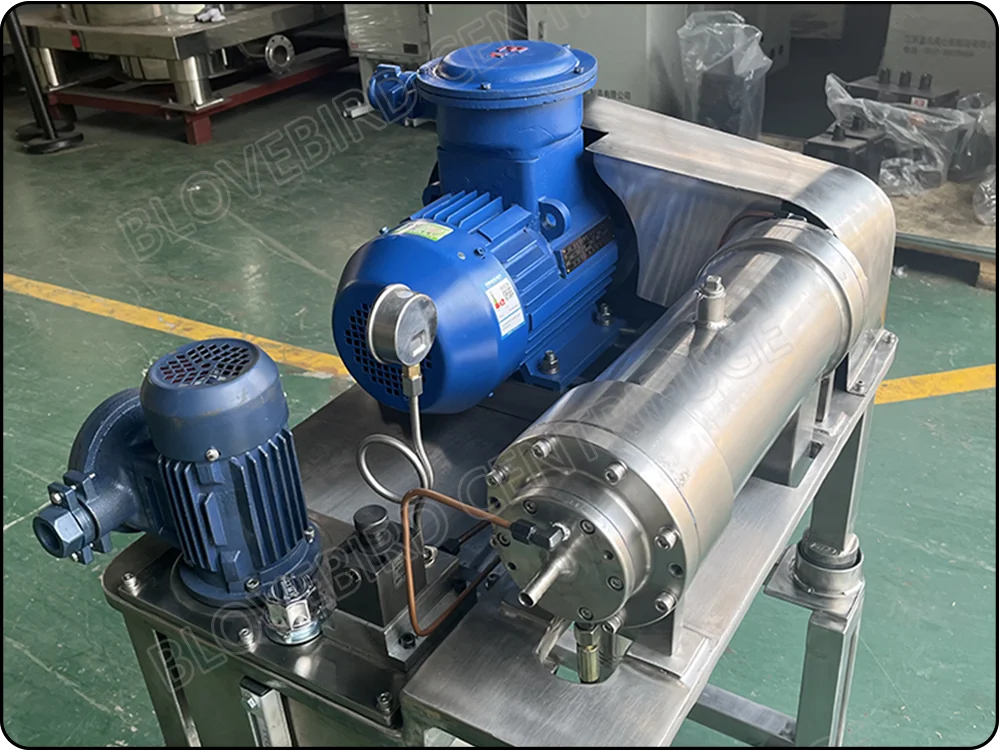

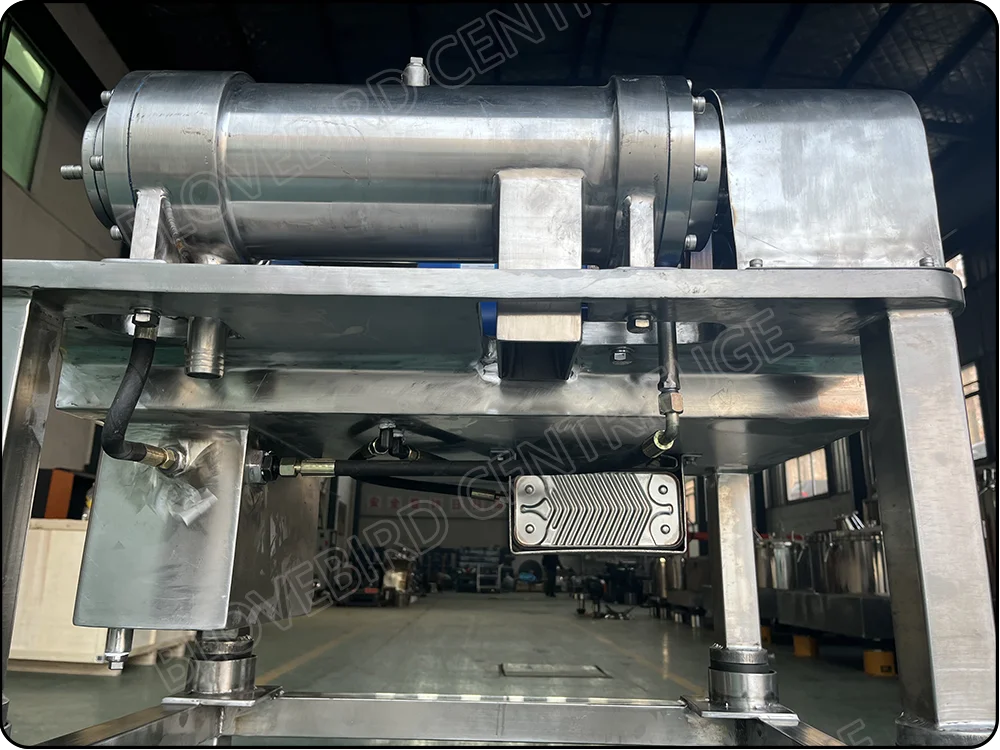

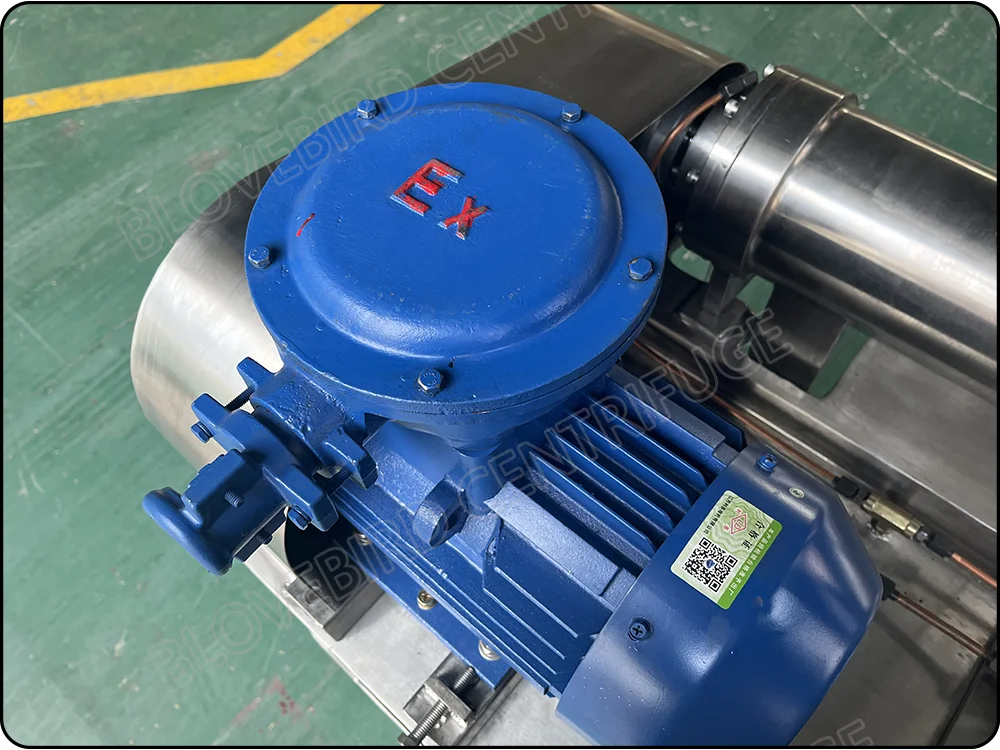

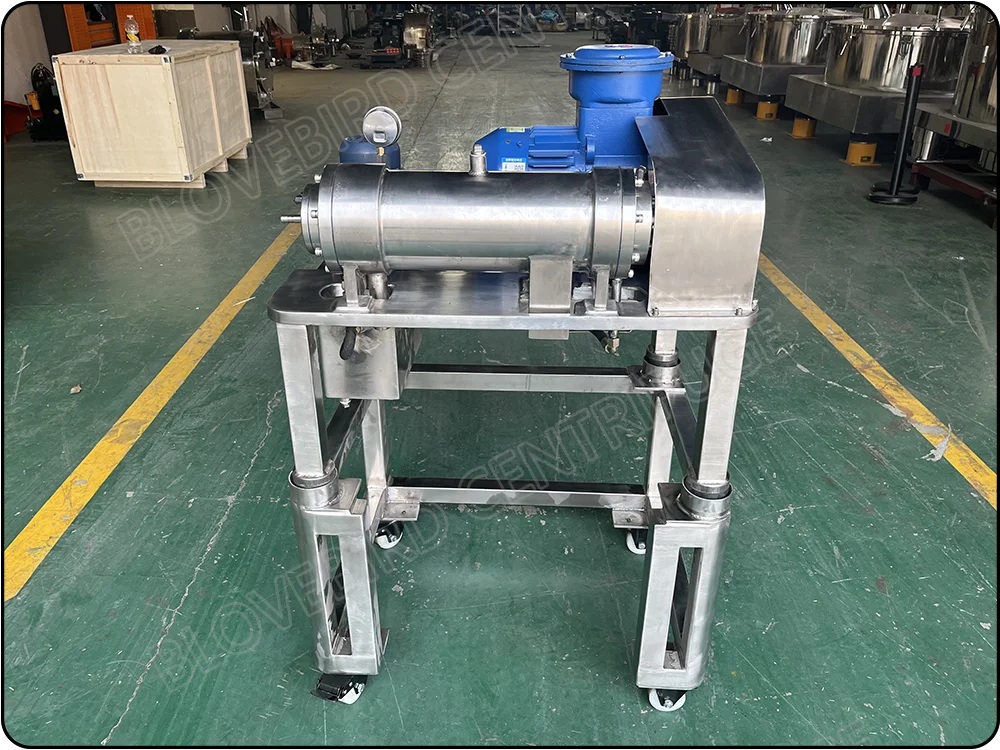

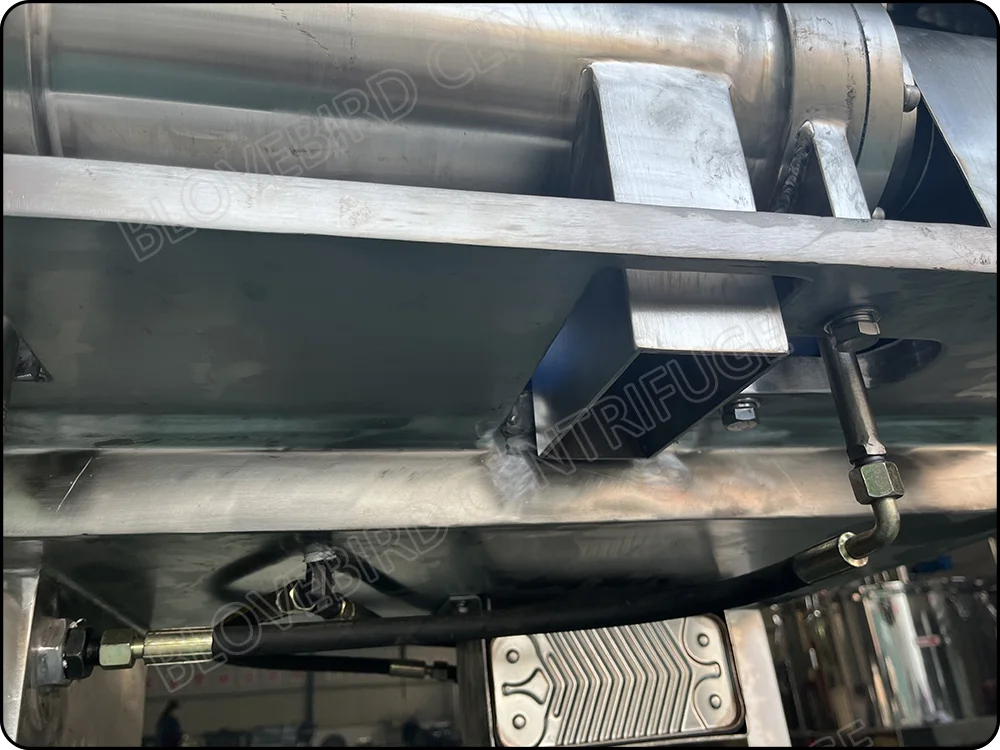

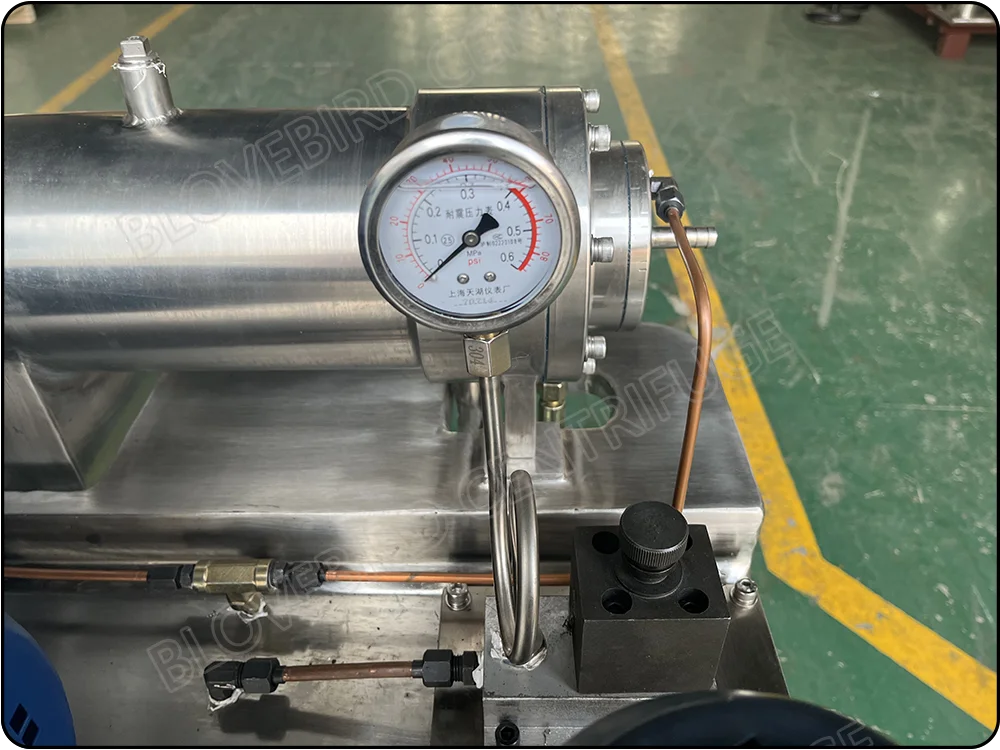

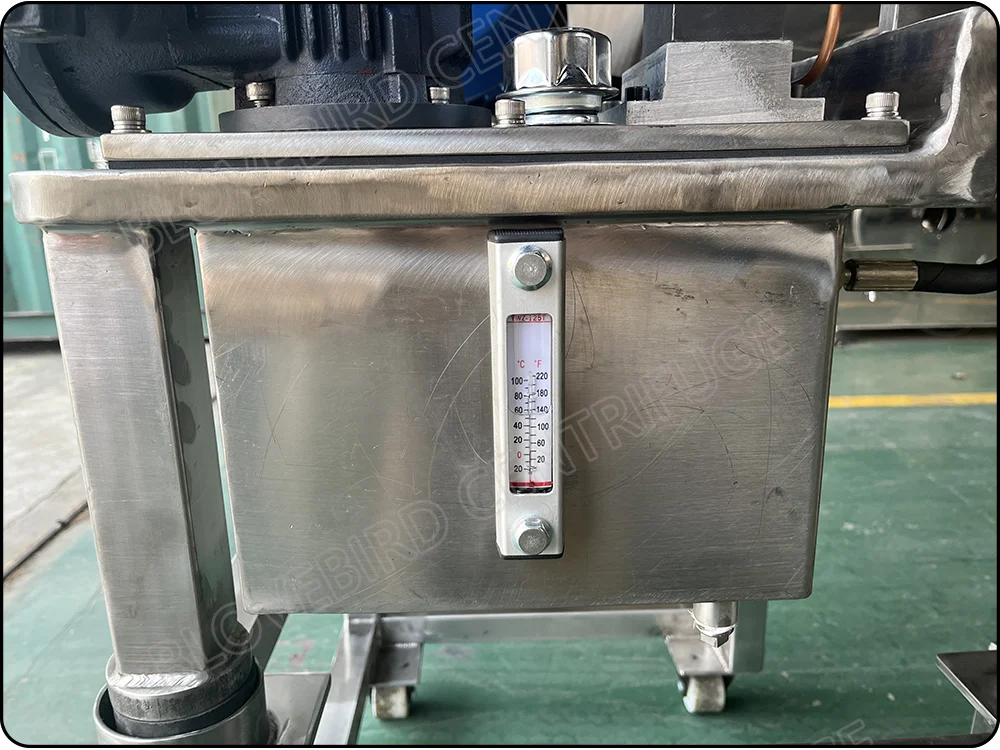

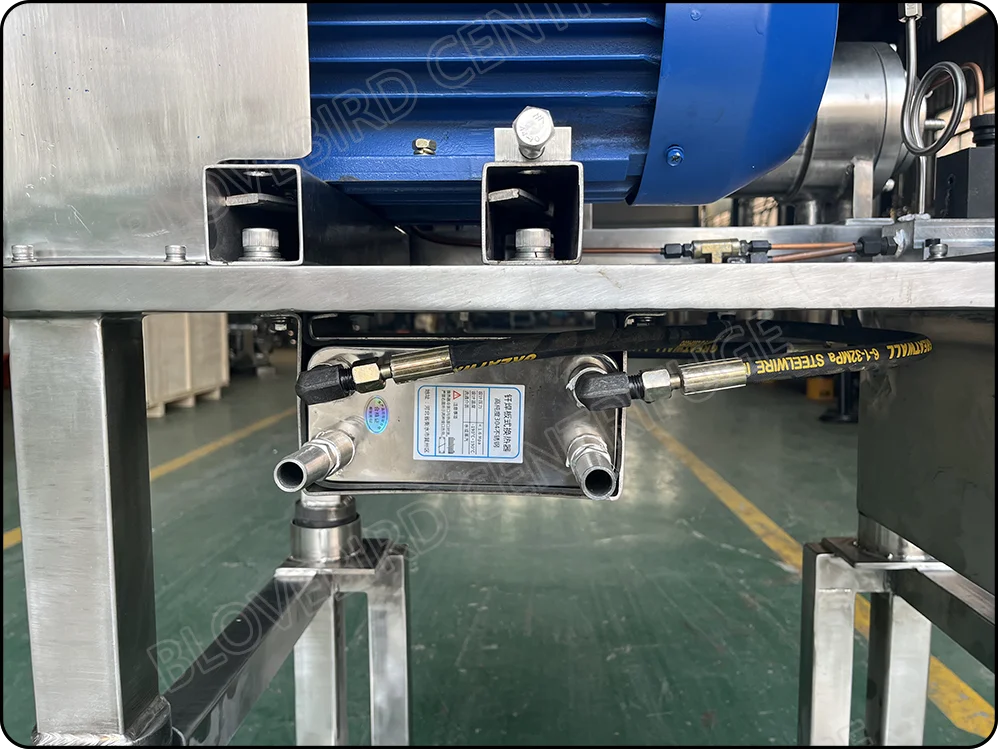

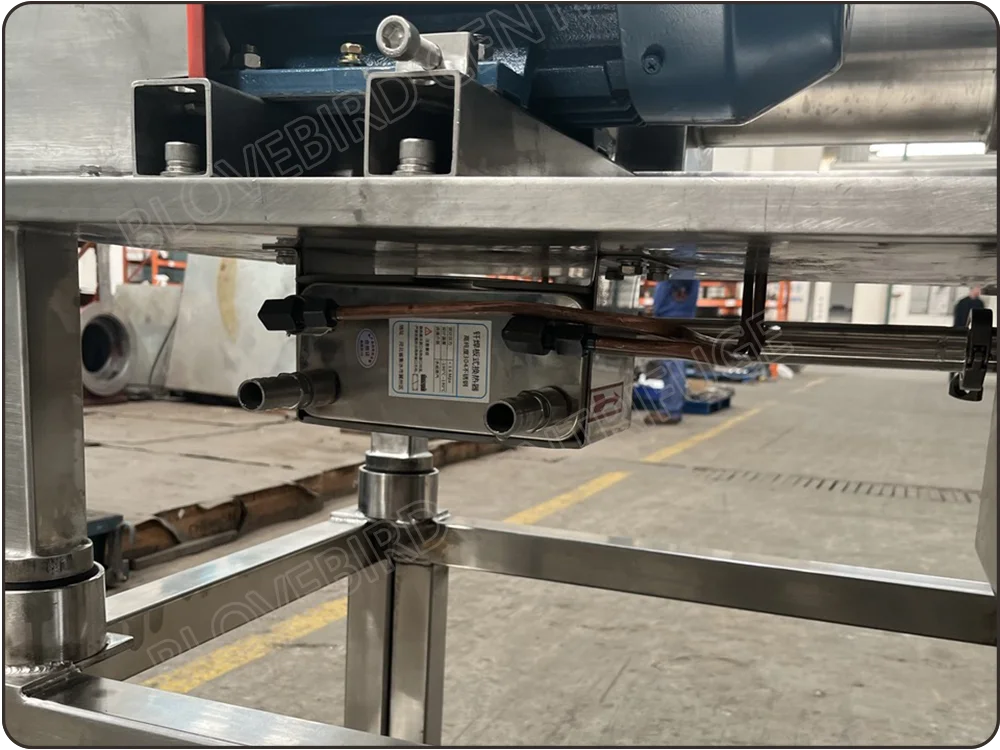

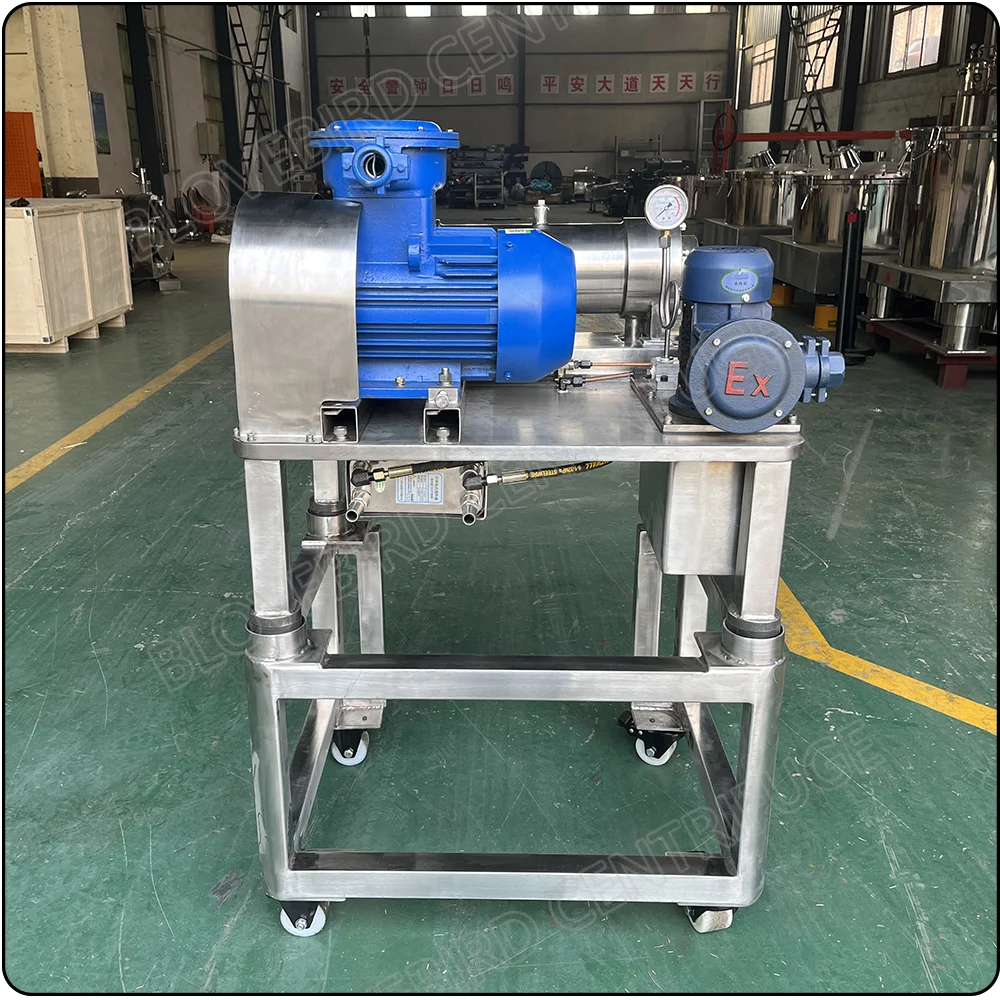

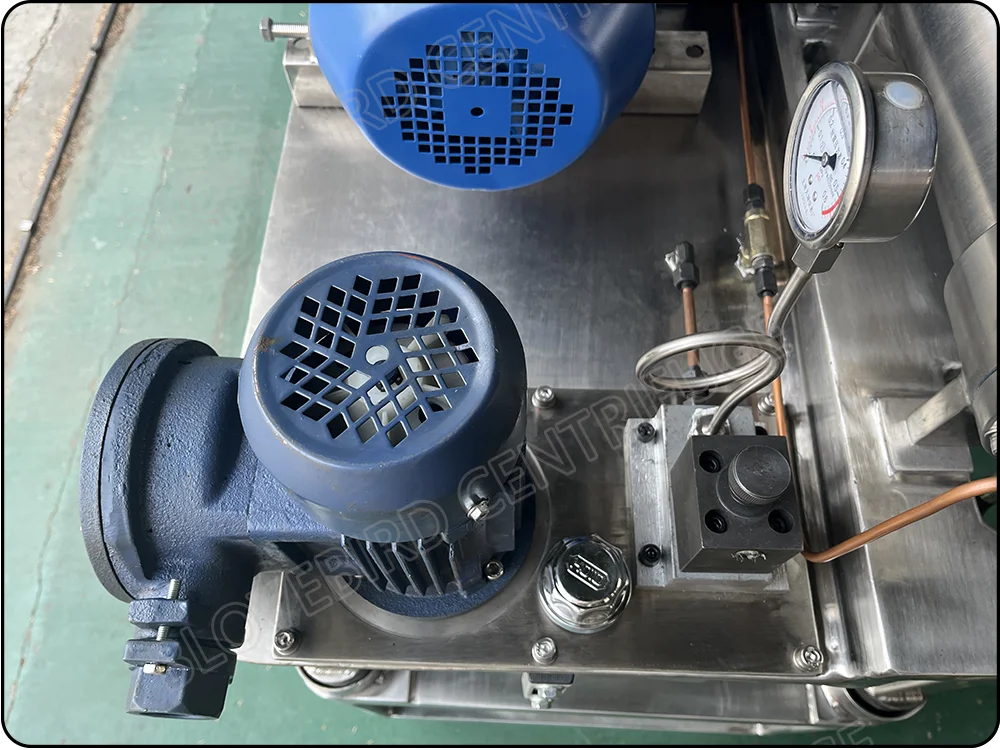

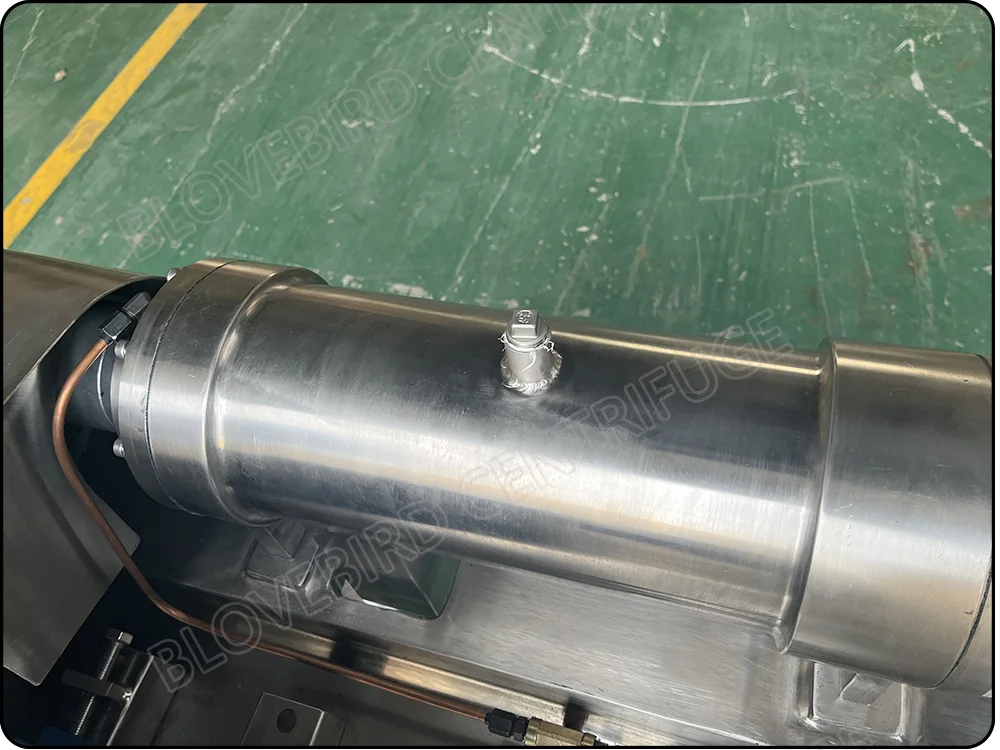

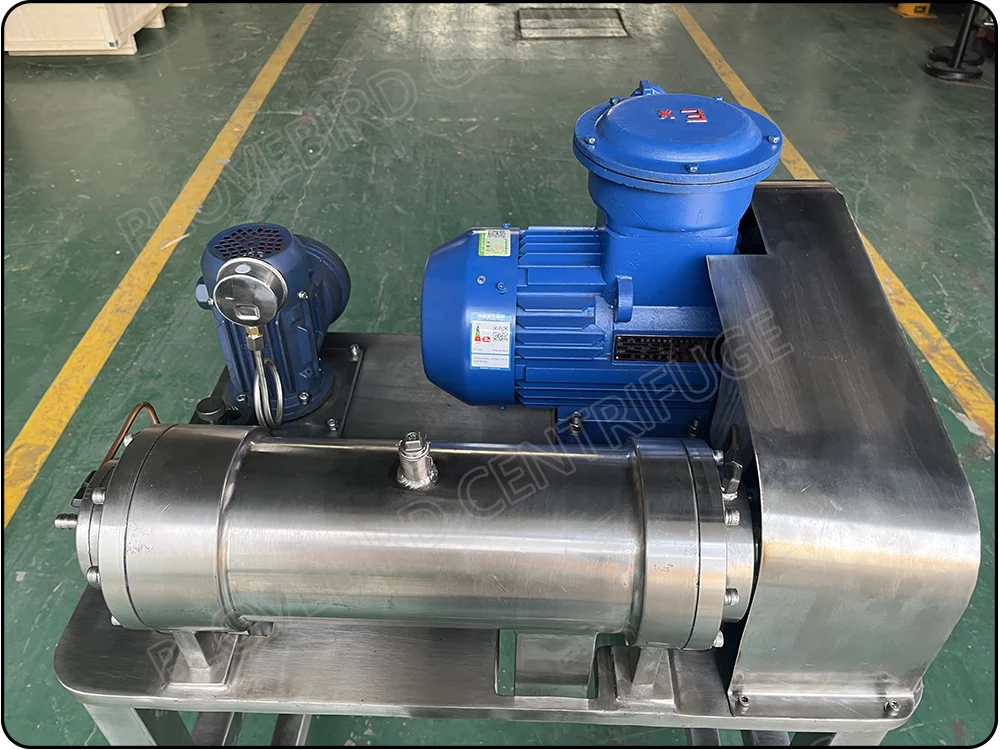

Detailed Pictures
Why Choose Us
Jiangsu Blovebird Centrifuge Co. Ltd
-Verified Supplier
- Holding 40 Patents
- CE & ISO certificated
- Innovative R&D Team
- 30 Years' Experience in this field
- Awarded as a High-tech Enterprise
- No. 1 Machinery Plant in Zhangjiagang
- Precise Production Line Meeting the GMP Requirements
- 8500 Square Meter Facilities in Strategic Location in Yangze River Delta
Blovebird Cetificates and Patents.
International certification, National Certificate of equipment verification, and more than 40 invention patents are done in Blovebird Separations.
Verification Certificates of equipments: ISO9001, CE, TUV
Verification Certificates of equipments: ISO9001, CE, TUV
----------------------------------------------------------------------------------------------------

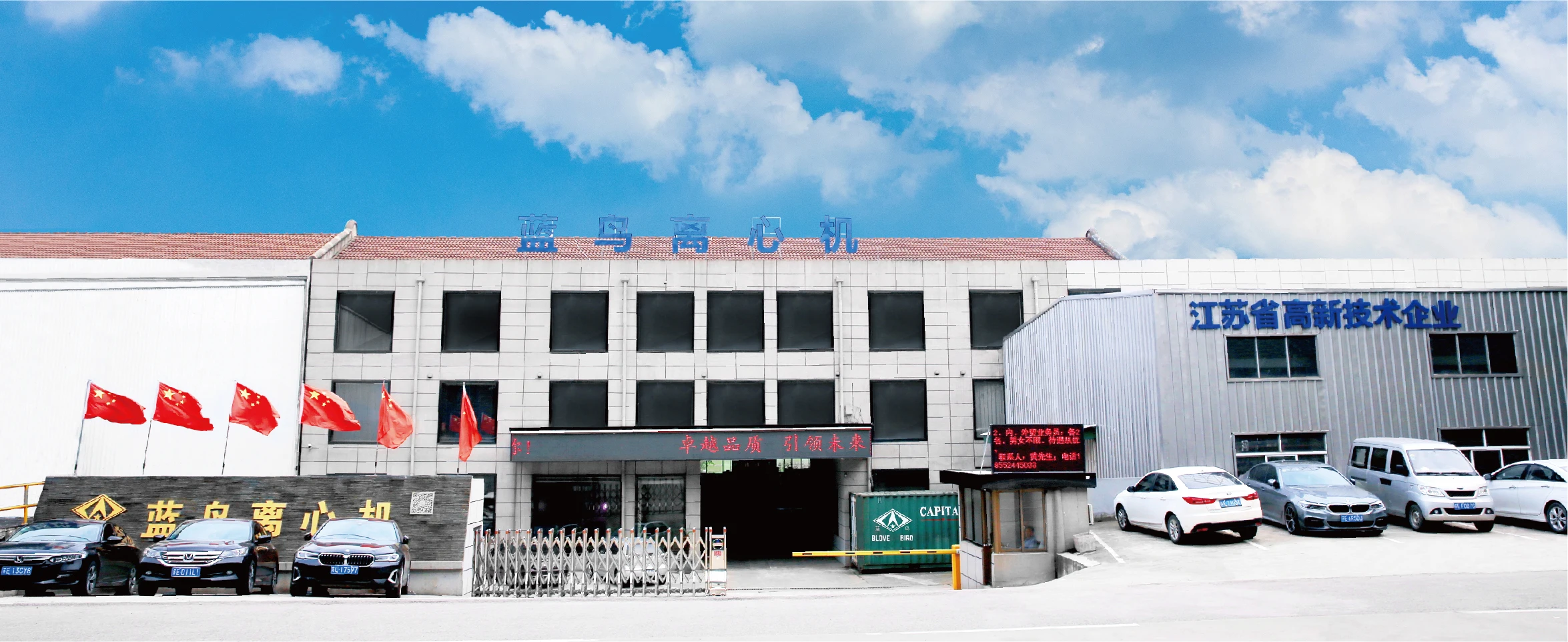

Factory Site
Product packaging
*We will do a 24-hour test for each machine before shipment!
