MH Overcurrent Relay ROA207n, ANSI 50/51 & 86, IDMTL & DTL with unique Mechanical Trip Button
- Category: Other Electrical Instruments >>>
- Supplier: MUN HEAN SINGAPORE PTE LTD
Share on (10000008549352):
Product Overview
Description
Products Description

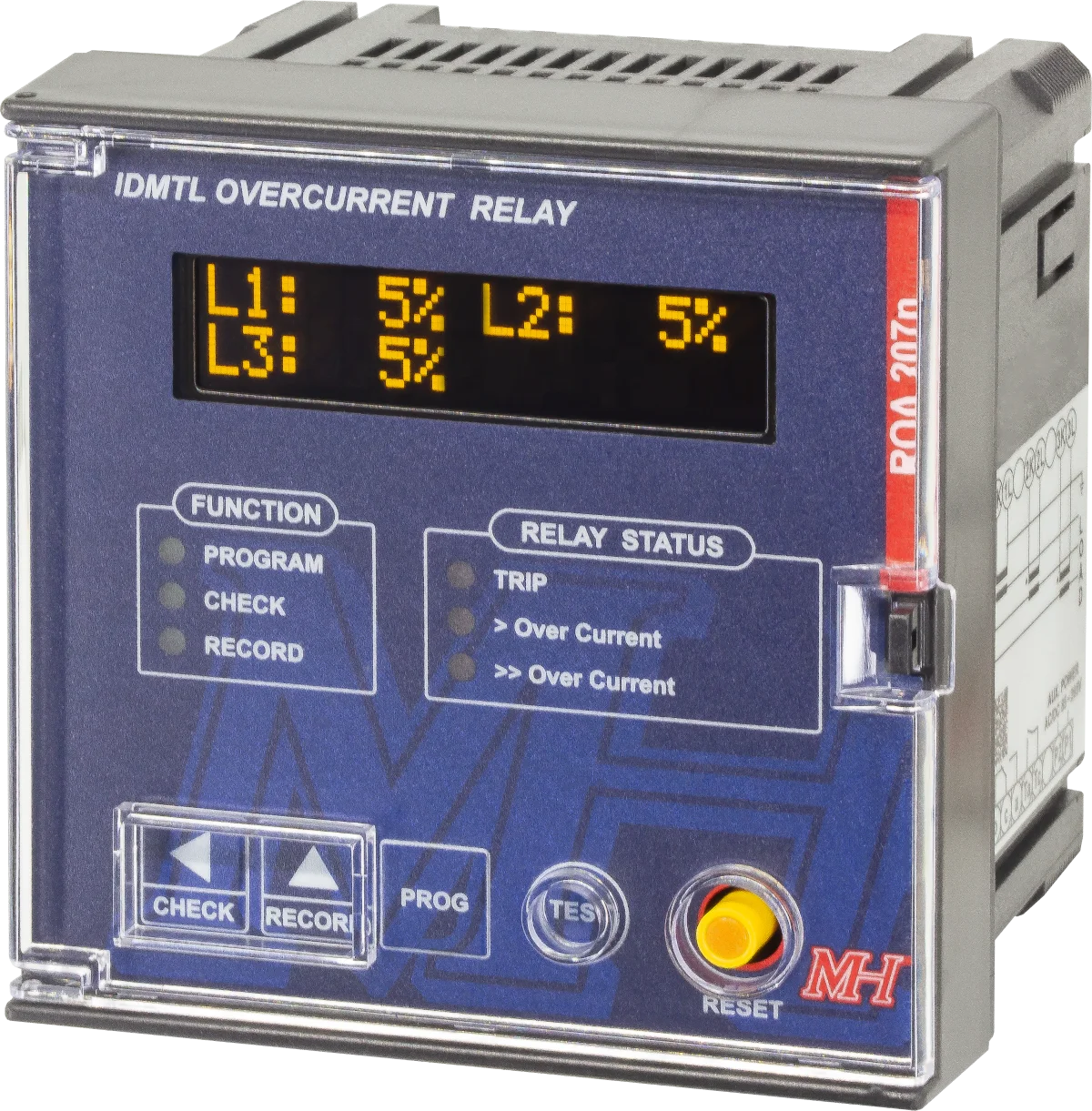

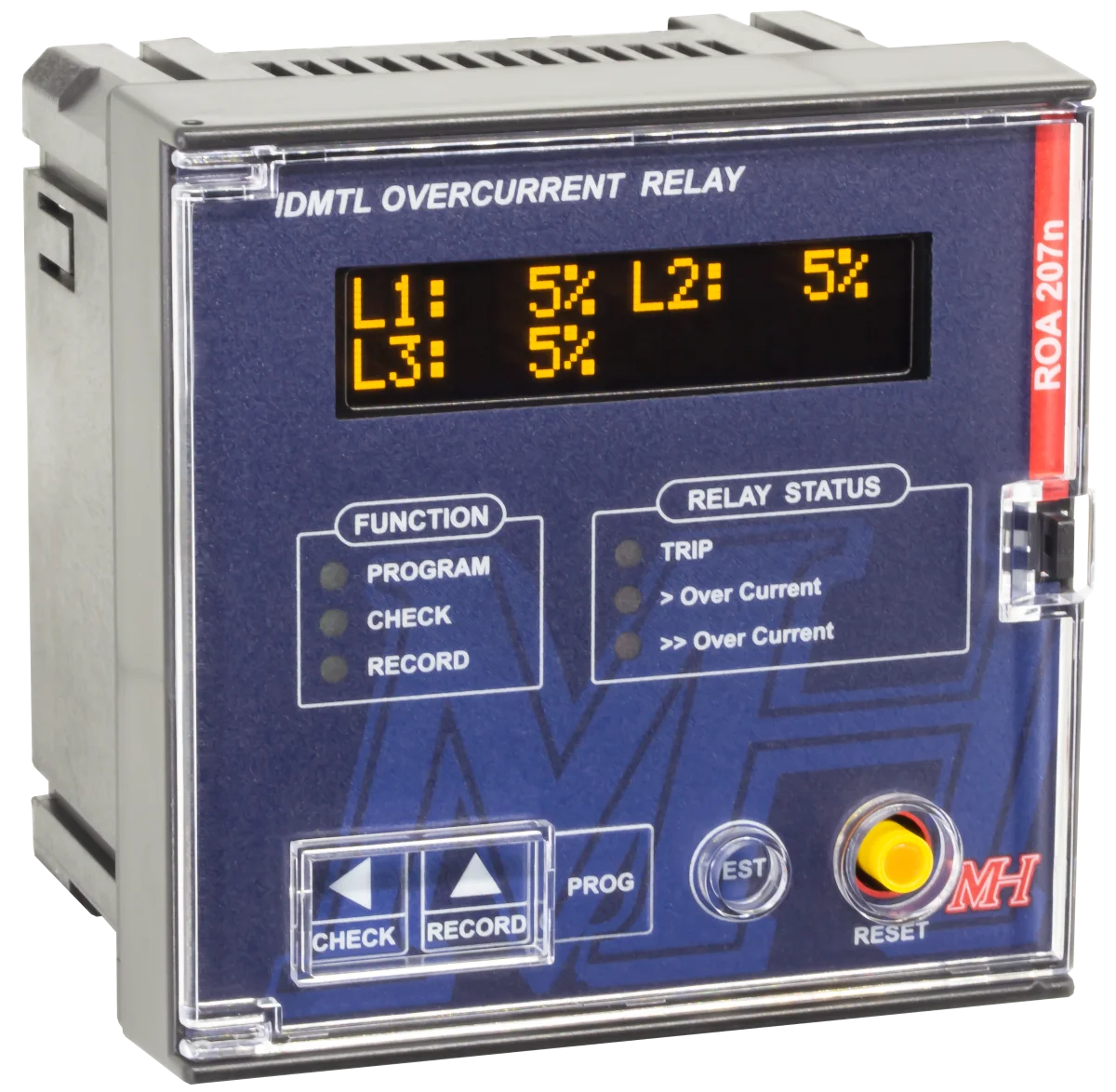

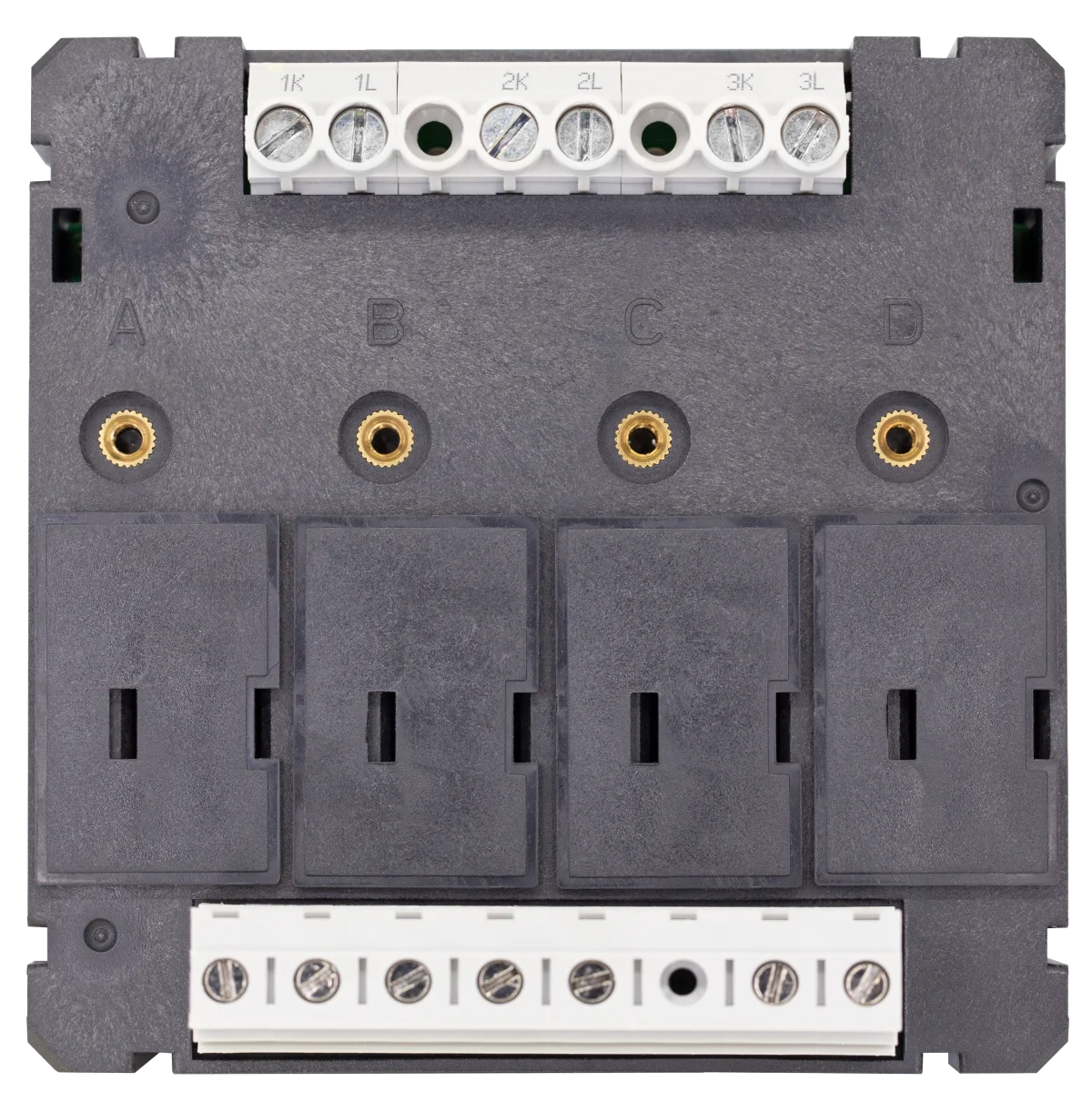

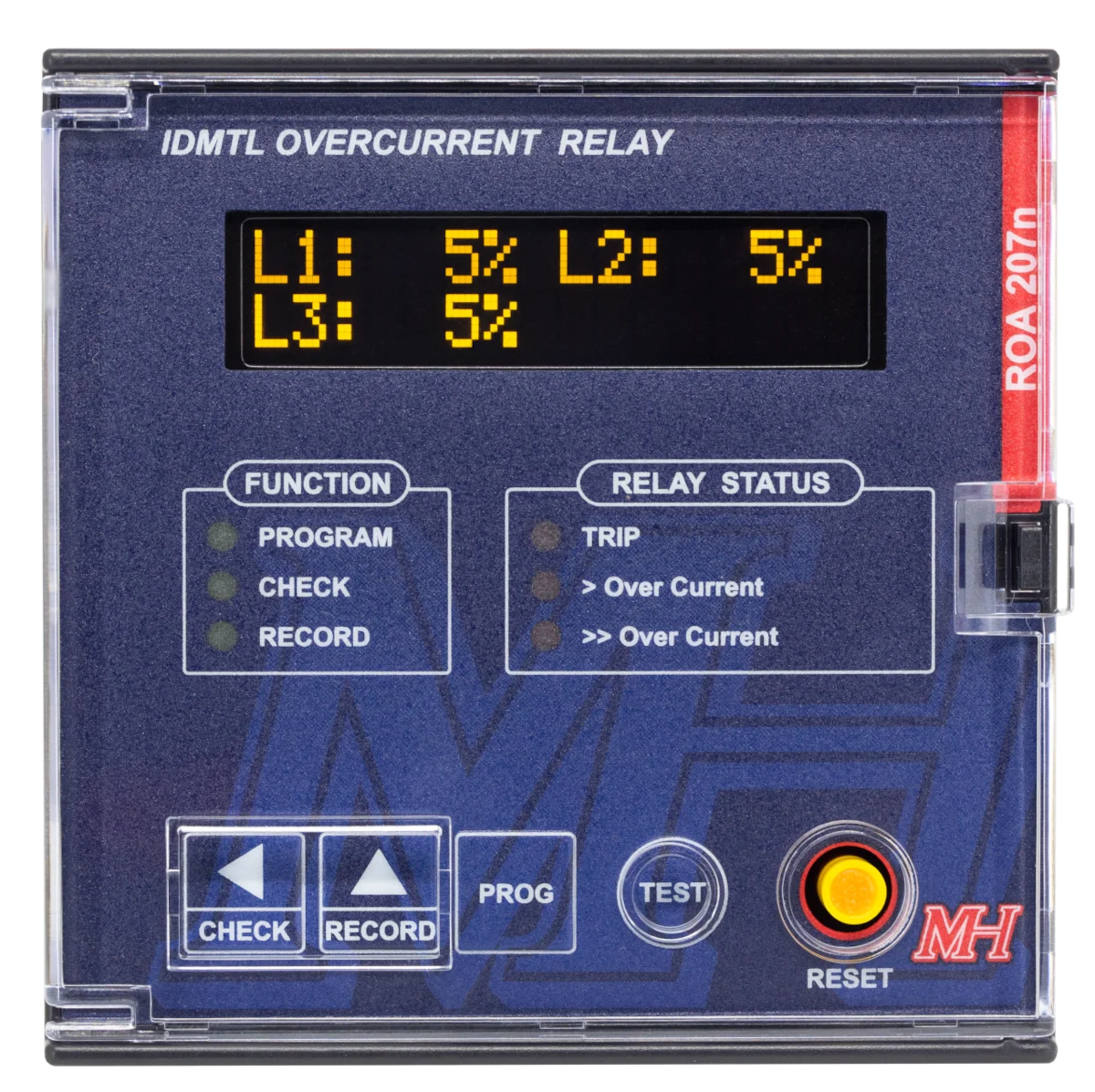

The MH ROA207n IDMTL Overcurrent Relay is a digital microprocessor-based protective relay designed to monitor and detect phase overcurrent and earth fault. It is equipped with a unique fault indicative system which called MTB. This MTB is a Mechanical Trip Button that latched with output contact after relay operated. The MTB is designed in accordance with ANSI 86 lockup relay.
Highlights of ROA207n
- Microprocessor-based with highest accuracy
- Comply to ANSI 50/51, 86
- Unique fault indicative system in accordance with ANSI 86 Lockup Relay
- Extra secure test trip system
- Event records with date and time stamping
- Operation logs with date and time stamping
- Self dianostic and auto restore
- OLED display
- Simple, compact and user friendly
- Fully type tested by accredited laboratory
Applications
Incoming feeder protection
Outgoing feeder protection
Busbar protection
Product Parameters
Characteristic | |||
Protection functions | ANSI 50/51, 86 | ||
Power Supply | AC/DC 85-265V (other voltages available on request) | ||
Operating frequency | 50 / 60 Hz | ||
Power consumption | ≤ 6VA | ||
Rated input current | 5A (1A available upon request) | ||
Overcurrent pickup setting | 20-200% in step of 1% | ||
Time multiplier setting | 0.03-2.00 in step of 0.01 (IEC, 1.3/10) 0.3-20.0 in step of 0.1 (ANSI, IAC) | ||
Definite time delay setting | 0.03-2.00 sec in step of 0.01 sec | ||
Instantaneous mode (high-set) | 2.0-10.0 times of setting current in step of 0.1 | ||
Operating temperature range | -10 to 55°C | ||
Relative humidity | <93%, non-condensing | ||
Degree of protection | IP31 (front), IP20 (back) Optional IP65 front cover | ||
Overcurrent withstandability | 10 * I rated (for 1 sec) | ||
Output | Relay output | 1 x C/O (changeover), 1 x N/O (normally open) | |
Contact rating | 2A at 250VAC | ||
Optional interface | RS485 Modbus RTU, additional output contact module | ||
LED status indication | Normal operation, fault current detected | ||
Safety feature | Mechanical Trip Button (MTB) complying with ANSI 86 | ||
Housing material | ABS resin complying with UL94V0 | ||
Net weight | Approximately 390g | ||
Dimensions | 96mm (width) x 96mm (height) x 86mm (depth) | ||
Panel cut-out | 92mm (width) x 92mm (height) | ||
Standard compliance | IEC60255, CE Marking | ||

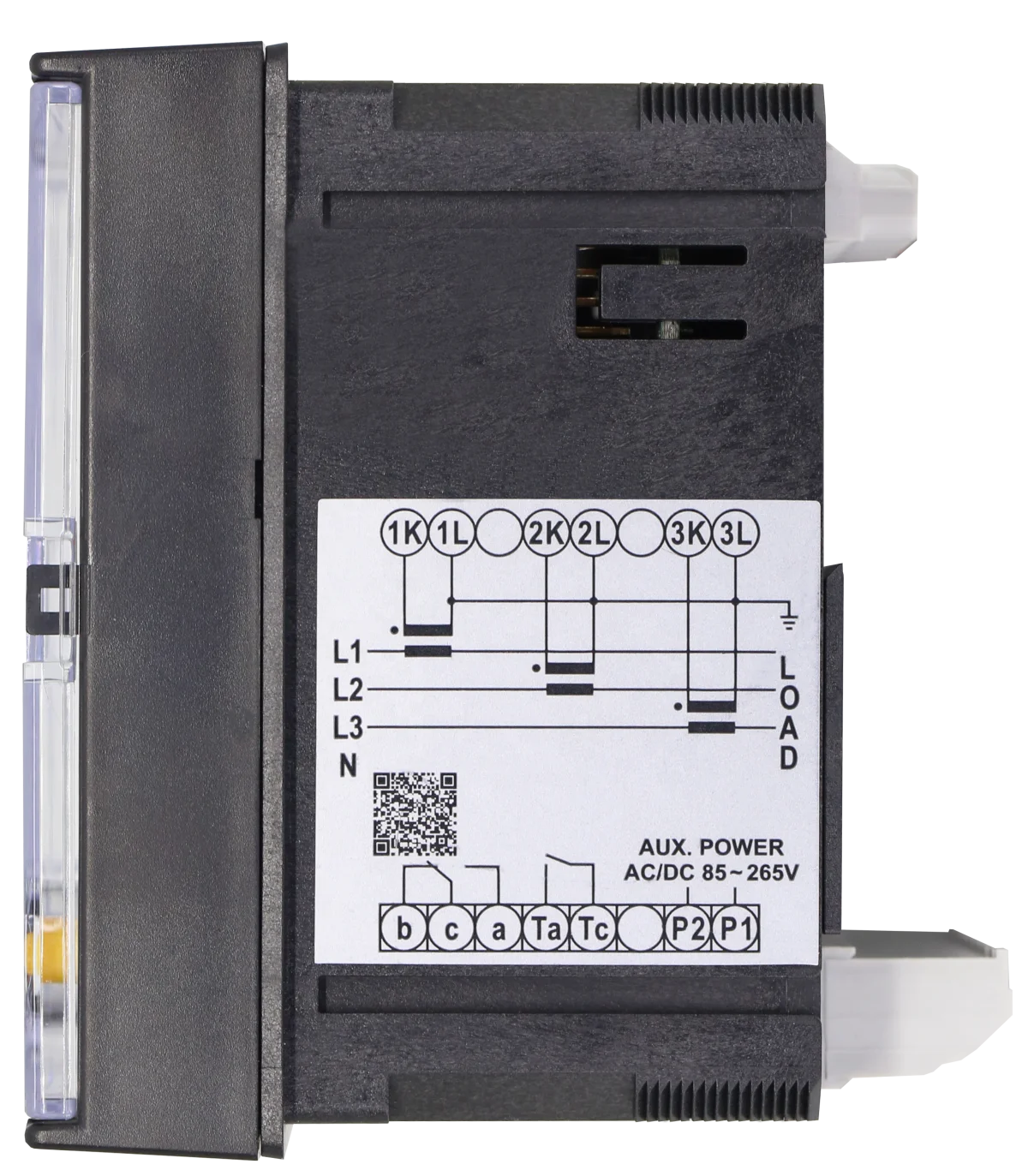

Connection Diagram
3P4W
3P3W
