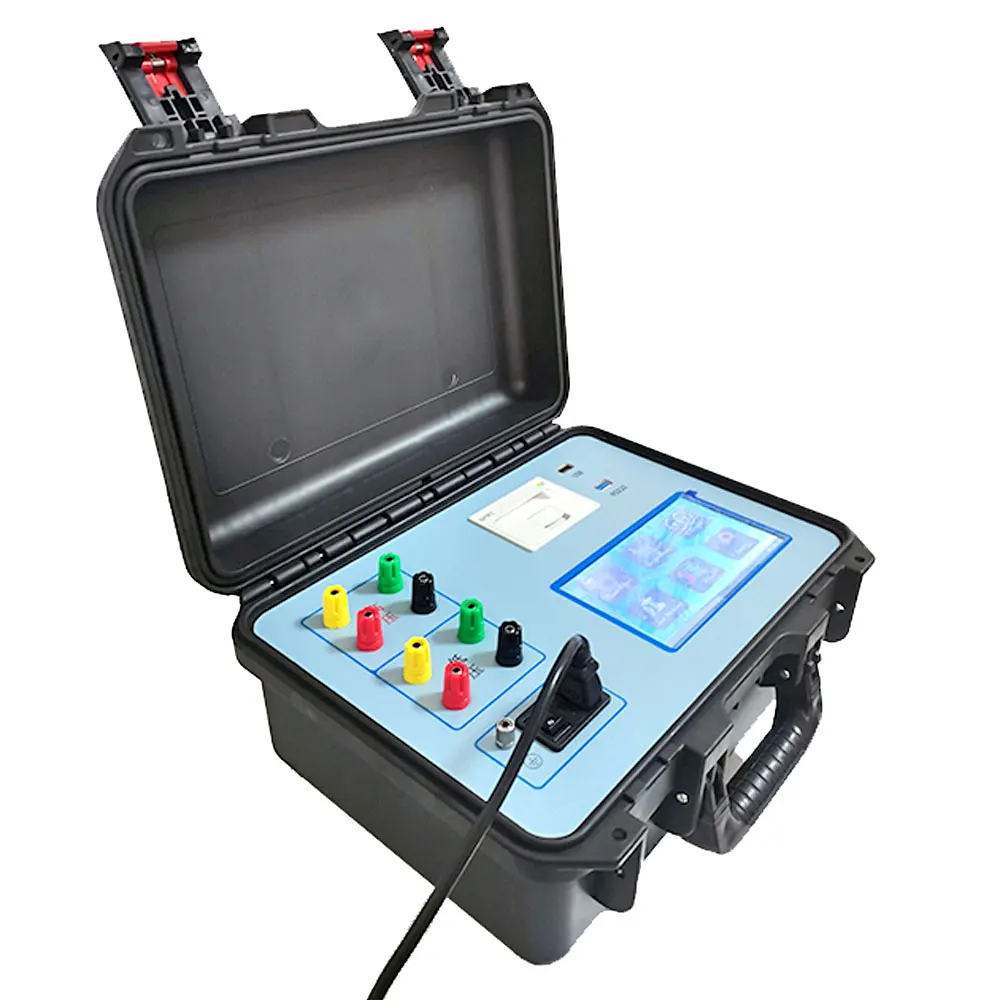

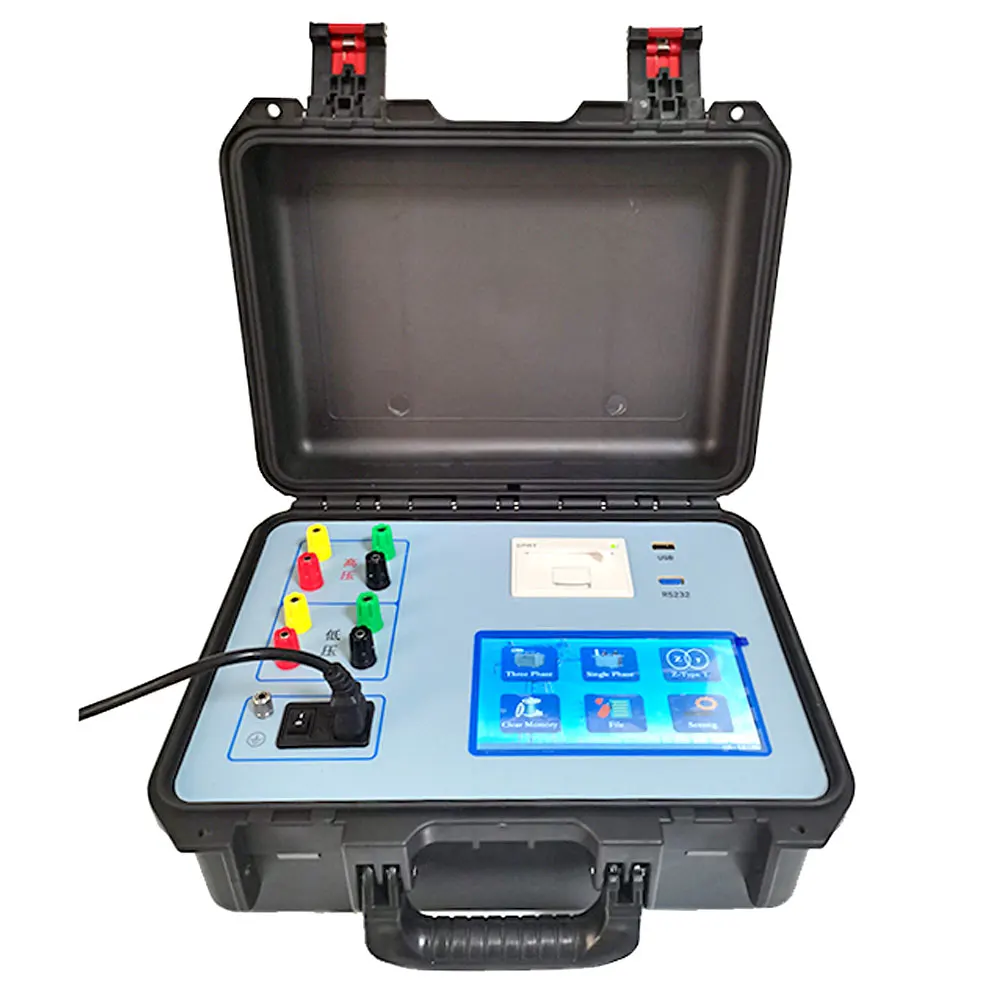

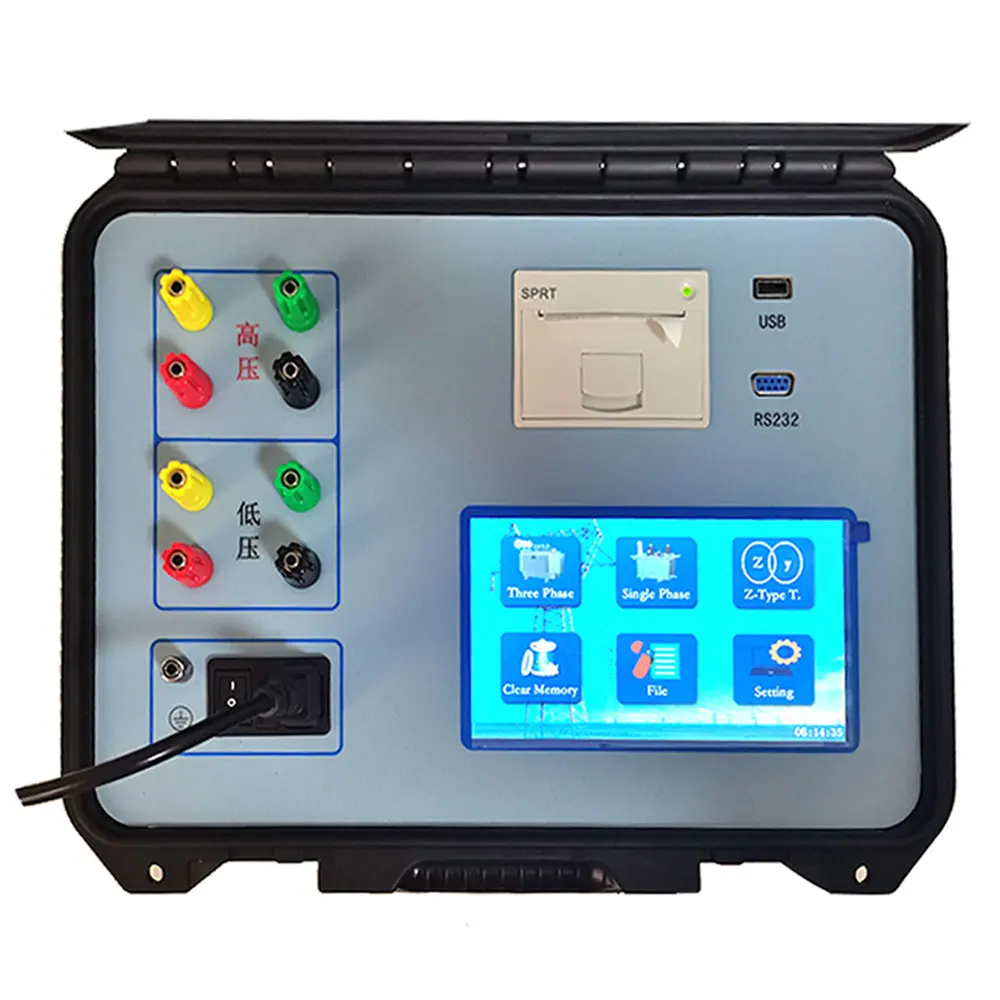

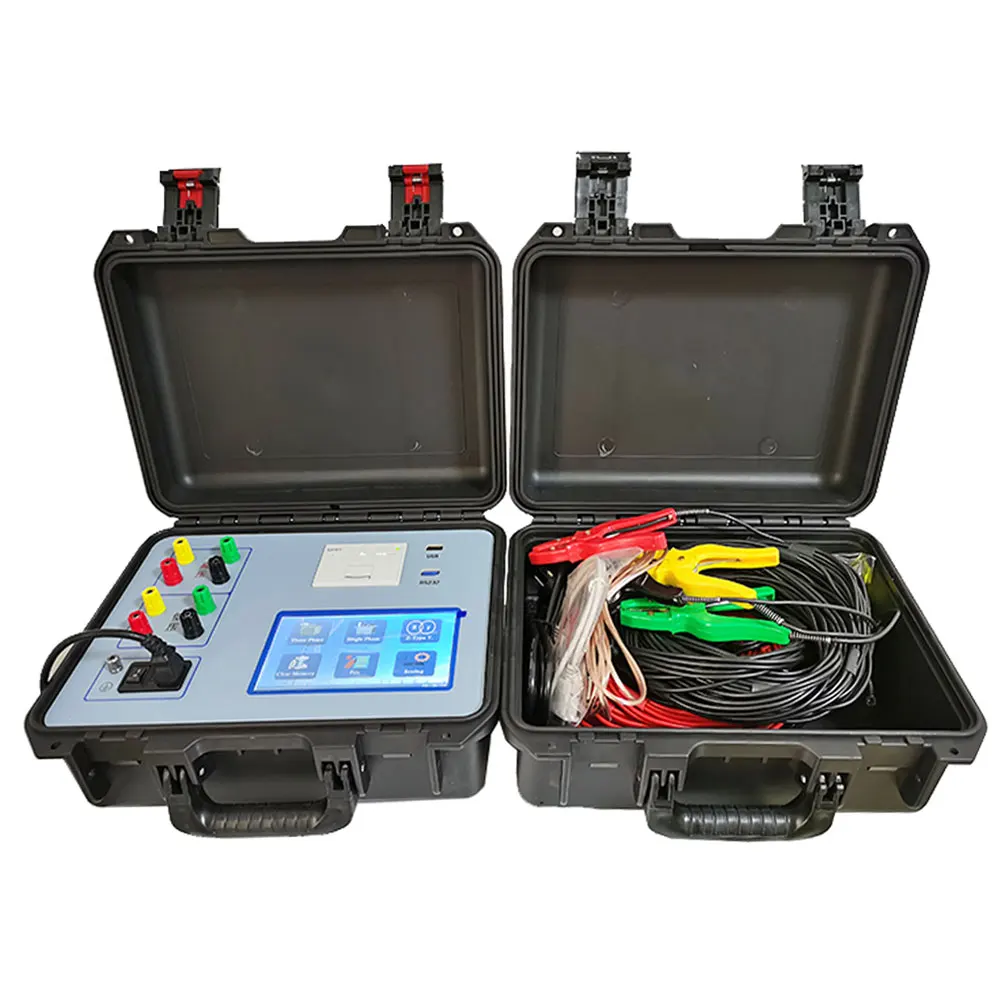

Cheap Resistance Winding Turn Transformer Ratio Test hancrank Turn Transformer Ratio Test transformer turn ratio machine
- Category: Other Electrical Instruments >>>
- Supplier: Weshine Electric Manufacturing Co. Ltd.
Share on (1600761863674):
Product Overview
Description
Features
1. Full three-phase sinusoidal inverter power output, output voltage is automatically adjusted, with soft start and soft stop functions, so the test speed is fast and the accuracy is high.
2. The instrument has single-phase, three-phase, Z-type transformers, voltage transformer ratio, group, polarity test functions.
3. The 3 phase transformer turn ratiometer has a blind test function, that is, the transformation ratio and group test are performed when the high and low voltage connection methods are not known.
4. CT ratio polarity test function, with angle difference test function during single-phase test.
5. The instrument has a wide test range, up to 10,000.
6. The instrument has output short-circuit protection function.
7. Data storage methods are divided into local storage and U disk storage. This machine can store 500 pieces of data.
2. The instrument has single-phase, three-phase, Z-type transformers, voltage transformer ratio, group, polarity test functions.
3. The 3 phase transformer turn ratiometer has a blind test function, that is, the transformation ratio and group test are performed when the high and low voltage connection methods are not known.
4. CT ratio polarity test function, with angle difference test function during single-phase test.
5. The instrument has a wide test range, up to 10,000.
6. The instrument has output short-circuit protection function.
7. Data storage methods are divided into local storage and U disk storage. This machine can store 500 pieces of data.
8. The USB storage data format is Word format, which can be edited and printed directly on the computer.
Specification
item | value |
Place of Origin | China |
Hebei | |
Brand Name | Weisheng |
Model Number | VS-6628 |
Display Type | Digital Only |
Measuring Range | 0.9~10000 |
Accuracy Class | 0.1 |
Supply Voltage | AC220V±10%, 50Hz |
Operating Temperature | -10℃~50℃ |
Dimensions | 260mm*200mm*160mm |
Weight | 3.5Kg |
Product Name | Transformer Turn Ratio Tester |
Accuracy(≤1000) | ±(rdg*0.1%+2dgt) |
Accuracy(>1000,≤3000) | ±(rdg*0.2%+2dgt) |
Accuracy(>3000) | ±(rdg*0.3%+2dgt) |
Relative Humidity | <90%RH,No Condensation |
Power | Electronic |
Keywords | Transformer Turn Ratio |
Resolution | 0.0001 |
MOQ | 1 |
Warranty | 1 Year |
