Yamaha Japanese High Speed Perforaited Full Automatic Die Hole Punching Pcb Drilling Machines Price
- Category: Electronics Production Machinery >>>
- Supplier: YAMAHA FINE TECHNOLOGIES CO. LTD.
Share on (11000001728124):
Product Overview
Description
Products Description
For automatic hole punchers, choose Yamaha!

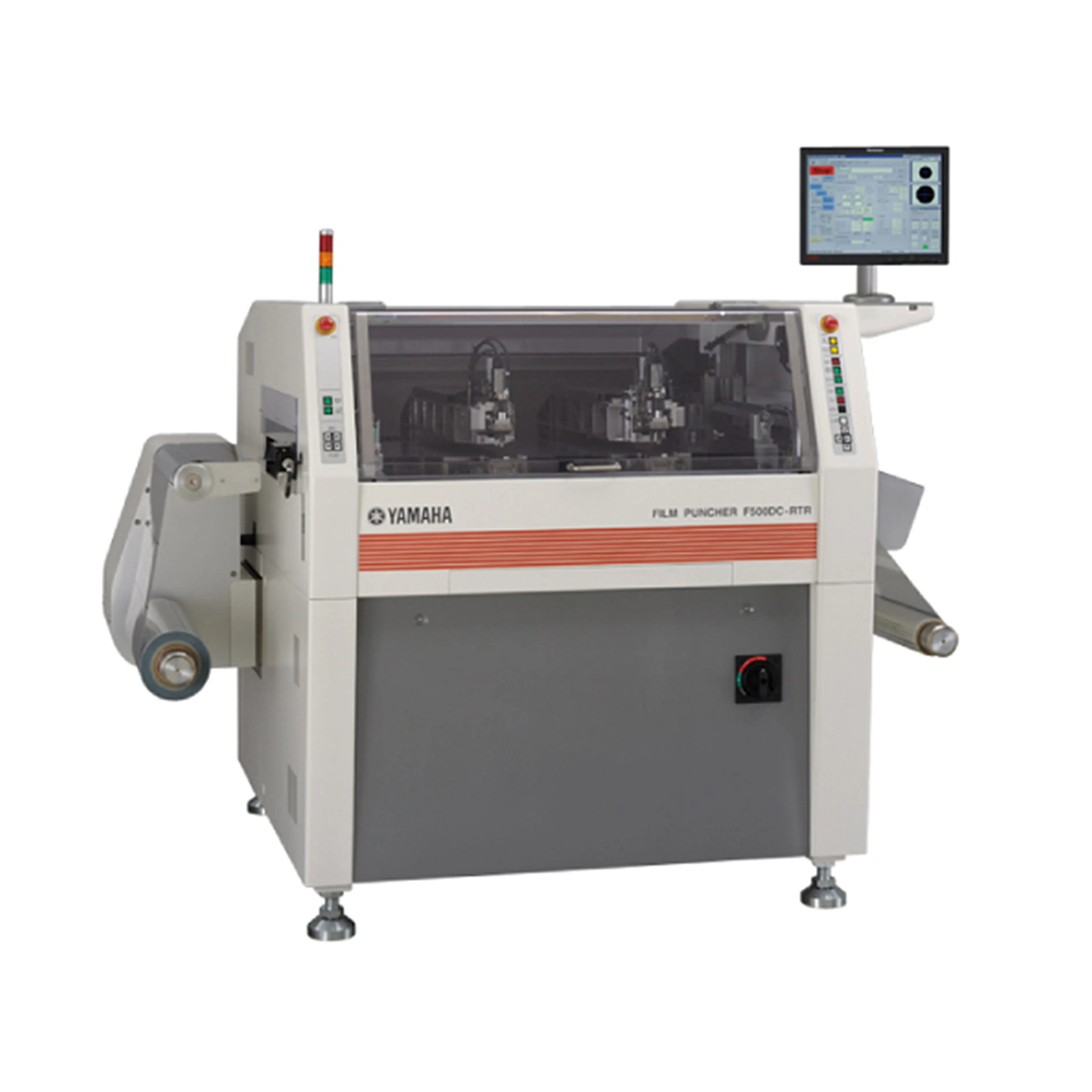

Film Puncher F series
High speed | High thrust | Roll to Roll | Automatic | |
Small sheet | F602S2 | F602SP2 | F250DD-RTR/GFR | F602S2-ald |
Large sheet | F602L2 | F602LP2 | F500DC-RTR |
A wide range of sheet materials from thin to thick ones are supported. With an electric punching head, high-speed, high-accuracy punching is realized.
Our proprietary electric punching head realizes punching at high speed up to 0.08 seconds/hole.
In addition to high-precision (±20 μm) machining based on image alignment, also supported is NC machining for exposure fiducial marks.
Our proprietary electric punching head realizes punching at high speed up to 0.08 seconds/hole.
In addition to high-precision (±20 μm) machining based on image alignment, also supported is NC machining for exposure fiducial marks.
Features of Film Puncher
1.Round hole punching equipment for film materials
・Punching at high speed (12 holes/second) with high accuracy (±20 μm) realized.
・Model best suited for punching tooling holes for exposure and outline machining.
・In addition to film materials, some thick sheet products also supported.

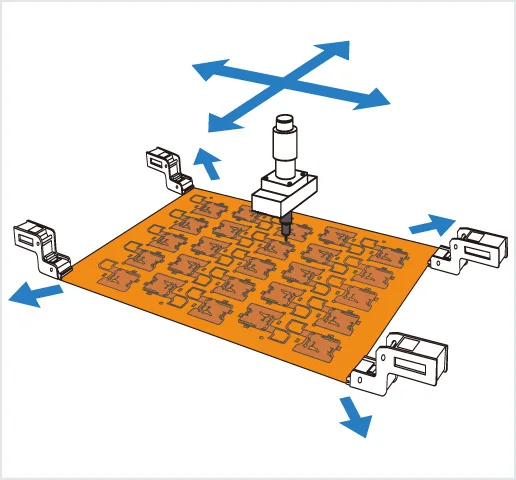

2.Work sheet clamps with XY tension mechanism
・A work sheet is held stably by clamping its four corners and applying tension in the XY directions.

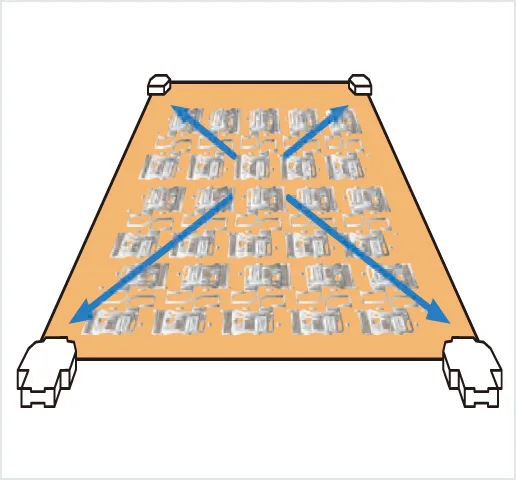

・Stable machining of a work sheet that is thin or strongly warped made possible by applying tension in the XY-directions.

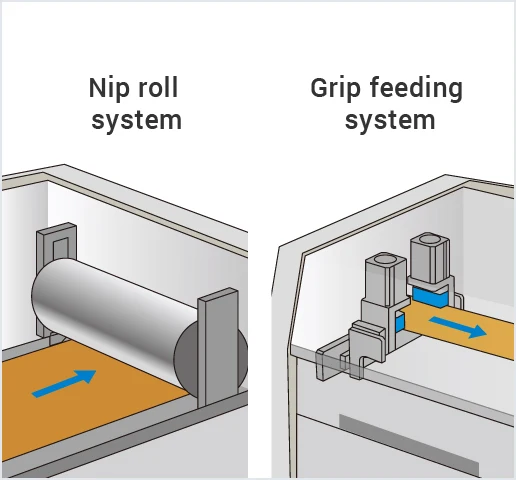

3.Roll feed system
・Nip roll system. (Left)
・Roll fed by driving the nip roll Grip feeding system. (Right)
・Grip feeding operation unlikely to damage work sheets.

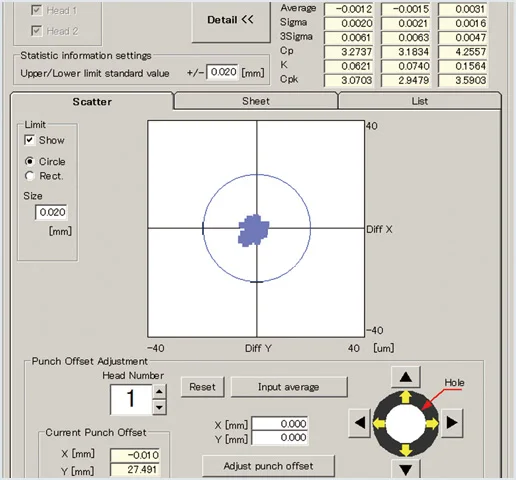

4.Machining accuracy measurement function
・After punching, punching deviation is measured to detect a non-conforming item.
・Model contributing to machining result analysis and product management efficiency improvement.
・Correction of punch positions based on the punching deviation tendency contributes to machining accuracy improvement.
5.Selectable punch head mechanism
・A punch head structure is selectable to respond to thin and thick material work sheets.
・High-speed type: Electric punching head. (solenoid driven)
・High-thrust type: NC punching head. (NC servo control)
6.Sophisticated software
・Various functions for productivity improvements are provided as standard features.
・Punching path optimization function.
・One touch accuracy correction after tool replacement.
・Program automatic conversion function from drill data/drawing data.
・Machining data creation by easy teaching.
Applications
Flex PCB, PI film, Touch Panel, Various film materials
Learn more on the official web site.
