SMT автоматическая машина для V резки
- Category: Electronics Production Machinery >>>
- Supplier: Dongguan,ICT,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
SMT PCBA Router Machine I.C.T-5700
I.C.T 5700N is a high-precision pcba router, which is used in smart phones, smart wear, smart home, tablet computers, automotive electronics, medical devices, aerospace, military and other fields.
Inline SMT PCBA Router Machine I.C.T-IR180
I.C.T inline pcba router is a high-precision high-speed dual-platform on-line pcba router, which is used in smart phones, smart wear, smart home, tablet computers, automotive electronics, medical devices, aerospace, military and other fields.
Features：
2.The sensor can monitor the milling cutter state in real time, and effectively prevent the continuous operation of the cutter.

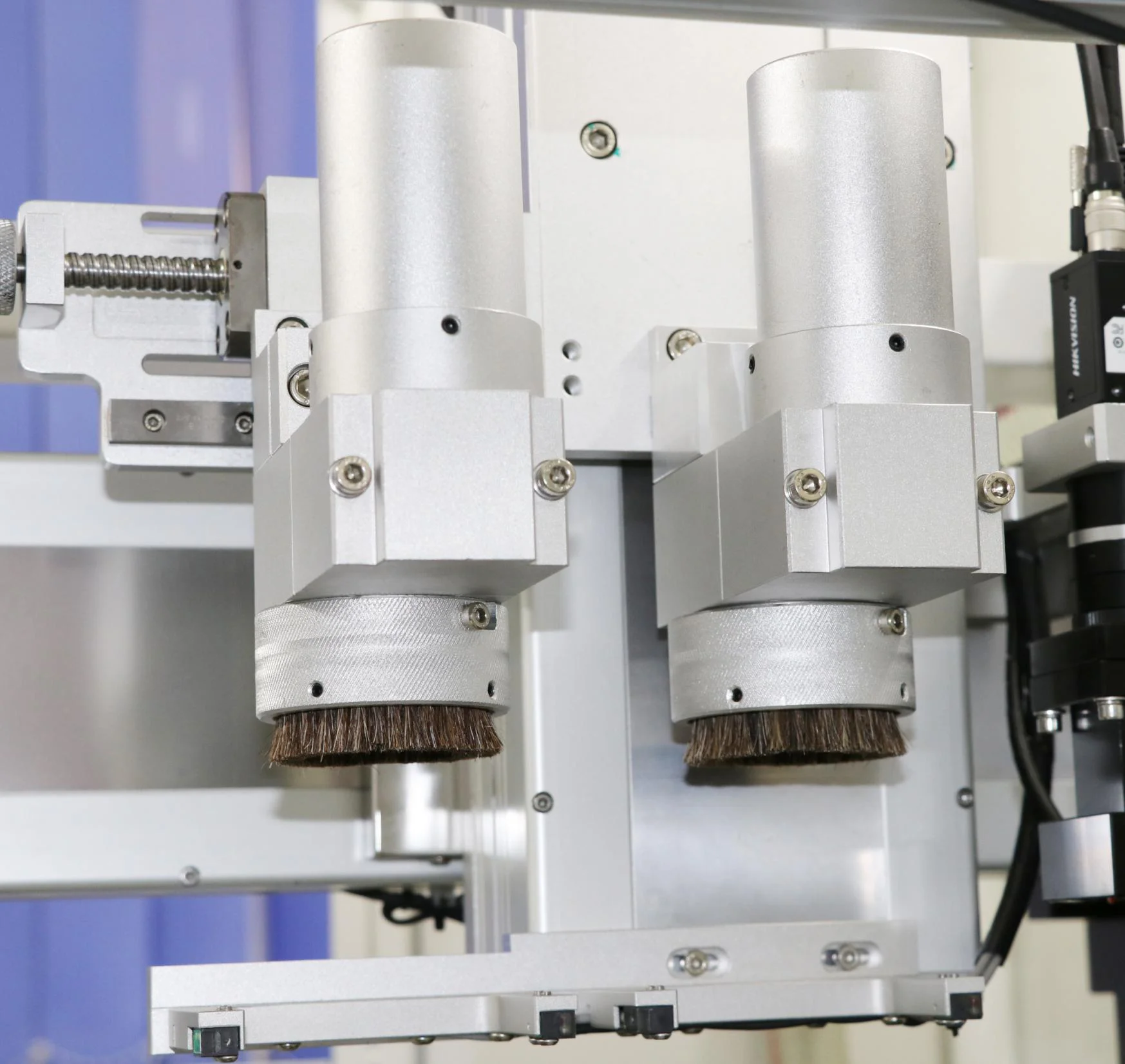

3.Using high speed spindle, cutting stress is greatly reduced, precision is high, inertia is small, and response is fast.
4.Ion air gun will remove static electricity on PCB surface and prevent dust from adsorbing on PCB.
5.Automatic loadering - picking and placing – cutting – unloadering pcba, unloadering solution can be option.
6.Adopt CNC special controller,high stability and strong anti-interference.
7.The separated vacuum dust collector adopts high efficiency motor with high suction and low noise.
8.Realize automation, save manpower and improve quality.
9.Automatic storage product information, automatic adjustment conveyor width, improve the speed of line change.
Feeding System
The new feeding system replaces the traditional cylinder structure to ensure more accurate feeding and automatic width adjustment of the conveyor. Unloading to conveyor belt, with detection function, easy to use at the back of the station, unloading conveyor mode is optional.
Pick&Place System
Using precise double servo to pick and place Pcba instead of traditional cylinder (or double cylinder to take and place) Double servo screw structure pick and place Pcba will improve the accuracy. The Z1 axis is responsible for picking Pcba in and out of the board, while the Z2 axis is responsible for picking Pcba out and putting it in the next station after the cutting is completed. The traditional which has the disadvantages of slow speed. Dual mechanical pick-and-place structure greatly improves operation efficiency and productivity.
CCD camera alignment system, Milling cutter Auto-change system,Whole board scanning function,MES system,Precision
Dust-proof Module. The UPH is calculated automatically. Intelligent Milling Tool Database, automatic recording of products cut by each milling cutter to achieve traceability.
Specification
PCB Router | I.C.T-IR180 | I.C.T-IR350 | I.C.T-5700M | I.C.T-100A(Desktop) | |||
Pcb Size | 180*180mm | 300*350mm | 290*350mm | 280*300mm | |||
PCB thickness | 0.3~6.0mm | 0.3~6.0mm | 0.3~6.0mm | 0.3~4.0mm | |||
PCB support mode | Multifunctional fixture, special fixture | Multifunctional fixture, special fixture | Multifunctional fixture, special fixture | Multifunctional fixture, special fixture | |||
Voltage | 220V,50/60HZ | 220V,50/60HZ | 220V,50/60HZ | 220V,50/60HZ | |||
Air Pressure Supply | 4.5kg/cm2 | 4.5kg/cm2 | 4.5kg/cm2 | 12~20m³/min | |||
Power Supply | 1.5kw | 1.5kw | 1.5kw | 1.0kw | |||
Weight(with vacuum cleaner) | 1100kg | 1100kg | 1000kg | 85kg | |||
Certifications
Packing & Delivery
※ Standard Wooden Case with Vacuum Package
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
