Система селективной пайки

Category: Electronics Production Machinery >>>
Supplier: Shenzhen,Eta,Technology,Co.,Ltd.

Price:80 500,00 $ - 82 915,00 $

Price in USD:Details

Quantity:

Product Overview

Description

On Line THT Through Hole Selective Wave Soldering Systems Off Line PCBA DIP Automatic Selective Wave Soldering Machine For PCB

Product Headline

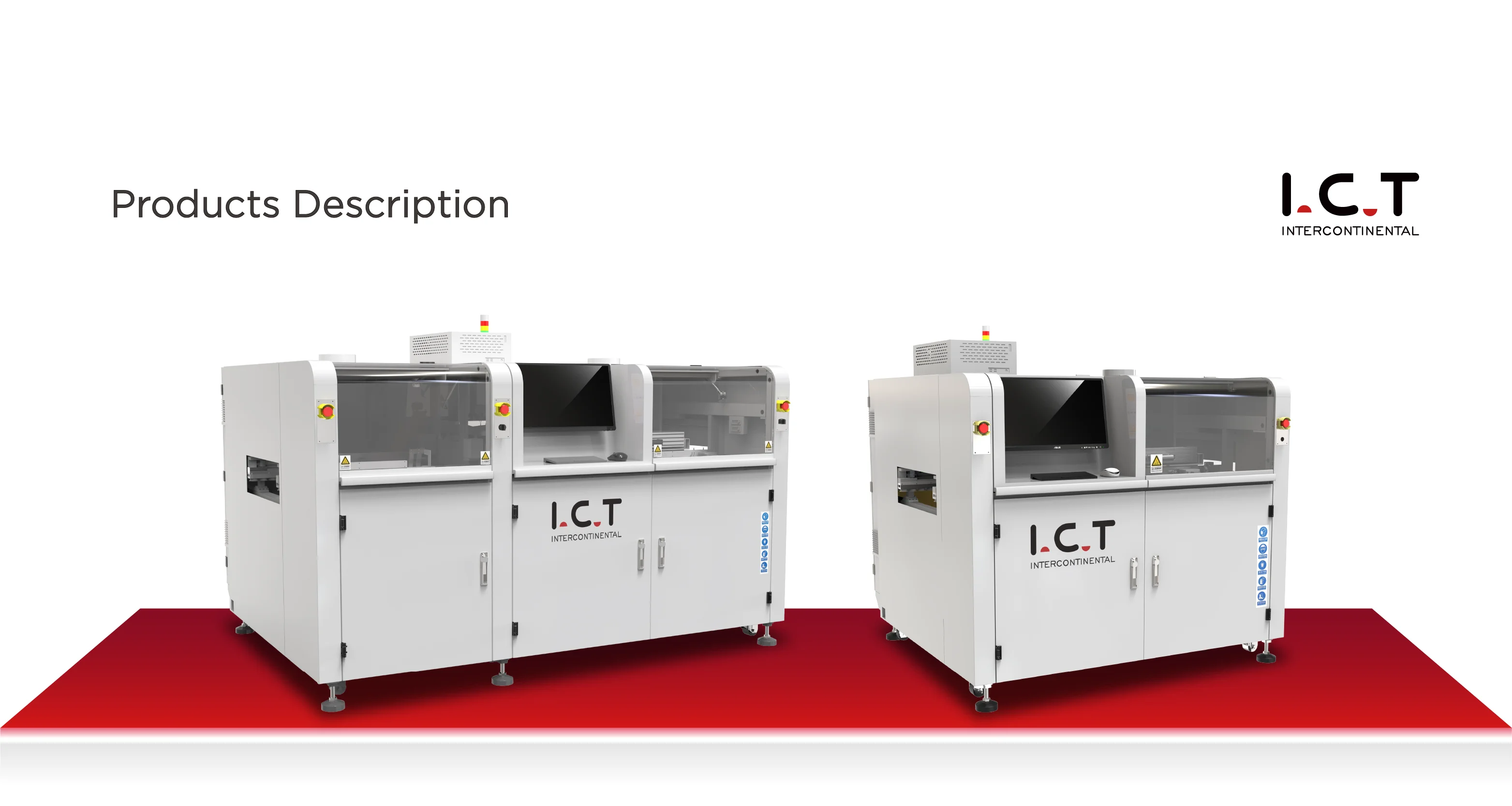

I.C.T On-line Selective Wave Soldering Machine

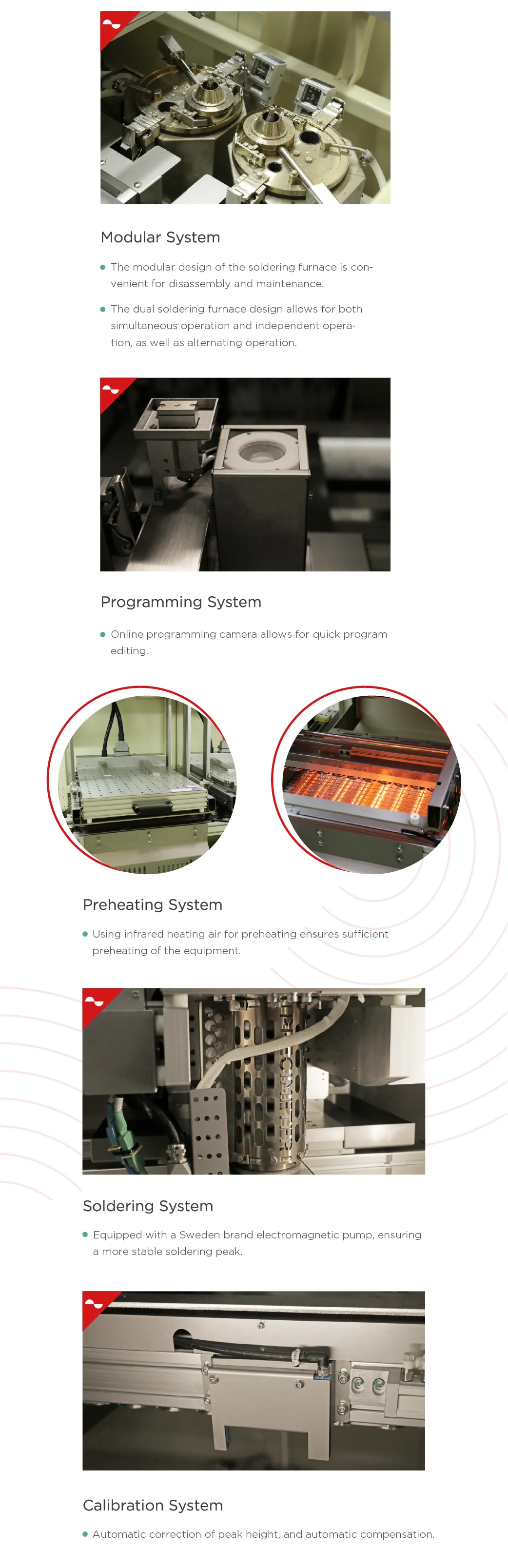

Selective wave soldering is a special form of wave soldering invented to meet the development requirements of through-hole components soldering. It is mainly suitable for the soldering of through-hole components in high-end electronic products. For example: military electronic products, automotive electronics, switching power supply products and other industries which require higher soldering reliability. I.C.T online selective wave soldering is a high performance equipment developed and assembled in China. for higher flexibility or multiwave soldering for high-volume processes.product changes without downtime even in multiwave processes, parallel process due to the
separation of fluxing, preheating and soldering, operation of up to two spray heads, up to five lower preheating with optional upper convectionheating, perfect for the connection to assembly stands and periphery, connection to traceability systems for process control.

If You Need More Details About The I.C.T Selective Wave Soldering Machine, Please Click Here.

Model	SS540	SS550	SS550P1	SS550P2
On-line Modular	Spray + Preheating & Soldering	Spray + Preheating + Soldering	Spray + Preheating + Soldering 1 +Soldering 2	Spray + Preheating + Soldering 1 + Soldering 2+ Soldering 3
Flux Storage Tank	1L	1L	2L	2L
Preheating Mode	Hot air and IR	Hot air and IR	Hot air and IR	Hot air and IR
Preheating Zone	Top hot air: 2, Bottom IR: 1	Top hot air: 2, Bottom IR: 1	Top hot air: 2, Bottom IR: 1	Top hot air: 2, Bottom IR: 1
Max PCB Size	500*500mm
PCB Replacement	Online
N2	Purity of N2: 99.999%, 25 L/min, Outer diameter Φ6mm
Operater Power	5-8Kw	7-10Kw	10-12Kw	10-12Kw
Power Supply	3P5W, 380V AC±10%, 50/60HZ
Dimension	L1850W1850H1480 mm	L2560W1750H1480mm	L2560W1950H1480mm	L2600W1950H1480mm
Weight	Approx: 800kg	Approx: 1200kg	Approx: 1300kg	Approx: 1500kg

Certifications

Packing & Delivery

※ Standard Wooden Case with Vacuum Package

Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.

Our Company

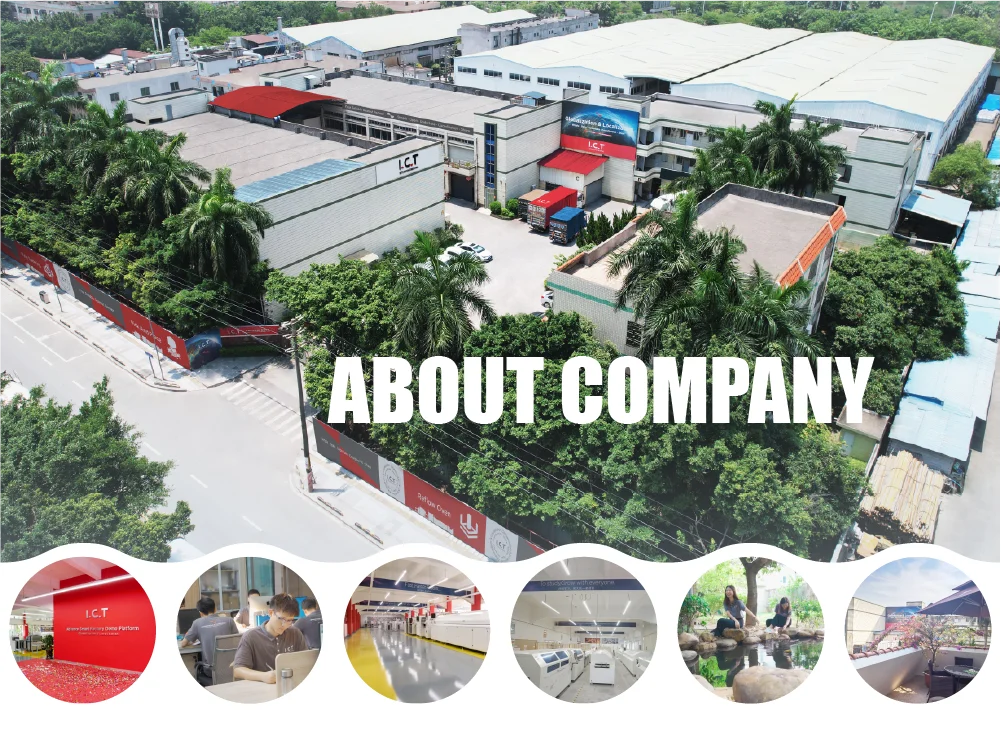

About I.C.T：

I.C.T is a leading provider of factory planning solution. we have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of electronic industry experience, through our superior resources in China to provide global customers with systematic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customers to set up factories in LED, TV, mobile phone, DVB, EMS and other industries all over the world. We are trustworthy.
