Factory sale automatic SMT solder paste printer SMT solder paste printing machine SMT PCB solder paste printing machine with CE

Share on:

Price:$20,000.00 - $25,000.00
Price in USD:Details


Product Overview


High speed High precision SMT solder paste printing machine automatic pcb board printing machine Led TV PCB Production Line

With simple and reliable , accurate positioning and easy to adjust structure, SP-450 has the characteristics of high precision ,
high stability, high performance/price ratio and so on

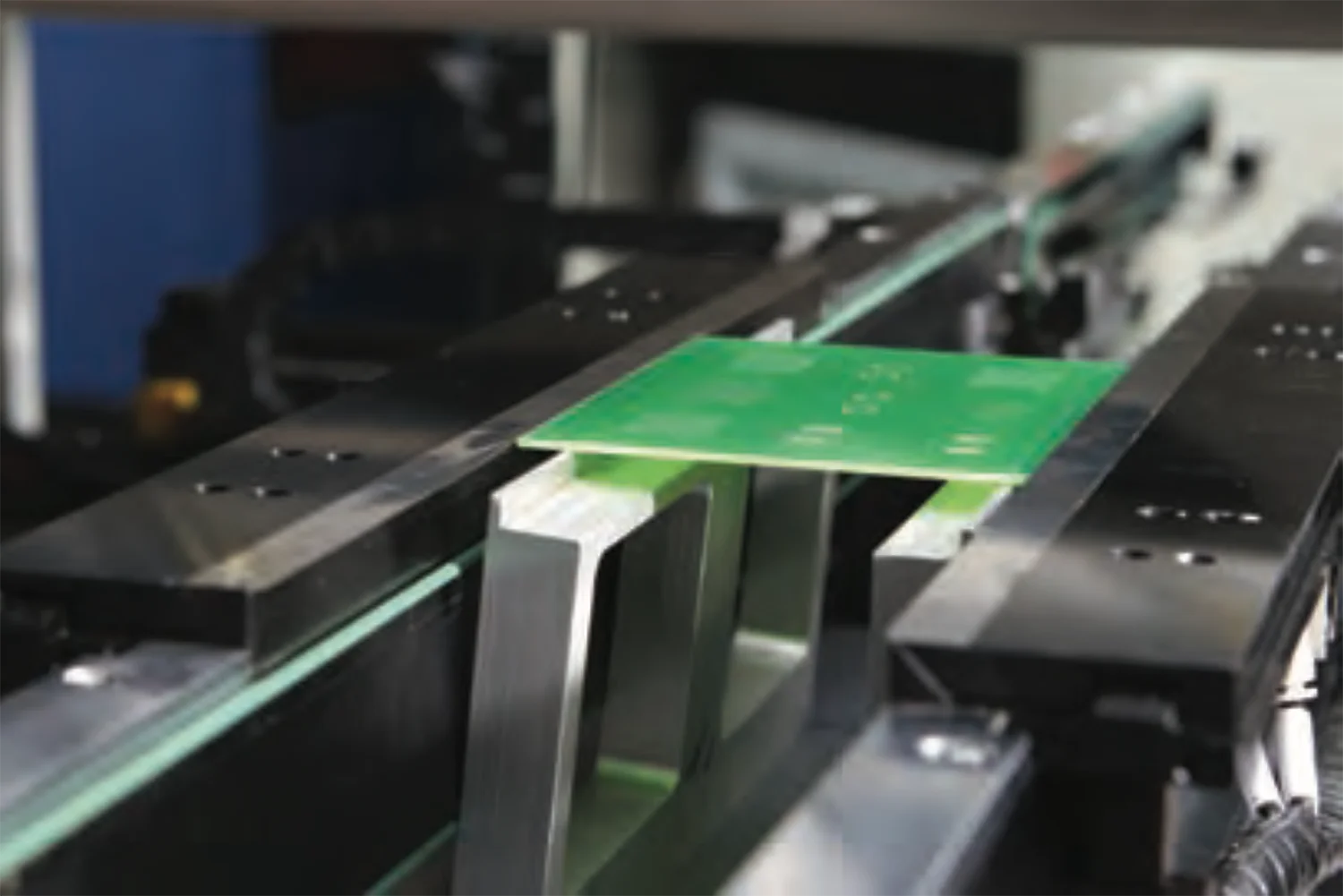

Simple and reliable PCB positioning system
Adaptive PCB board thickness, software tunable flexible side pressure and magnetic supporting device.

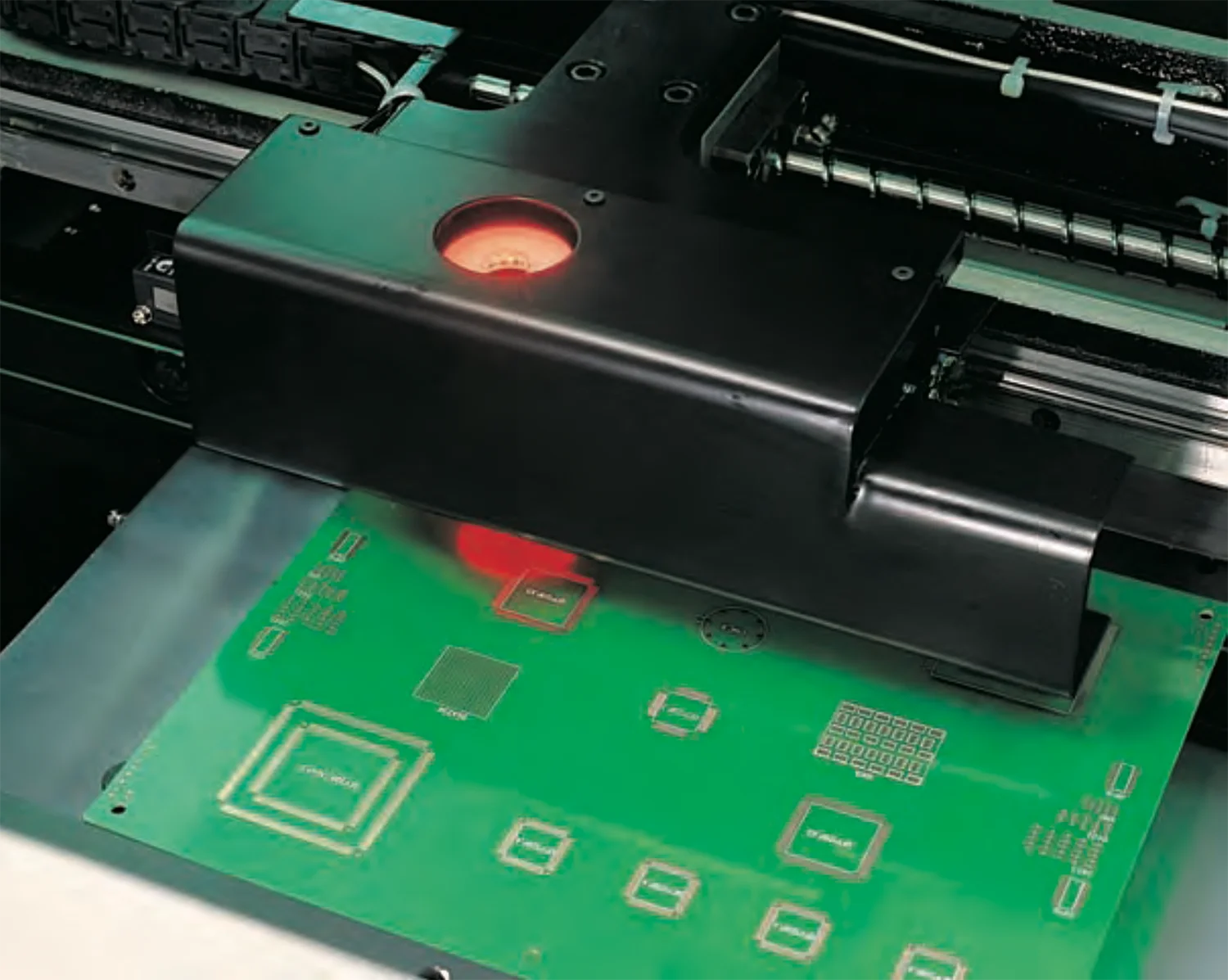

High stability CCD camera system
Four-way light source adjustable, with uniform illumination and the perfect image collection, making the various types of Mark
points can be a very good identification (including the rugged Mark point), to meet the tin. Gold-plated, spray tin, FPC, and
other types of different colors of the PCB.

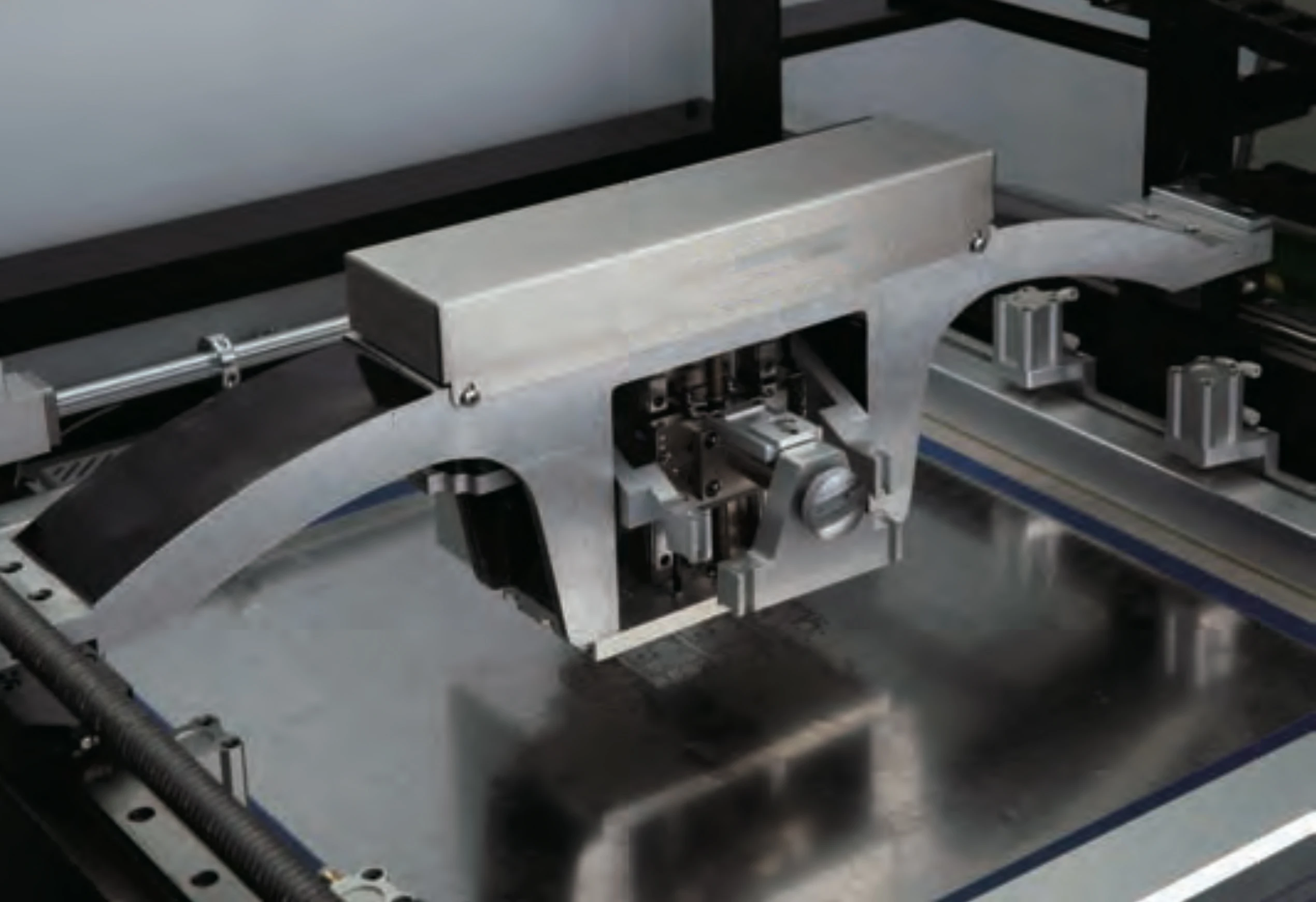

Intelligent scraper system
Programmable and independent direct-coupled stepper motor control, built-in precision pressure control system.

High efficiency stencil cleaning system
The new wiping system ensures full contact with the stencil, and the increased vacuum suction ensures that the solder paste
remaining in the mesh is effectively removed, and the effective automatic cleaning function is achieved.

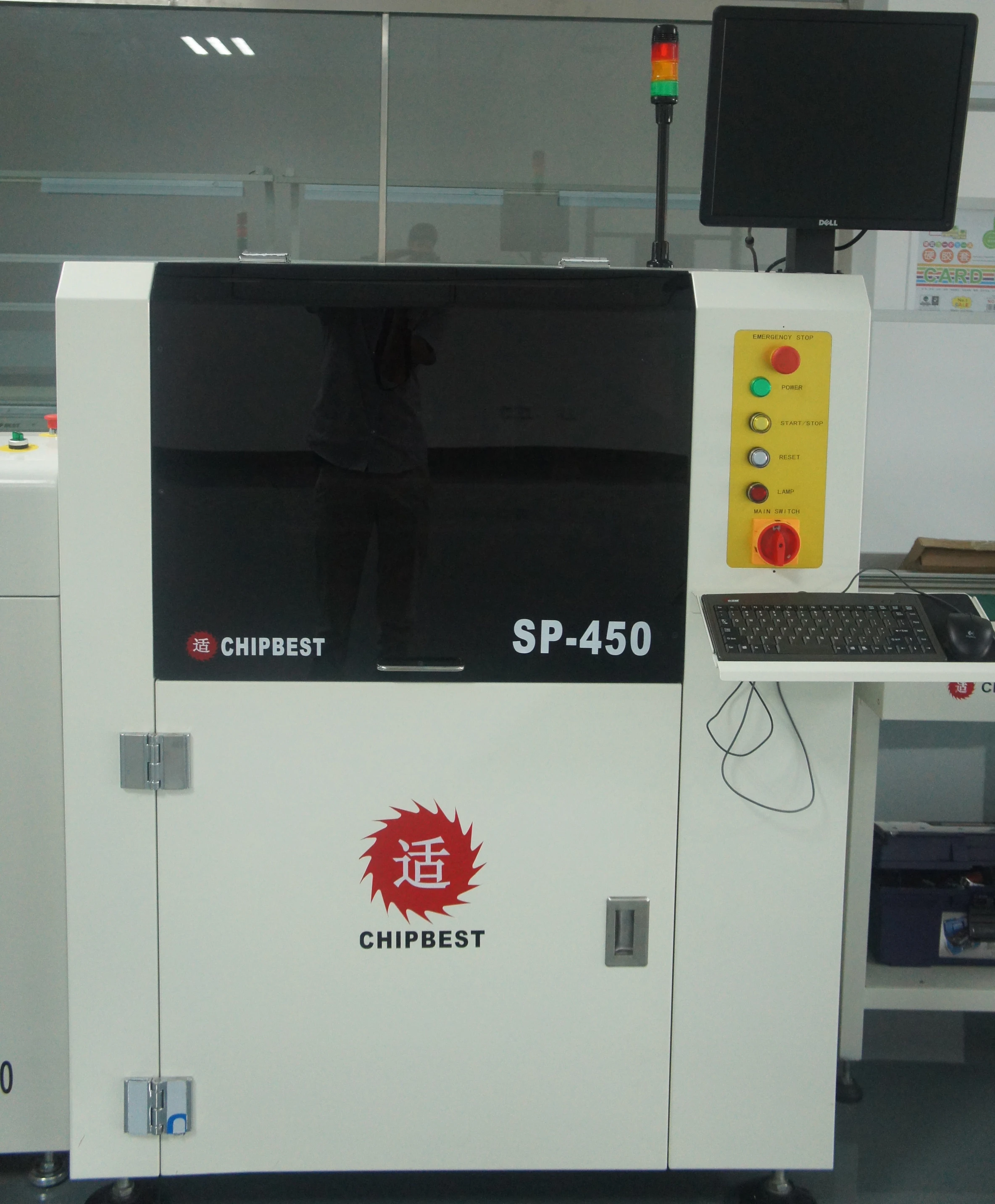

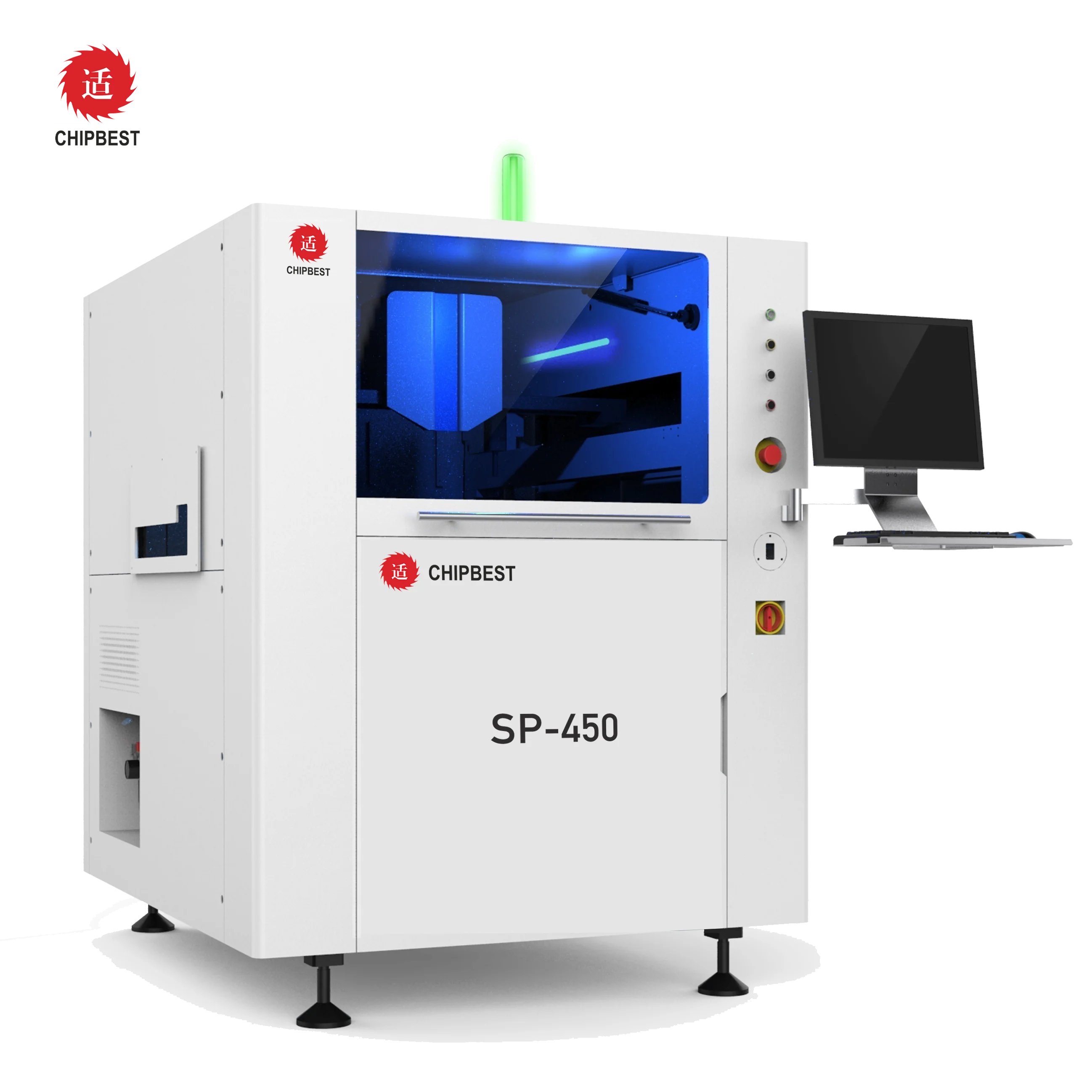

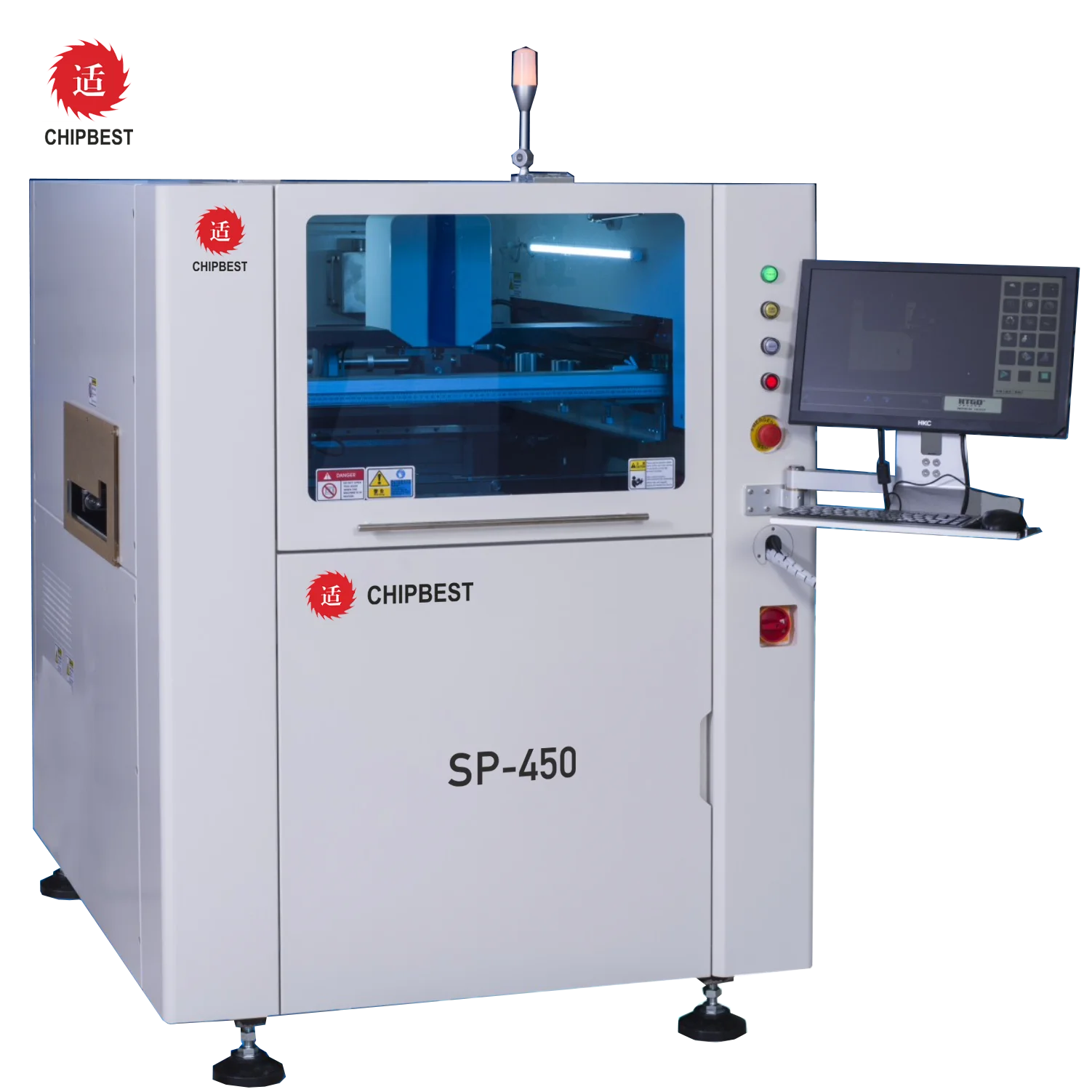

SP-450 automatic visual printer
Alignment precision: ± 10.0 micron/ μm @6σ, Cp≥2.0
Printing precision: ±20.0 micron/μm @6σ, Cp≥2.0

PCB parameters
Maximum board size (X x Y)
450mm x 350mm
Minimum board size (Y x X)
50mm x 50mm
PCB thickness
Max. PCB Diagonal line 1%
Maximum board weight
Board margin gap
Configuration to 3mm
Maximum bottom gap
Transfer speed
Transfer height from the ground
900 ± 40mm
Transfer orbit direction
Left-Right, Right-Left, Left-Left, Right-Right (Program Settings)
Transfer mode
One stage orbit
PCB clamping method
Programmable flexible side pressure
(optional 1. Multipoint partial vacuum at the bottom 2. Edge locking and substrate clamping 3. Edge lock base clamp)
Support method
Magnetic thimble, equal height block, etc
Printing parameters
Printing head
Linear motor closed loop printing head
Template frame size
370mm x 470mm~737 mm x 737 mm
Maximum printing area
450mm x 350mm
Scraper type
Steel scraper/Glue scraper(angle45°/55/60matching the printing process)
Scraper length
Scraper height
65± 1mm
Scraper thickness
0.25mm Diamond-like carbon Coating
Printing mode
Single or double scraper printing
Demolding length
0.02 mm - 12 mm
Printing speed
Printing pressure
0.5kg- 10Kg
Printing stroke
±200 mm From the center
Image parameters
Field of View
6.4mm x 4.8mm
Platform adjustment range
X , Y:±7.0mm,0:±2.0°
Benchmark point type
Standard shape benchmark point (SMEMA standard), solder pad /openings
Camera system
Independent camera, upwards /downwards imaging vision system
Performance parameter
Repetition precision of image calibration
±10.0 micron@6σ , Cp≥2.0
Repetition precision of printing
±20.0micron@6σ , Cp≥2.0
Cycle time
Product Changeover
Power requirements
AC220V ±10%,50/60HZ,15A
Compressed air requirements
4~6Kg/cm2,10.0 Diameter of the tube
Operating system
Windows XP
External dimension
L (1140mm) x W (1450mm) x H (1480mm) (Without lights, monitor and keyboard)
Machine weight
Temperature and humidity control module(optional)
Environment temperature
Relative humidity
45~ 70%RH4
