For Force, torque, pressure, process , Single channel or multi channel version for strain gauge, potentiometer

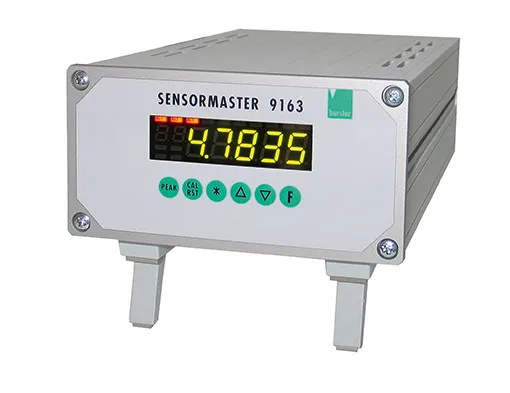

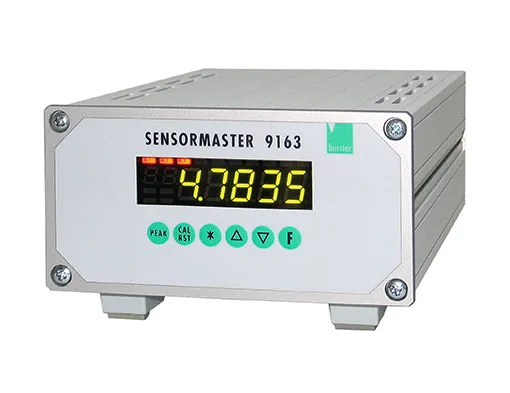

The SENSORMASTER 9163 covers a wide range of applications in which process values need to be measured, displayed, analyzed and transferred to higher-level control systems. Typical applications include measuring geometric values in production, for instance differential measurements, or testing material properties in the laboratory.

The measured values can be transferred via USB, RS232 or analog output.

The multi-channel version can be used with up to four sensors. These sensors can be combined using mathematical functions, so that even complex measurement tasks can be performed with just the one instrument.

Visual alarms on the display make it easier and more convenient to assess when values lie off-limits. Up to four configurable outputs are available as relay or logic outputs.

The excellent measurement accuracy of 0.1% also makes this instrument suitable for high-precision applications. Two digital inputs are provided for controlling various functions such as Reset or HOLD.

Strain gauges, potentiometric sensors, transmitters with process value output, Pt100 and thermocouples can be connected directly to the SENSORMASTER. Thanks to its manual linearization facility, the instrument can handle sensors with a huge range of characteristic curves.

The latest microprocessor technology has been used to pack a huge amount of engineering into the minimum space. Essential device settings can be made via the six-button keypad. Permanent settings such as the choice of excitation voltage are made using jumpers. The large 13 mm high, 7 segment display ensures that measurements and menu parameters can be read clearly.

The integral excitation voltage source supplies the sensors and provides the auxiliary power for any transmitters that are connected. The manual linearization facility with 32 data points means that even non-linear sensor curves can be input.

The indicator also supports memory functions for min, max and peak-to-peak values. The high measurement rate of 500 readings/s also ensures a rapid response by the four built-in alarm limit relays. TTL switched outputs can be provided as an alternative option. The device settings can be configured via the keypad or the optional RS232, RS485 or USB interface.

A powerful software tool for data analysis and documentation is available on request.

Features:
- For force, pressure or torque measurements using strain gauge sensors
- For position or angle measurement using potentiometric or DC/DC sensors
- For temperature measurement using Pt 100 sensors or thermocouples
- Optional multi-channel model
- Optional Profibus or serial interface
- 0.1 % measurement accuracy plus sensor-specific linearization
- Range of mathematical functions (e.g. differential measurement)
- OK/NOK feedback on multi color display and via 4 alarm limit outputs
- High sampling rate (500/sec.)

Characteristics:

Pictures:
