Coating machine
The coating machine can coat the surface of NPK compound fertilizer and organic fertilizer particles to prevent the fertilizer from caking and increase the smoothness of the fertilizer. Coated fertilizer (coated fertilizer), also known as coated fertilizer, film fertilizer. Refers to fertilizers made by wrapping quick-acting fertilizer granules with semi-permeable or impermeable film material.
Film-forming materials include plastics, resins, paraffin, polyethylene, and elemental sulfur. The purpose of coating is to slowly release the available nutrients in the coated fertilizer after it is applied to the soil, so as to prolong the fertilizer efficiency. The release rate depends on the type of coating, thickness, particle size, fertilizer solubility, soil temperature, soil water content and soil microbial activity. It is suitable for crops with high economic value, long growth period, large amount of fertilizer but inconvenient fertilization in stages, and high temperature and rainy areas or irrigated areas where nutrients are prone to leaching, especially on light sandy soil.
Film-forming materials include plastics, resins, paraffin, polyethylene, and elemental sulfur. The purpose of coating is to slowly release the available nutrients in the coated fertilizer after it is applied to the soil, so as to prolong the fertilizer efficiency. The release rate depends on the type of coating, thickness, particle size, fertilizer solubility, soil temperature, soil water content and soil microbial activity. It is suitable for crops with high economic value, long growth period, large amount of fertilizer but inconvenient fertilization in stages, and high temperature and rainy areas or irrigated areas where nutrients are prone to leaching, especially on light sandy soil.
1 How coating machine works?
The machine adopts a special spraying process that combines liquid raw materials and solid powder materials, which can form a protective film on the surface of the compound fertilizer particles to isolate them from the outside air, thereby effectively preventing agglomeration and improving the brightness of the particle surface. Add some trace elements to improve fertilizer efficiency
2 The component of coating machine
1 Raw material feed chute
2 Riding ring
3 Ring gear and ring gear guard
4 Drive assembly
5 Lining
6 Discharge part
2 Riding ring
3 Ring gear and ring gear guard
4 Drive assembly
5 Lining
6 Discharge part
FEATURES AT A GLANCE
1.It is used for producing high,medium,low concentration of compound fertilizers,organic fertilizer and other kinds of fertilizer,it can also be used for other field,such as agricultural,mining and chemical industry for various products.
2 The inner wall of thecoating uses a special customized plastic plate or SS304 plate ,it has the advantage of anti-corrosion,effectively
prevent high temperature and anti-rusty.
3. The coating rate is high, the end product is good-quality with more dense with perfect surface.
2 The inner wall of thecoating uses a special customized plastic plate or SS304 plate ,it has the advantage of anti-corrosion,effectively
prevent high temperature and anti-rusty.
3. The coating rate is high, the end product is good-quality with more dense with perfect surface.

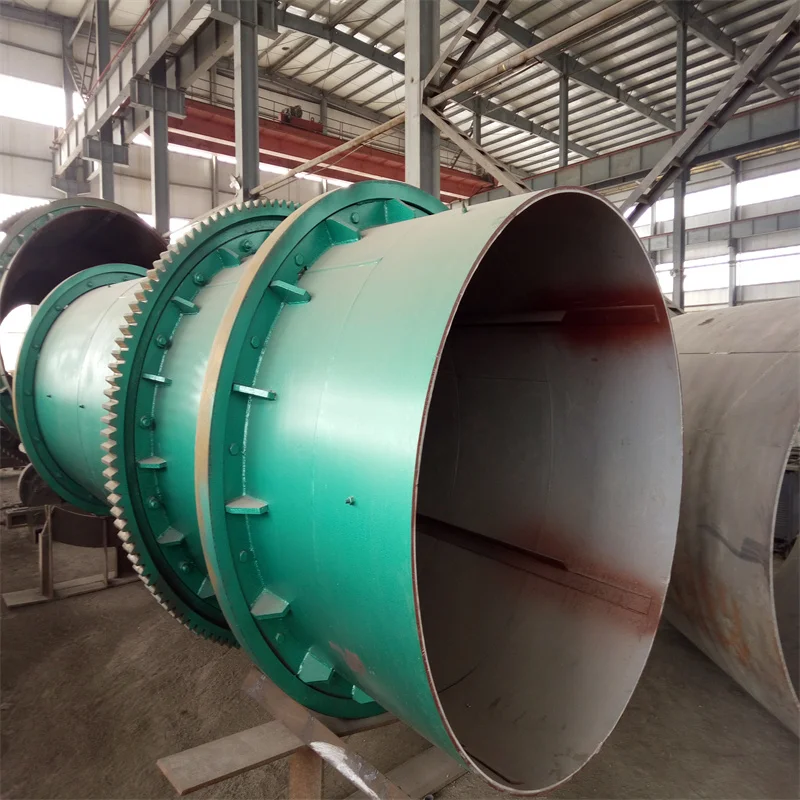

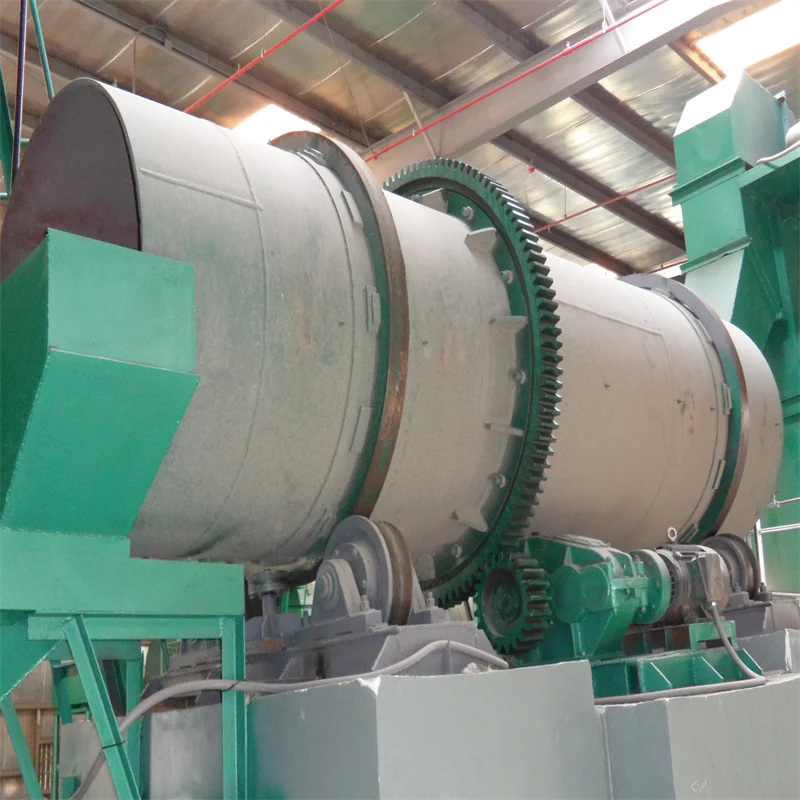

Outside view

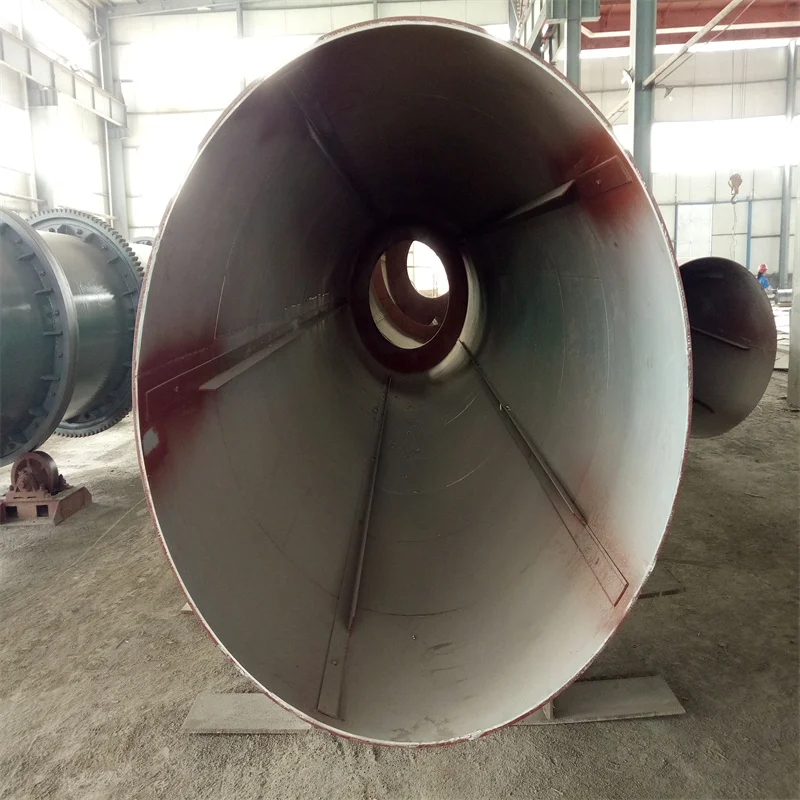

Inside structure
Driving system
PRODUCT SPECIFICATIONS
Model | Size | Capacity(t/h) | Inclination (degree) | Rotate speed (rpm) | Motor power(kw) | |
TM1204 | φ1.2mX4m | 5-6 | 1.5-2.5 | 10 | 5.5 | |
TM1405 | φ1.4mX5m | 8-10 | 1.5-2.5 | 10 | 7.5 | |
TM1606 | φ1.6mX6m | 12-15 | 1.5-2.5 | 10 | 11 | |
TM1806 | φ1.8mX6m | 16-22 | 1.5-2.5 | 9 | 18.5 | |
TM2007 | φ2.0mX7m | 25-28 | 1.5-2.5 | 8.5 | 22 | |
TM2208 | φ2.2mX8m | 28-32 | 1.5-2.5 | 8 | 30 |
Final granules produced by our machines
SALES AND SERVICE NETWORK

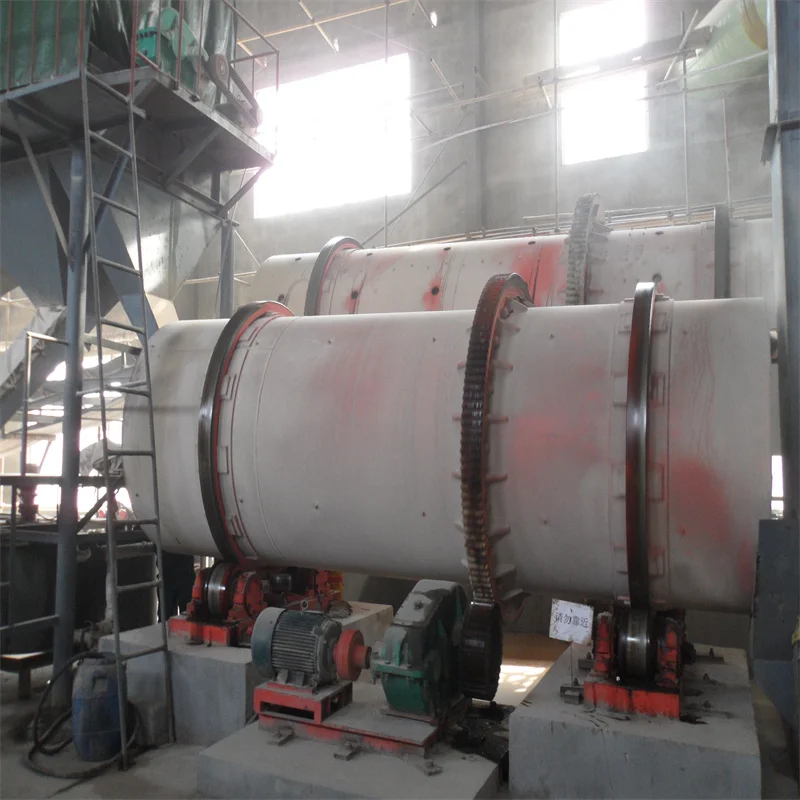

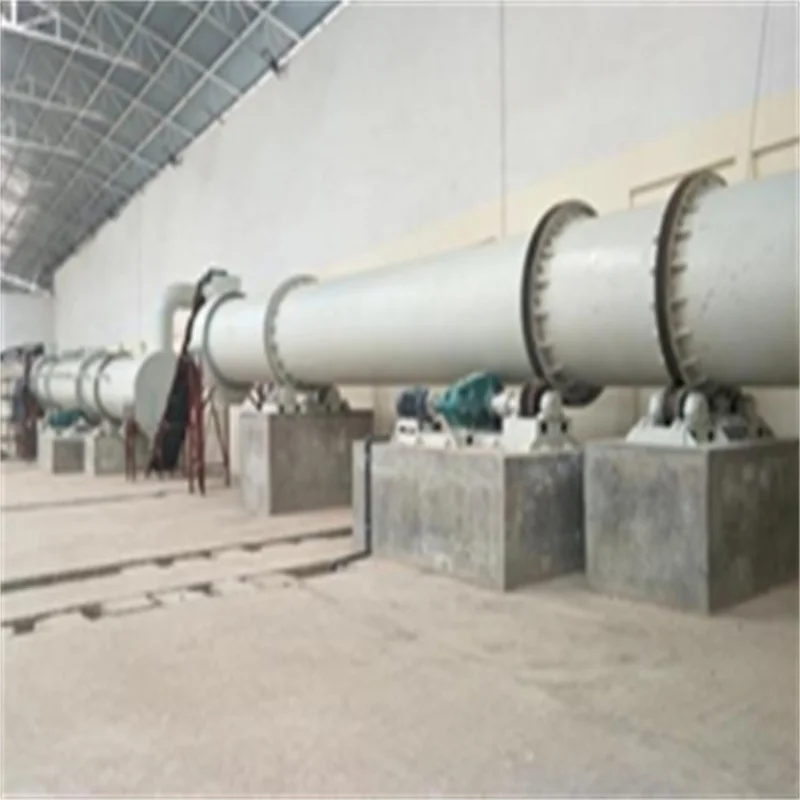

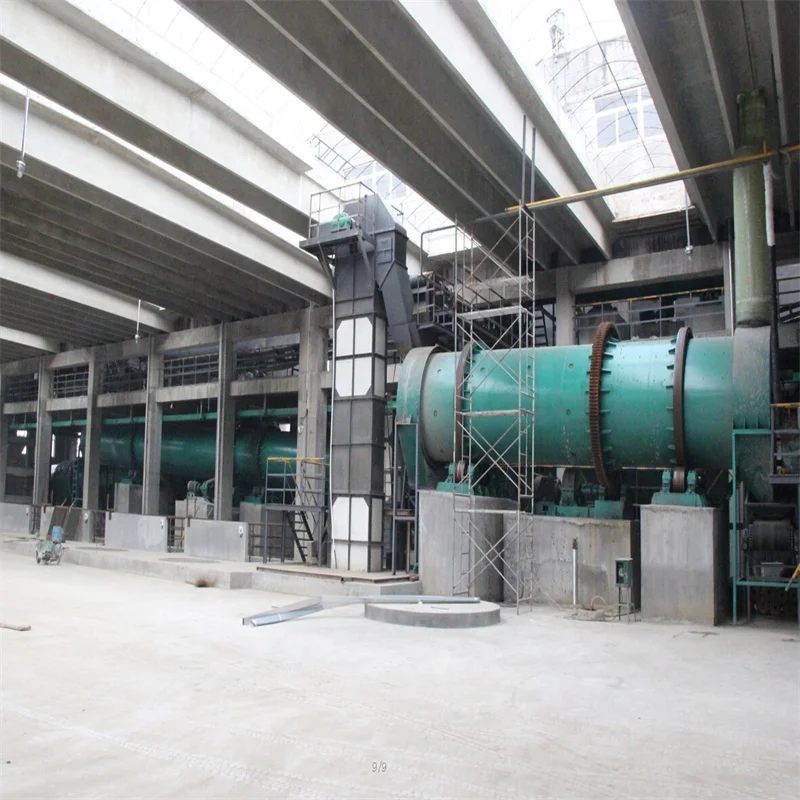

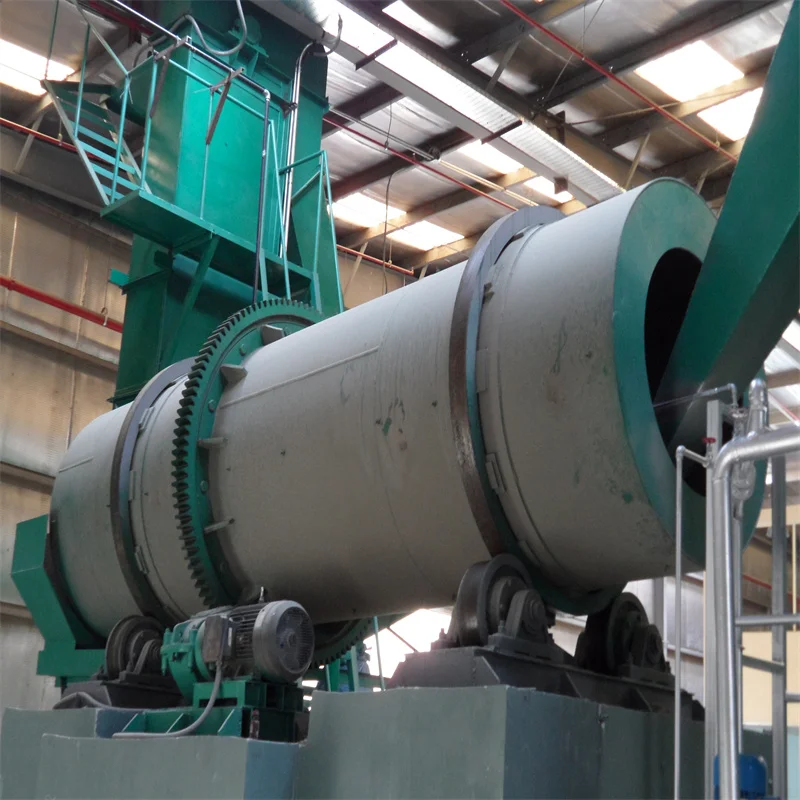

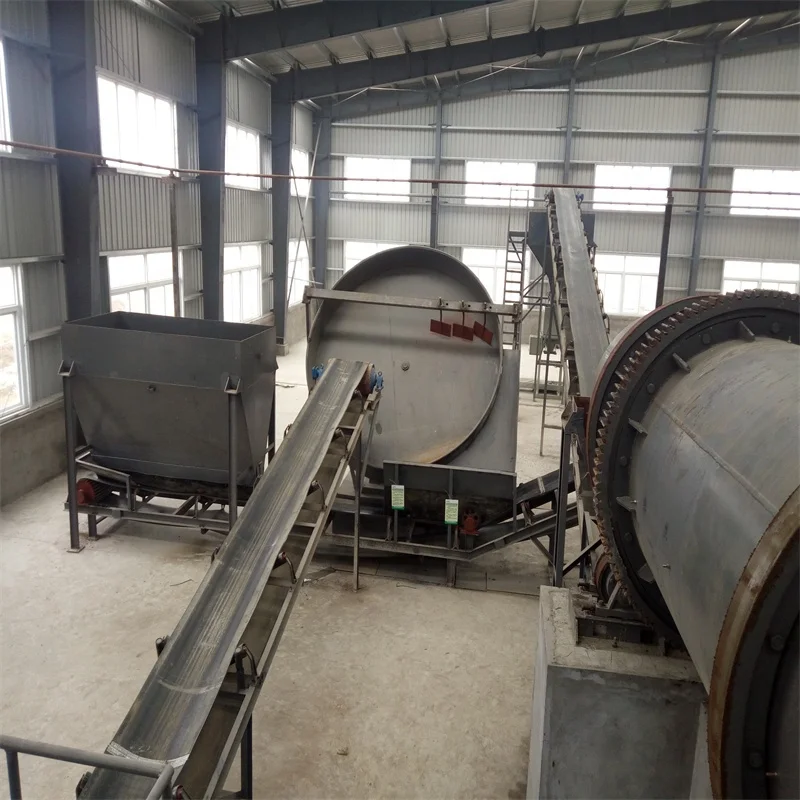

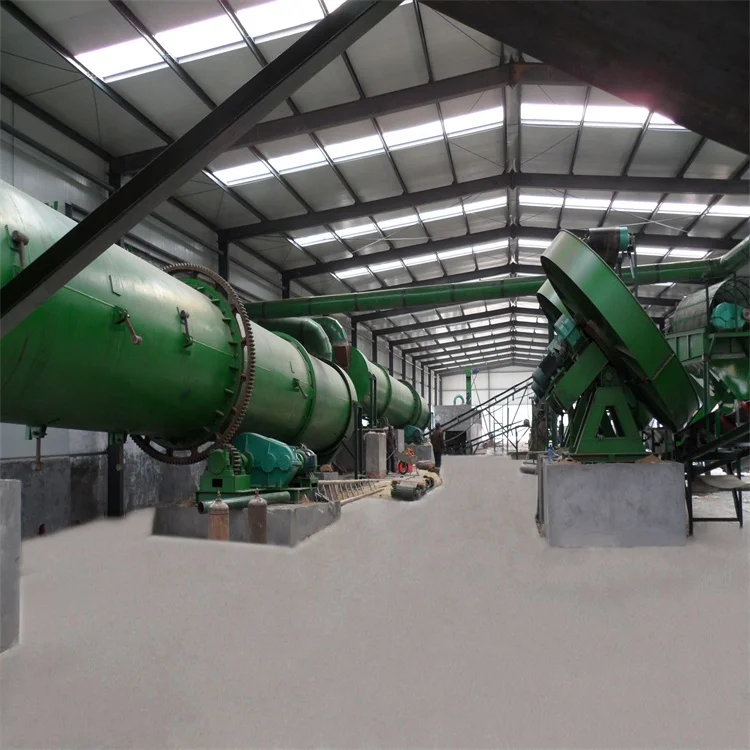

Successful Project
Project in India
Project in Indonesia
Project in Saudi Arabia
SIMILAR PRODUCTS

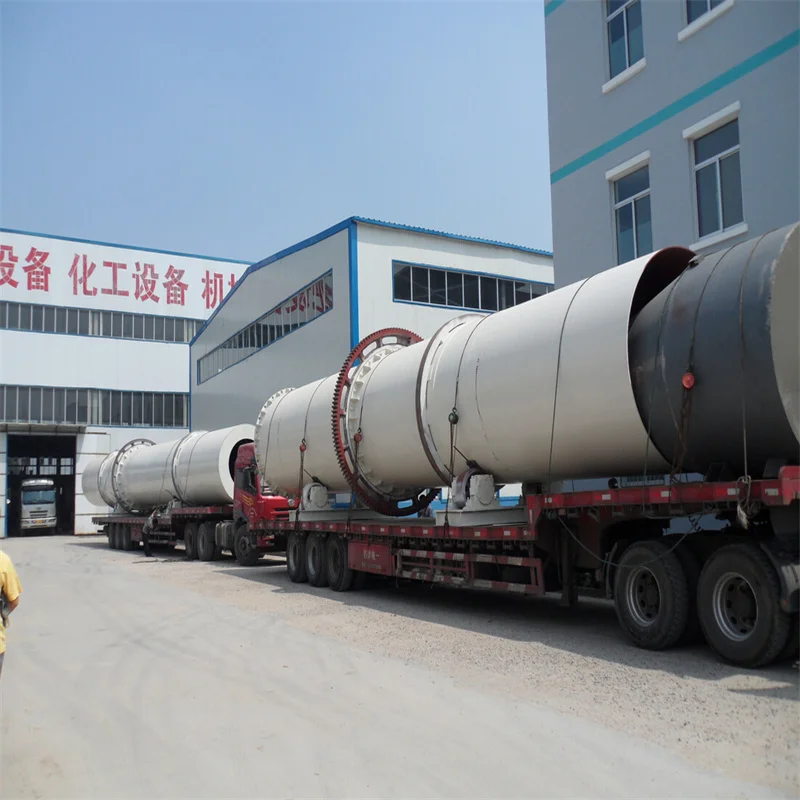

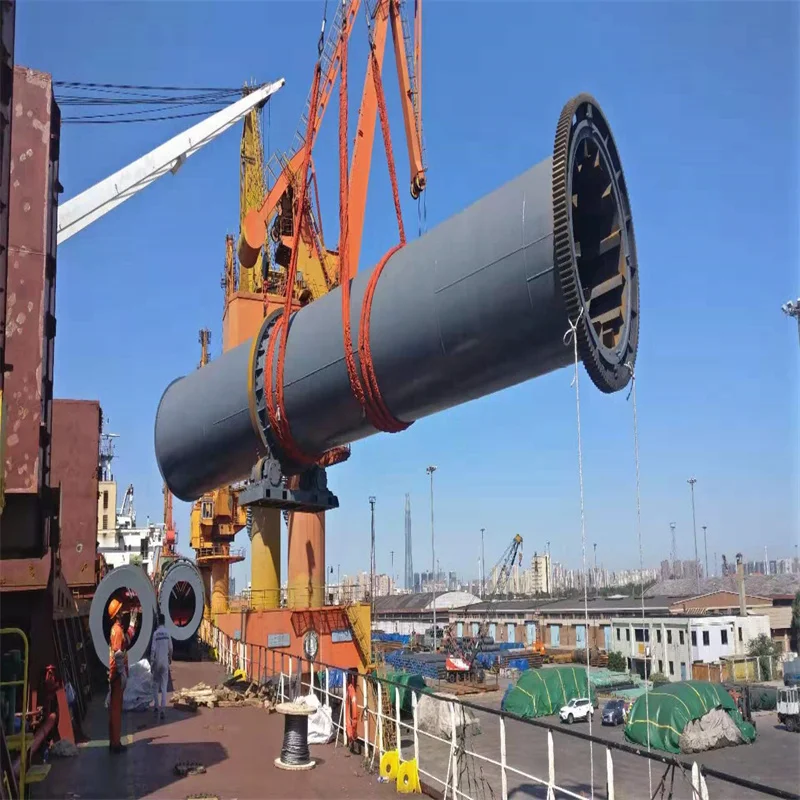

Delivery machines to our clients
FAQ
1. Are you a manufacturer factory?
A: Yes, we are the professional manufacturer of the fertilizer machines for 30 years.
2. Could you provide the installation, commssioning, training or other kinds service?
A: Yes, we could arrange professional engineers to install the machines ,train your workers and test run the complate production
line until your workers handle the operation; in addition ,we can supply the fertilizer fomulars for free.
3.Do you have customers near your factory, then can we visit the running fertilizer machines line?
A:Yes, there are many clients near our factory, we could take you to check the running fertilizer machines line.
4.Do you have experience in exporting, installing and traing the NPK fertilizer machines line in Africa, Southeast Asia, Middle
East, South Asia, central Asia, Central America?
A:Yes, we have rich experience. Our fertilizer machines had exported to Saudi Arabia, India, Indonesia, South Africa, Nigeria, Dominica, Kazakhstan, Spain, Vietnam and other countries.
A: Yes, we are the professional manufacturer of the fertilizer machines for 30 years.
2. Could you provide the installation, commssioning, training or other kinds service?
A: Yes, we could arrange professional engineers to install the machines ,train your workers and test run the complate production
line until your workers handle the operation; in addition ,we can supply the fertilizer fomulars for free.
3.Do you have customers near your factory, then can we visit the running fertilizer machines line?
A:Yes, there are many clients near our factory, we could take you to check the running fertilizer machines line.
4.Do you have experience in exporting, installing and traing the NPK fertilizer machines line in Africa, Southeast Asia, Middle
East, South Asia, central Asia, Central America?
A:Yes, we have rich experience. Our fertilizer machines had exported to Saudi Arabia, India, Indonesia, South Africa, Nigeria, Dominica, Kazakhstan, Spain, Vietnam and other countries.
