Rotary fertilizer drying equipment

Product Overview

Description

Fertilizer dryer equipment



1. Introduction of the Fertilizer dryer equipment:



The fertilizer dryer equipment could not only to dry the compound NPK fertilizer, but also could use to dry the organic fertilizer and other kinds fertilizers.

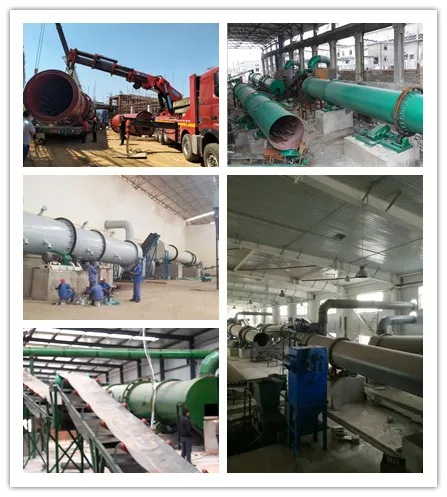

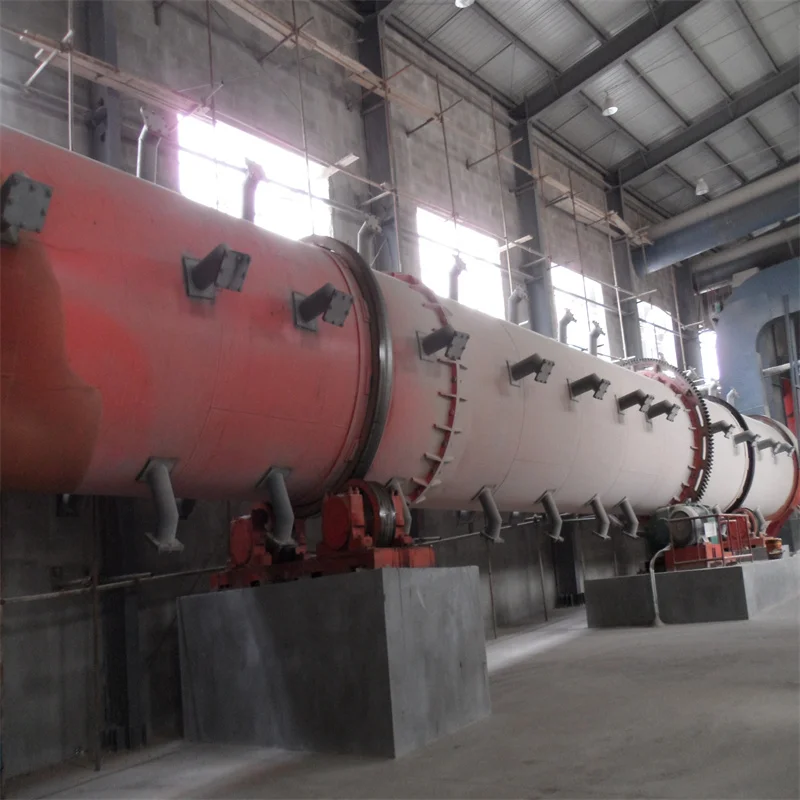

The fertilizer dryer machine is instlled in India for NPK fertilizer equipments line

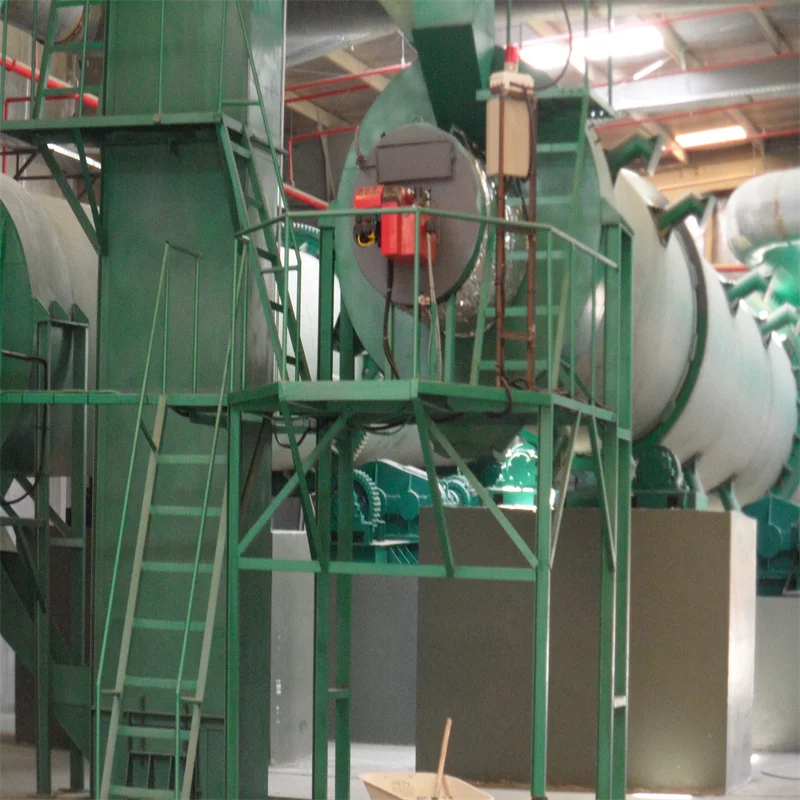

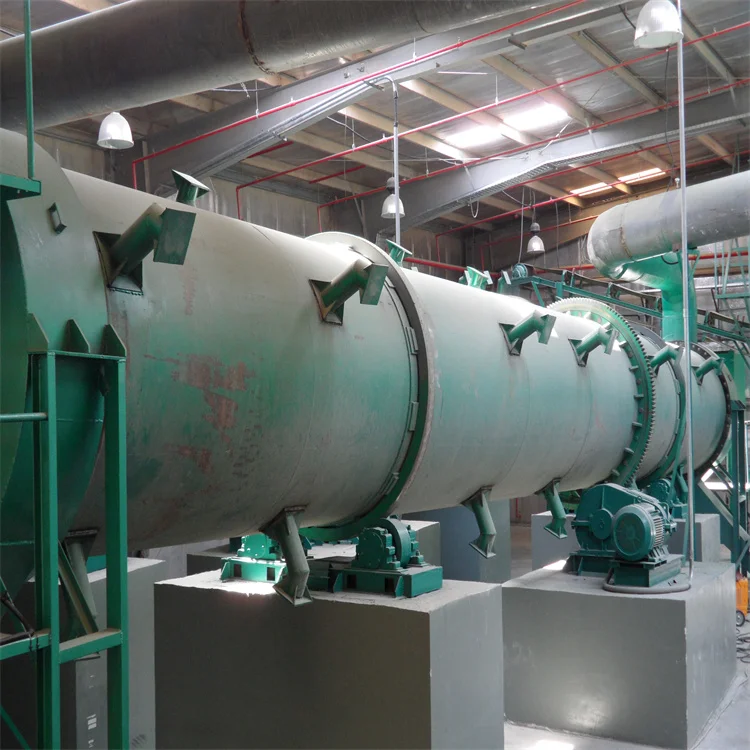

Just installed in Saudi Arabia in 2013





2. Avantages of the fertilizer dryer equipment:





1. The roller of dryer uses assembled structure, it is easy to transport;



2. Added to granulation area, improves the granulation effect, increase the surface finish and strength of particle;

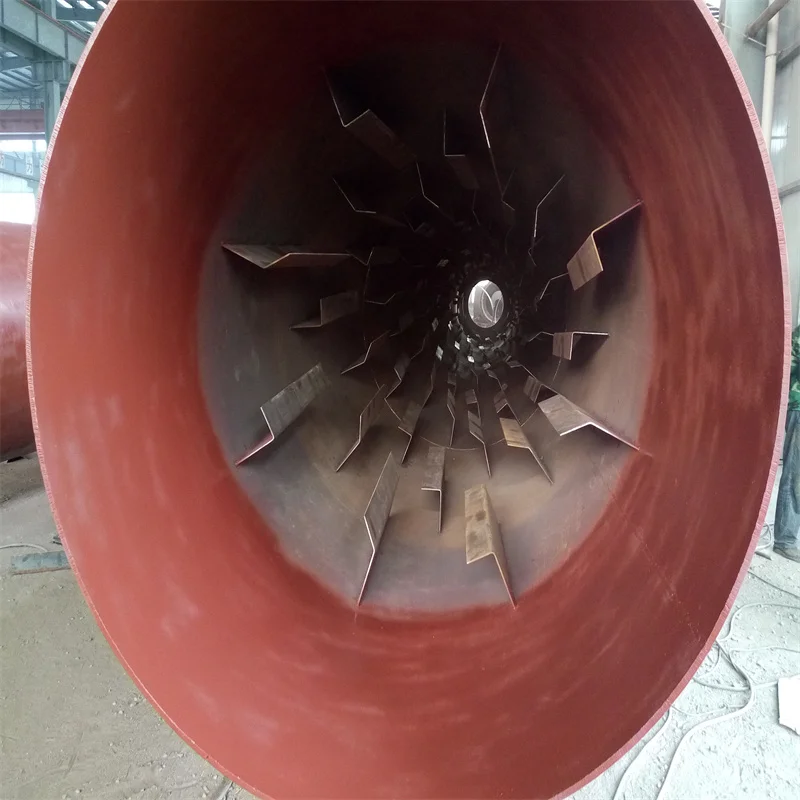

3. The baking plank adopts modular structure, for the fertilizer can be full of the whole cylinder section, so that the heating exchange thoroughly;



4. Set with thermometer, vibration device, sealing devices, improves production efficiency;



5. The structure is simple and maintenance is easy;



6. Operartion is easy and could use for many years.

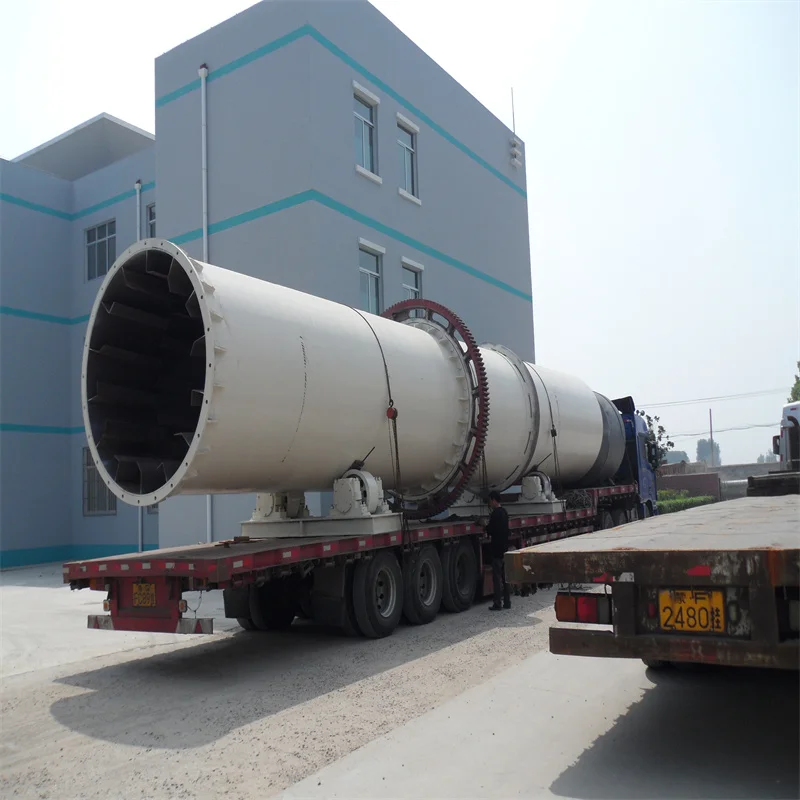

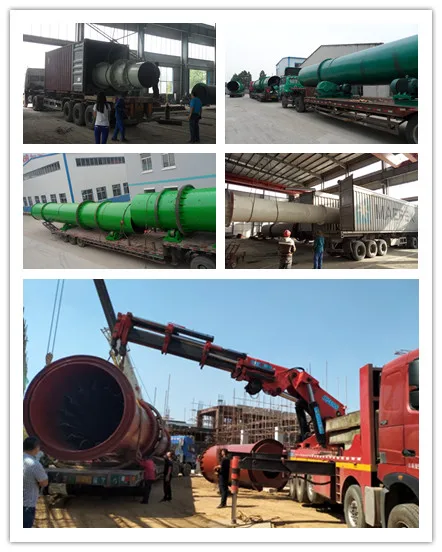

Delivery to India



3. Main technical parameters:





Model	Specification	Productivity (t/h)	Inclination (degree)	Inlet temperature (°C)	Water content of discharge (%)	Revolving speed (r/min)	Power KW (KW)	Weight (t)
HG1212	Φ1.2*12	1--2	2--3	110—300	1--4	5	11	10
HG1515	Φ1.5*15	3--4	2--3	110—300	1--4	4.5	15	16
HG1818	Φ1.8*18	5--7	2--3	110—300	1--4	4	22	25
HG2020	Φ2.0*20	8--10	2--3	110—300	1--4	4	30	28
HG2222	Φ2.2*22	10--14	2--3	110—300	1--4	4	37	45
HG2424	Φ2.4*24	14--16	2--3	110—300	1--4	3.68	55	56
HG2626	Φ2.6*26	16--18	2--3	110—300	1--4	3	75	78
HG2828	Φ2.8*28	18--20	2--3	110—300	1--4	3	90	98
HG3030	Φ3.0*30	20--30	2--3	110—300	1--4	3	132	137
HG3232	Φ3.2*32	30--35	2--3	110—300	1--4	3	150	144

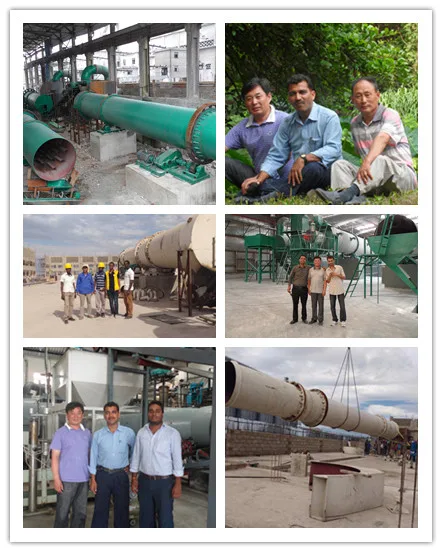

4. Some photoes of our fertilizer equipments and customers:

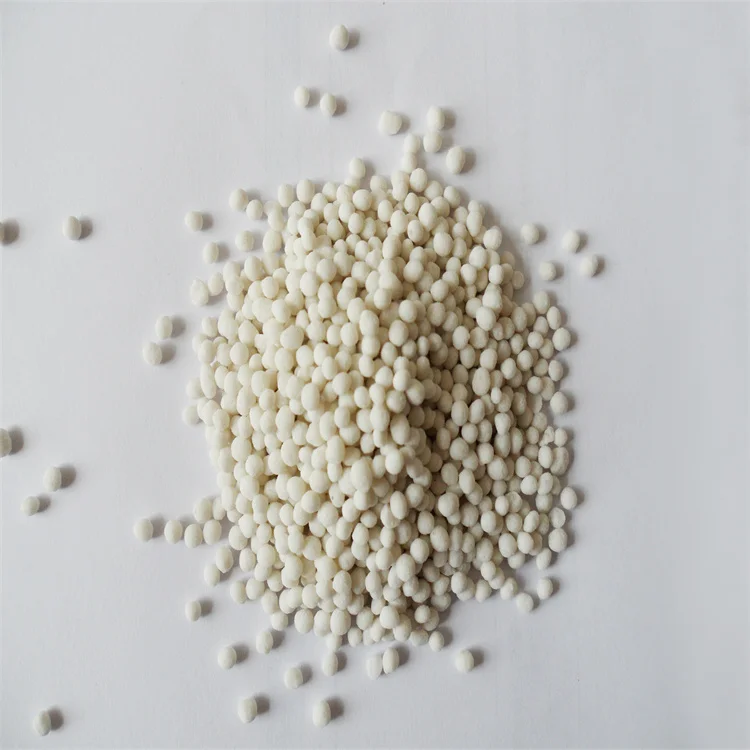

The final NPK fertilizer was produced in Saudi Arabia by our Fertilizer equipments line

The  Ghana customer visited our cooperative fertilizer company in 2012

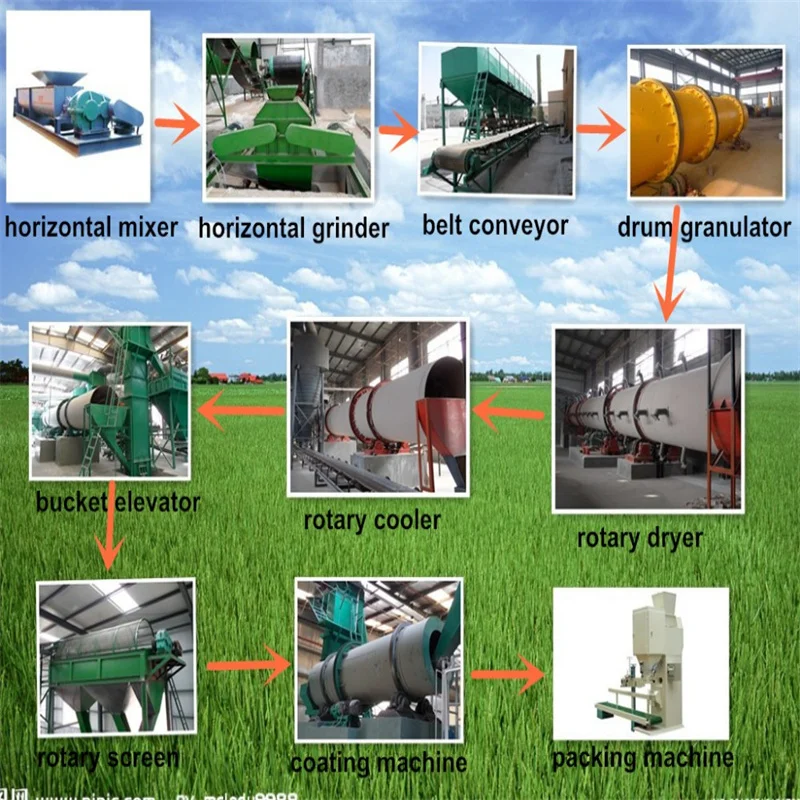

5. The NPK fertilizer equipments process flow chart

6. Introduction of our company:





Shandong  Reascend Machinery Co., LTD is concentrated on compound fertilizer equipment line since1988, especial in the NPK compound ferlizer production line. With the high –quality staff and a CAD design center, we can provide technology Design, production, installation, commissioning, personnel training, after—sales service, etc service for customs. The fertilizer production line could be offered from 10,000-300,000 tons/year.





If you have questions of the fertilizer machines, please tell me, we will try our best to deal with your questions, and of course we will manufacture the fertilizer machines as your needs.
