MH Earth Leakage Relay EL 03 & 10 & 30 Type A Residual Current Device with rated operating residual current from 0.03 to 30A
- Category: Other Electrical Instruments >>>
- Supplier: MUN HEAN SINGAPORE PTE LTD
Share on (11000003915728):
Product Overview
Description
Products Description

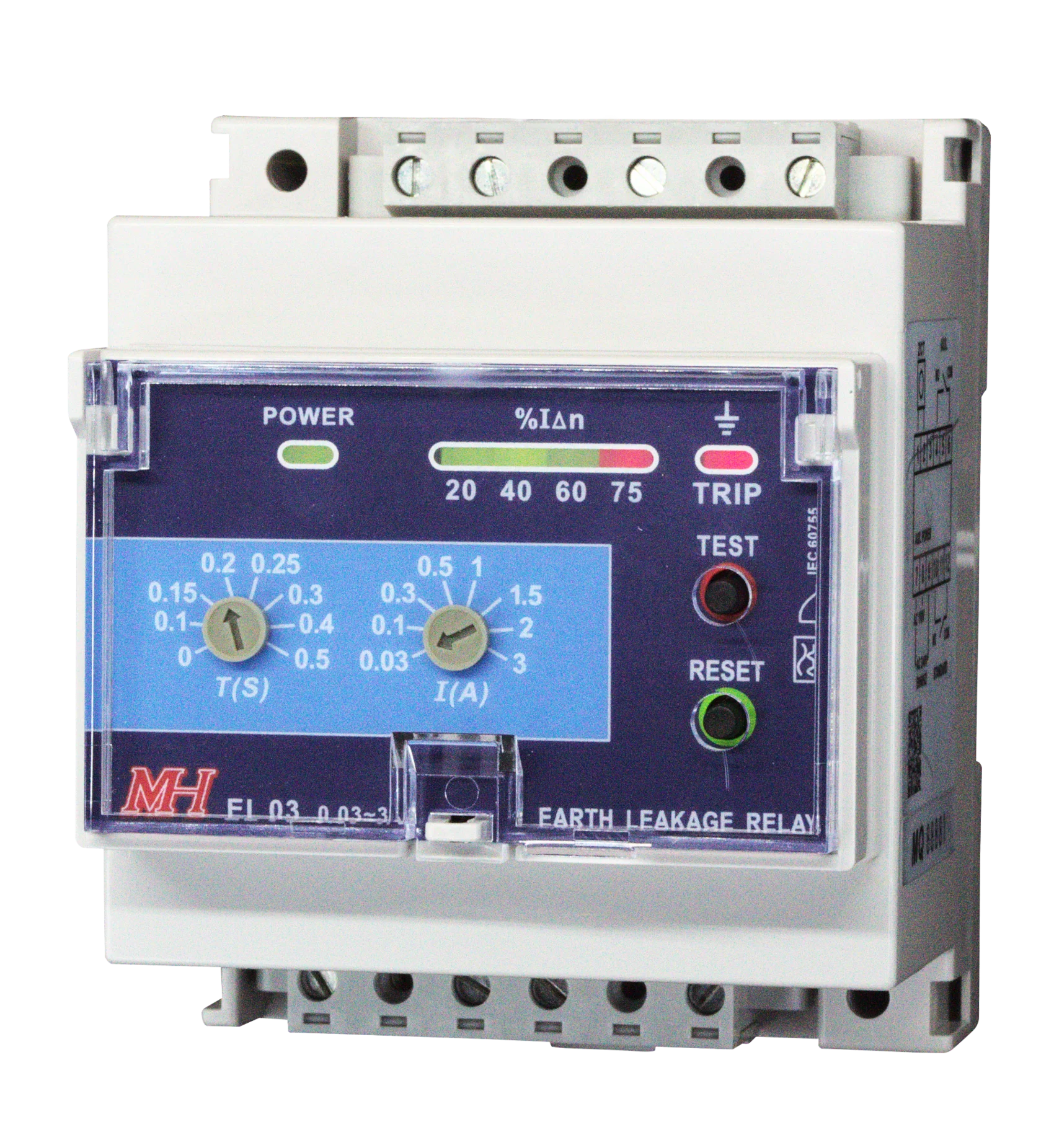

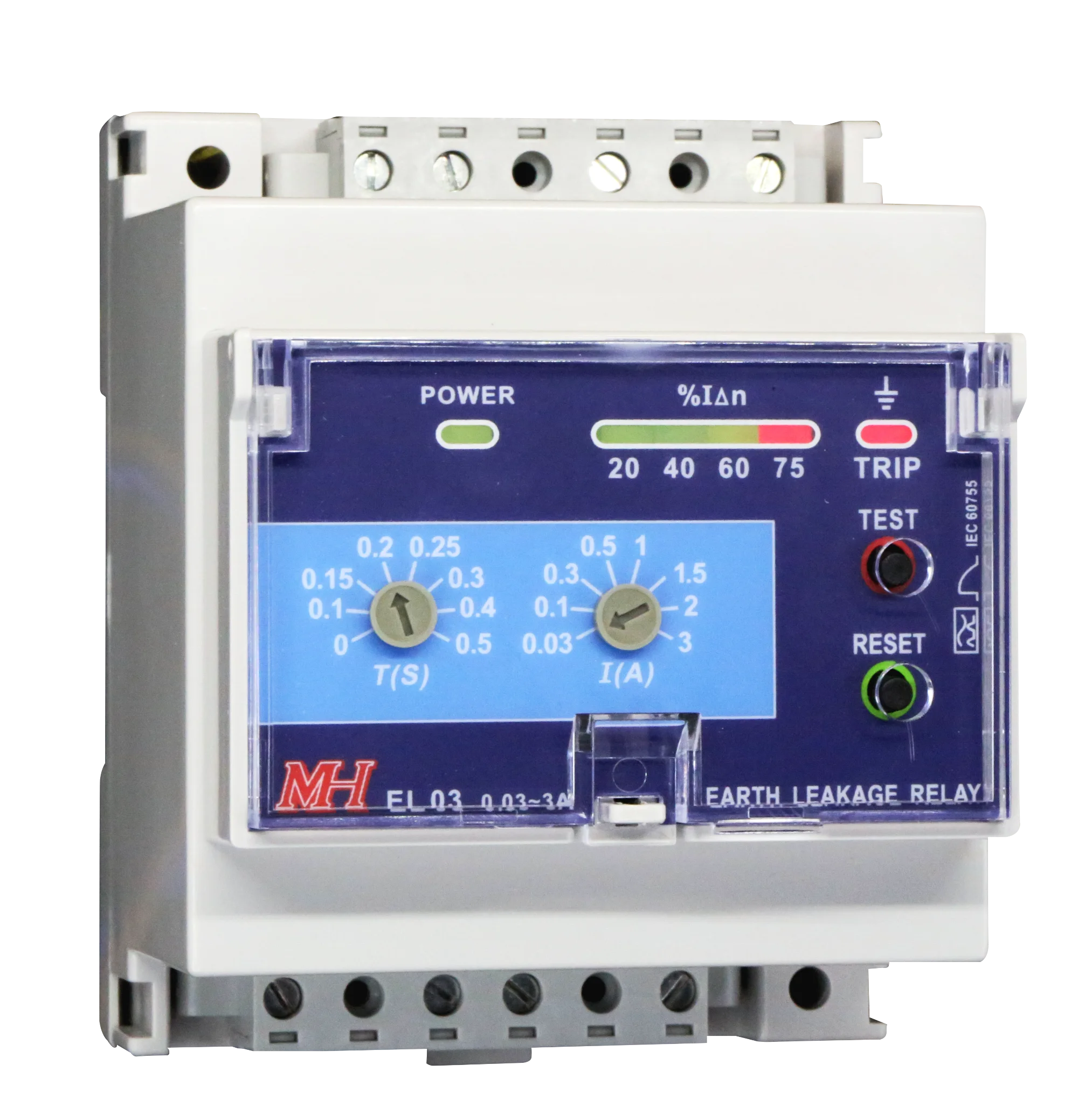

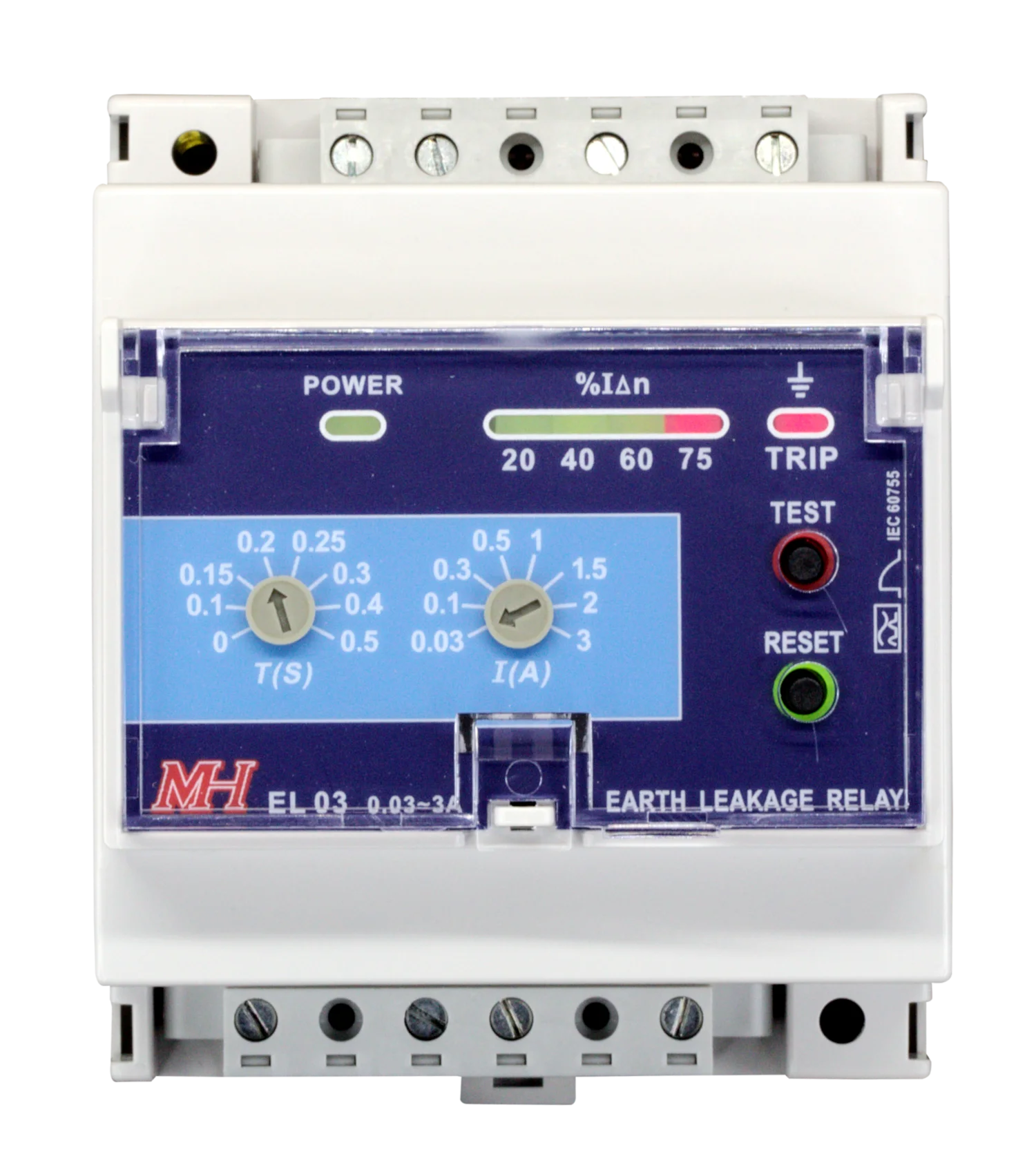

The MH EL Series is an earth leakage relay with DIN rail mounting. It is designed to monitor and protect the low
voltage distribution system through the use of a zero-sequence current transformer. MH EL Series is designed in
accordance with IEC 60755 Type A & AC operation. It provides a real-time monitoring of earth leakage current, alarm for ZCT input error and comes with two output contacts.
voltage distribution system through the use of a zero-sequence current transformer. MH EL Series is designed in
accordance with IEC 60755 Type A & AC operation. It provides a real-time monitoring of earth leakage current, alarm for ZCT input error and comes with two output contacts.
Highlights of EL Series
- Earth Leakage Current protection
- IEC 60755 Type A and AC performance
- Self diagnostic with alarm for ZCT input error
- Simple, compact and user friendly
- Fully type tested by accredited laboratory
- IEC 60755 Type A and AC performance
- Self diagnostic with alarm for ZCT input error
- Simple, compact and user friendly
- Fully type tested by accredited laboratory
Applications
Incoming feeder protection
Outgoing feeder protection
Earth Leakage protection
Product Parameters
Characteristic | EL03 | EL10 | EL30 | ||||
Protection functions | Earth Leakage Protection, Residual Current Monitoring | ||||||
Power Supply | 110/230VAC ±15% (other voltages available on request) | ||||||
Operating frequency | 50 / 60 Hz | ||||||
Power consumption | Approximately 2.5VA | ||||||
Residual operating current setting | 0.03A / 0.1A / 0.3A / 0.5A / 1A / 1.5A / 2A / 3A | 0.1A / 0.3A / 0.5A / 1A / 2A / 3A / 5A / 10A | 0.5A / 1A / 3A / 5A / 10A / 15A / 20A / 30A | ||||
Definite time delay setting | Instantaneous / 0.1s / 0.15s / 0.20s / 0.25s / 0.30s / 0.40s / 0.50s (0 to 5 sec available on request) | ||||||
Operating temperature range | -10 to 55°C | ||||||
Relative humidity | <93%, non-condensing | ||||||
Degree of protection | IP31 (front), IP20 (back) | ||||||
Output | Relay output | 2 x N/O (normally open) | |||||
Contact rating | 5A at 250VAC | ||||||
LED status indication | Normal operation, fault current detected or ZCT input error | ||||||
Housing material | ABS resin complying with UL94V0 | ||||||
Net weight | Approximately 300g | ||||||
Dimensions | 75mm (width) x 90mm (height) x 74mm (depth) | ||||||

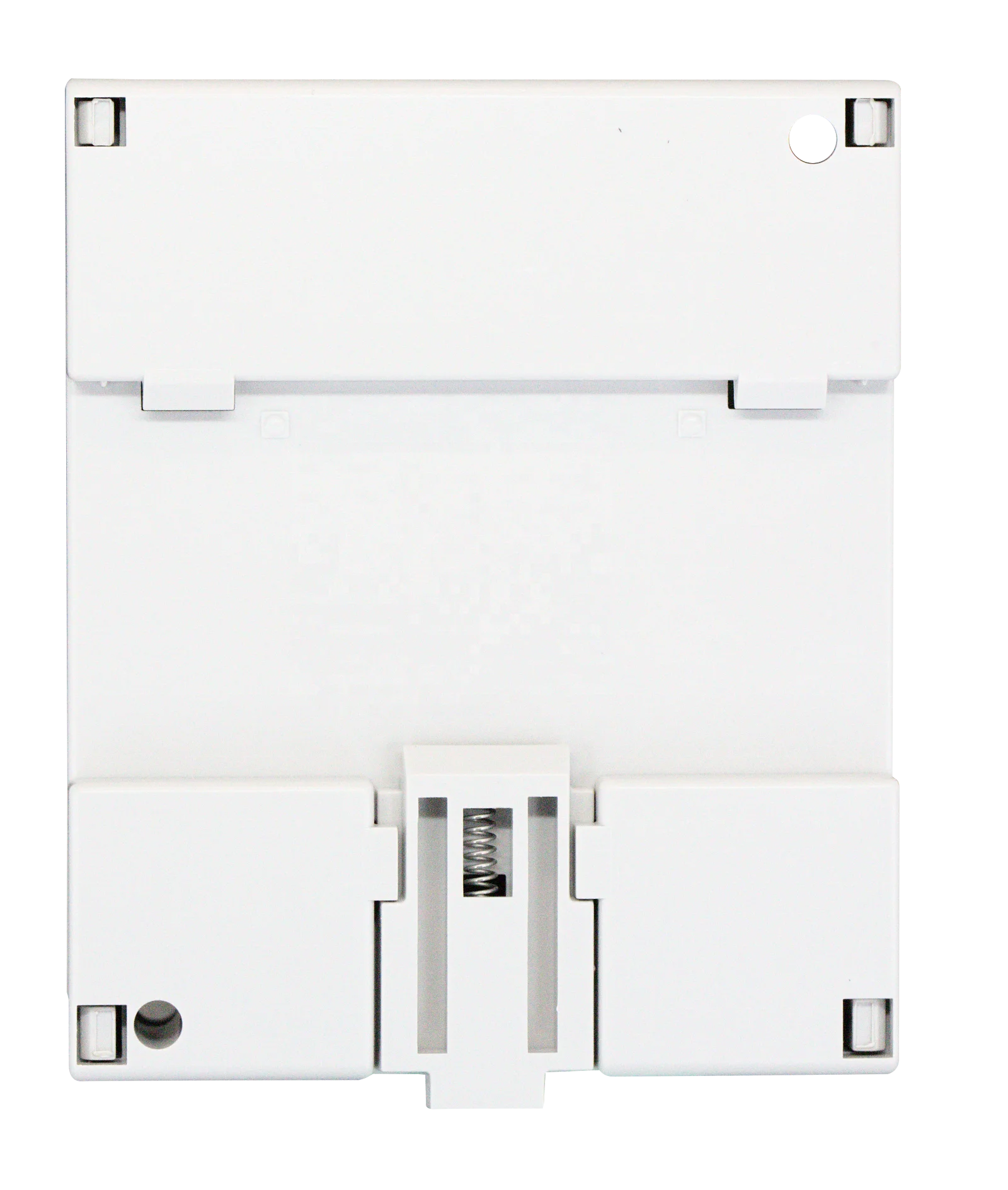

Fixture Type | DIN Rail Mount | ||||||
Standard compliance | IEC60255, CE Marking | ||||||

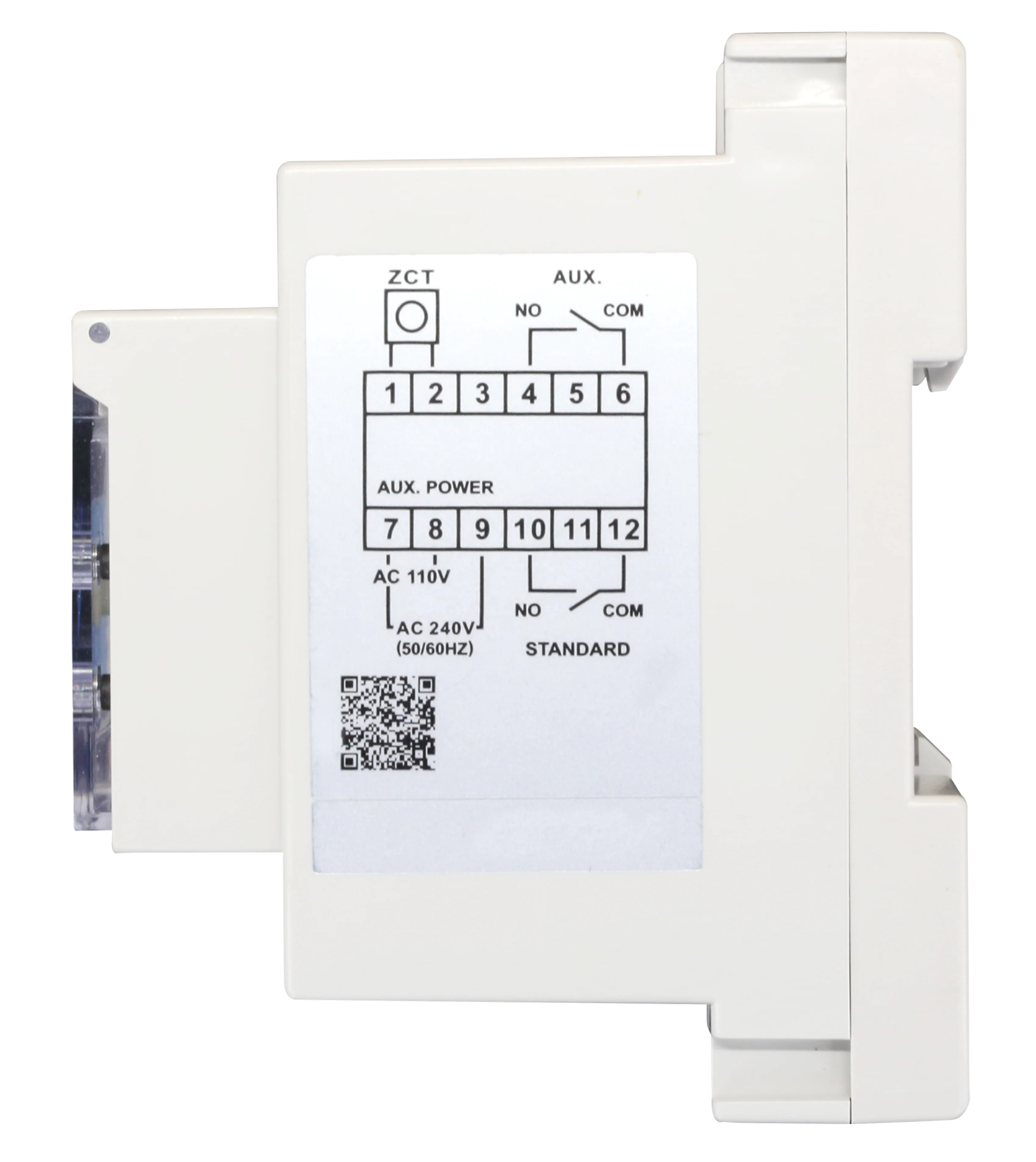

Connection Diagram
3P4W
3P3W
