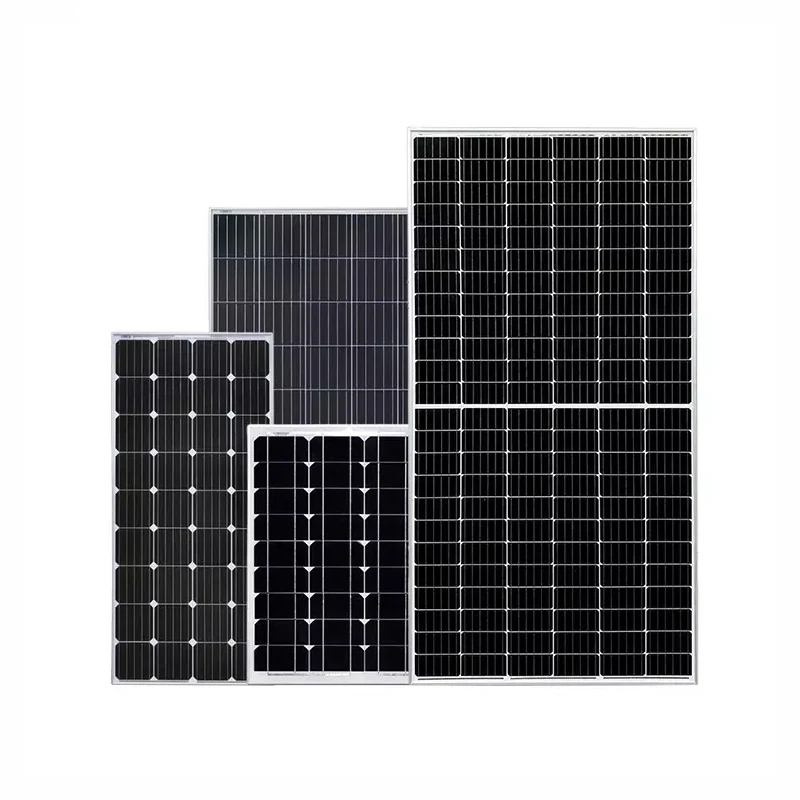

520w 525w 530w 535w 540w 545w 550w monocristaline solar cell solar panel roof micro onduleur solaire
- Category: Solar Energy Products >>>
- Supplier: Anhui Garridon Trade Co. Ltd.
Share on (11000005587714):
Product Overview
Description
Product Paramenters
Quick Details
Place of Origin: Anhui,China
Model Number: JC(520-550)-144M-B
Model Number: JC(520-550)-144M-B
Panel Efficiency: 21.30%
Solar Cells: Monocrystalline
Weight: 29kgkg
Junction Box: IP68,3 Bypass Diodes
No.of Cells： 144(6×24））
Operating Temperature： -40~+85℃
Maximum series fuse rating: 25A
Brand Name: Garridon

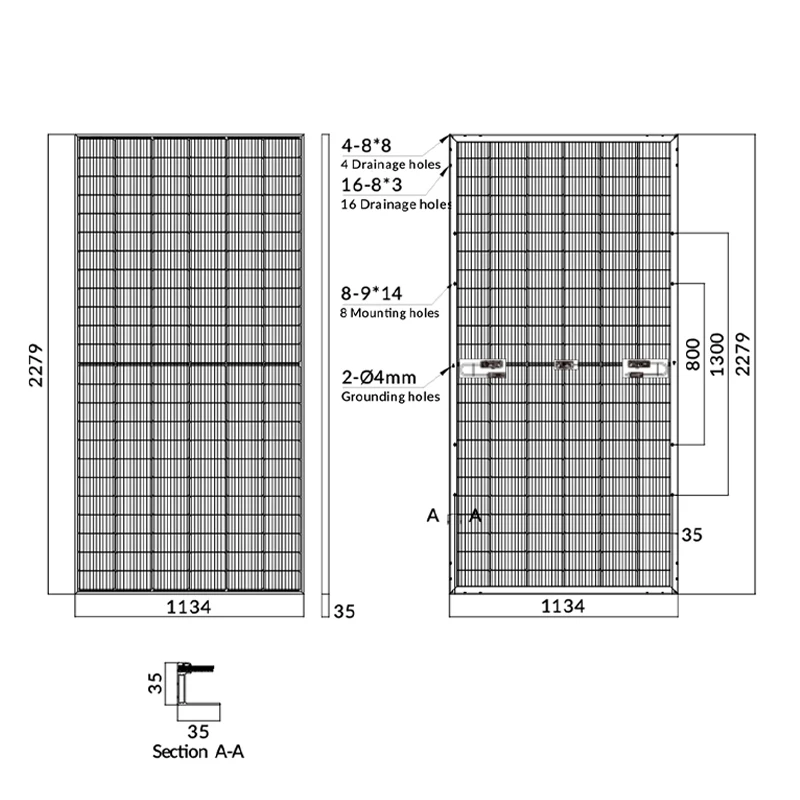

Cell size: 182*91mmPanel Dimensions: 2279*1134*35mm
Glass: 3.2mm High Transmission,
Antireflecting Coating
Antireflecting Coating
Cables: 4.0mm²
Packing： 31pcs/pallet,620pcs/40HQ
Warranty: 12
Application level： Class A
ELECTRICAL CHARACTERISTICS(STC).

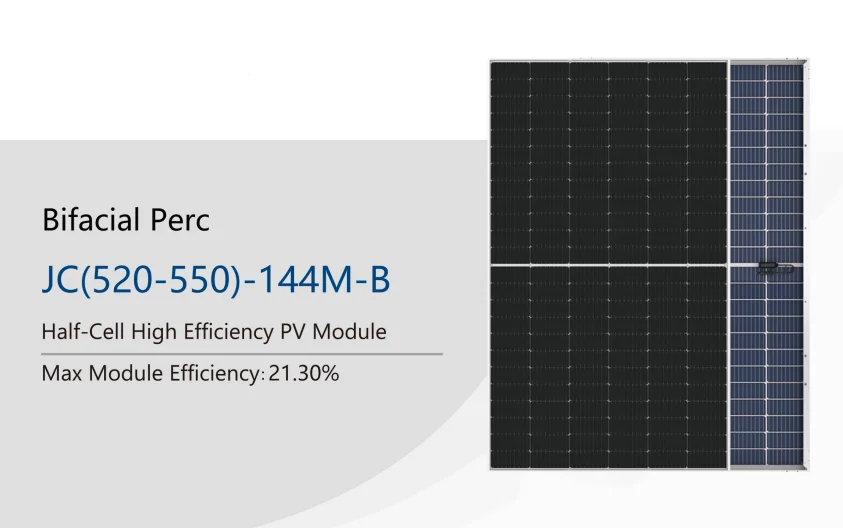

Module | Bifacial Perc JC(520-550)-144M-B | ||||||||||||
Peak Power Watts(Pmax/W) | 520W | 525W | 530W | 535W | 540W | 545W | 550W | ||||||
Open-circuit Voltage (Voc) | 48.90V | 49.05V | 49.20V | 49.35V | 49.50V | 49.65V | 49.80V | ||||||
Maximum Power Voltage (Vmp) | 41.05V | 41.20V | 41.35V | 41.50V | 41.65V | 41.80V | 41.95V | ||||||
Short-circuit Current (lsc) | 13.48A | 13.65A | 13.71A | 13.78A | 13.85A | 13.92A | 13.98A | ||||||
Maximum Power Current (lmp) | 12.68A | 12.75A | 12.82A | 12.90A | 12.97A | 13.09A | 13.12A | ||||||
Moudle Efficiency (%) | 20.10% | 20.30% | 20.50% | 20.70% | 20.90% | 21.10% | 21.30% | ||||||
Power Tolerance | 0~﹢5W | ||||||||||||
ELECTRICAL CHARACTERISTICS(NOCT)
Module | Bifacial Perc JC(520-550)-144M-B | ||||||||||||
Maximum Power(Pmax) | 391W | 397W | 401W | 405W | 408W | 412W | 416W | ||||||
Open-circuit Voltage (Voc) | 45.94V | 46.06V | 46.18V | 46.31V | 46.43V | 46.55V | 46.68V | ||||||
Open-circuit Voltage (Voc) | 38.15V | 38.36V | 38.57V | 38.78V | 38.99V | 39.20V | 39.43V | ||||||
Short-circuit Current (lsc) | 10.93A | 10.97A | 11.01A | 11.05A | 11.09A | 11.13A | 11.17A | ||||||
Maximum Power Current (lmp) | 10.91A | 10.35A | 10.39A | 10.43A | 10.47A | 10.51A | 10.55A | ||||||
