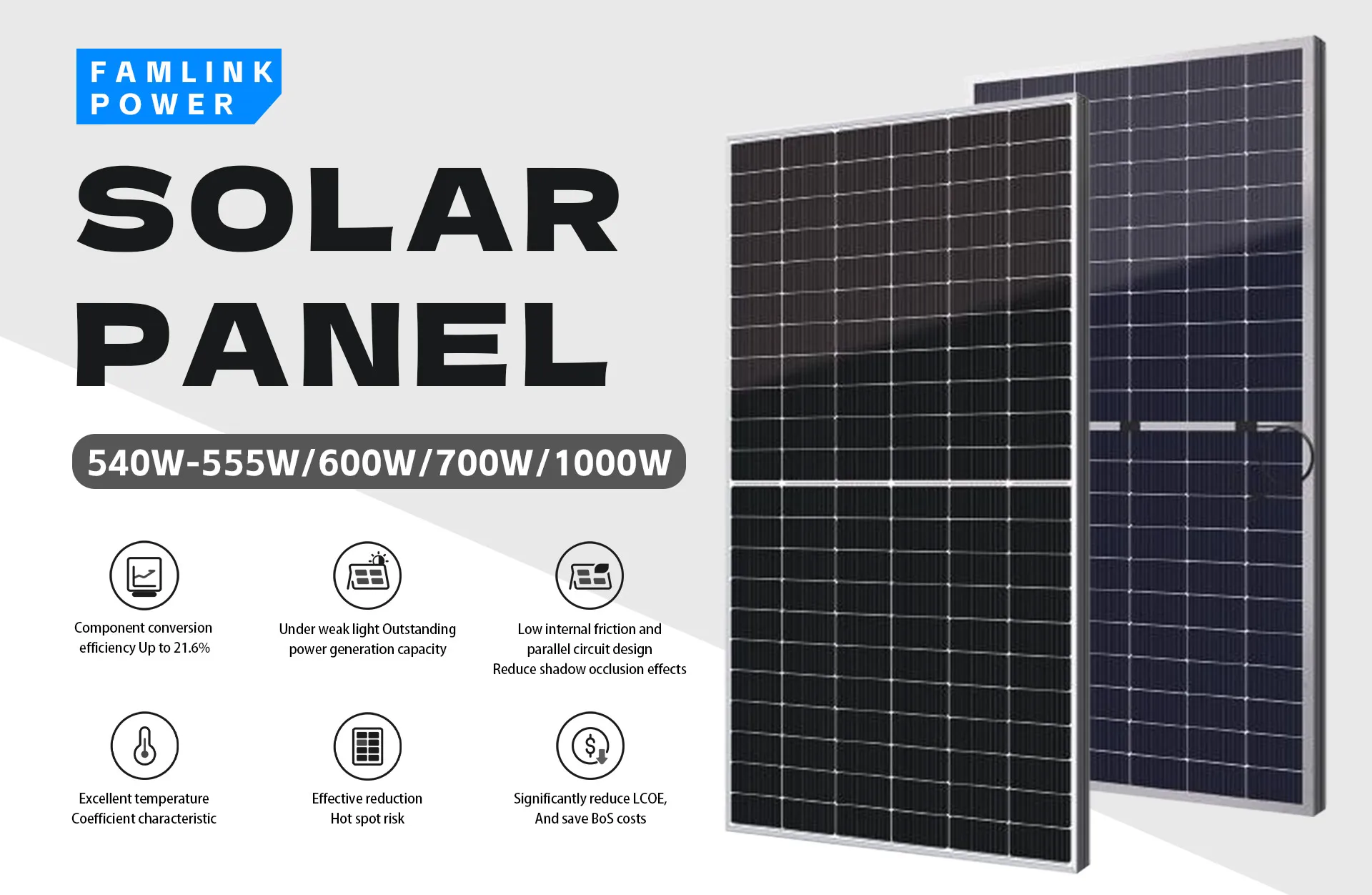

Longi Silicon 182mm 530W 540W 144 Half Cell Solar Panel Cheap Price High Efficiency Bifacial Photovoltaic Panel
- Category: Solar Energy Products >>>
- Supplier: Famlink,(beijing),International,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Longi Silicon 182mm 530W 540W 144 Half Cell Solar Panel Cheap Price High Efficiency Bifacial Photovoltaic Panel
Specification
Module Type | SRP-540-BMA-HV | SRP-550-BMA-HV | |||||
STC | STC | NOCT | STC | NOCT | |||
Maximum Power-Pm(W) | 540 | 406 | 550 | 414 | |||
Open Circuit Voltage-V..(V) | 49.5 | 46.18 | 49.7 | 46.4 | |||
Short Circuit Current-lge(A) | 13.81 | 11.16 | 14 | 11.32 | |||
Maximum Power Voltage-Vm， (V) | 41.55 | 38.39 | 42.05 | 38.58 | |||
Maximum Power Current-Im.(A) | 13 | 10.59 | 13.08 | 10.73 | |||
Module Eff ciency STC-nm(%) | 20.9 | 21.29 | |||||
Power Tolerance(W) | (0, +4.99W) | ||||||
Maximum System Voltage | 1500V DC | ||||||
Maximum Series Fuse Rating | 25 A | ||||||
External Dimension | 2278x1134x35 mm | ||||||
Weight | 27.0 kg | ||||||

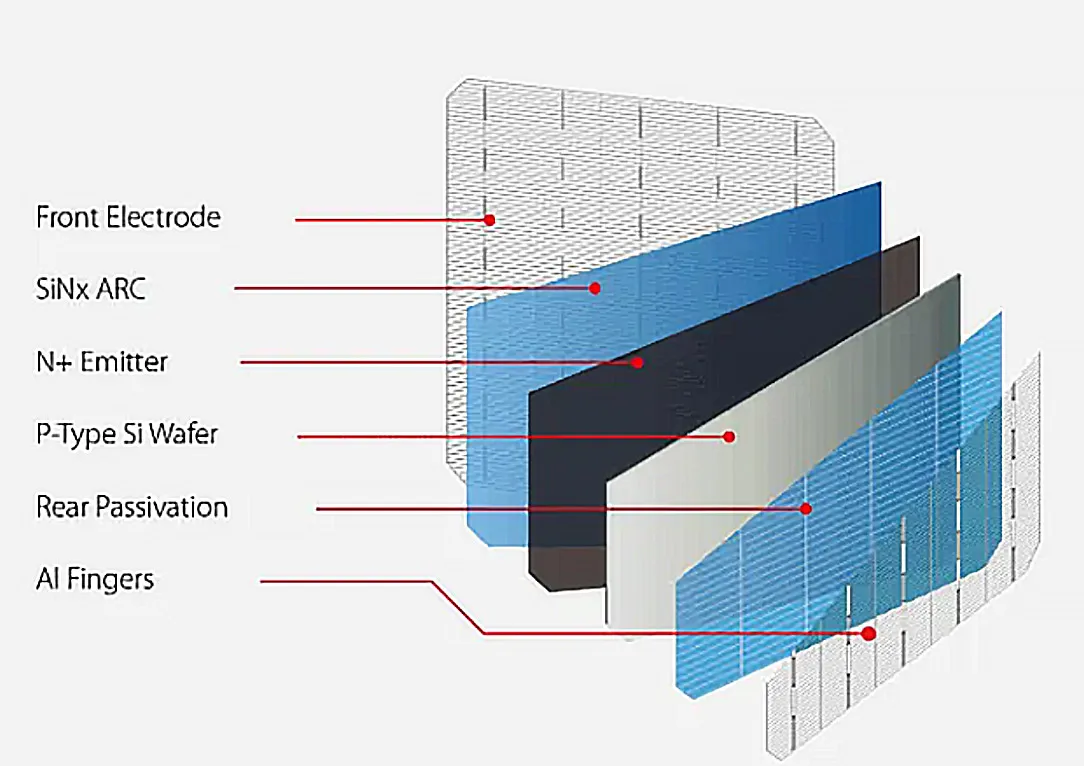

Solar Cells | PERC Mono (144pcs) | ||||||

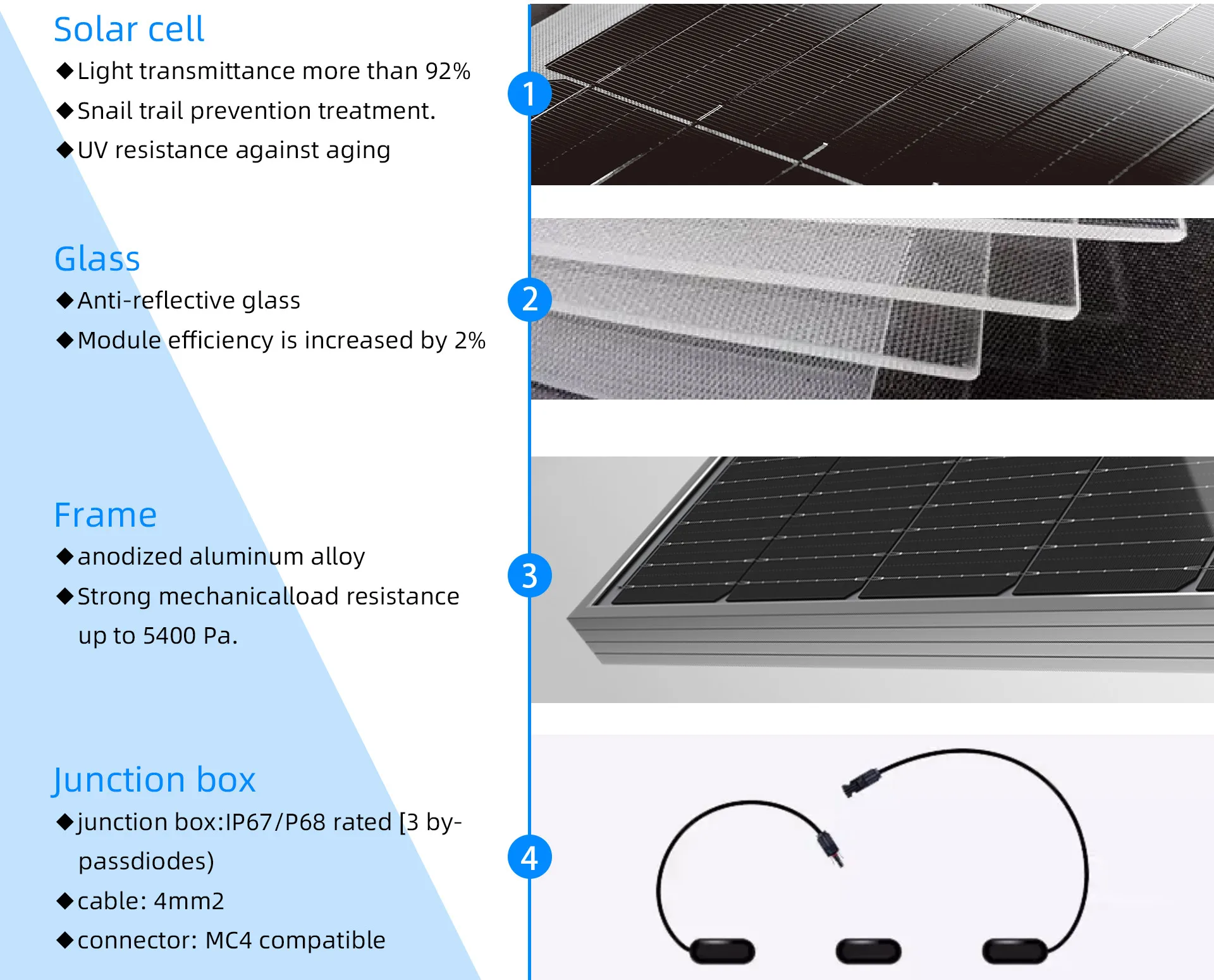

Front/Back Glass | 3.2mm AR coating tempered glass, low iron | ||||||
Frame | Anodized aluminium alloy | ||||||
Junction Box | IP68, 3 diodes | ||||||
Output Cables | 4.0mm2, 250mm(+)/350mm(-) or Customized Length | ||||||
Mechanical Load | Front side 5400Pa/ Rear side 2400Pa | ||||||
FAQ
Q1:Do you have MOQ ?
A: No limited. More quantity has better price, we will check the best price for you.
Q2:Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3:How does your factory conduct quality control?
A:Quality first. We have a professional QC team to strictly control the quality. Only when the quality meets the requirements, will it be packaged out of the factory.
Q4:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
