YDWS 300 500 кг/ч, хорошее качество, нержавеющая сталь, без пыли, булавка, порошковая мельница, измельчитель, машина для измельчения
- Category: Chemical Machinery & Equipment >>>
- Supplier: Jiangyin Yinda Machinery Co. Ltd.
Share on (11000005689479):
Product Overview
Description
Welcome to visit Yinda Machinery Factory!
Why Choose Us:
1. Your Expert Powder Handling Systems Manufacturer for 15 years
2. 2 Years Warranty, Factory Price, Own R&D Team
3. GMP Validation Certification: IQ, OQ, PQ and FAT
4. Provide alibaba quality and delivery guarantee services.
5. Offsite&onsite quality control and quality assurance services
1. Your Expert Powder Handling Systems Manufacturer for 15 years
2. 2 Years Warranty, Factory Price, Own R&D Team
3. GMP Validation Certification: IQ, OQ, PQ and FAT
4. Provide alibaba quality and delivery guarantee services.
5. Offsite&onsite quality control and quality assurance services

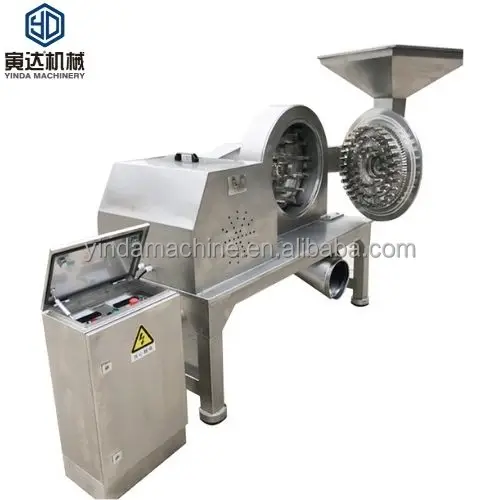

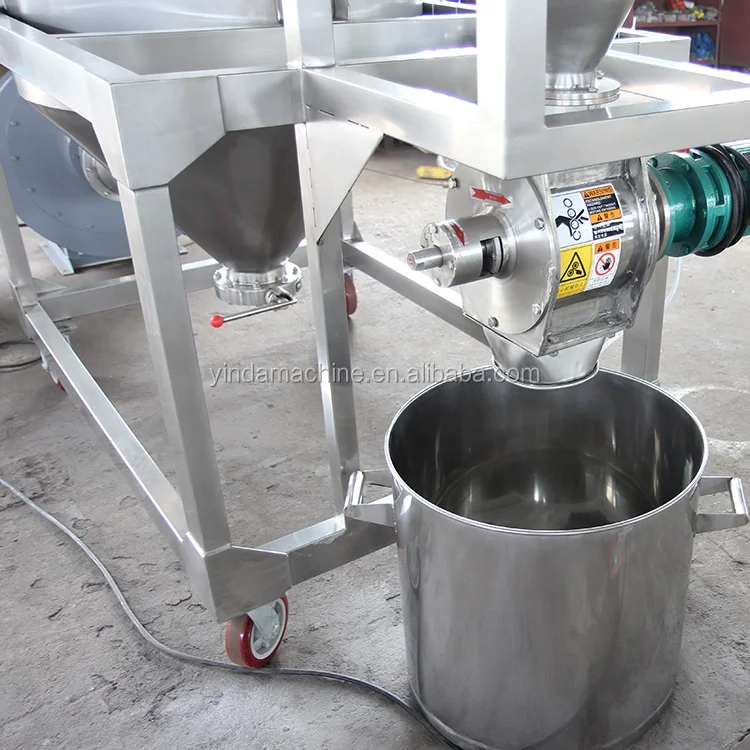

YDWS-40 good quality stainless steel dust-free pin mill powder making grinding pulverizer machine
Product Description
Benefits of Pin mill:
1-Changeable filter screen to help regulate a specific final powder size, and the sieve is easy to take down so as to clean easily.
2-interchangeable grinding rotor,this equipment has wide production adaptability
3-Designed according to GMP standard and wholly made of stainless steel.
4-With high speed rotation of knives,materials are crushed by the impact and cut force.
5-the product fineness is achieved by adjusting the speed of the needle disc

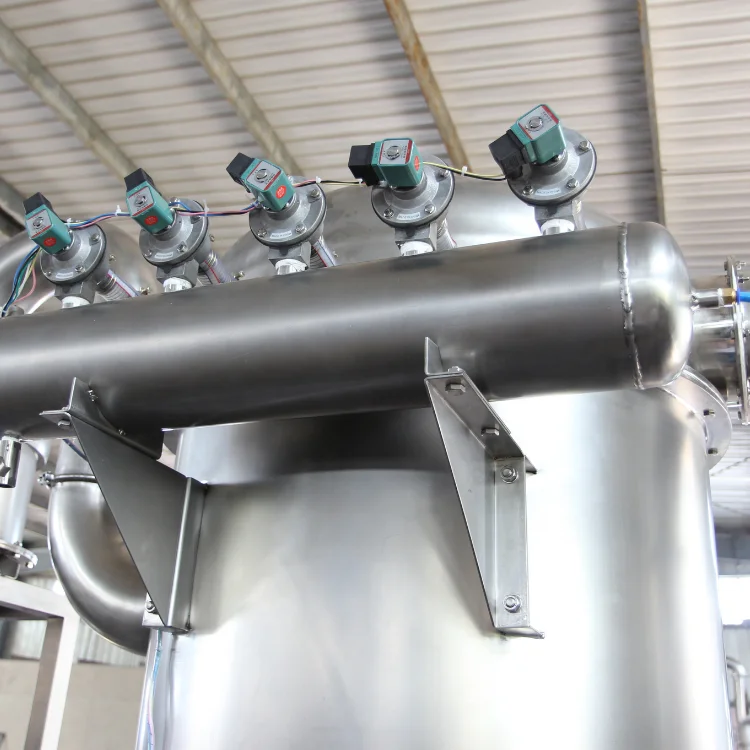

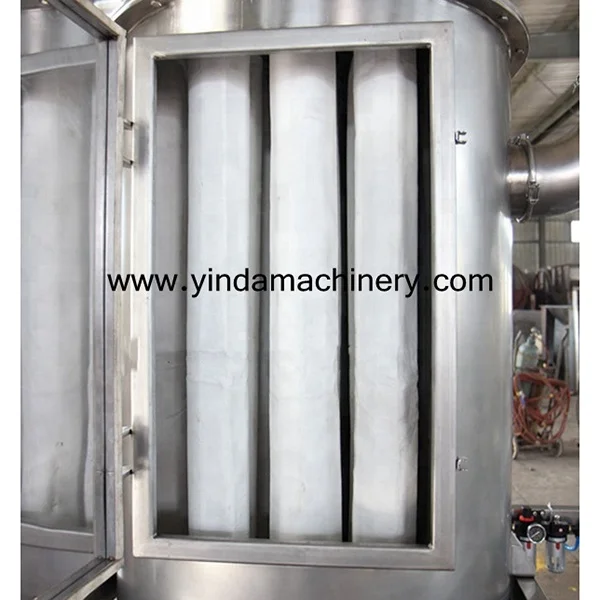

High efficiency bag filter with automatic pulse dust separation
Rotary discharge valve for air sealing and discharge from bag filters

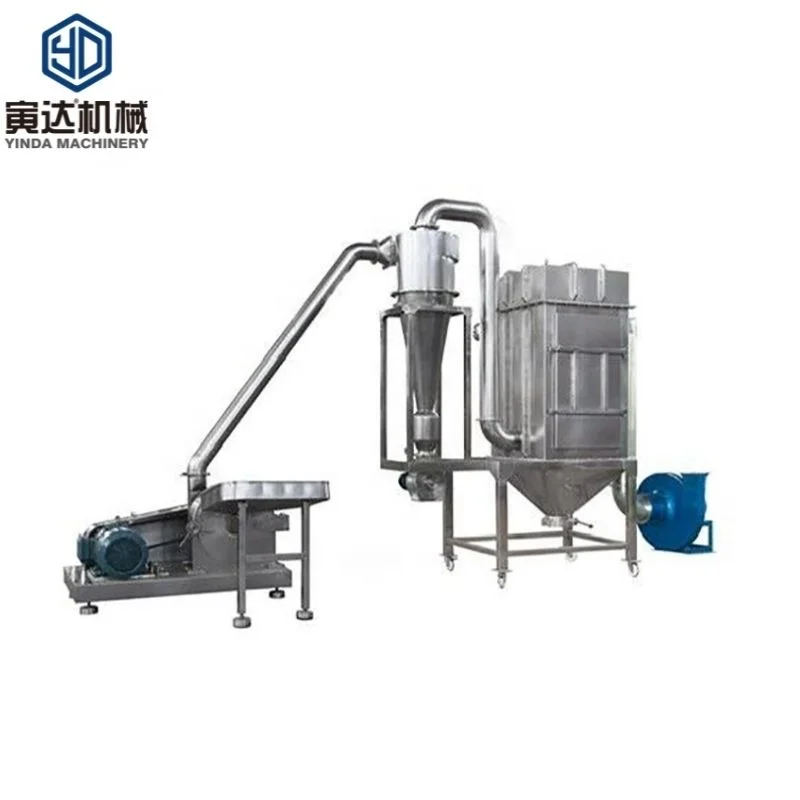

YDWS series stainless steel dust-free pin mill powder making grinding pulverizer machine is commonly made of stainless steel SUS 304 with polishing treatment.
It is a multi-functional grinder, and is also widely known as pin mill, impact mill and powder grinding machine, which is extensively used in pharmaceutical, chemical, food and pesticide industries for pulverizing dry brittle materials.
With high speed rotation of knives,materials are crushed by the impact and cut force, the materials are pulverized into powder and then discharged through sieve mesh.
The fineness of powder can be controlled by changing sieve mesh in different aperture.
Model | YDWS-30 | YDWS-40 | YDWS-60 | YDWS-80 | YDWS-100 | YDWS-1200 | |||||
Capacity(kg/hr) | 100-300 | 200-400 | 400-600 | 500-800 | 600-1200 | 800-1500 | |||||
Input Size | 10-15 MM | ||||||||||
Output Size | 20-120 Mesh | ||||||||||
Speed of Principal Axis(r/min) | 4500 | 3800 | 2600 | 2000 | 1600 | 1400 | |||||
Motor(kw) | 9.25 | 12.25 | 25.5 | 52.15 | 68.5 | 83.5 | |||||
Machine Size(mm) | 1300*700*1650 | 1350*700*1920 | 1500*750*2000 | 2200*980*2000 | 2200*1100*2340 | 2000*1300*1700 | |||||
Weight(kgs) | 980 | 1150 | 1450 | 1780 | 1890 | 2100 | |||||
Packing & Delivery

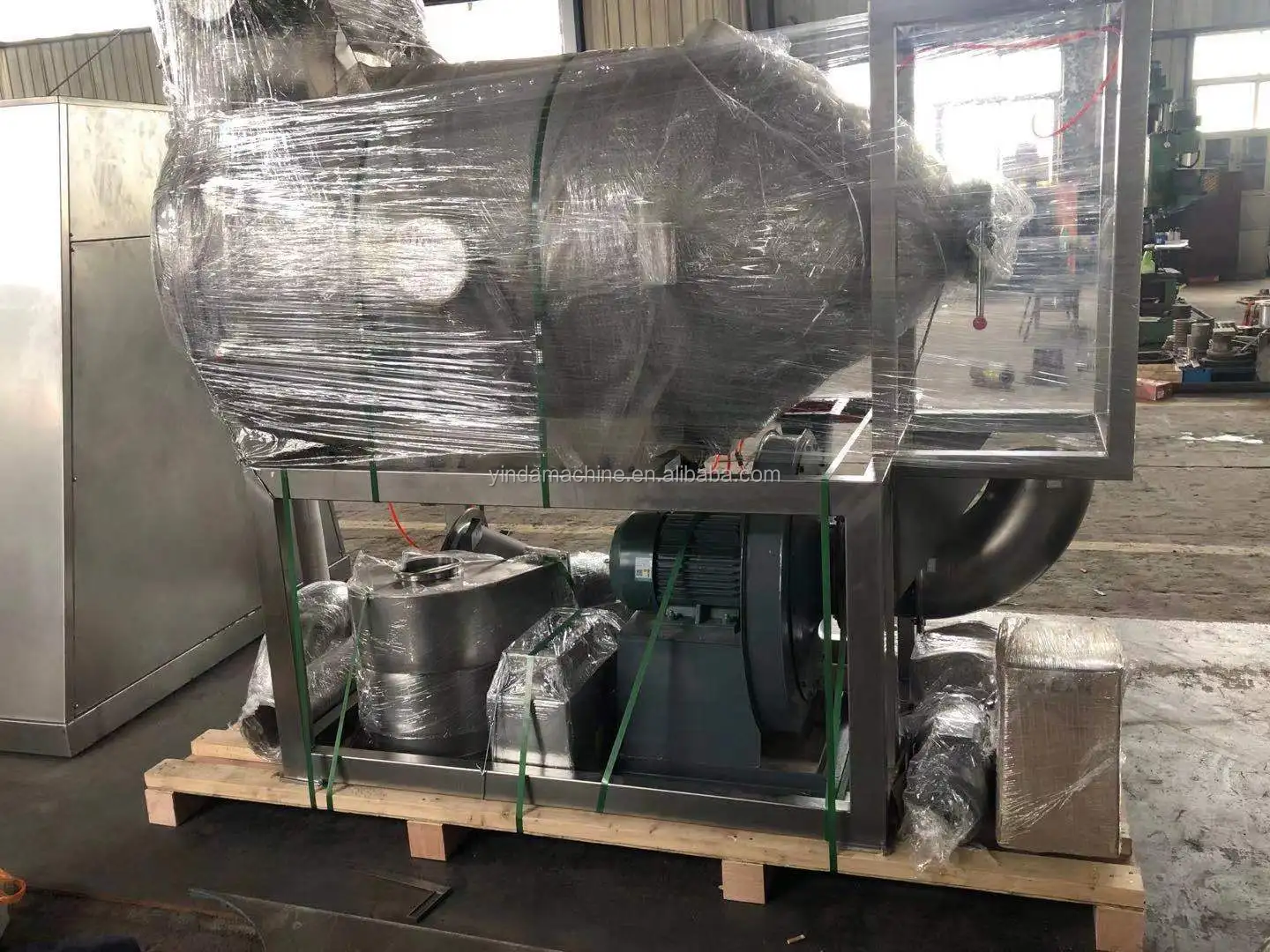

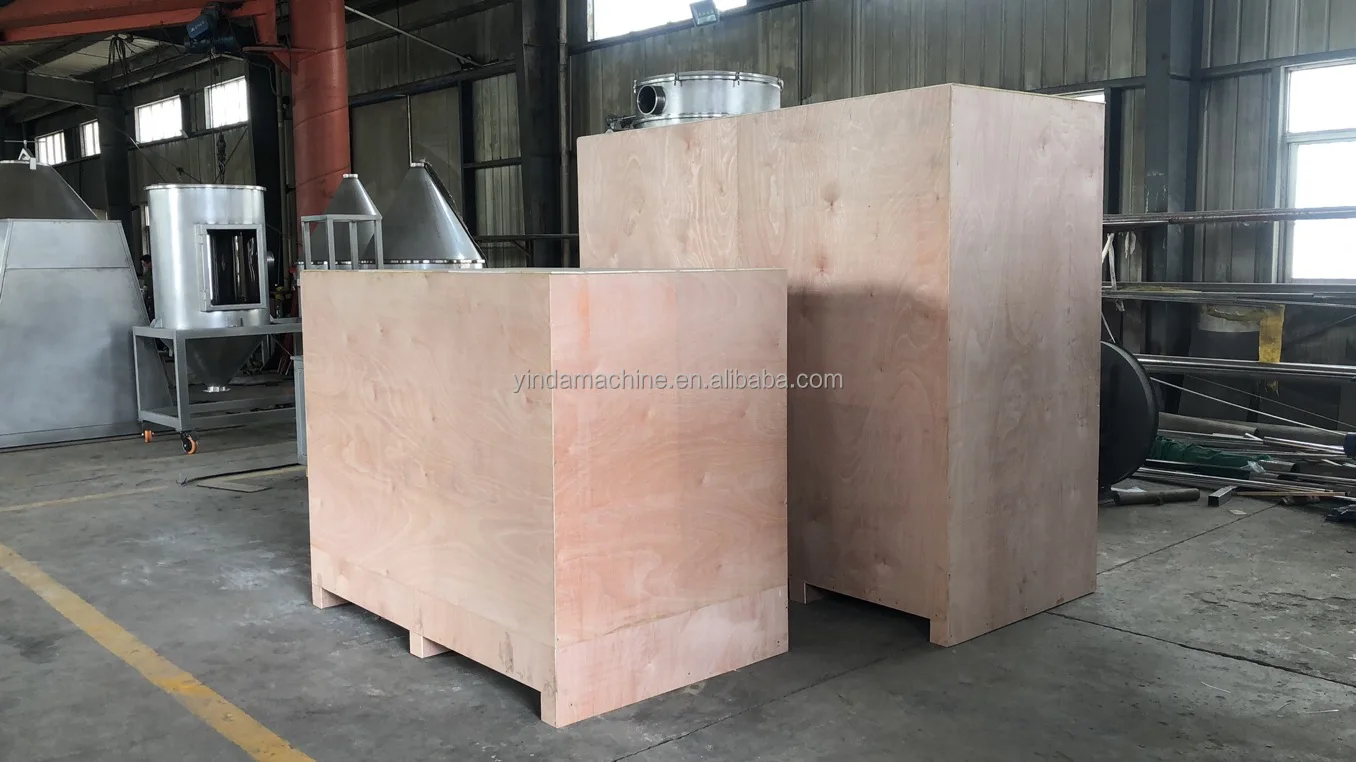

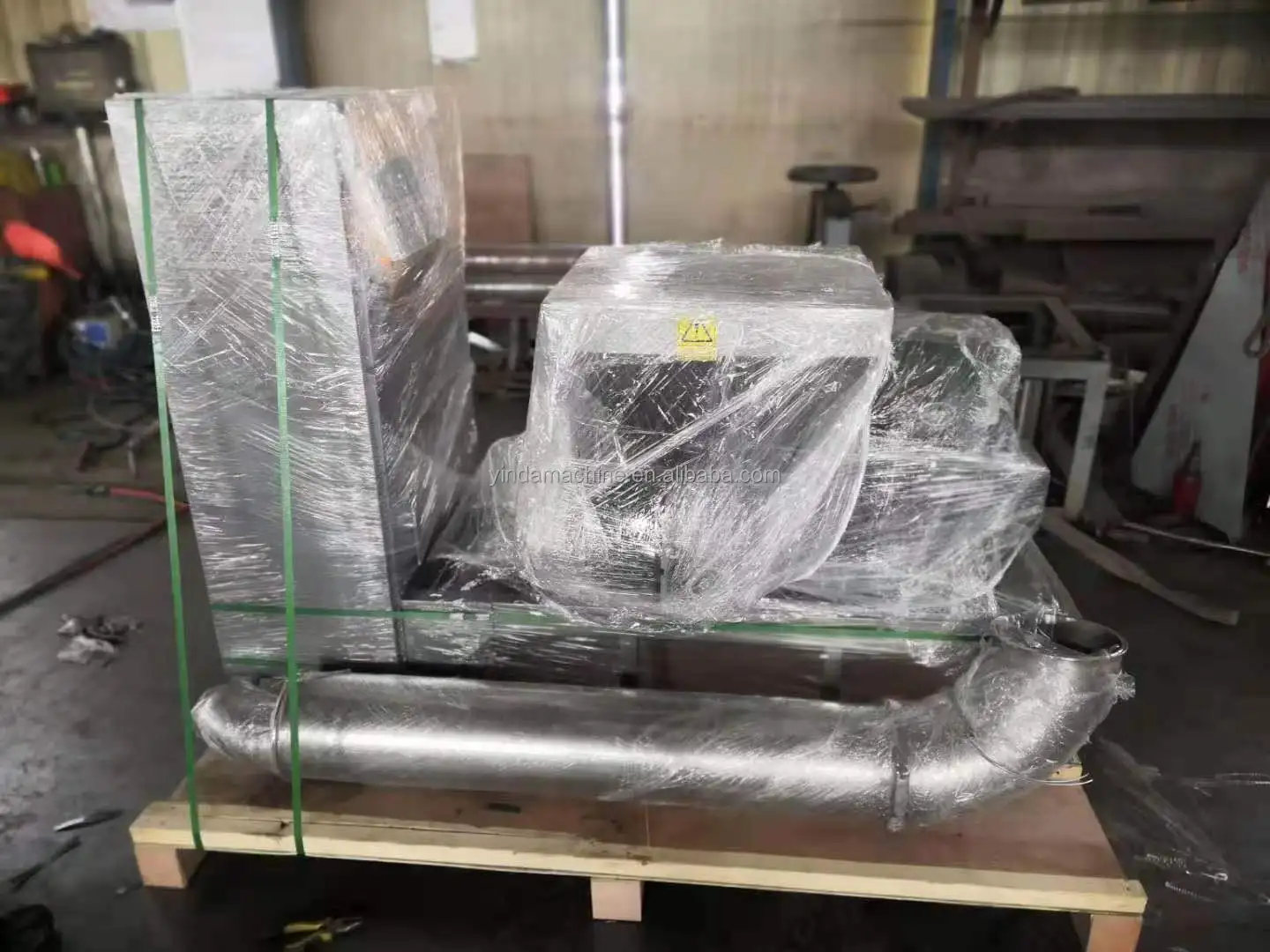

yinda Machines are wrapped with plastic film for inner protection, standard wood packaging for exporting.
Company Profile
YDWS-40 good quality stainless steel dust-free pin mill powder making grinding pulverizer machine

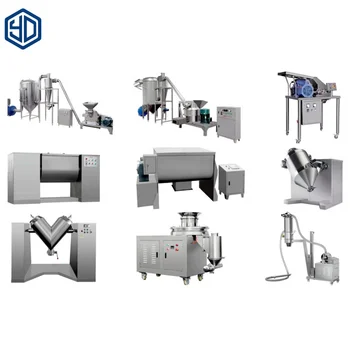

Yinda machinery provide the foodstuff industry with high performance machines and solutions for global user in overall powder processing such like powder grinding machine, blender, vibration screen, packing machine and one-stop production line.
All yinda machine designs are in compliance with all of the associated industry requirements of GMP specifications.
Certifications

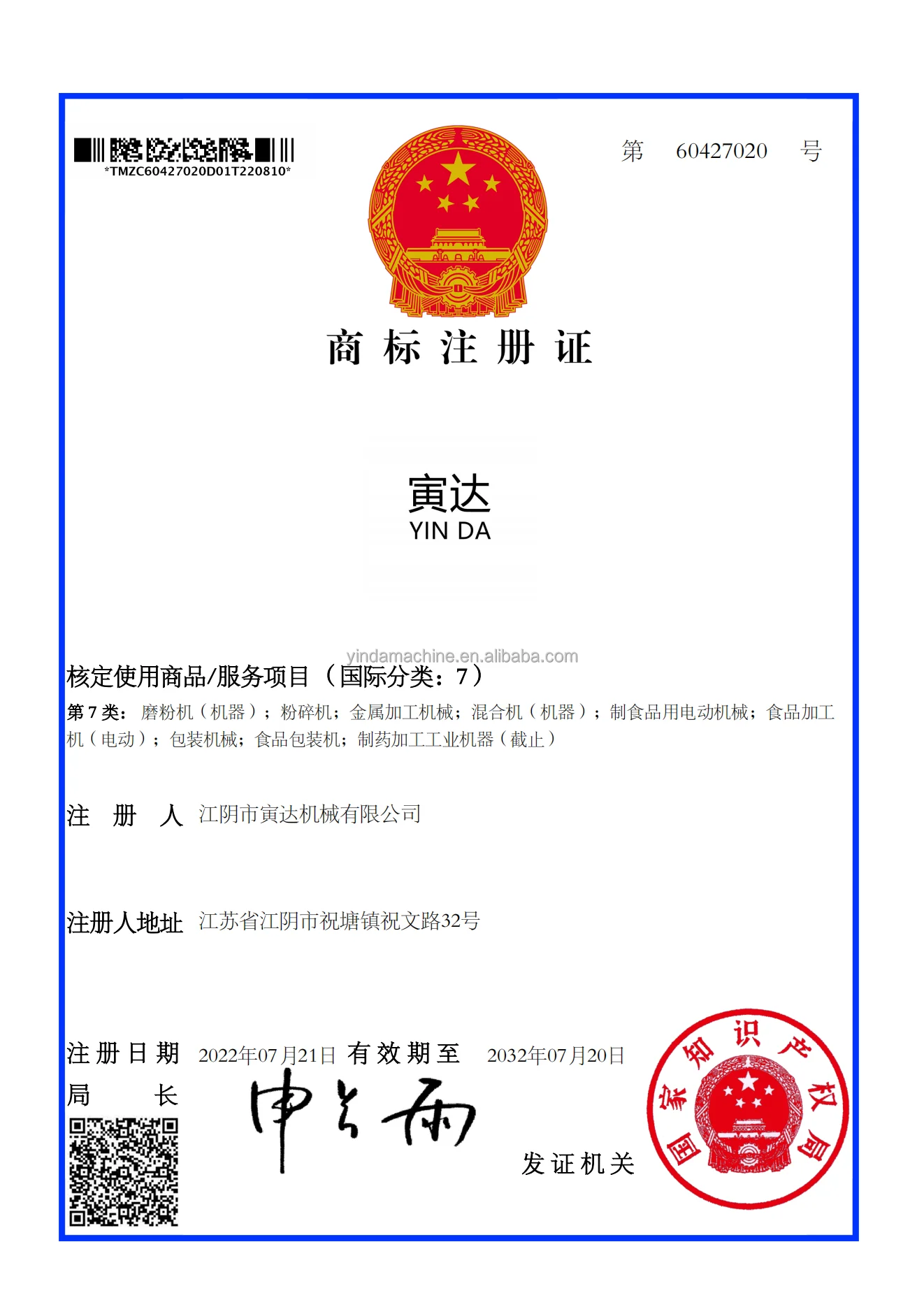

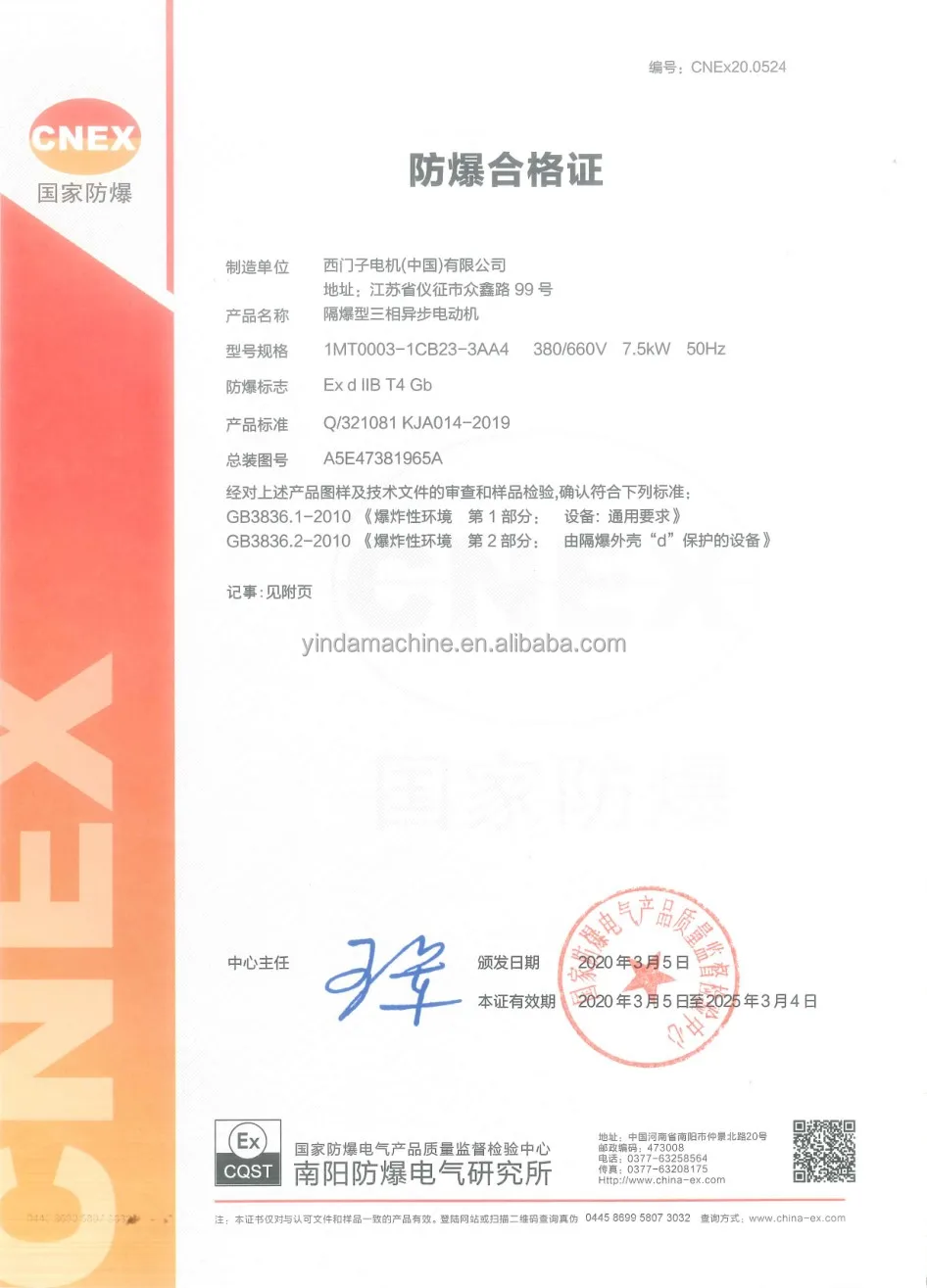

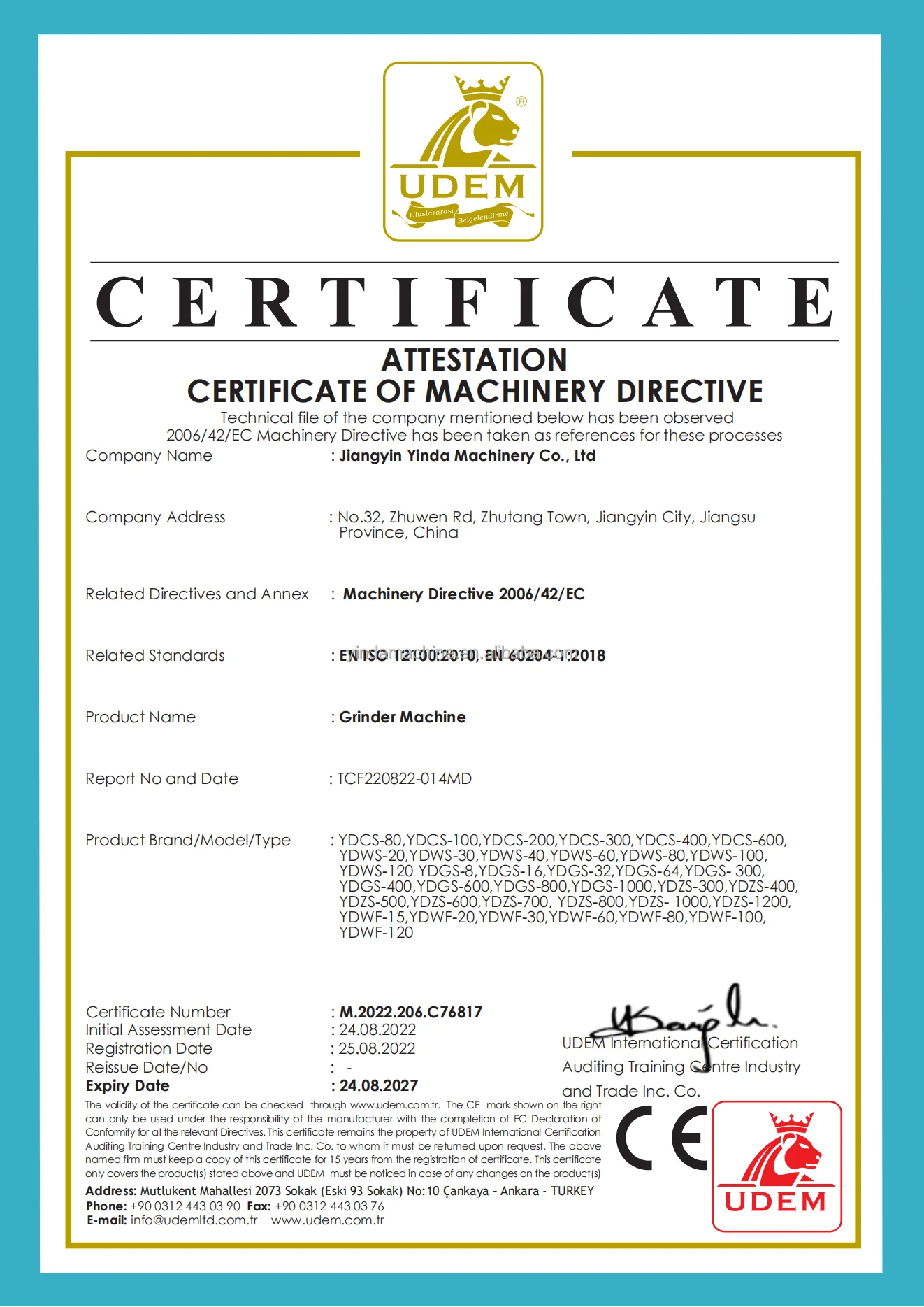

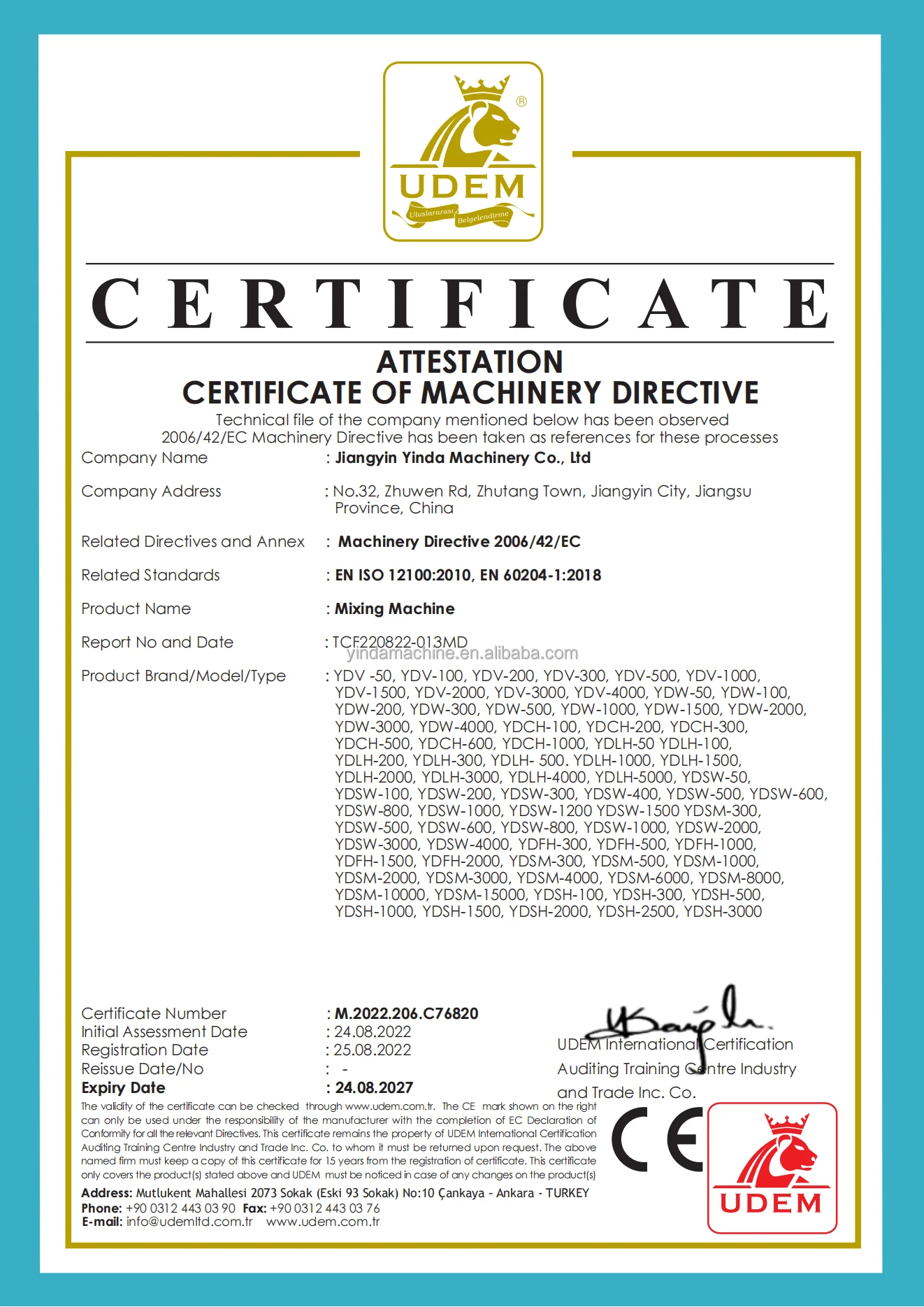

We have Passed CNEX, YINDA Trademark registration AND CE Certicated.
FAQ
In order to help you select the efficient models and get precise costs, may I ask a few questions to learn your demand clearly?
what material you want to crush,is it dry?
what is the size of your raw material?
what capacity you want the grinding machine do？
what powder of fineness you want to get by the grinding machine?(can measure by mesh,mm,micron)
if you know the oil content or humidity of your raw material,it will be more helpful.
what is the size of your raw material?
what capacity you want the grinding machine do？
what powder of fineness you want to get by the grinding machine?(can measure by mesh,mm,micron)
if you know the oil content or humidity of your raw material,it will be more helpful.
