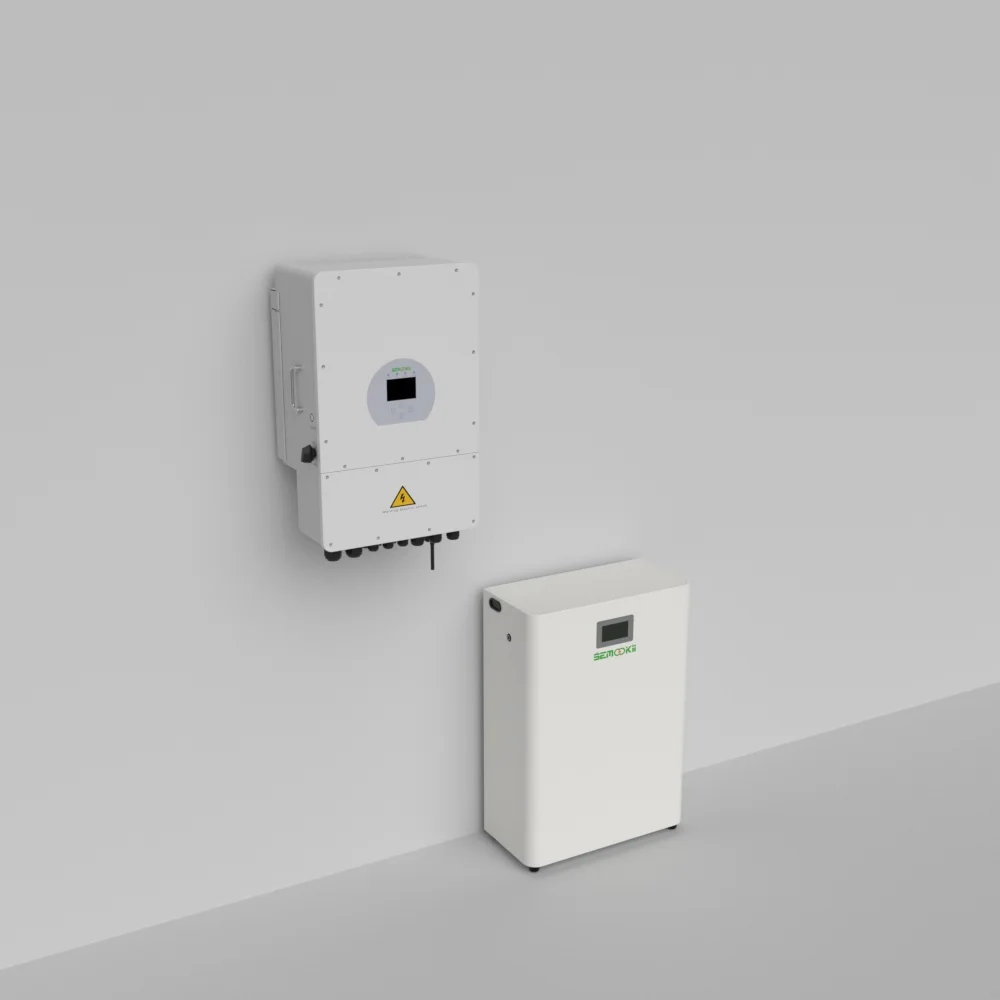

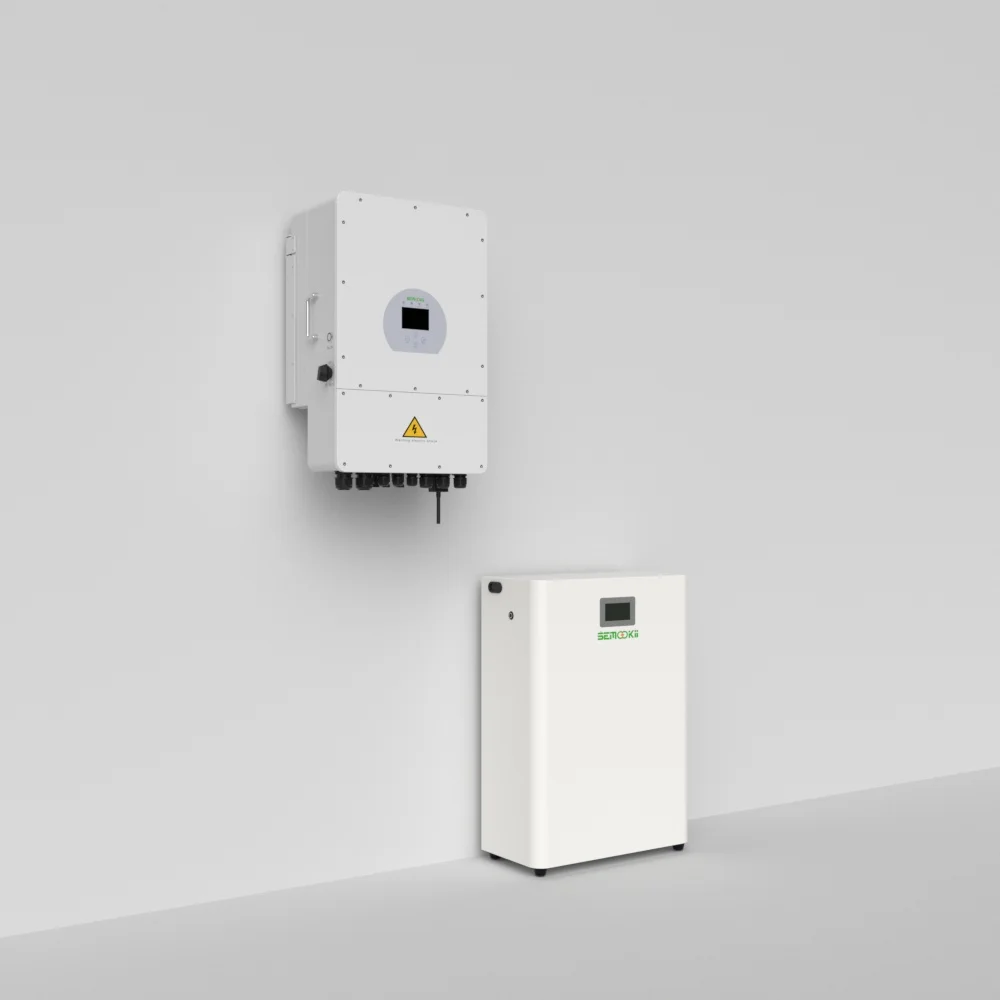

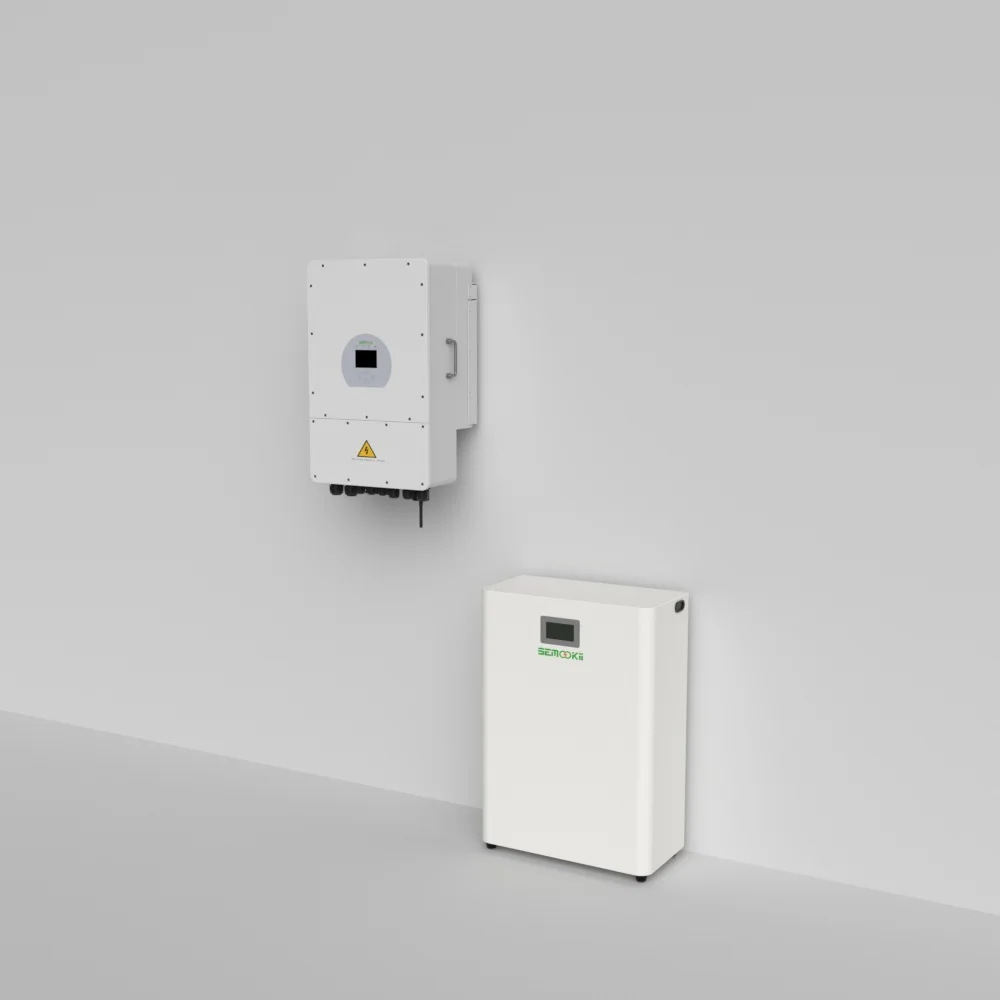

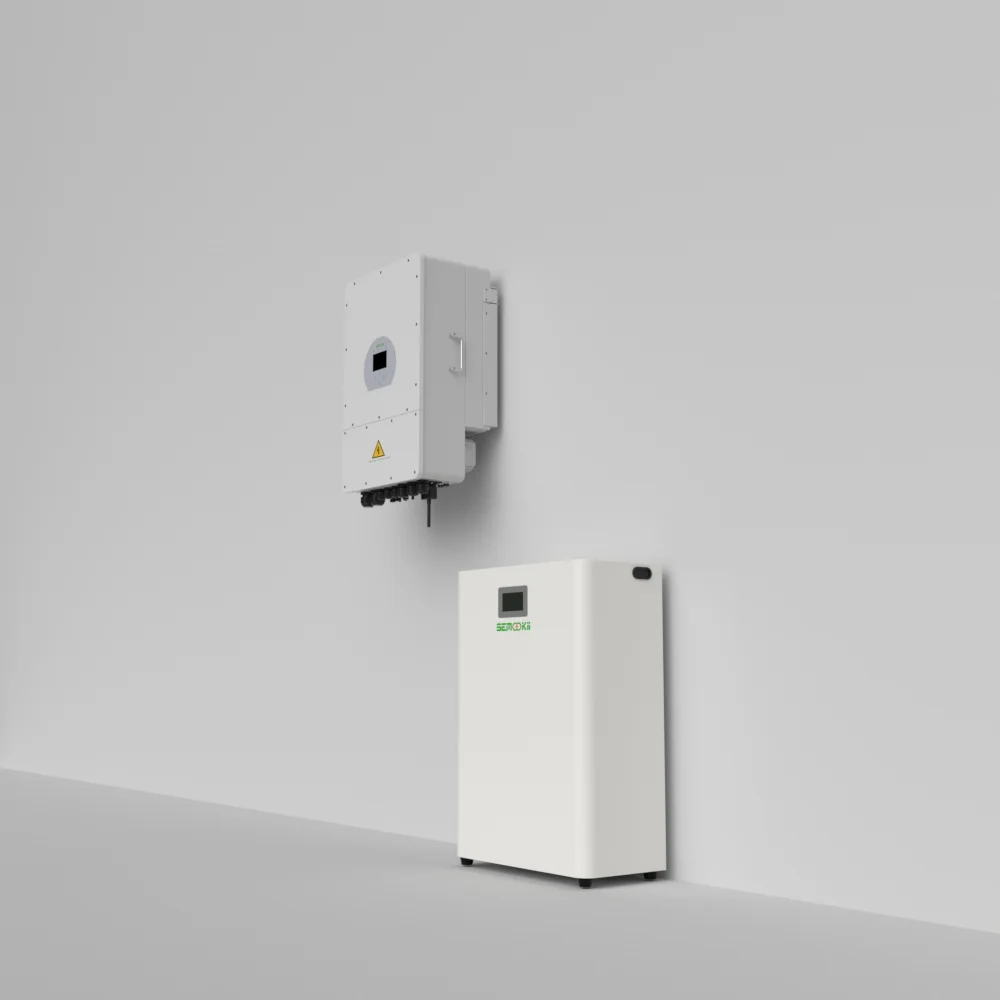

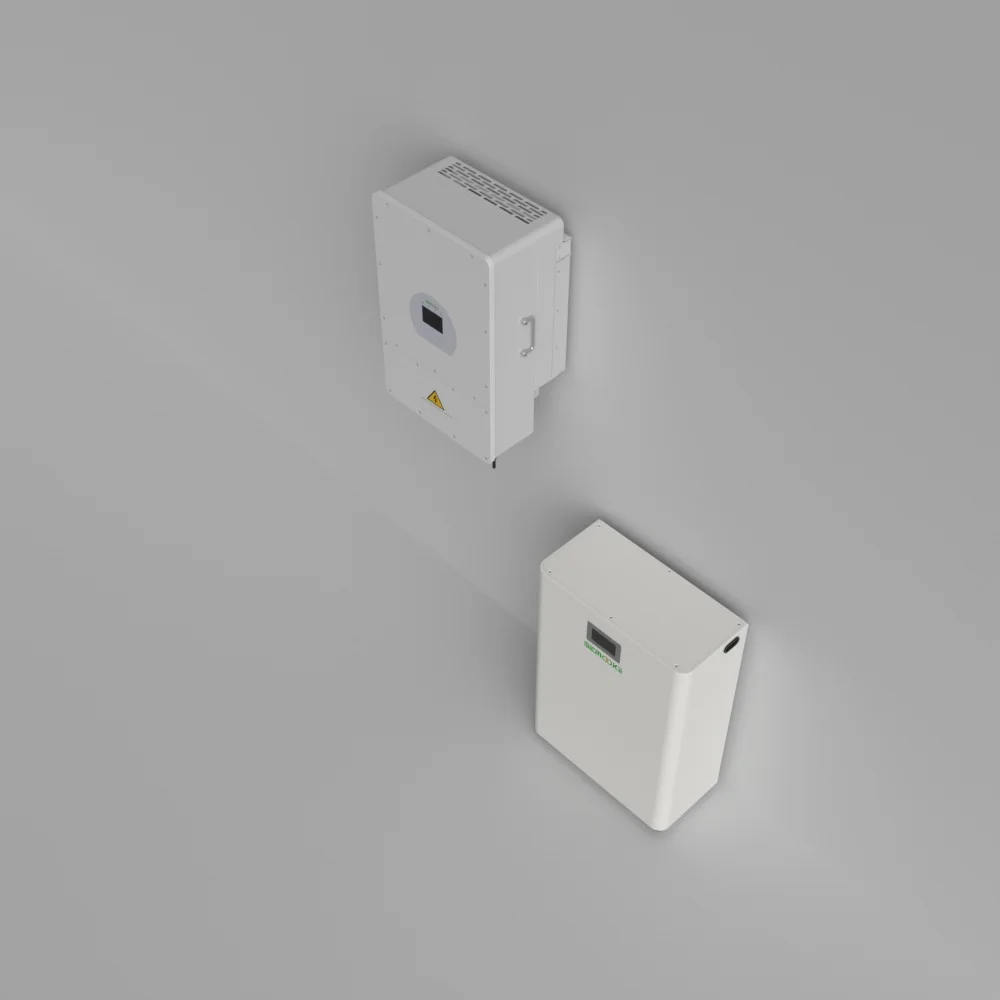

Semookii MIV 10AU Home Energy Storage System LiFePO4 Battery Three Phase Hybrid Inverter 10kW 415/240V 50/60Hz Hybrid Inverter
- Category: Solar Energy Products >>>
- Supplier: Mpmc Powertech Corp.
Share on (11000007051483):
Product Overview
Description
Product Description
Features:
• Compact Size & Light Weight
• High Power Output & Usable Energy Ratio
• Modular Design & Expandable System
• Safest Battery & Perfect Compatibility
• Natural Colling & Easy Installation
• Certifications Available
Specification
Model | MIV-10AU | ||
Battery Type | LFP (LiFePO4) | ||
Battery Voltage Range | 40 ~ 60 V | ||
Max. Charging/Discharging Current | 210 A | ||
Max. PV Power | 13000 Wp | ||
DC Input Voltage Range | 160 ~ 800 V | ||
MPPT Voltage Range | 200 ~ 650 V | ||
Start Up DC Voltage | 160 V | ||
Nominal DC Input Voltage | 550 V | ||
Number of MPPT / Strings per MPPT | 2/2+1 | ||
Max. PV Input Current | 26 + 13 A | ||
Max. PV Short-circuit Current | 34 + 17 A | ||
Rated AC Output Power | 10000 W | ||
Rated UPS Output Power | 10000 W | ||
Max. Apparent AC Power | 11000 VA | ||
Max. Output Current | 22.7 A | ||
Rated Voltage | 400/230 V (According to customer requirements) | ||
Rated Frequency | 50 / 60 Hz | ||
Grid Type | 3 Phase / 3L-N-PE | ||
Power Factor | 0.8 leading to 0.8 lagging | ||
Automatic Switch Time | < 4 ms | ||
THDi @ Rated Power | < 3% | ||
Our Advantages
Built-in BMS:
1. Short-circuit protection: 400A
2. Protocol: CAN, RS485
3. Real-time monitoring of ambient temperature and the temperature and voltageof each cell
2. Protocol: CAN, RS485
3. Real-time monitoring of ambient temperature and the temperature and voltageof each cell
0000000
4. 3 levels of alarm
5. SOC Estimation Accuracy ≤5%
6. Great equalization for long cyclelife
Semookii HBC RESS is the first home battery storage product incorporating heat shields. The High-Temperature materials offer a state-of-the-art solution Max.1100°C fireproof, high-temperature stability, low thermal conductivity, low heat storage, thermal shock resistance, and good dielectric streng.
Lithium Iron Phosphate Battery Cell
1. Aluminium alloy casing guarantees strong plasticity, shock resistance and stable chemical properties.
2. High C-rate associated with low heat generation.
3. A built-in breather tube and a safety valve within the cylindrical cell provide dual safety protection.
4. The shape of cylindrical cells is more conducive to heat dissipation and temperature uniformity of the battery pack.
2. High C-rate associated with low heat generation.
3. A built-in breather tube and a safety valve within the cylindrical cell provide dual safety protection.
4. The shape of cylindrical cells is more conducive to heat dissipation and temperature uniformity of the battery pack.
