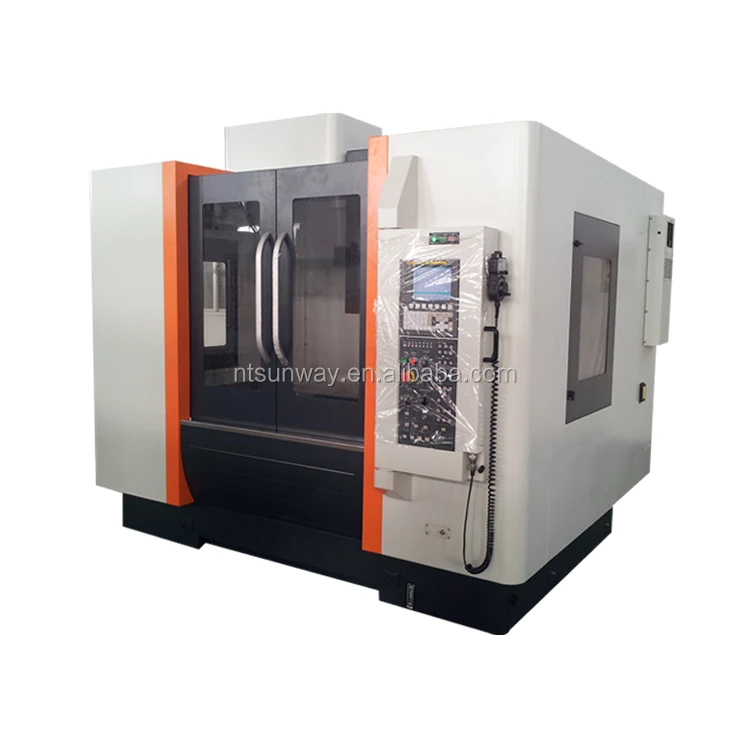

VMC1265 Excellent performance hard rail 5 axis cnc vertical machining center

Machine Type

Unit

VMC1265(hard rail)

Worktable

Worktable(length×width)

mm

1400×650

Maximum load of table

kg

1200

T-slot(number of slot × slot width × pitch)

mm

5-18×130

Triaxial itinerary

Travel for X/Y/Z axes

mm

1200/650/650

Distance from spindle nose to table surface

mm

120-770

Distance from spindle center to column guide surface

mm

700

Feed system

CNC system

Mitsubishi M70/FANUC-Oi MD

Rapid shift of axes of X/Y/Z

m/min

16

Maximum cutting feed speed

m/min

7

Automatic tool transform system(CNC milling without)

Standard tool quality

bundle

Bamboo hat type 20/Disc type 24

The largest diameter cutter knife/length

mm

Φ80/300

Tool exchanging manner

Air-operated

Average tool exchanging time

sec

Bamboo hat type:5s/Disc type: 2.5s

Precision

Positioning accuracy

mm

0.010

Accuracy of repeated positioning

Mm

0.005

Spindle system

Spindle speed

r.p.m

8000

Spindle specifications(model/installation diameter)

BT40/Φ150

Drive manner of spindle

Belt drive

Motor power of spindle

kw

11/15

Air pressure

Requirements for air compressing

Kg/cm²

≥6

Air pressure flux

m³/min

≥0.3

Machine specifications

Integrated weight(kg)

kg

9000

Overall dimension(weight×width×height)

mm

3511×2700×2800
