Product Overview

Description

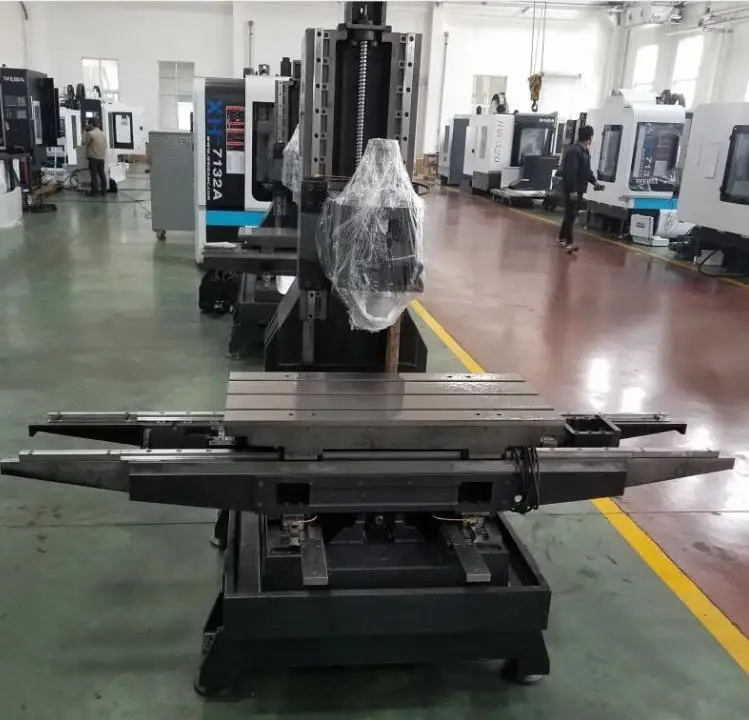

1.VMC740 is with linear guideways on X,Y,Z axes.

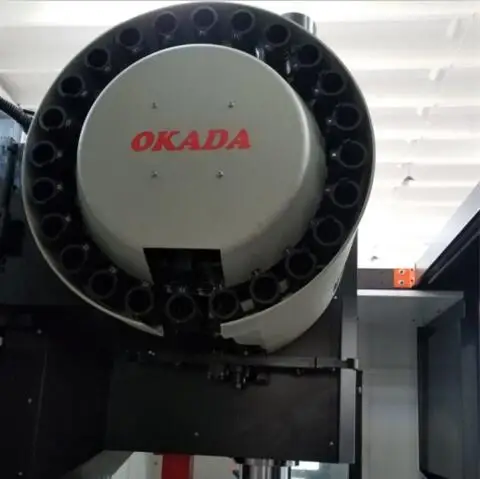

2.The tool magazine can beTaiwan round disc type tool magazine or drum type tool magazine with capability 16 tools;

3.The spindle is Taiwan 10000rpm spindle, and ballscrew is Hiwin ballscrew.

		VMC740
Table size	mm	920x400
T slot no./width/distance	mm	3/14/120
Max. load of worktable	kg	300
Longitudinal travel	mm	700
Cross travel	mm	400
Vertical travel	mm	500
spindle nose to table surface	mm	100-600
spidle axis to column surface	mm	475
Spindle taper		BT40
Speed Range	rpm	40-8000
spindle motor power	kw	5.5
cuttiing feed X/Y/Z	mm/min	1-10000
rapid feed X/Y/Z	m/min	30/30/24
tool magazine capacity	qty	16
tool magazine type		round disc type
Max. dimension of tool	mm	Φ80x300(full tool) Φ130x300(adjancent tool empty)
Tool changing time (tip to tip)	sec	1.75/5
positioning accuracy	mm	±0.005/300 JIS
repeat positioning accuracy	mm	±0.003     JIS
overall dimensions(LxWxH)	mm	2180×2535×2280
N/W	kg	3500

Taiwan 10000rpm belt type spindle ;

X,Y,Z linear guide ways;

safety door lock;

Taiwan high precision ball screws;

Taiwan arm type tool magazine with 16 tools;

spindle blowing chip removal system, spindle front seal;

 centralized lubrication system;

 water cooling, air cooling;

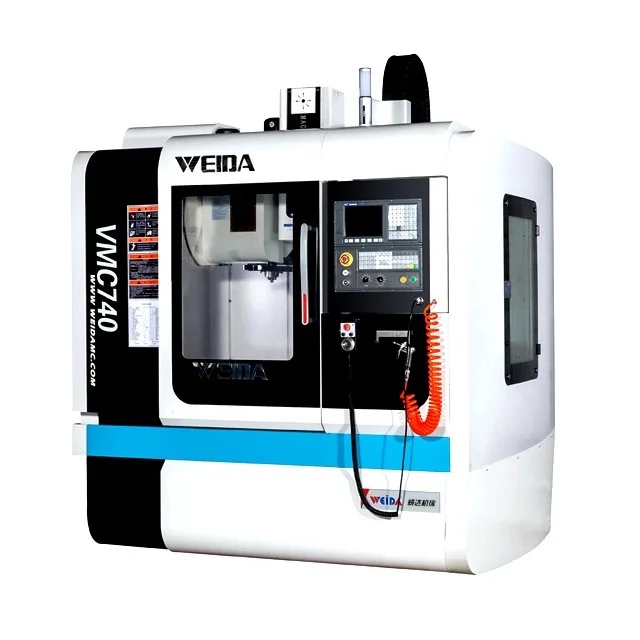

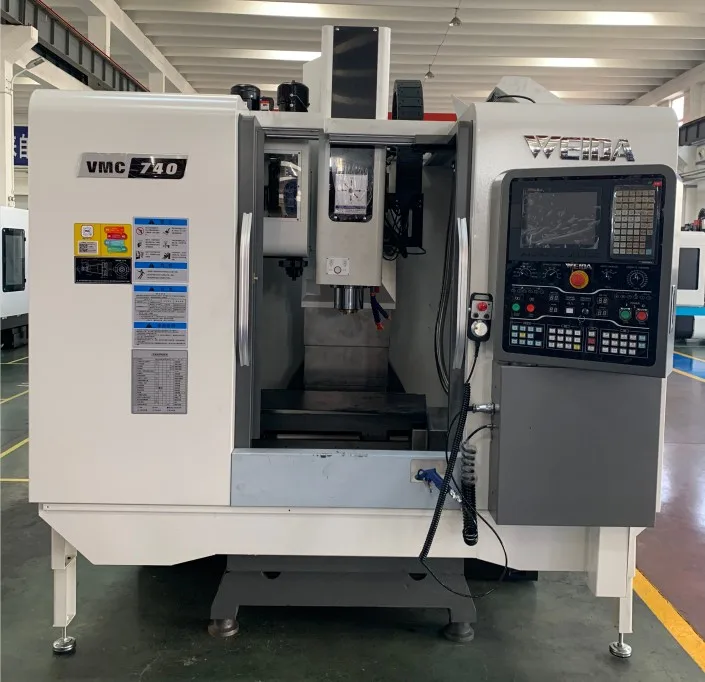

Machine: VMC740  Cnc Vertical Machining Precision Center

Type of package: Plywood case

Packing dimension:  227x240x255cm    N.W./G.W.: 3200/3400KGS

Optional accessories



The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.

You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.

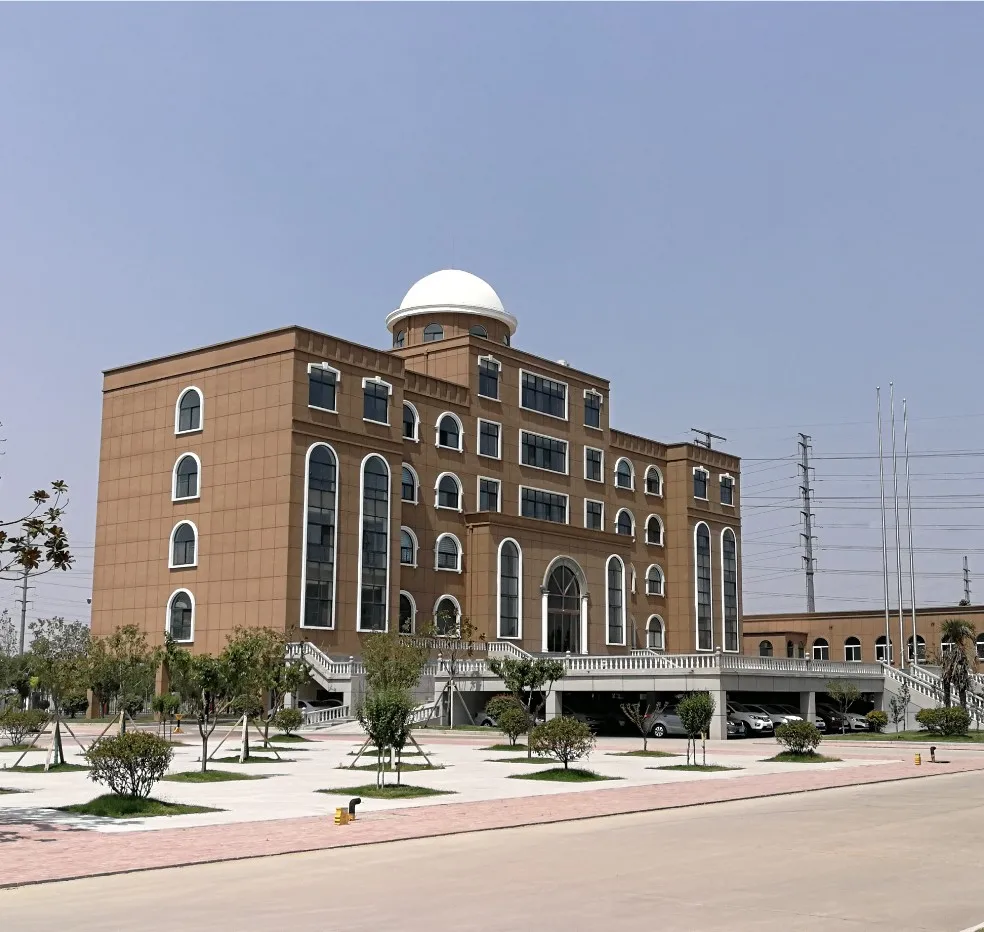

Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers an area

500,000square meters,the building zone is about 350,000square meters,and the total assets is more than RMB500million,

there are 365 engineers and 632sets of production equipment&measuring test instrument in the company.

We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have developed to

8 series:cnc gantry type machining center, cnc vertical machining center,cnc milling machine,horizontal boring machine,

radial drilling machine,universal knee type milling machine,vertical milling machine, milling drilling machine,

altogether more than 90 specifications.

We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.

Shandong WEIDA heavy industries Co., Ltd.wish to cooperate sincerely with friends at home and abroad to realize mutual

development.





We have different workshops to produce different machines,it mainly includes cnc workshop,milling machine workshop, radial drilling machine workshop,processing department etc.

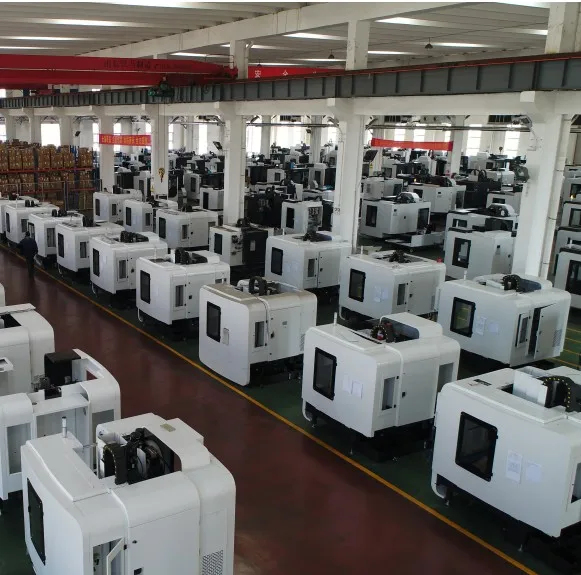

For cnc workshop as above, we will produce vertical machining center,gantry type machining center,horizontal machining center,cnc vertical center machine etc.. Every year we will produce hundreds of machining centers for abroad customers. Our brand is well-known in many markets. And in every exhibitions in home and abroad, we will avertise them. And we get great effect from exhibition.

For milling machine workshop, we produce conventional milling machine,cnc milling machine. We have more than 15  years experience on conventional milling machines. We have great experience and

professional engineers, the quality for them is good, you can trust.And our brand for conventional milling machine has been popular in abroad market. We supply the machines to many famous companies, such as Germany KNUTH company, Germany OPTIMUM company, Russia JET company, American companies etc.



Company global view as following:



https://m.alibaba.com/page/globalview.html?host=weida-mc.en.alibaba.com&userId=17380068448&bizId=33017906







•One year guarantee for whole machine

• technical support by email ,also can make a call at any time according to the following contact information.
