VMC 850 Siemens GSK KND Fanuc System Vertical CNC Milling Machine VMC850
- Category: Machine Centre >>>
- Supplier: Taian Taizhuo Machinery Manufacturing Co. Ltd.
Share on (62404588933):
Product Overview
Description
Product Description

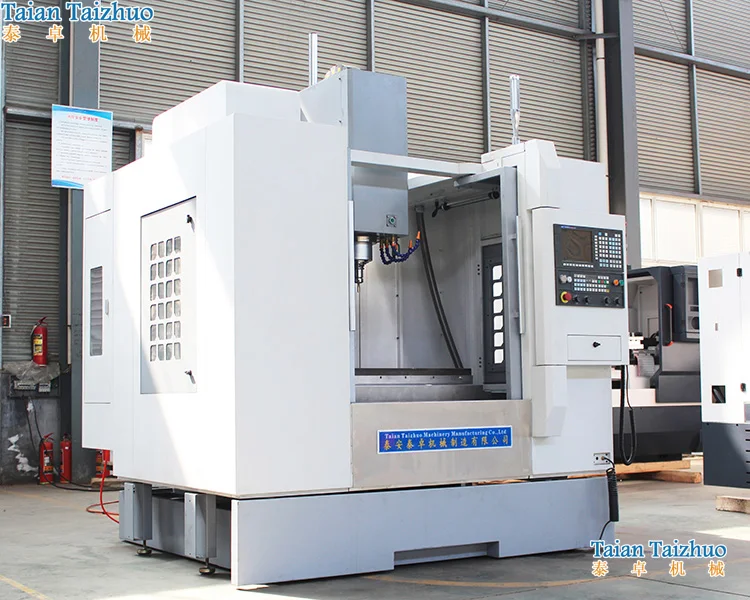

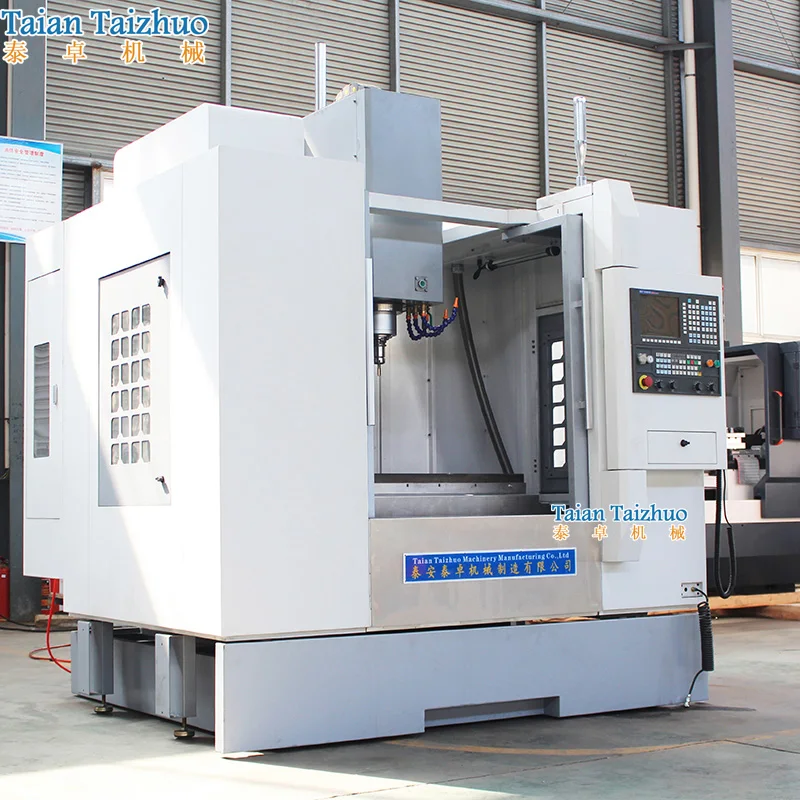

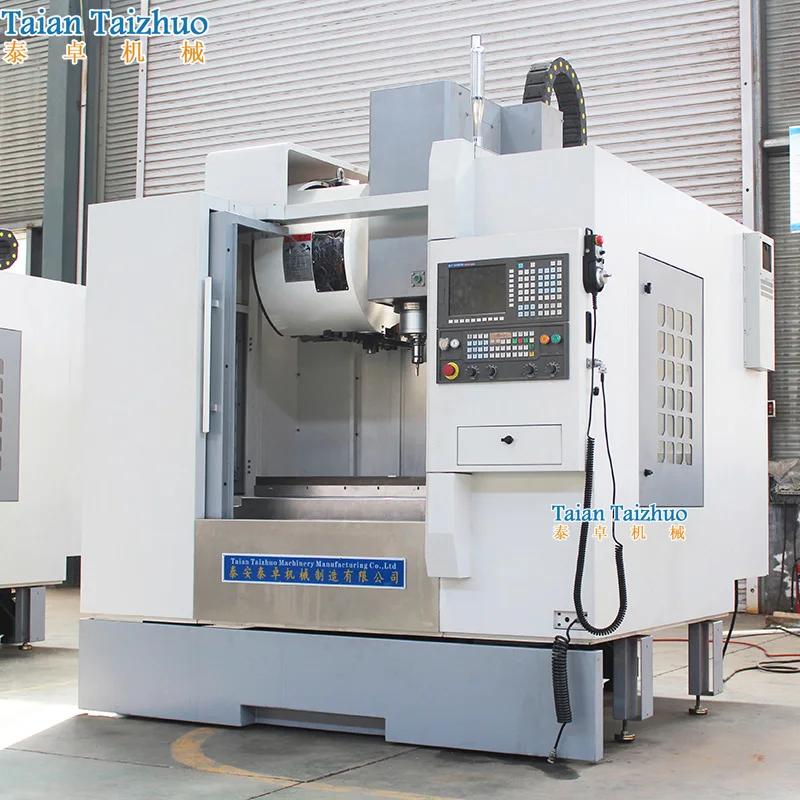

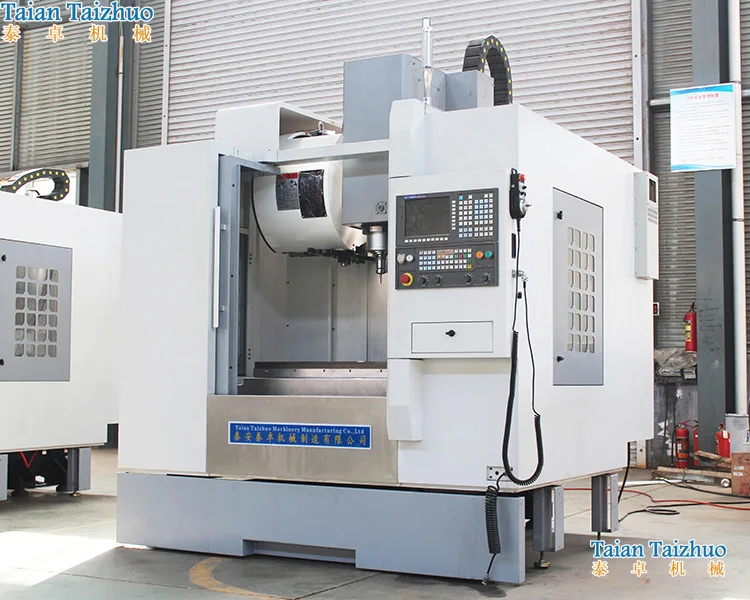

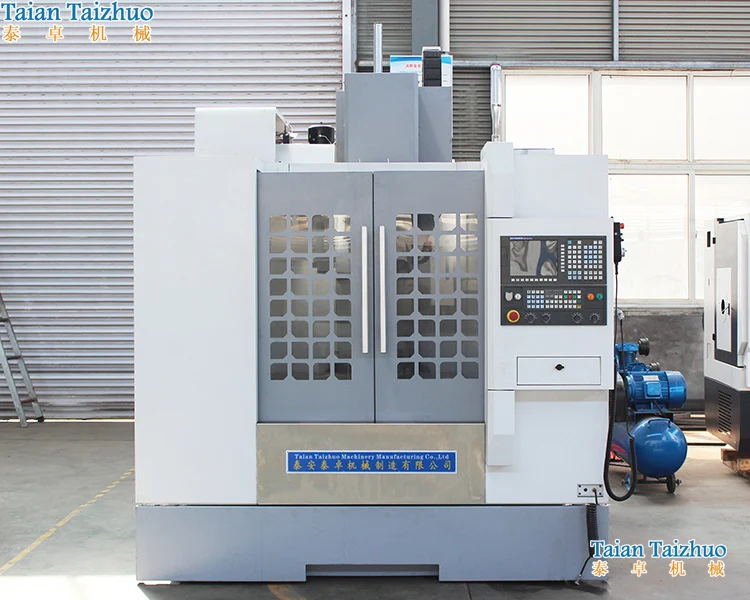

VMC 850 Siemens GSK KND Fanuc System Vertical CNC Milling Machine VMC850
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
ITEM | UNITS | VMC850 | VMC1060 | VMC1270 |
X axis travel | mm | 800 | 1000 | 1200 |
Y axis travel | mm | 500 | 600 | 700 |
Z axis travel | mm | 500 | 600 | 700 |
Spindle nose to table | mm | 100-600 | 100-700 | 100-800 |
Spindle center to column | mm | 550 | 650 | 780 |
Max. X axis rapid feed | m/min | 24 | 24 | 24 |
Max. Y axis rapid feed | m/min | 24 | 24 | 24 |
Max. Z axis rapid feed | m/min | 22 | 22 | 22 |
Cutting feed | mm/min | 1-10000 | 1-10000 | 1-10000 |

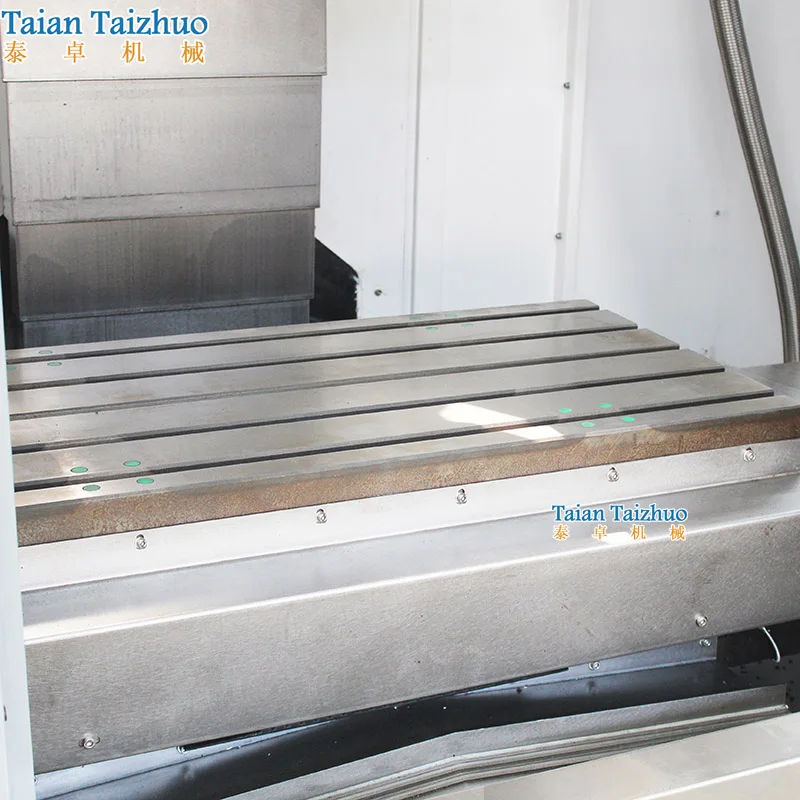

Table size | mm | 1000x500 | 1200x600 | 1300x700 |
Table max. load | kg | 650 | 800 | 900 |
T slot | 5-18-90 | 5-18-100 | 5-18-120 | |
Main spindle | BT40-150 | BT40-150 | BT40-150 | |
Spindle speed | rpm | 50-8000 | 50-8000 | 50-8000 |
Main motor | kw | 7.5/11 | 11/15 | 15/18.5 |
Positioning Accuracy | mm | ±0.01/300 | ±0.01/300 | ±0.01/300 |
Repeatibility | mm | ±0.005 | ±0.005 | ±0.005 |
Machine size | mm | 2300x2200x2450 | 2650x2250x2500 | 3000x2600x2700 |
Net weight | kg | 4800 | 6000 | 7200 |

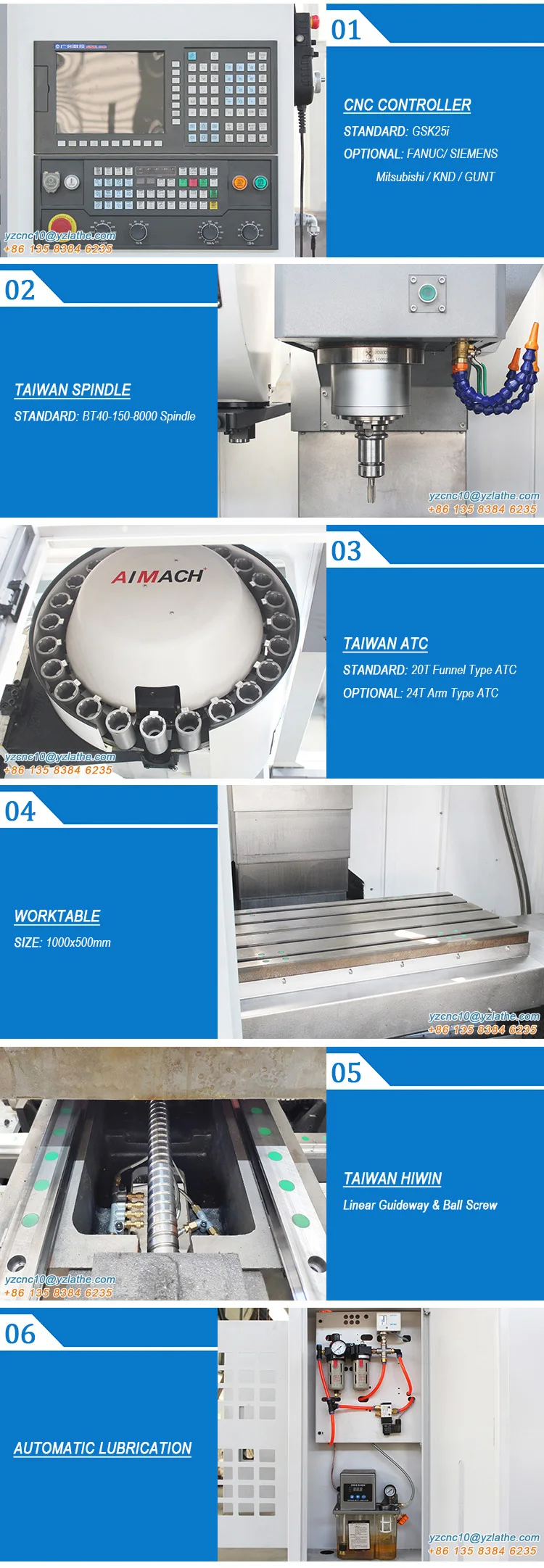

Standard Configuration:
1. GSK218M CNC Controller.

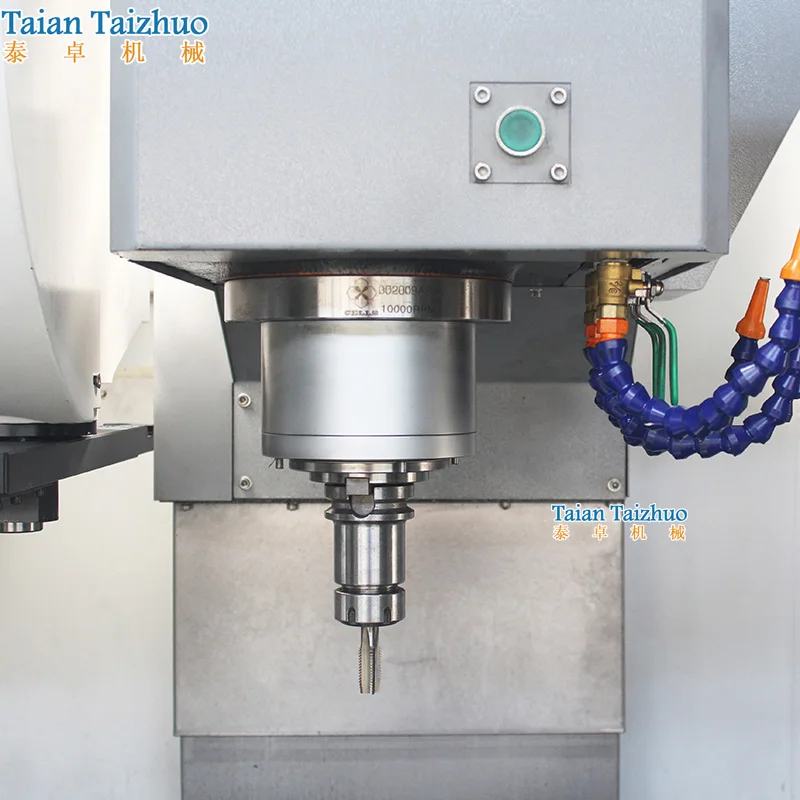

2. Taiwan BT40-150-8000 spindle.

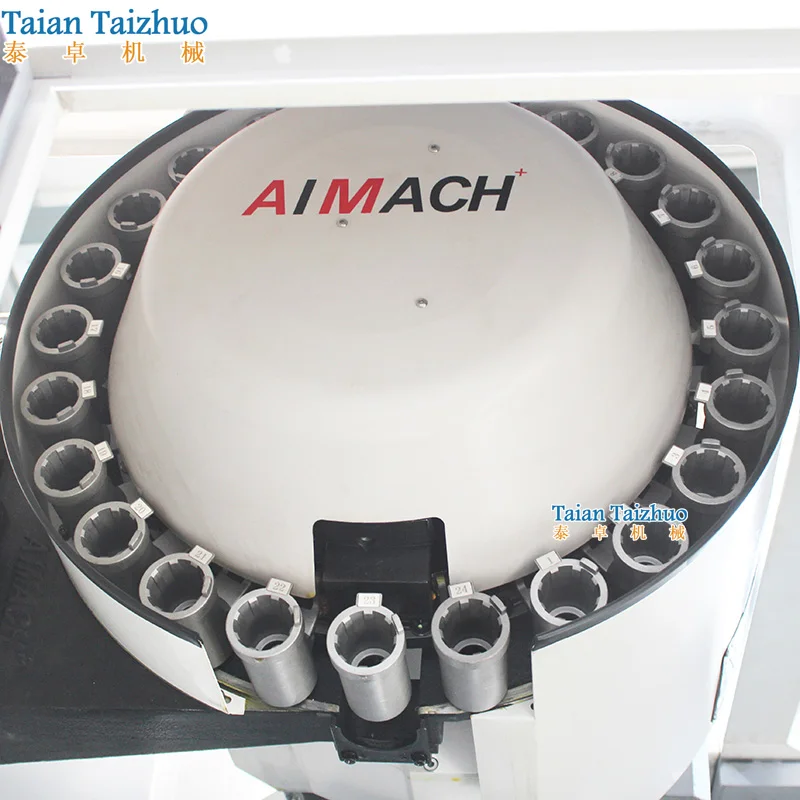

3. Taiwan 20T Funnel Type Tool Changer.
4. Taiwan Hiwin linear guideway.
1. GSK218M CNC Controller.
2. Taiwan BT40-150-8000 spindle.
3. Taiwan 20T Funnel Type Tool Changer.
4. Taiwan Hiwin linear guideway.
5. Taiwan Hiwin ball screw.
6. Work Lamp.
7. Automatic Lubrication System.
8. Full Enclosure Machine Guard.
6. Work Lamp.
7. Automatic Lubrication System.
8. Full Enclosure Machine Guard.
Optional Configurations:
1. Siemens Fanuc Mitusbishi SYNTEC KND GUNT.
2. Taiwan arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis
5. Spindle oil cooler.
1. Siemens Fanuc Mitusbishi SYNTEC KND GUNT.
2. Taiwan arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis
5. Spindle oil cooler.
6. Coolant through spindle.
7. Renishaw probe for workpiece and tool.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.
Details Display
Packaging And Transportation
Company Profile
Taian Taizhuo Machinery Manufacturing Co., Ltd. is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
Our Service
1. Customers can send us samples by courier, we can machining some samples for your checking.
2. All of our machines can be customized according to the requirements, such as color, appearance, and machine nameplate, etc.
3. Our experienced engineers can offer answers to your technical questions, and in many cases, solve your problems effectively over the phone/ wechat.
2. All of our machines can be customized according to the requirements, such as color, appearance, and machine nameplate, etc.
3. Our experienced engineers can offer answers to your technical questions, and in many cases, solve your problems effectively over the phone/ wechat.
4. Engineers are available to service machines or to train how to use machine overseas.
5. We would provide parts for free during warranty period if it's caused by quality problem.
5. We would provide parts for free during warranty period if it's caused by quality problem.
FAQ
Q1. How can I choose the most suitable machines? |
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you. |
Q2. What's the main products of your company? |
A: We specialized in many kinds of CNC machines, such as Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Vertical CNC Lathe Machine, Wheel Repair CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining Center, CNC Turning Center and so on. |
Q3. Where is the factory located? How can I visit there? |
A: Our factory is located in Tai'an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us. |
Q4. Payment Terms |
A: 30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss. |
Q5. How long is the warranty for machines? |
A: Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact your Taian Taizhuo sales representative for details. |
Q6. Can you engineer come to our place to help with machine installation & commission? |
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost. |
Q7. What's the MOQ? |
A: MOQ is 1 set. |
