Vertical CNC Milling Machine for Sale /Vertical Machine Center XH7132A

CNC Vertical machining center is applied to the machining of plate type work piece, shell type work pieces, moulds and so on, which are with high precision & lots of working procedures & complex shapes. It can achieve precise milling, drilling, countersink, reaming, boring, tapping on 2-dimensional or 3-dimensional surface and slope during one time of workpiece’s fixture. Users get good economic benefits because of its programmable machining and short production time.

1.X/Y/Z-axis adopts Taiwan HIWIN linear guide ways

2.X/Y/Z-axis servo motor connects Taiwan HIWIN high precision ball screws Taiwan brand drum-type tool magazine

3.Bed body, worktable, slide, column, headstock, etc are made up by high rigidity cast iron material,

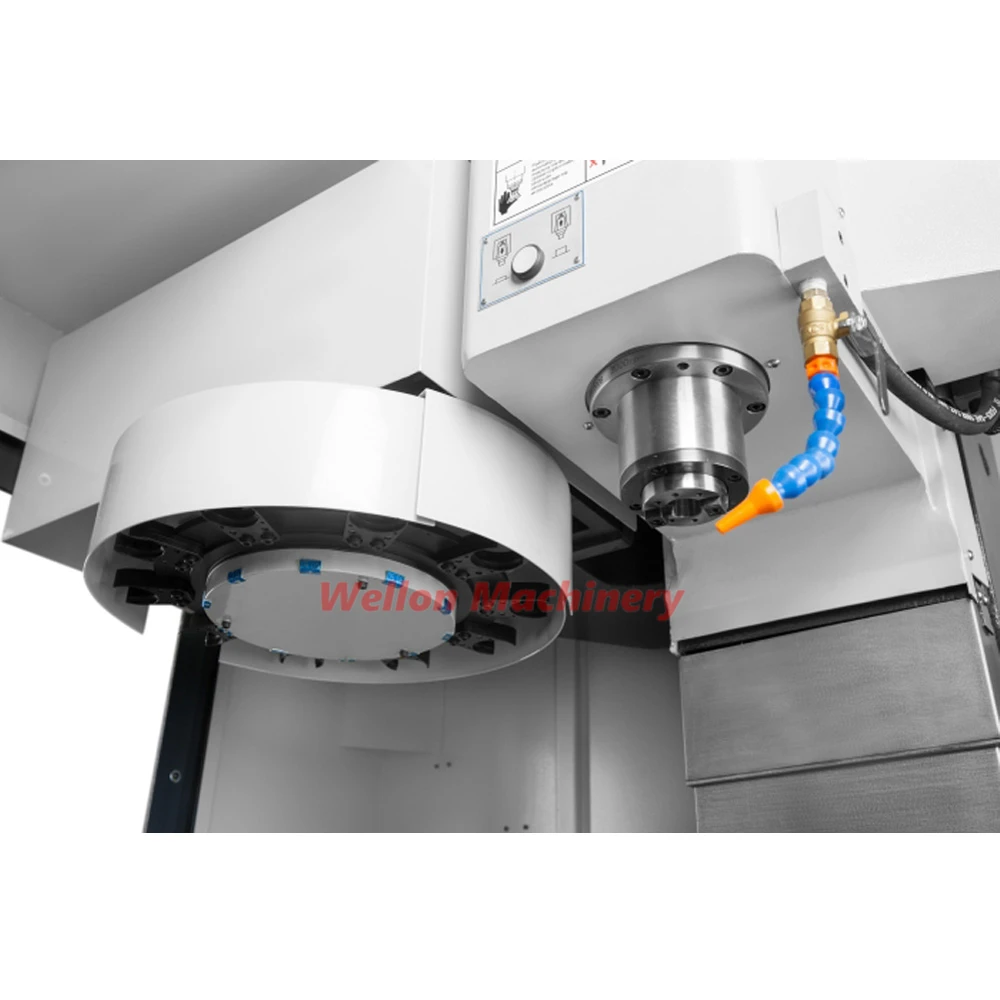

4.Taiwan spindle unit with 8000rpm,the max.spindle speed can be achieved to 6000rpm.with high precision,high rigidity.

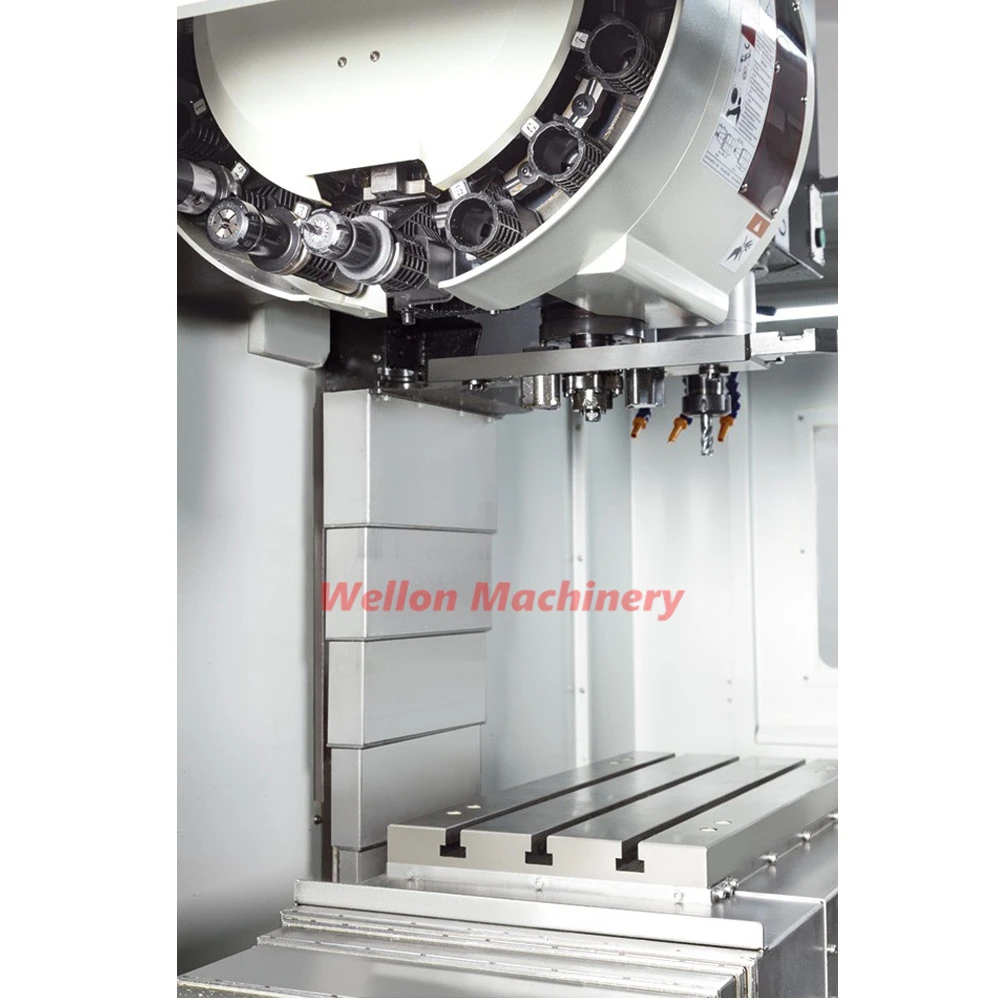

5.Taiwan brand umbrella type tool magazine

6.Equipped with large flow cooling pump and large capacity water tank

7.Electromagnetic valve group by PLC program control, ensure that the spindle loose tools, spindle center blowing, spindle folder tools, air cooling spindle etc

8.The guideway and ballscrew pair adopt centralized automatic lubrication, Each node is equipped with a quantitative oil separator.
