Product Overview

Description

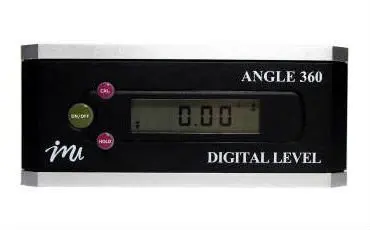

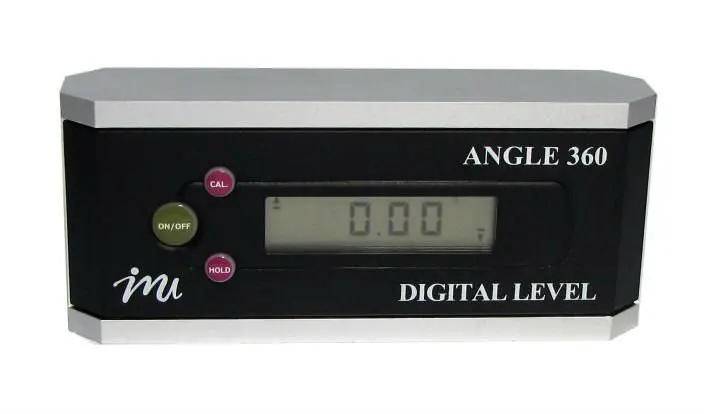

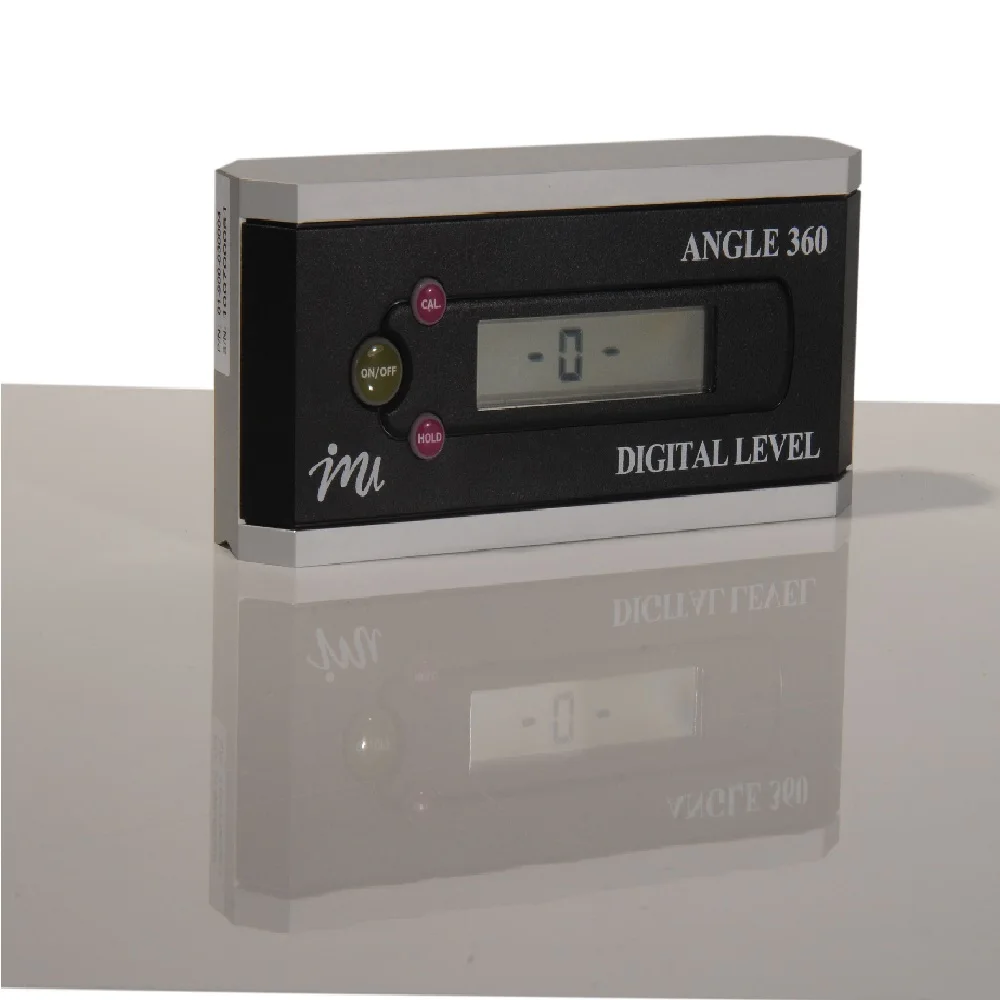

ANGLE 360 Digital Inclinometer



Electronic inclinometer. Handy-size and accurate. This ensures easy measurement even in the most difficult situations.



Introduction:
The ANGLE 360 High Accuracy Digital Inclinometer is a measuring tool that provides an immediate, digital reading of all angles in a 360° circle. As ANGLE 360 is mounted on a rigid platform, it allows the sensor and its microprocessor circuit to provide excellent accuracy throughout the Inclinometer's 360° range. Hand-held measurement instrument.



You can use Angle 360 Digital Inclinometer practically.

Features:

Quick and accurate measurement of gradient.

HOLD function to freeze reading on LCD display.

Automatic four-axis calibration.

Specification:

Range : 360° ( 90° X 4 )

Resolution : 0.1°

Accuracy : 0 ~ 10° & 80 ~ 90° , ± 0.1° ; Other angles , ± 0.2° max.

Operating temp : 5°C ~ 50°C (41°F ~ 122°F)

Storage temp : -10°C ~ 60°C (14°F ~ 140°F)

Battery : 9V (PP3), Alkaline battery is recommanded





High Accuracy Digital Inclinometer (ANGLE 360i)

RS232 Output

Automatic rotation of the measured values

Easy to calibration without extra tools

Freezing readout on LCD display

Quick and accurate measurement of gradient

Application to high precise machine tool setting / assisting engineering design in Lab



ANGLE 360, Electronical Inclinometer



High accuracy digital ( electronical ) inclinometer can measure all angles (slopes) up to 360 degrees. It is handheld and lightweight.

Each cartoon includes 50 pcs digital inclinometer

We offer private label services

Demos is located in Istanbul / Turkey where is the connection point of Europe and Asia. We can ship the goods cheaply by the help of our geographical location.

What is the payment term? We accept T/T payments
