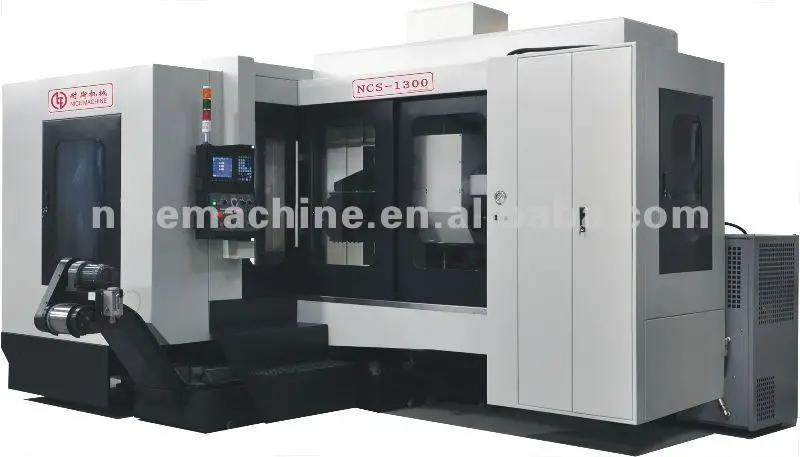

NCS 1300 deep hole processing machine tool

Product Overview

Description

Features:

• The stand column, pedestal, slde platform, work platform and other main components of machine tool are made of castings, with low deformation and high precision.
• The imported linear guide rail and ball screw are adopted in machine tool so as to ensure the processing precision of equipment.
• The processing scope is large, the bores of 3mm-30mm can be processed and the effective processing depth is 2,000mm in maximum for once.
• The wide work space in design facilitates the clamping and processing of large workpiece.
• The MITSUBISHI servo numerical control system is adopted and the machine is characterized by steady performance and simple operation.



Model	NCS1300
Bore of drill hole	3-45mm
Maximum depth of one-off drill hole	1300mm
Dimension of work platform	950*1400mm
X axis stroke	1300mm
Y axis stroke	1000mm
Z axis stroke	1350mm
Spindle power	7.5kw
Load weight of work platform	7000kg
Net weight of work platform	11000kg
External size of machine tool	5400*4100*2900mm
Total power	35kw
