Product Overview
Description
MACHINE DESCRIPTION

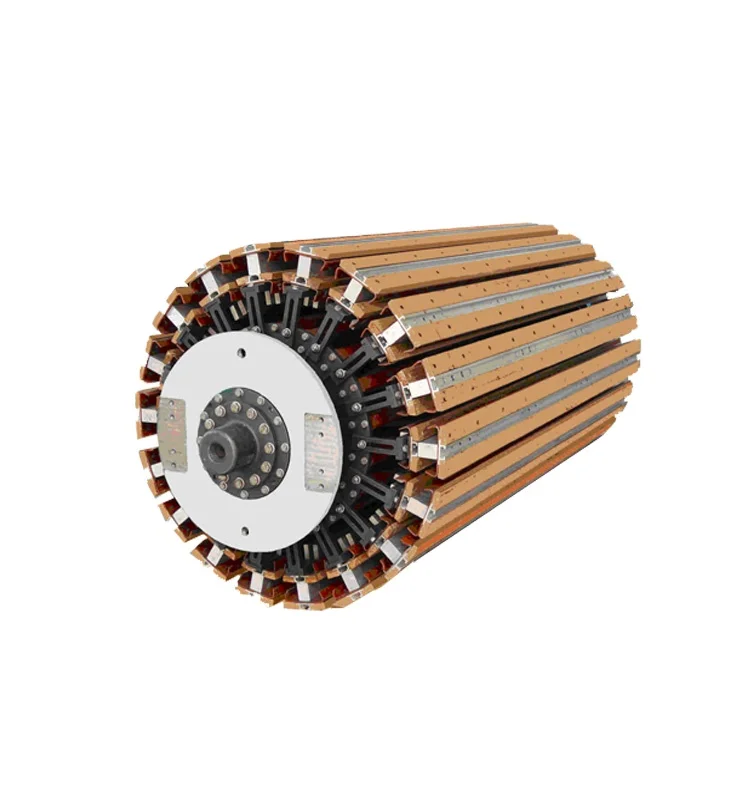

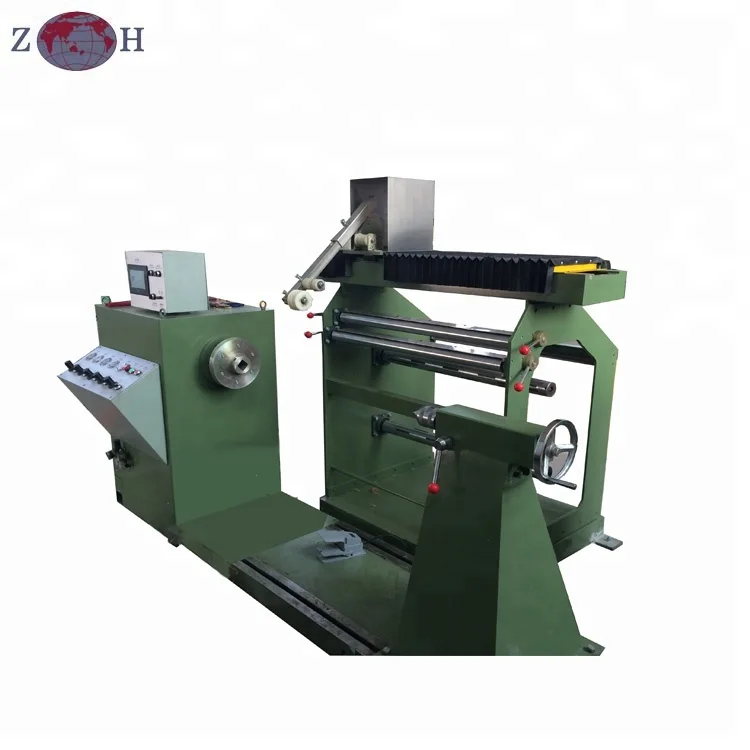

PLC control bobbin winding machine is suitable for winding round or rectangular coils for medium and small size distribution transformer capacity less than 1600kVA.
PLC control bobbin winding machine is mainly for high voltage (HV) windings.
PLC control bobbin winding machine is comprised of conductor pay-off stands, main winding head, automatic conductor traversing device, interlaminar insulation pay-off device, pneumatic system and PLC control system.
PLC control bobbin winding machine is mainly for high voltage (HV) windings.
PLC control bobbin winding machine is comprised of conductor pay-off stands, main winding head, automatic conductor traversing device, interlaminar insulation pay-off device, pneumatic system and PLC control system.
MAIN FEATURES
1) Hard gear wheel speed adjusting system, high efficiency
2) PLC control, servo & ball screw driving wire traverse, high precision
3) Inverter controlling speed, reliable and sensitive starting and braking
4) Parameters can be pre-set on the touch screen, convenient and intuitionistic.
5) Equipped with interlaminar insulation automatic feeding device

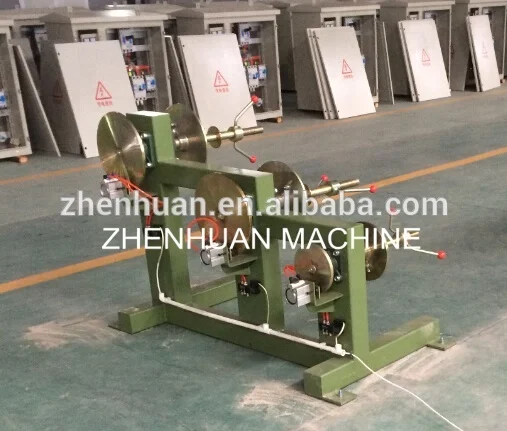

6) Equipped with tensioning pay-off device
2) PLC control, servo & ball screw driving wire traverse, high precision
3) Inverter controlling speed, reliable and sensitive starting and braking
4) Parameters can be pre-set on the touch screen, convenient and intuitionistic.
5) Equipped with interlaminar insulation automatic feeding device
6) Equipped with tensioning pay-off device
PRODUCT SPECIFICATIONS
NO. | Item | Data |
1 | Mandrel height to the ground | 850mm |
2 | Suitable length of coil | less than 1000mm |
3 | Suitable inner diameter of coil | More than 80mm |
4 | Suitable outer diameter of coil | Less than 600mm |
5 | Max. coil weight | Less than 500kg |
6 | Working torque | 600N/m |
7 | Working speed | 0-200rpm |
8 | Automatic wire arranging function | minimum space can be preset 0.01mm |
9 | Suitable wire | Round wire: 0.3-3.0mm, flat wire: 3x12mm |
10 | Main driving motor power | 4kW, inverter controlled speed adjusted |
11 | Servo motor power | 220W |

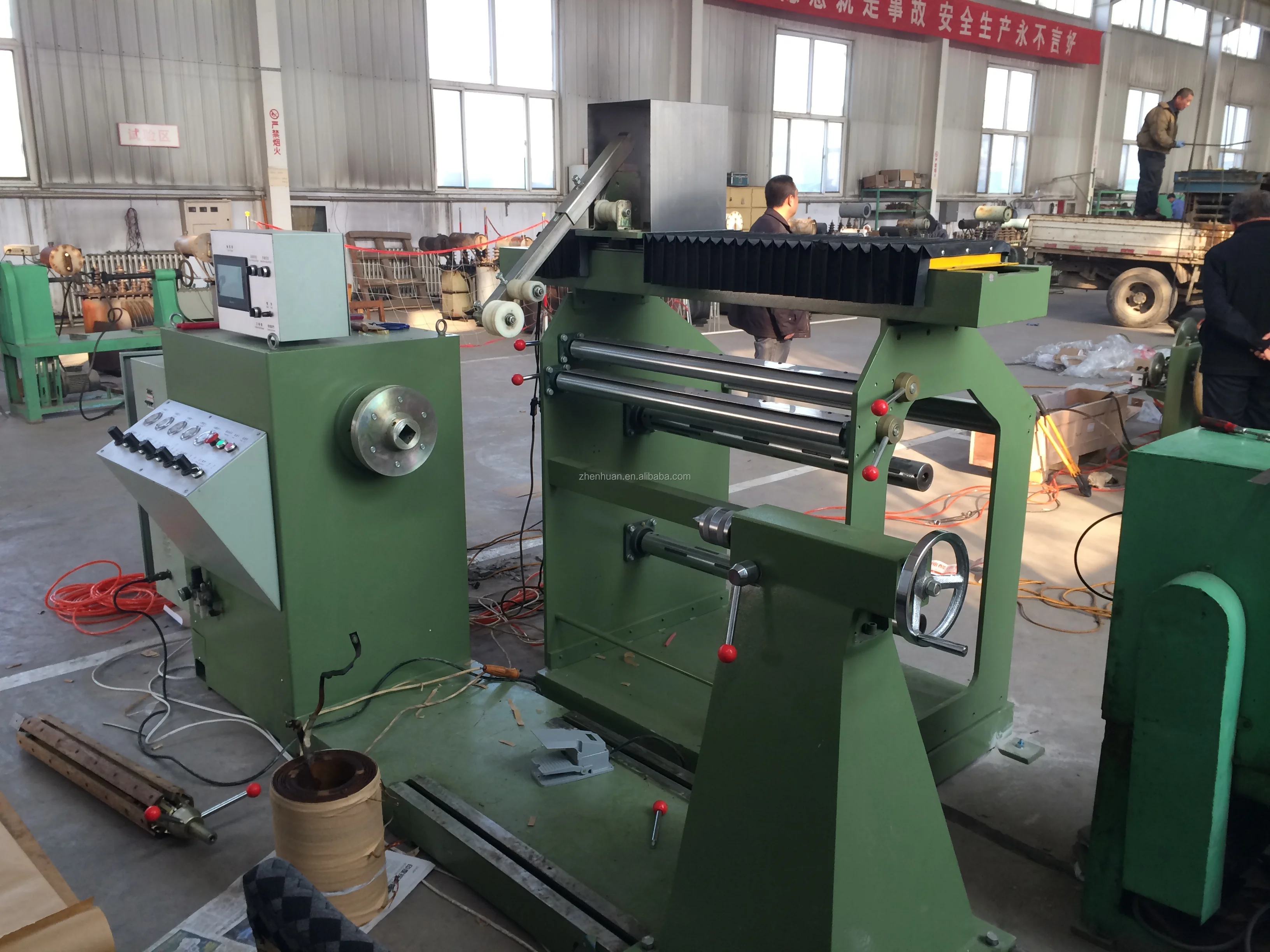

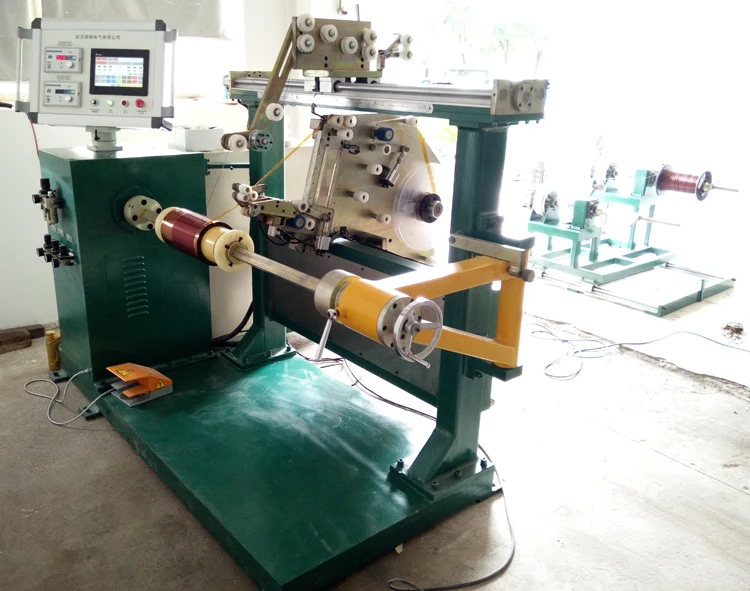

SAMPLE PHOTO
