Automatic 4 stations motor stator coil winding and inserting machine for air conditioner motor (60803508169)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description







1. The main Features and Functions


The motor stator coil winding and inserting machine is a four-station automatic coil winding and coil inserting machine with three-head winding and one-head coil inserting, which collects A-phase winding, phase-to-phase insulation ferrule, groove-making, B-phase winding, phase-to-phase insulation ferrule, C Phase winding wire weaving, phase-to-phase insulation ferrule on one machine. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer. The coil winding and inserting station is controlled by the dual-power servo motor, and the parameters such as winding, pushing the line, pushing the height of the paper, and changing the product stack thickness can be set on the touch screen. With six stations wokring at the same time, the stator coil winding and inserting machine will be save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding.


The coil winding and inserting machine uses the German Beckhoff CNC system as the control center; the Huichuan servo motor is the actuator; the Autonics sensor is the signal acquisition component. The data display and input adopt a touch monitor.


   The product is mature in technology, advanced in technology, reliable in quality, and convenient to use and maintain.





2. Application


This motor stator coil winding and inserting machine is suitable for miniature induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors, generator motors, and pump motors, etc.





3. Technical parameters


























































Product name :



4 stations motor stator coil winding and inserting machine



Stator OD:



≤φ150mm



Stator ID:



40-80mm



Stack Height:



30-80mm



Appropriate Wire:



φ0.2-φ1.2mm



Height of Coil:



2



Winding stations:



3



Coil inserting stations:



1



Winding inserting mode:



chained   /same core



Power supply:



380V  50/60Hz



Watt :



15Kw



Weight :



≈4000Kg



Dimension:



(L)4050×(W)3000×(H)2500mm






4.The picture display


1. Overall display of the winding machine

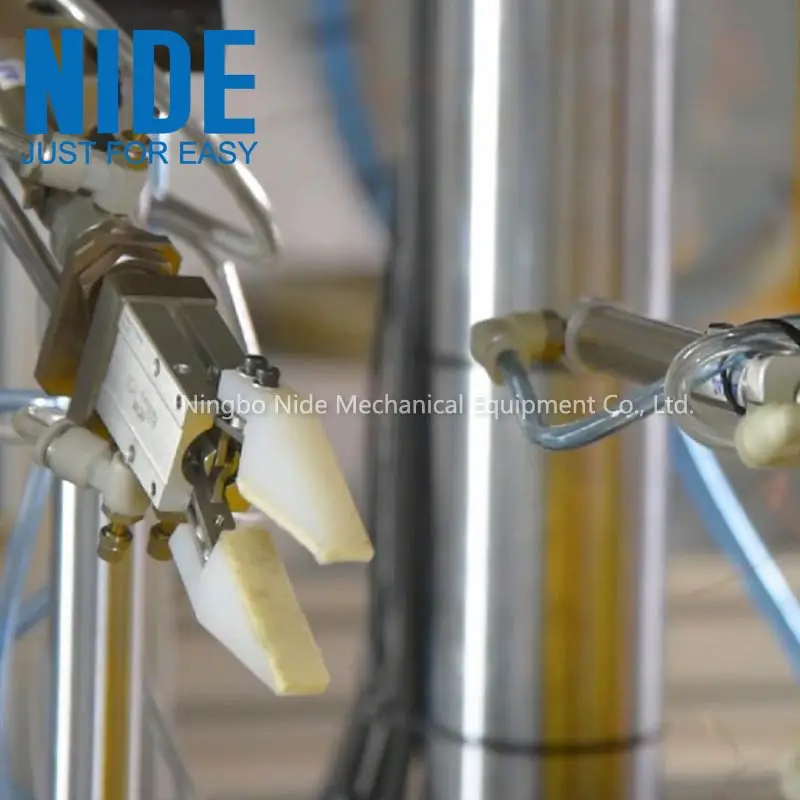

2. Winding process display




3. Coil insertion process display





Stator production


Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.


stator winding machine.jpg
