32X Увеличение инструмент автоматического определения уровня X3
- Category: Level Measuring Tools >>>
- Supplier: Changzhou Sanyong Building Material Co. Ltd.
Share on (1541175907):
Product Overview
Description
Product Description
Features:
* Improved wire-hung and air-damping compensator.
* Equipped with compensator locking system to avoid vibration and shock under transportation.
* Sealed structure for using in various weather condition.

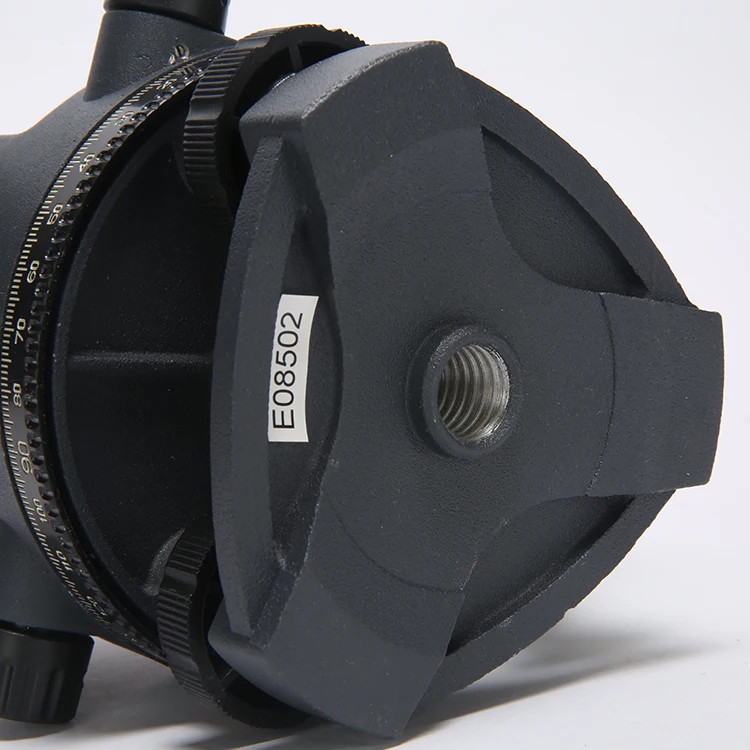

* 5/8"X11 threads to fit standard tripod, suitable for flat and dome head tripod.
* Equipped with compensator locking system to avoid vibration and shock under transportation.
* Sealed structure for using in various weather condition.
* 5/8"X11 threads to fit standard tripod, suitable for flat and dome head tripod.
Specification
Type | X2 | X3 | X4 | ||||
Parameters | |||||||
Standard deviation per kilometer double-run | 1.5mm | ||||||
Telescope imaging | Positive image | ||||||
Magnification | 32X | ||||||
Clear objective aperture | 36mm | ||||||
Field of view | 1°20' | ||||||
Shortest focusing distance | 0.4m | ||||||
Stadia multiplication constant | 100 | ||||||
Stadia adding constant | 0 | ||||||
Circular bubbke precision | 8'/2mm | ||||||

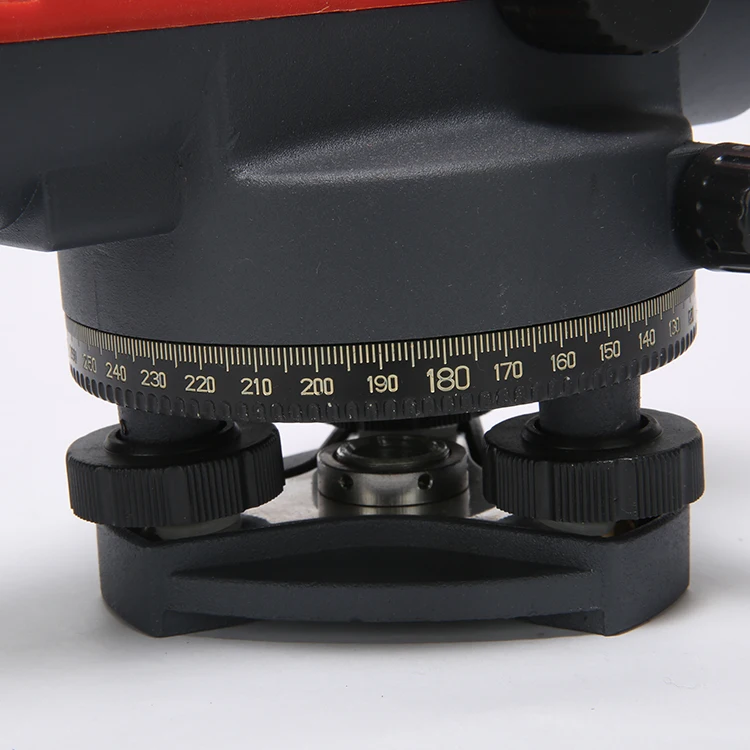

The division unit of dial | 1°or 1gon | ||||||
Working scoper for the equipment | ±15' | ||||||
Setting accurary | ±0.3" | ||||||
Screw thread connected to tripod | M16 or 5/8" | ||||||
Water proof | IP4 | ||||||
We Recommend
32X Magnification Auto Level Survey Instrument X3
US $50.00-$65.00

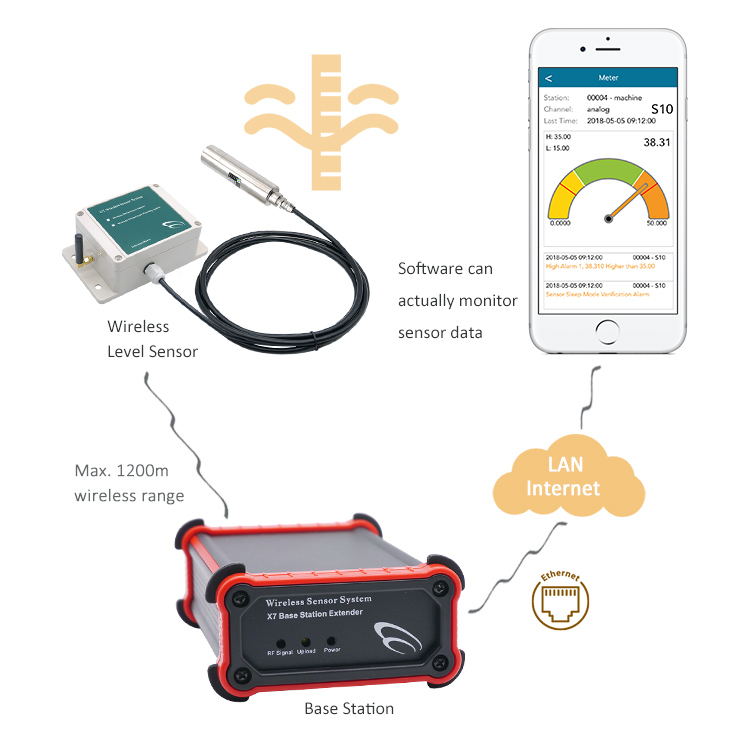

Water level sensor wireless GPRS, LoRa, NB-IoT
US $3.40-$3.88

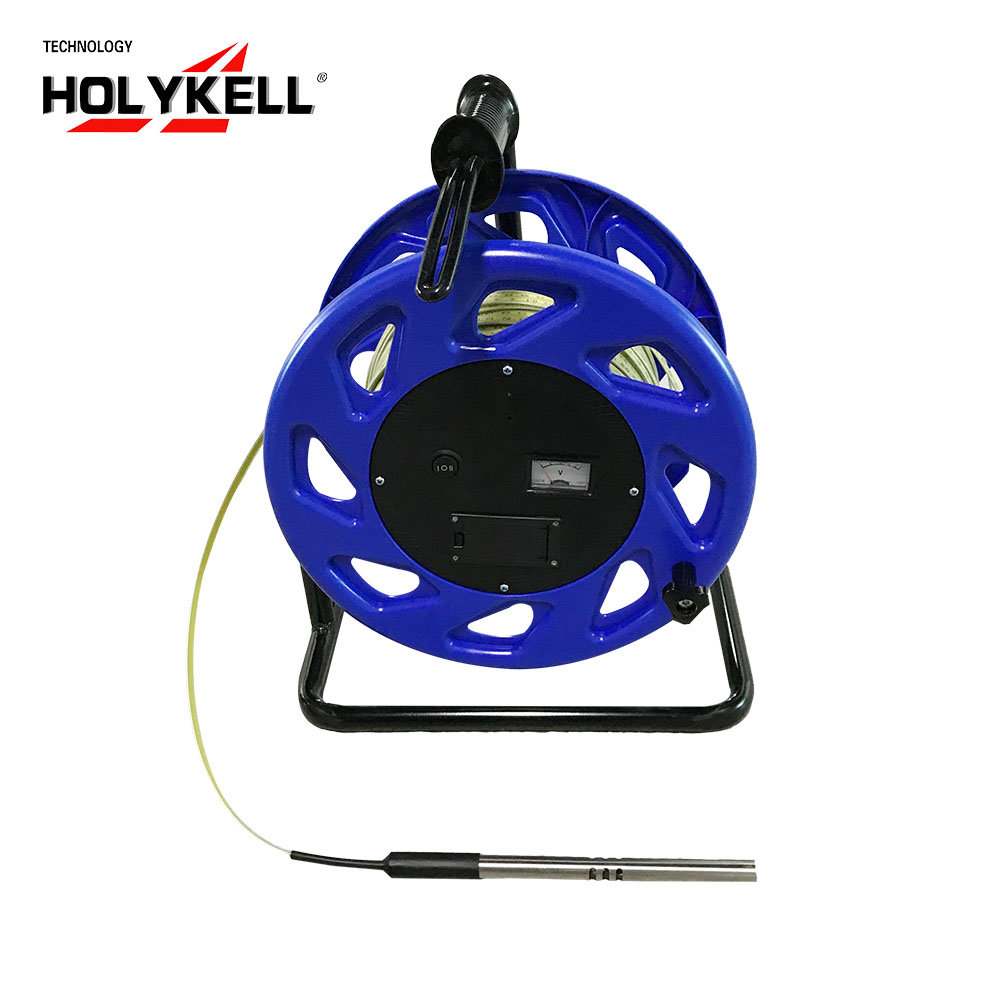

Holykell OEM Long Depth Measure Well Dipper Water Depth Meter
