Float Switch Stainless Steel liquid water level sensor horizontal Double Ball float switch, Vertical installation switch

Product Overview

Description

   1.Product attributes

NAME	Side Mounted Float Level Switch

Name: Double Float Switch
Point capacity: 50W
Resistive load: 107 times
Switching voltage: 220VAC/200DC
Working temperature: -10~120°C
Switching current: 0.5A
Insulation resistance: >10Ω
Contact impedance: <100m
Switch material: SUS304
Working pressure: <1.0MPA
Installation method: horizontal type

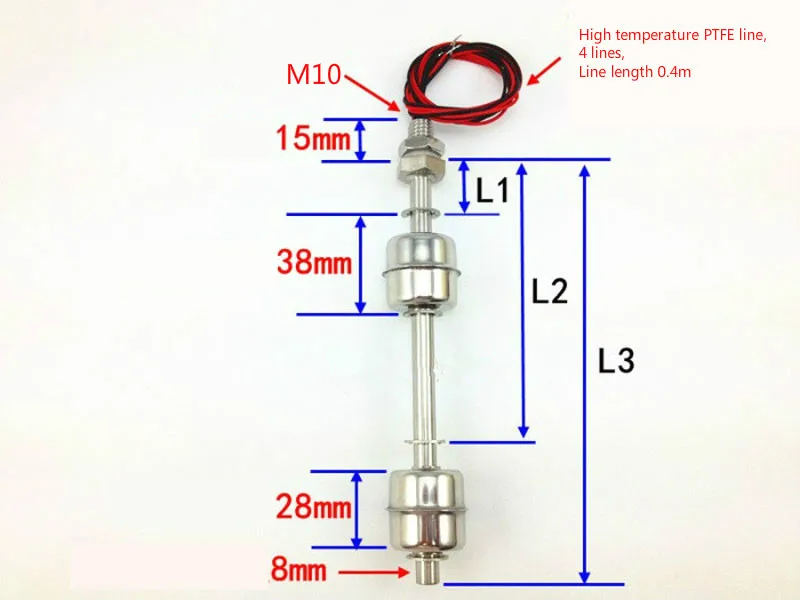

450mm L1=50mm L2=410mm L3=450mm Control Range 370mm
500mm L1=50mm L2=450mm L3=500mm Control Range 405mm
550mm L1=50mm L2=510mm L3=550mm Control Range 470mm
600mm L1=50mm L2=550mm L3=600mm Control Range 510mm

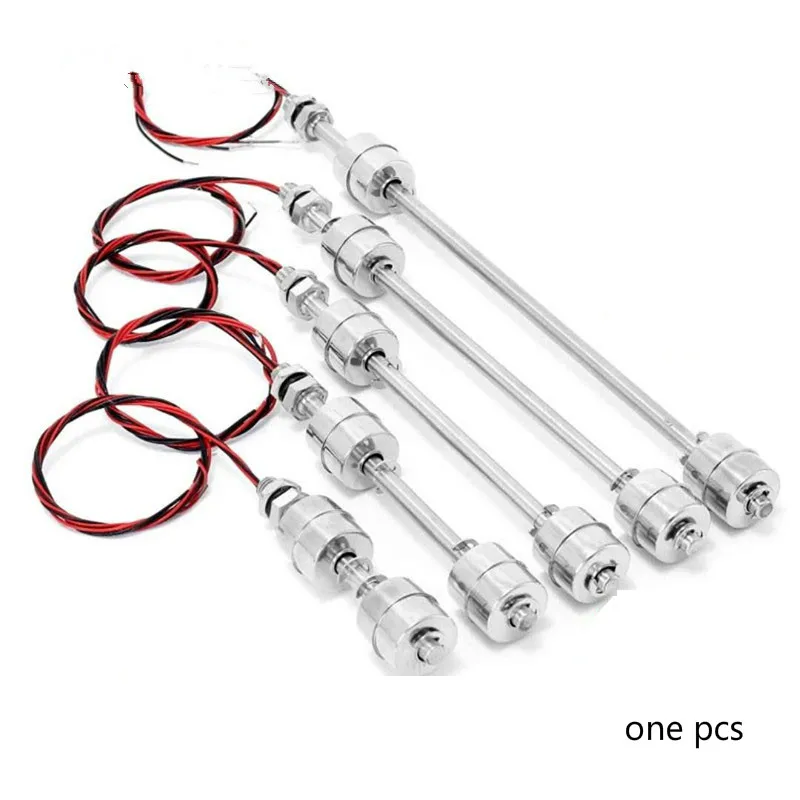

2.Product display
