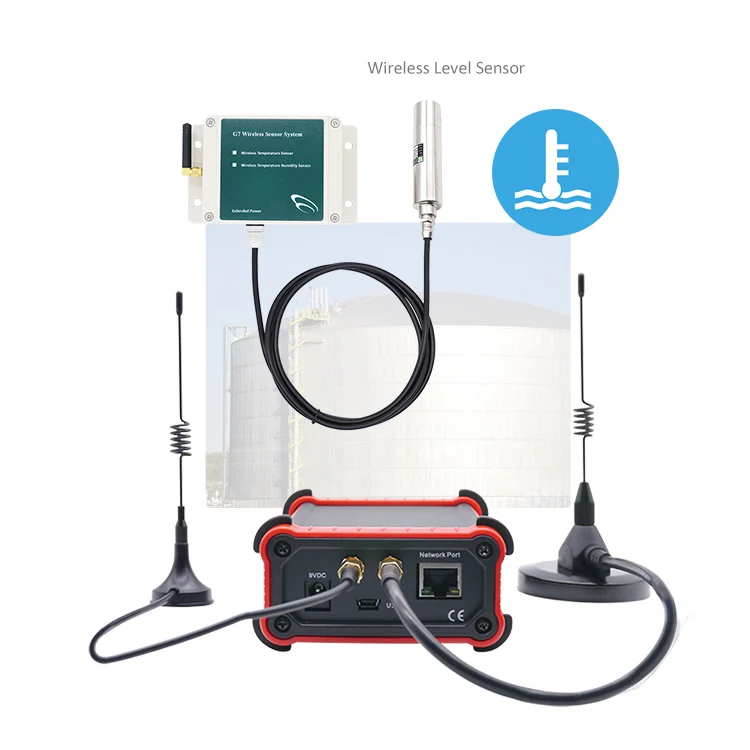

Wireless Remote Water Level Sensor level measuring instruments smart home water level





G7-AD Wireless Analog Sensor System



With G7 wireless analog sensor and Base Station Extender, you can start monitoring sensor measurement online remotely.



Wireless sensor G7 transmits measurement of any industrial analog sensor with 4-20mA/0-5VDC signal to Base Station via wireless signal. Base Station receives wireless data from sensors.  Extender receives wireless data from base stations and uploads to central server in interval via Modbus TCP protocol.



G7-Centre App receives data from Extender over Internet or LAN.

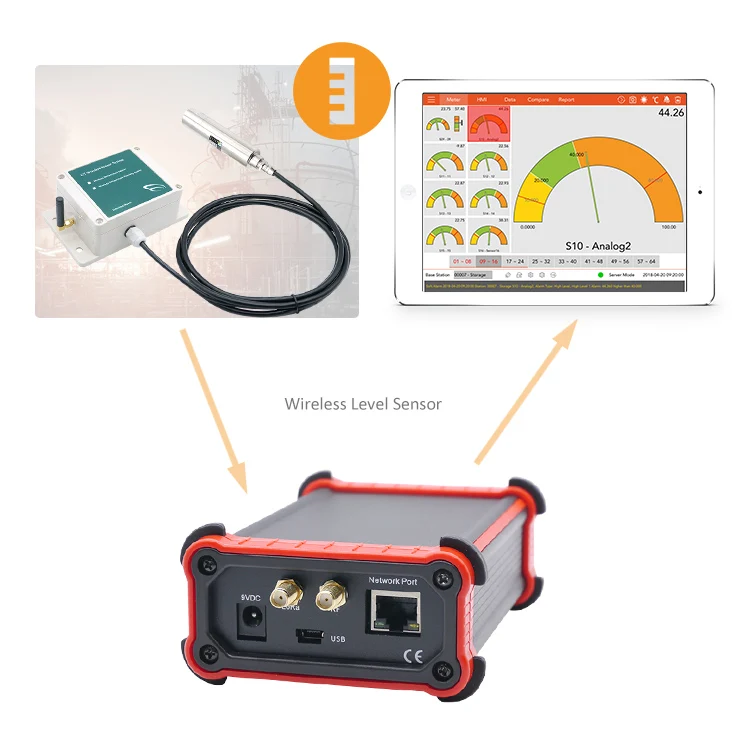

G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by high or low level of sensor reading e.g. air pressure, water level, load cell or CO2.























[Detail]

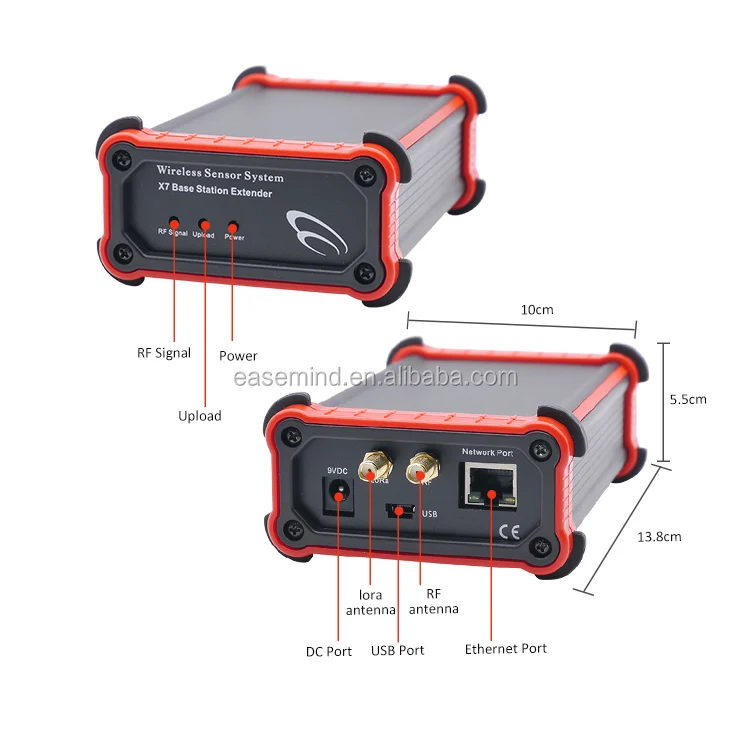

X7 Base Station Extender:

X7 extends the wireless distance up to 5km

creating the IoT platform of sensor data exchange

96 wireless sensors each station

5000 er extended LoRA wireless distance

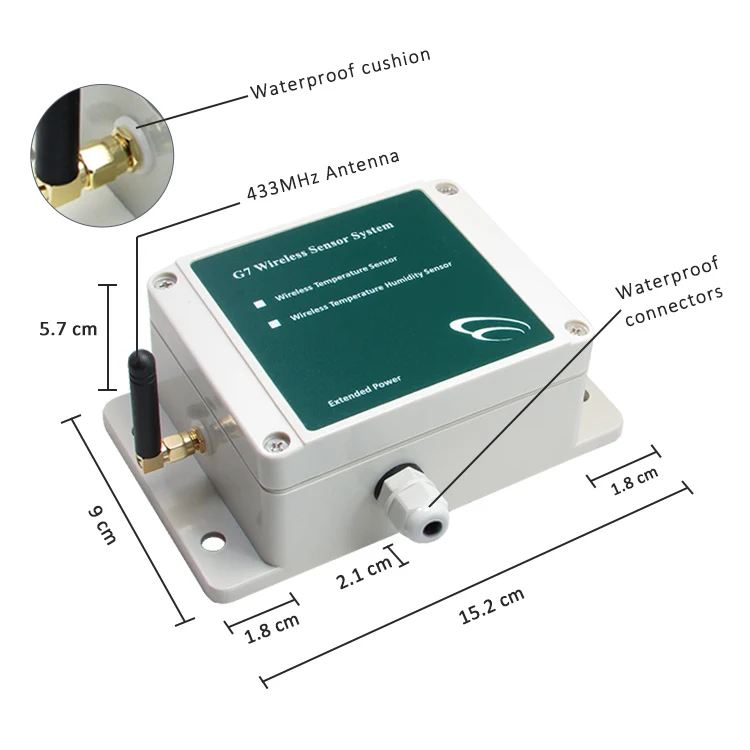

G7-AD Wireless Analog Sensor

supports analog sensors with 4-20mA or 0-5VDC input.



Low Power Design: Micro-controller supports sleep mode for years long operation in battery.

Internal Power Output: It provides on board voltage output 12 or 24VDC for external analog sensors in different applications e.g. soil humidity sensor for agriculture.

Warm Up Time: Stabilize external analog sensors reading before capturing data.

Total Solution: One base station will accept signal from all wireless sensors (temperature, humidity, analog sensors, digital alarm) together forming a total solution.

Sensors: It connects directly to any industrial sensors in the market. Wireless Load Cell, Wireless Pressure Sensor, Wireless Level Sensor, Wireless Weather Station, Wireless Wind Direction Speed Sensor, Wireless Analog Temperature Sensor, Wireless PM2 Air Quality Sensor







G7-AD	Wireless Analog Sensor
Analog Sensor:	4-20mA signal input
	0-5VDC signal input
Upload Interval	5s ~ 4 hours
Wireless Distance	1200 meter (unblock)
Sensor ID:	User programmable 5 digits
RF Wireless	433MHz (license free)
RF Power	< 20dBm
Operation Rating	80mA (data transmission)
Standby Rating:	~3.0uA (sleep mode)
Internal Power Output	12 or 24VDC for sensor
	with max. 40mA rating
Battery	3.6V, 14000mAh
Operation Period	> 5 years (upload: 30 min)
Extended Battery 14000mAh	~ 10 year (1hr upload)
Dimension:	115 x 90 x 55 mm





Base Station Extender
Station Mode	1200m wireless to sensors
Extender Mode	4000m wireless to station
Upload Interval	5s ~ 4 hours
Protocol:	TCP/IP Network
	TCP Modbus support
Network Port	10/100M Ethernet
	Fixed & Dynamic IP
Upload Central Server	Fixed IP & DDNS
Industrial Support	Modbus TCP protocol
RF Wireless	433MHz, 4.8Kbit/s
RF Address/Band	255/15
Operating Voltage	9V DC
Rating	< 1A
Operating Temperature	-15 ~ 75 °C
Dimension	110 x 95 x 45 mm







How to receive the wireless sensor data?

G7 Wireless Sensor sends real time data wirelessly through radio wave to the Base Station.



Base Station collects the measurement of its wireless sensors, and uploads to Extender with max.

1200m wireless distance.



Extender collects all sensors data from base stations wireless, and uploads in one packet to central

server via Ethernet port.

Each Extender supports max. 4 base stations or 96 wireless sensors.



X7 can be user programmed as [Base Station] or [Extender] by user using free bundled X7 Setup

Software.





[Free Software]

G7 Client Lite for Windows 10 (Desktop & Touchscreen), iPad, iPhone & Android Phone

Receives data from Base Station over LAN or Internet

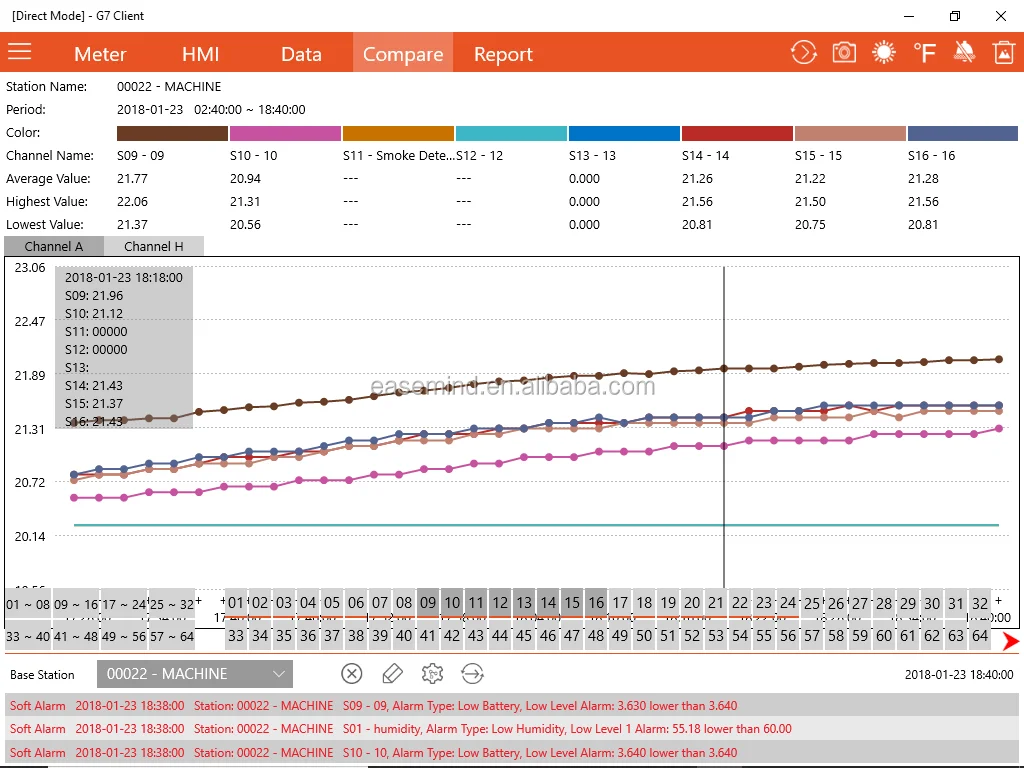

Displays both live, historical and statistical data in graphics

Data records are saved into local storage for comparison or report generation

Data can be exported as csv or SQLite for third party software data analysis

Dashboard display mode gives an overview of 64 sensors reading on one single screen



[INTEGRATION]

Support third party system integration:

1) TCP Modbus

² via industrial standard Modbus data registers

² TCP Modbus tool is bundled free

² Data can be accessed by other SCADA directly

2) API driver

² API dll for third party development

3) REST API

² Web Service API for third party web portal

4) Centre Software

² Data received and saved into text file

5) G7 Server (optional)

² Data received and saved into database





[Application]

Greenhouse - no cabling cost, real time tracking of temperature, humidity, CO2, other sensors

Farming - no cabling, easy installation up to 1200m wireless distance

Factory - support industrial sensors e.g. pt100 analog sensor for extreme range

Weight - wireless load cell or weight scale measurement for truck, poultry and storage tanks

Gas Refueling System - measuring the level or volume

Oil Tanks - real time monitoring of level or volume

Mobile Oil or Gas Tanks - no cable connection is needed from mobile tanks to volume tracking system

Multiple Tanks Monitoring System - one single software is capable of volume tracking > 500 tanks
