Product Overview

Description

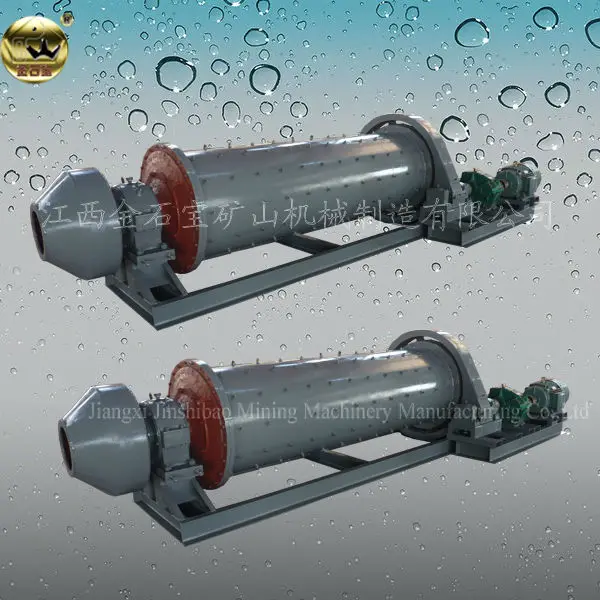

      Grate Ball Mill



  JINSHIBAO is a professional  Grate Ball Mill  manufacturer in China, welcome you visit our company to know more about us.



 The website :www.shakingtable.com.cn .

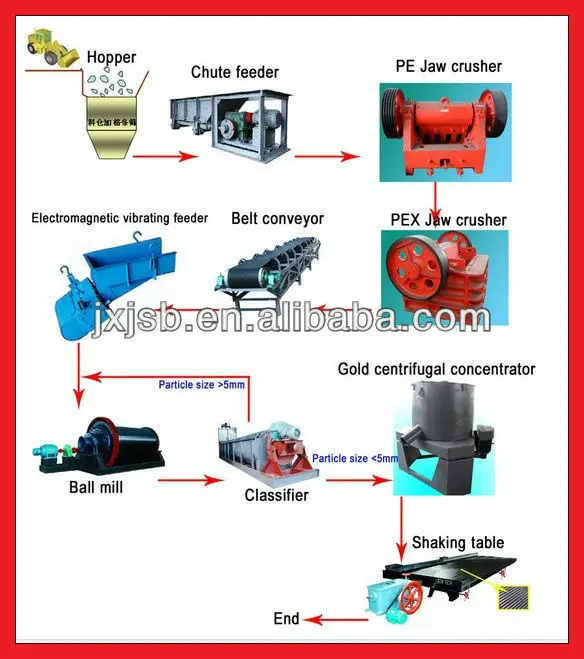

JINSHIBAO Company always design the process for our customer , from the first step to feed the material ,to get the concentrate at the final step as the below pictures.





The  Grate Ball Mill  used after the crusher , the proceed is Jaw Crusher- Gold Ball Mill- Feeder-Shaking Table-Gold Concentrator-Spiral Chute-Jigger-Flotation Machine-Gold Furnace , this process is fully separation design. Kindly send me the informations, will design the proceed for you all.



Other series products from Jinshibao Mining Company

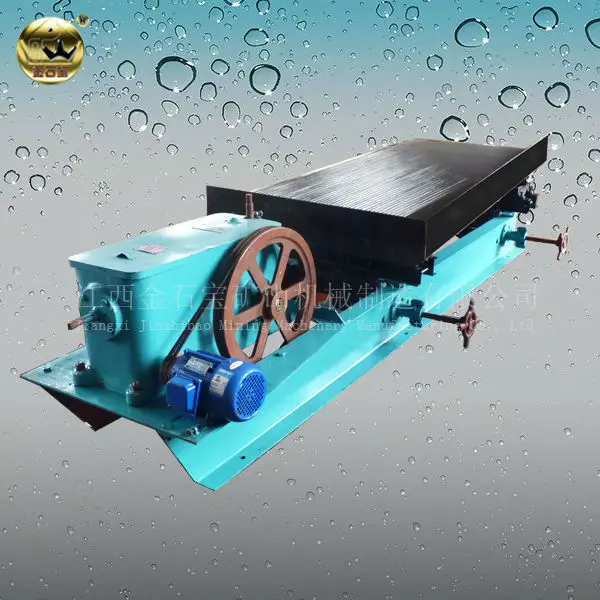

Shaking Table

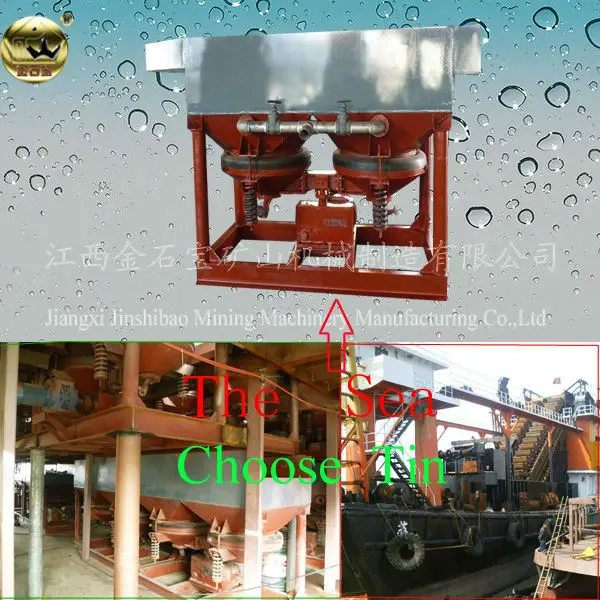

Jigger











JINSHIBAO COMPANY MANUFACTURE -    Grate Ball Mill





I.  Grate Ball Mill  Introduction



 Grate Ball Mill  applies to grind all kinds of ores and other materials, widely used in mine-selection, building materials and chemical industry, etc. it can be divided into dry and wet two grinding ways. According to the different ways of discharging, it can be divided into grid type and overflow type.



II.  Grate Ball Mill  Working principle



 Grate Ball Mill   is the horizontal tube rotating device, outer edge of the gear drive, two chambers, and lattice-type. By feeding device the materials evenly are fended into the first milling chamber through the hollow shaft. There are ladder lining plate or corrugated lining plate in the chamber, the mill containing different specifications steel-balls, the rotating of cylinder can make centrifugal force to the ball for a certain height of fall, they have a severe impact and abrasive effect on the materials. After coarse grinding in the first chamber, it will enter into the second chamber through single-layer partition plate, inner chamber is lined with plane liner which has steel-balls for further materials grinding. Powder discharged through the discharge grate plate to finish grinding operation.

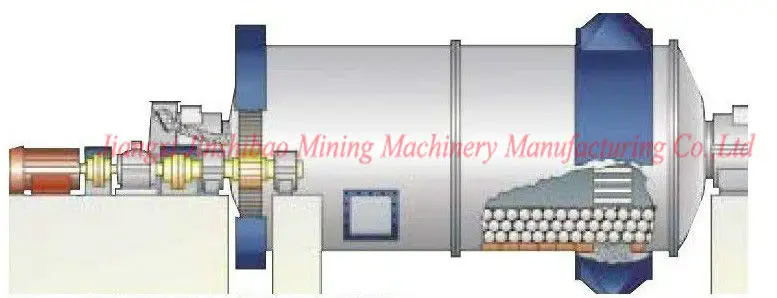

III.  Grate Ball Mill  Structure

 Grate Ball Mill   is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbling process and the drum is equipped with wear-resistant liner, which has good wear-resistance. Grinding mill is with stable and reliable working condition.



Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills to choose.

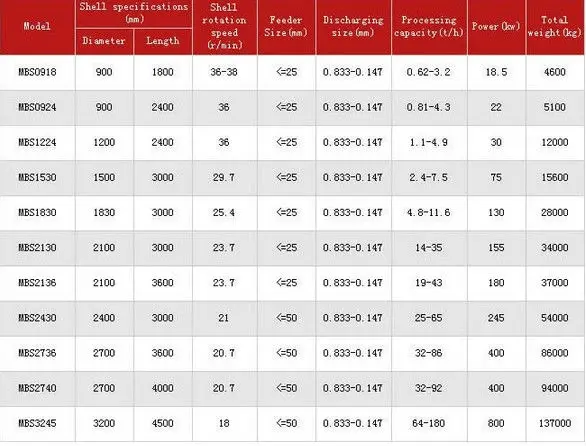

IV.  Grate Ball Mill  Specifications

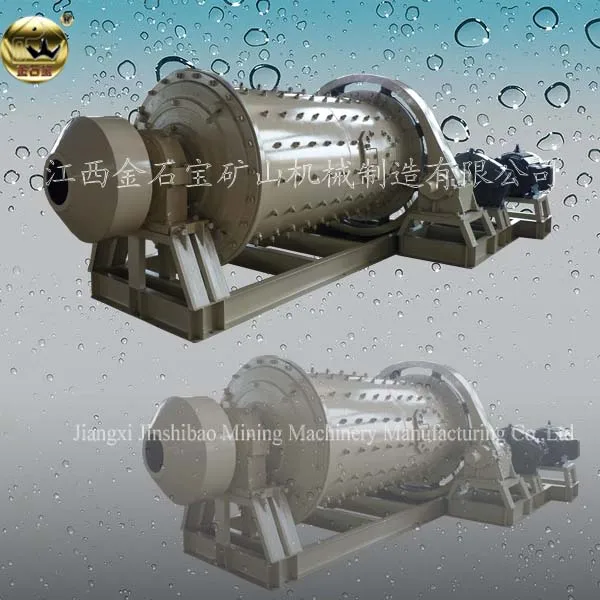

  V.  Grate Ball Mill  Pictures

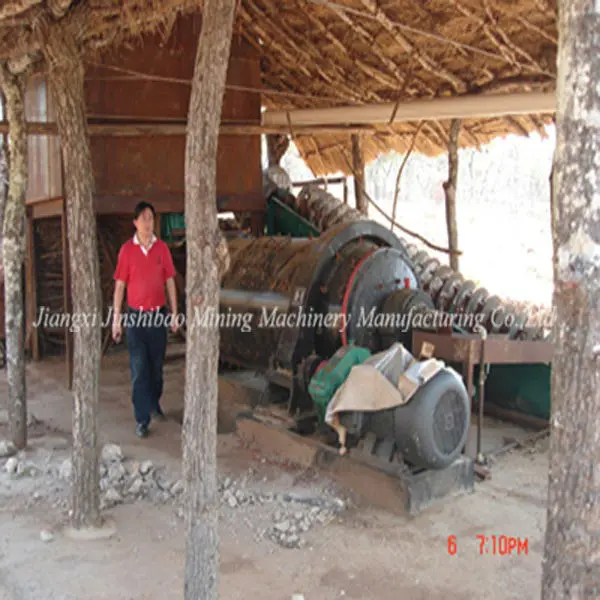

 Grate Ball Mill  Picture from Customer's Mining Site







Weclome to visiting our factory to check the  Grate Ball Mill  Or send to my email as follow information.



1.Capacity of project?



2.Particle size of original ore?



3.What kind of mineral ores ?



4.Destination port ,would like to send you CIF price.



5.Kindly let me know the electric power of your country , here we are 380V 50HZ 3PHASE



Will suggest you the best type and good machines for respect customers.







Why choose our company machine?







1. We are factory (NOT Dealer)







All machinery from Jiangxi Jinshibao Mining Machinery Manufactory are made by ourselves, No trade company make



Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory).



So please buy from factory.







2. We will do our best to satisfy every customer's needs



Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.





3. Training & service





Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.



4. If you are new for this business, I will help you





Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on







5. We will recommend a suitable type for you and send you a best quotation





 The payment and shipping way of   Grate Ball Mill







The  Grate Ball Mill  Features and Benefits





1.Double-row self-aligning spherical roller bearing replaces babbit-lined bearing. Friction resistance is greatly lowered down, easy to start and 20-30% of energy is saved.



2.Grooved and ringed liner increases contacting surface between balls and ores, improving milling effect and saving energy through its lifting effect to the materials.



3.All-in-one frame is used in middle-sized or small-sized machinery, facilitating engineering construction and equipment installation.



4.Large discharging outlet and high capacity,discharge coarse particles,usually used in first stage milling.



5.It can be used for grinding particles in the process of metal mineral resouces, such as gold, silver, iron, copper, lead, zinc etc., and non-metal mineral resources.
