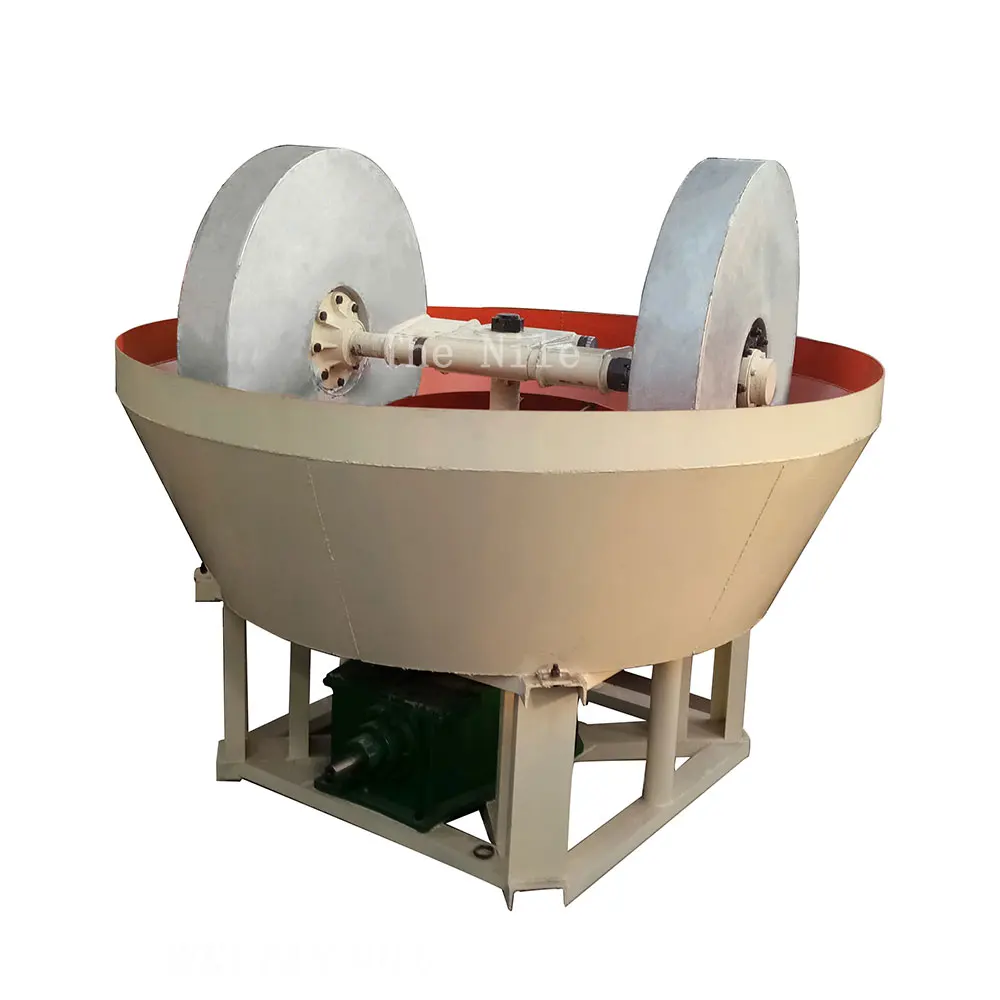

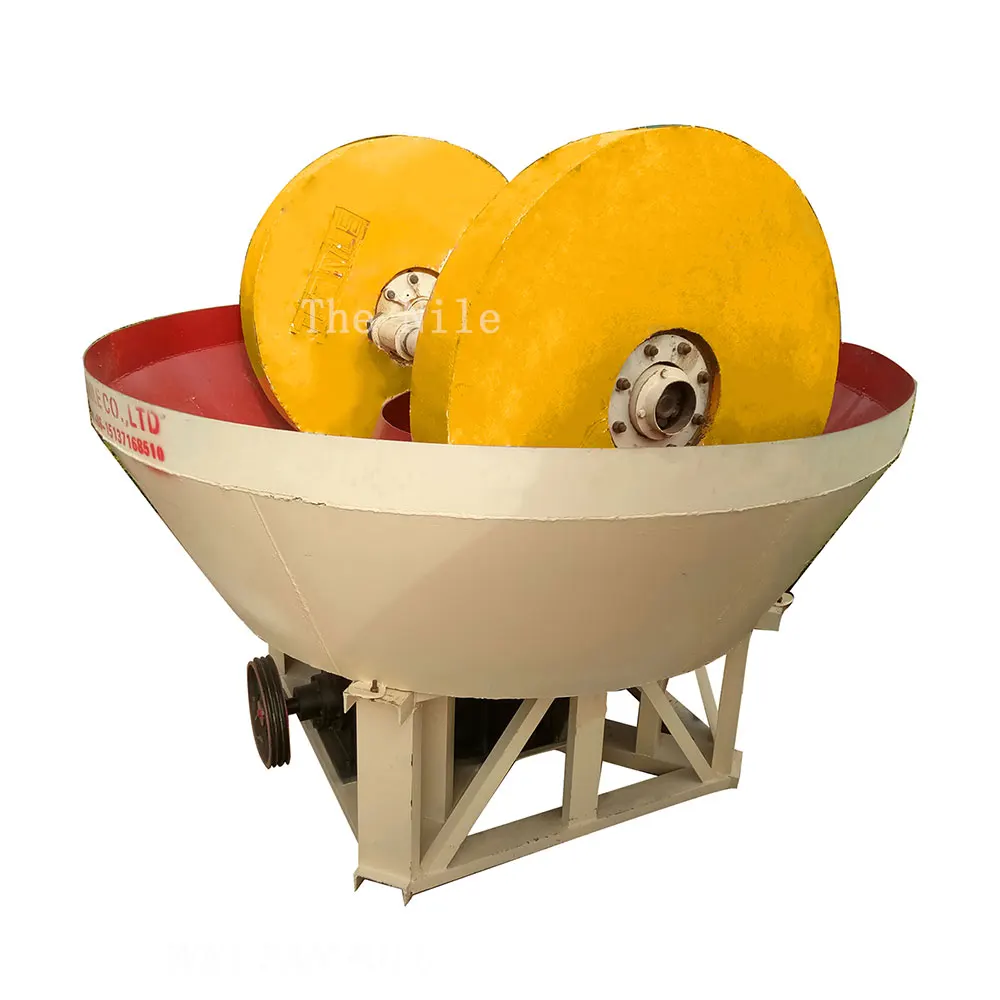

Gold Grinding Machine Wet Pan Mill For Sale In South Africa



Wet pan mill is a modernized grinding machine, commonly used in the small and medium size concentrate factory. It is widely applied to the grinding and benefication of all kinds of metal minerals, non-metal minerals, rare metal and other materials. Such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and so on.






Model

Feed Size

(mm)

Speed

(r/min)

Motor Power

(kw)

Weight

(t)

Capacity

(t/h)

Specification

(mm)

1600A <25 20-22 6-30 14.5 4-5 1600*400*200*500±20
1500A 20-22 6-22 13.3 3-4 1500*350*200*460±20
1400A 16-18 6-18.5 8.5 2-3 1400*250*150*350±20
1300A 16-18 6-15 7.5 1.5-2

1300*250*150*350±20

1200A 17-19 6-7.5 5.5 1-1.5 1200*220*80*270±20
1100A 17-19 6-7.5 5 0.5-1 1100*200*80*250±20









Main features:

1. Professionally-designed, thus its technical data is reasonable.
2.Short grinding and mixing cycle, high efficiency.
3.Low noise and low consumption. The materials can be grinded and mixed uniformly.
4.Compact structure, easy to operate and maintenance.









Wet pan mill grinds ores by wheel driving force. Firstly, the power is transferred from the motor to the reducer, then to the horizontal shaft, and finally to the grinding wheel; the wheels then rotate anticlockwise.The wheels can revolve around the vertical shaft of the pan mill, and at the same time, it can revolve on its own axis, while the grinding base will remain still. The ores are pressed, rubbed and grinded repeatedly.
