Share on (1600052904670):


Price:5 000,00 $

Quantity:


Product Overview

Description



Screw Making Machine Prices Automatic/Machine For Producing Screws


Product Description

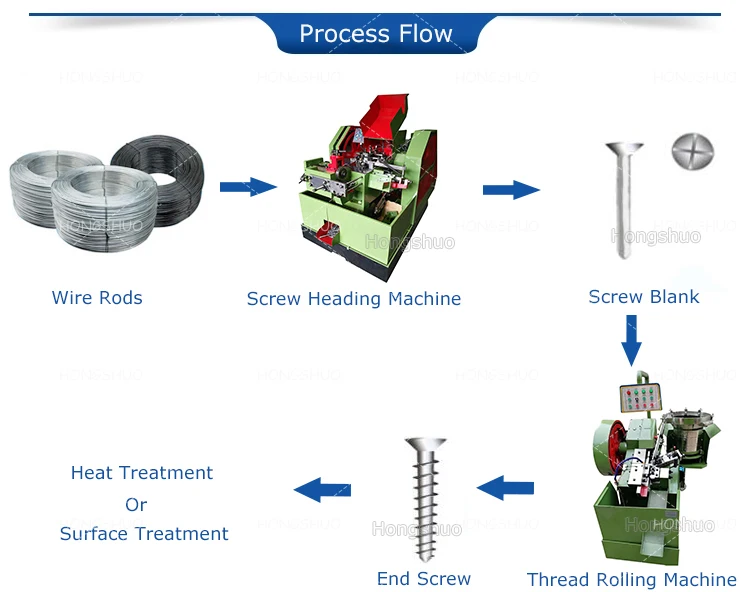

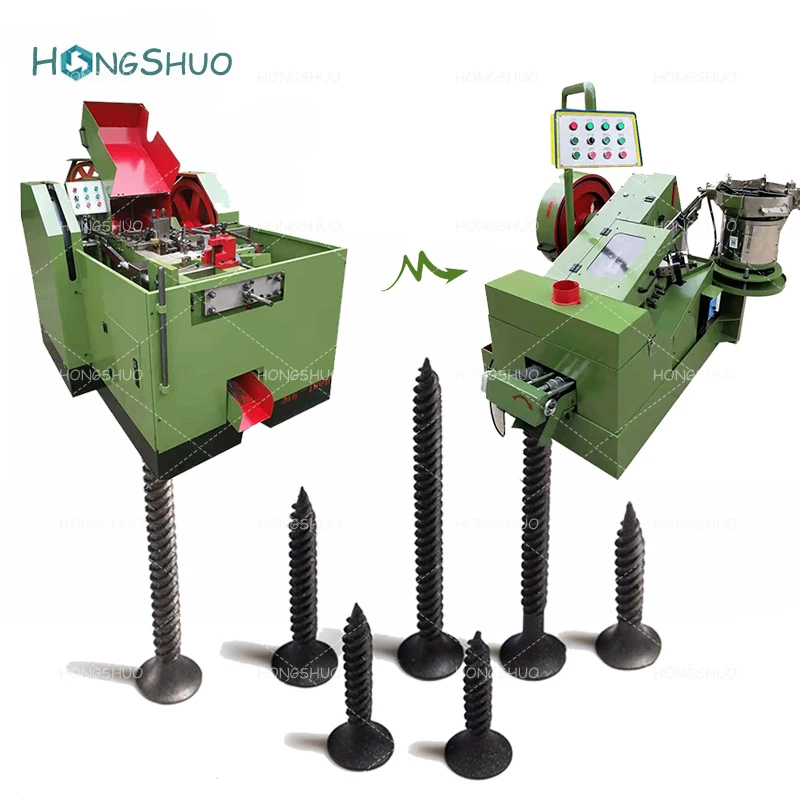

Wire Rods--Screw Making Machines--Thread Rolling Machines--Finished Screws.




Photos of Machines

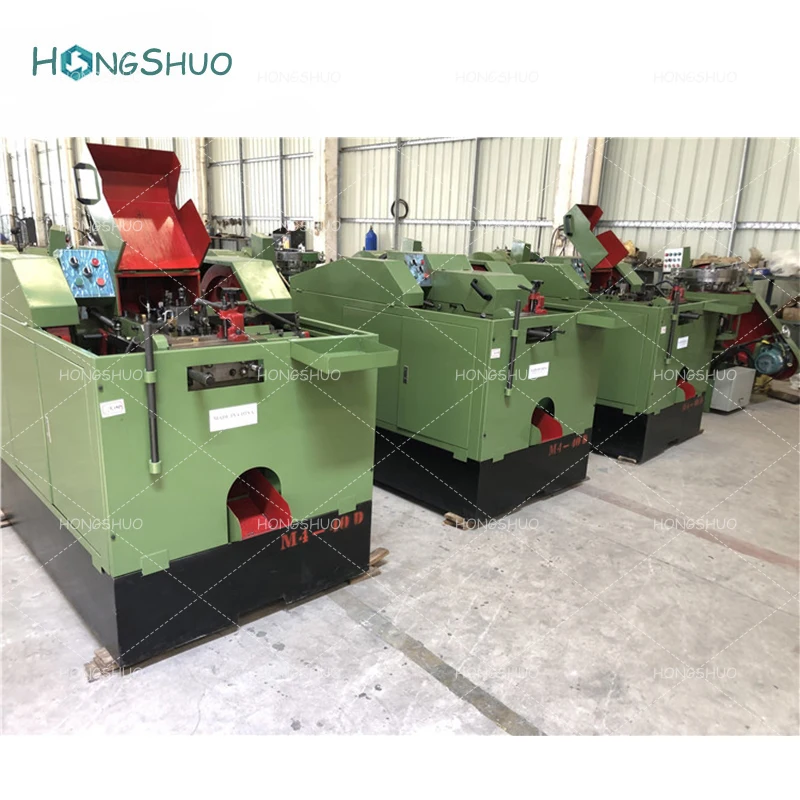

Step 1: Screw Making Machines

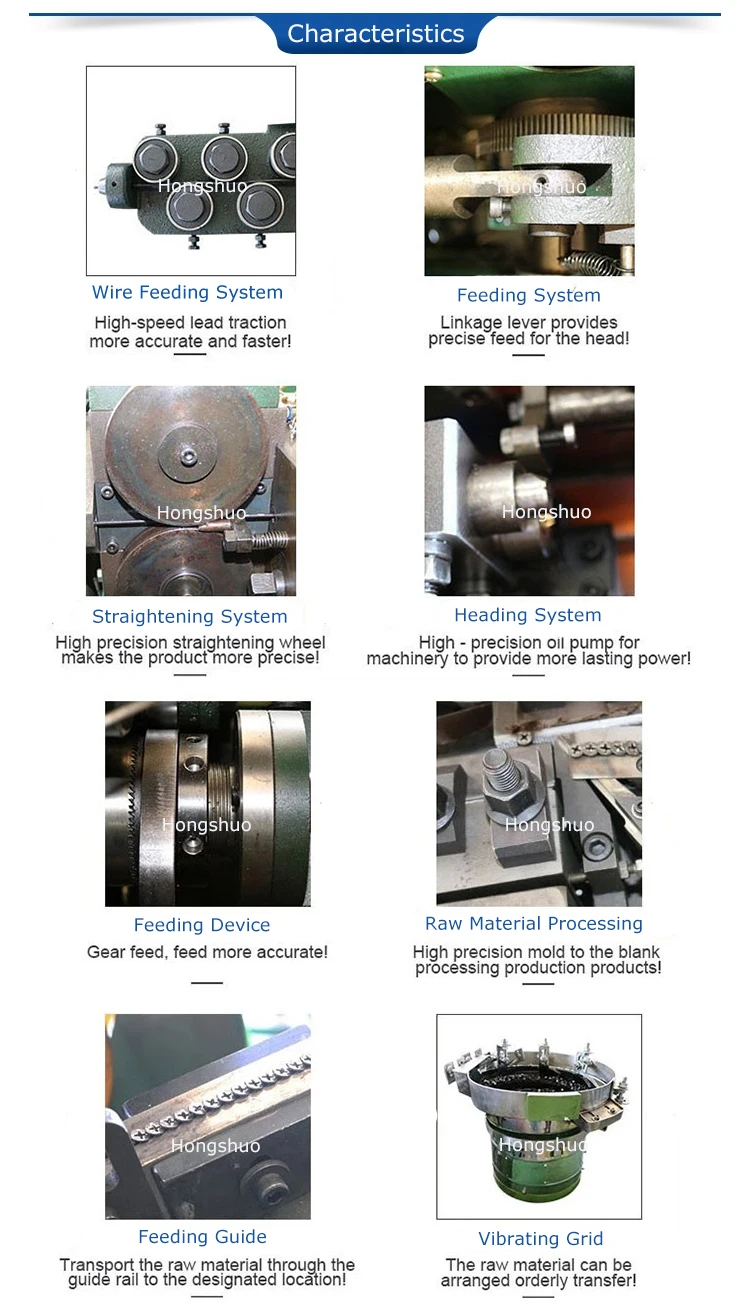

1. Wire feeding system: High speed lead traction, more accurate and much faster
2. Feeding system: Linkage lever leads to precise feed for the head

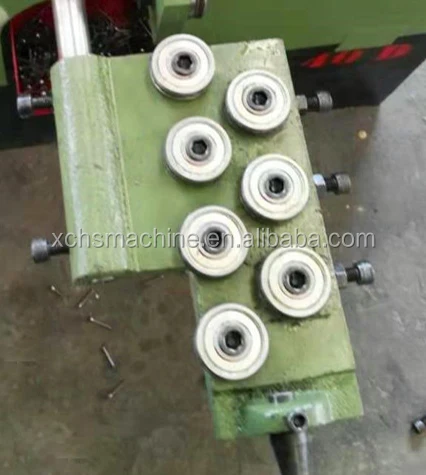

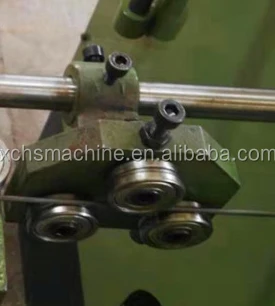

3. Straightening system: High precision straightening wheel makes the product more precise

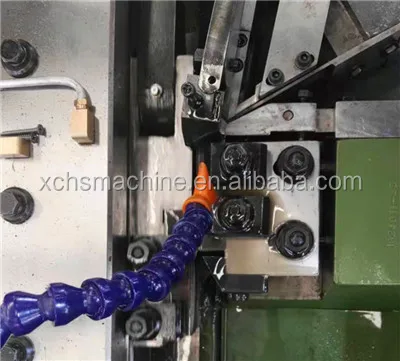

4.Heading system: High precision oil pump for machinery provide more lasting power



Model
Max. Screw Dia (mm)
Max. Screw length (mm)
Capacity
(pcs/min)
Motor
(kw)
Weight
(Ton)
Overall size (m)
M3-18A/B
3
18
160-180
0.75/0.37
0.6
1.3*0.75*0.9
M3-28A/B
3
28
160-180
0.75/0.37
0.6
1.3*0.75*0.9
M4-28B
4
28
120-160
1.5/0.37
0.97
1.5*0.9*0.9
M4-28D
4.5
28
180-200
1.5/0.37
1.2
1.6*1*1.2
M4-40B
4
40
120-150
1.5/0.37
0.97
1.5*0.9*1
M4-40D
4.5
40
180-200
1.5/0.37
1.2
1.6*1.1*1.1
M5-40B
6
40
120-150
2.2/0.37
1.8
1.8*1.1*1.1
M5-60B
6
60
110-140
2.2/0.37
1.8
1.8*1.1*1.1
M5-80B
6
80
80-100
2.2/0.37
1.9
2*1.1*1.2
M5-120B
6
120
50-70
3.6/0.37
2.3
2.8*1.3*1.3
M6-60B
8
60
80-110
4/0.37
2.8
2.3*1.3*1.3
M6-100B
8
100
60-90
4/0.37
2.7
2.3*1.3*1.3
M6-120B
8
120
60-70
4/0.37
3
2.4*1.3*1.4
M6-170B
8
170
40-70
4/0.37
3.7
3*1.3*1.5
M6-200B
8
200
40-55
4/0.37
3.7
3*1.3*1.5

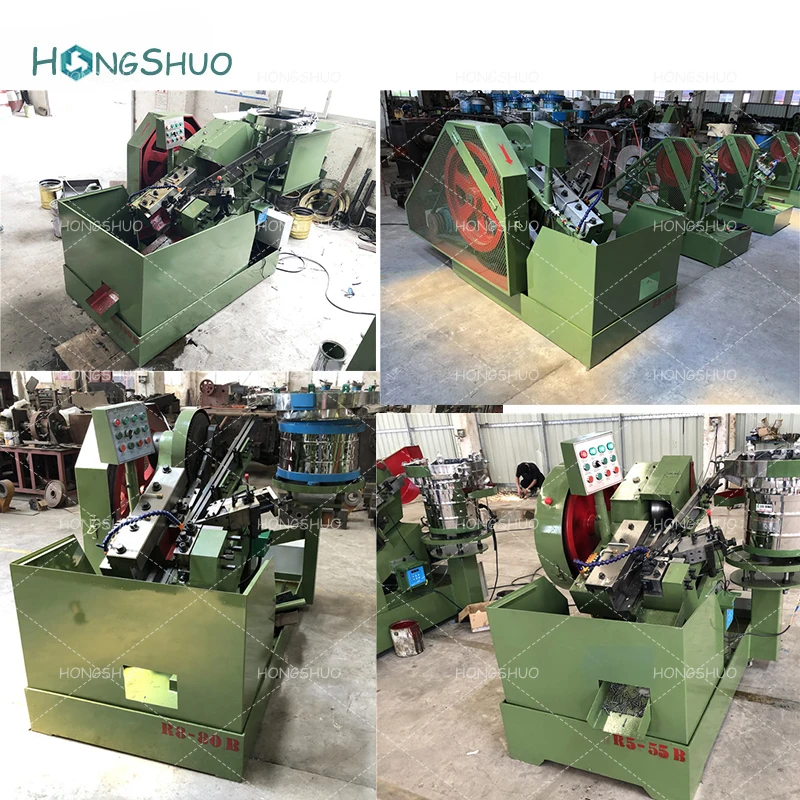

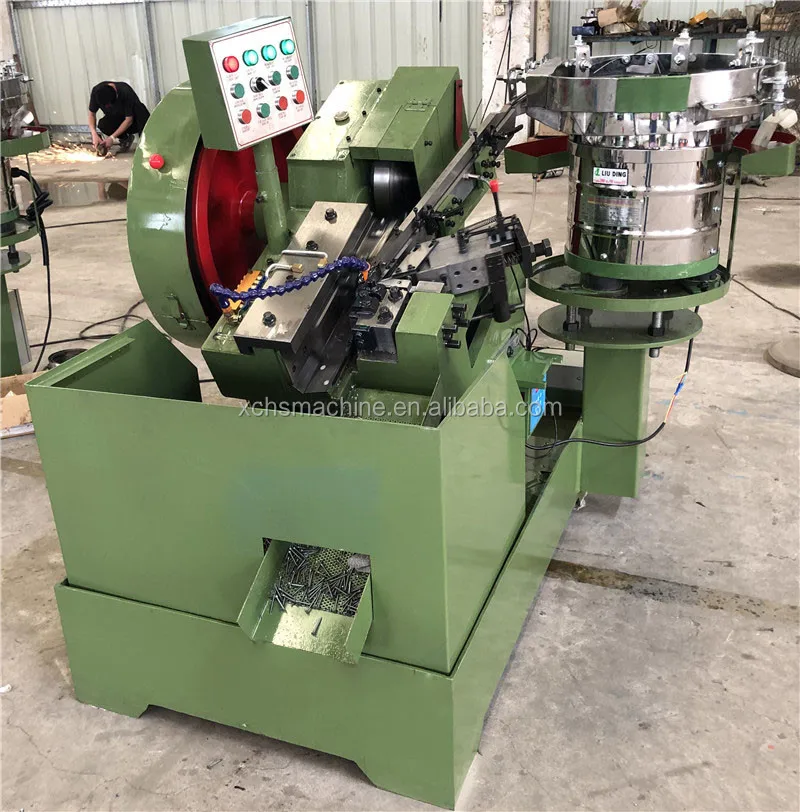

Step 2: Thread Rolling Machines

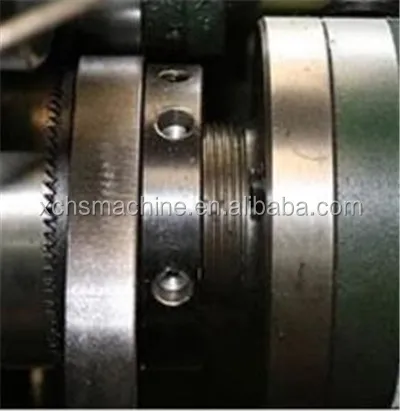

1. Feeding device : Gear feed, more accurate
2. Raw material processing: High precision mold for the screw blank processing

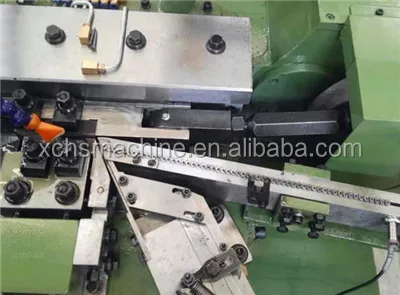

3. Feeding guide: Transport the screw blanks through the guide rail to the designed location

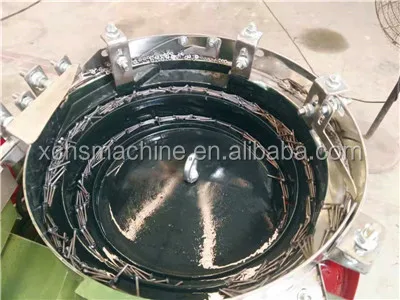

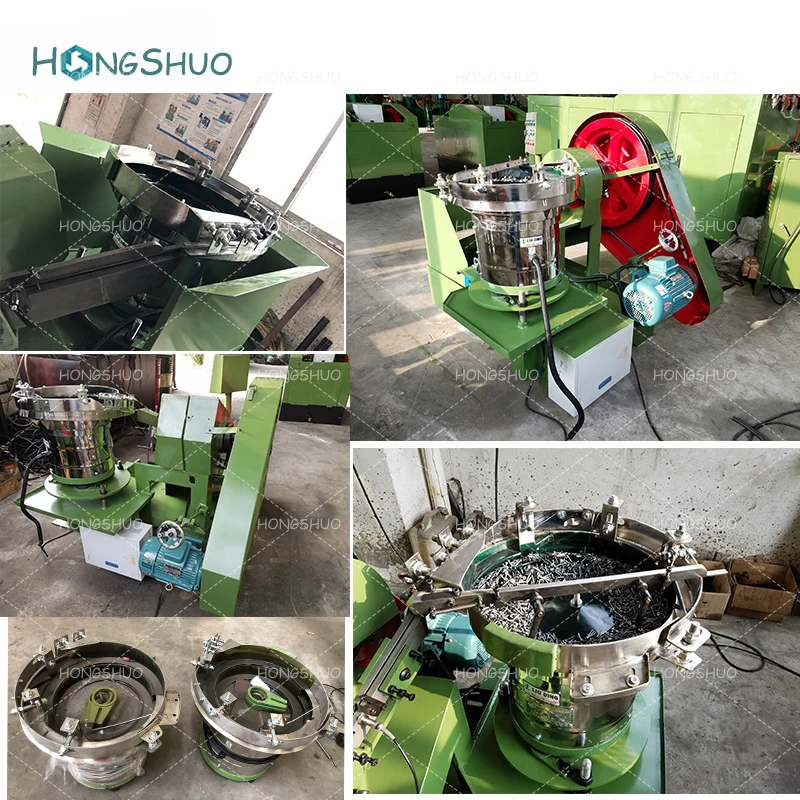

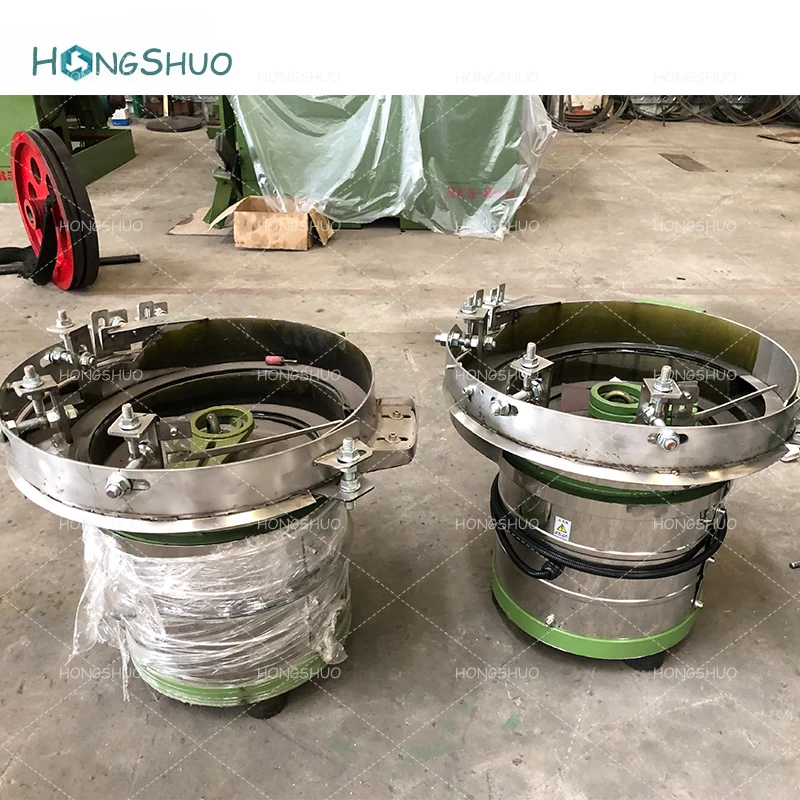

4. Vibrating disc: The screw blanks can be transfered in orderly queue.


Model
Max. Screw Dia (mm)
Max. Screw length (mm)
Motor
(kw)
Capacity
(pcs/min)
Weight
(Ton)
Overall size (m)
R3-20A
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
R3-20B
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
R4-25A
M4
25
1.5
320
0.45
1.3*0.63*1.32
R4-25B
M4
25
1.5
320
0.45
1.3*0.63*1.32
R4-40A
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
R4-40B
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
R5-55B
M5
55
3+0.37
160
1.2
1.6*1.35*1.7
R5-65A
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
R5-65B
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
R6-60A
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
R6-60B
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
R6-100B
M6
100
5.5+0.37
110
1.9
2.7*1.3*1.3
R8-80B
M8
80
5.5/0.37
110
1.8
2.1*1.55*1.3
R8-100B
M8
100
7.5+0.37
100
2.1
2.7*1.7*1.3
R8-120B
M8
120
5.5
100
2.1
2.4*1.8*1.4
R10-120B
M10
120
7.5
80
1.8
2.35*1.95*1.4
R12-120B
M12
120
11
60
3
2.45*2*1.45
R12-160B
M12
160
13
60
3
2.45*2*1.45
R12-220B
M12
220
15
50
3.5
2.5*2*1.45
R16-120B
M16
120
15
50
3.8
2.5*2.1*1.45
R16-160B
M16
160
15
50
4
2.5*2.1*1.45
R16-220B
M16
220
15
45
4.8
3.7*1.9*1.7


Product Details










Contact Us




FAQ


--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer.
--2--Q: How can i find suitable screw making machine ?
A: Please tell us the two factors, SIZE (diameter and length) & TYPE of screw you want to make, we will customize expert solution of screw making line for you.
--3--Q: Can i use one machine to make screws?
A: No, at least two machines. The cold heading machine to make the screw blank, the thread rolling machine to thread.
--4--Q: Can i make different size and type of screws by one machine?
A: Yes, it just need to change the mould.
--5--Q: What’s the material waste during the production for screws?
A: The wastage is less than 3%, one ton wire can make about 970kg nails.
--6--Q: What’s the guarantee of the machine?
A: We will provide 2 years warranty. 100% responsible within 24hrs timely response.
--7--Q: How long is your delivery time?
A: Generally 20 days if in stock for screw making machines.
--8--Q: How to pack the machines?
A: For the packaging, usually use the export standard wooden box or whole container.
--9--Q: Can i visit your factory ?
A: Yes, welcome to inspect the quality and accept training for machines at site.
